Additional information
Brand | Dwyer |
---|---|
MPN | 2010 |

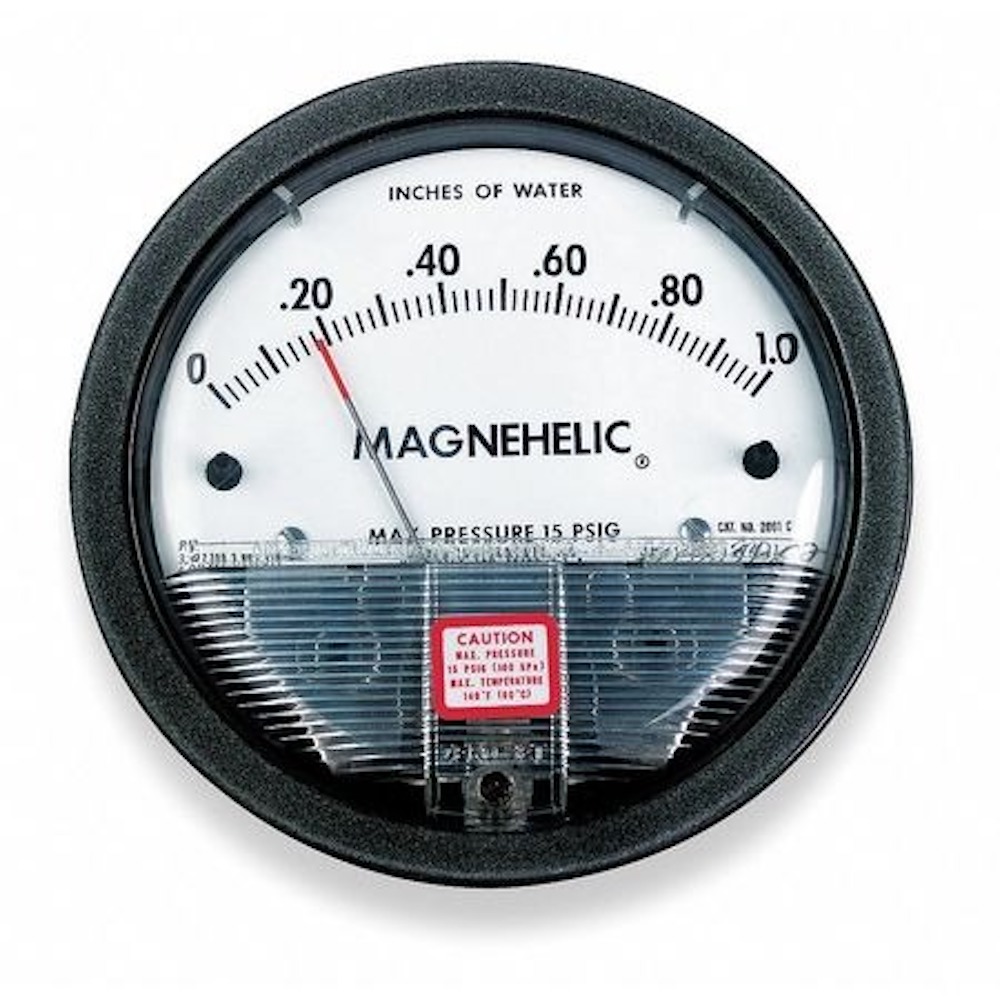

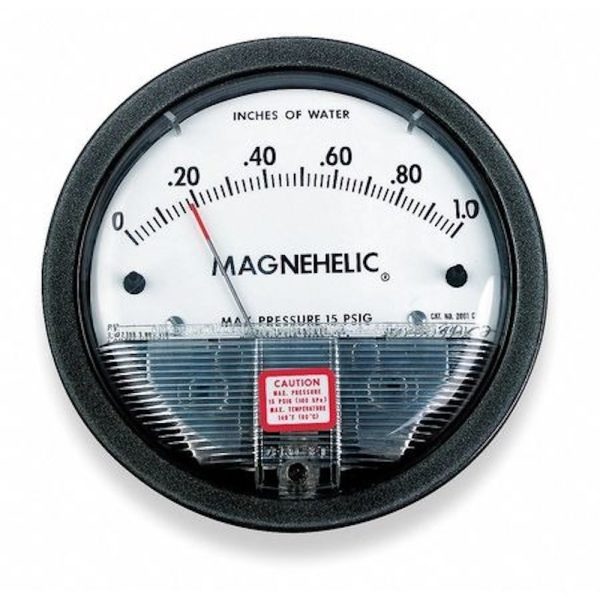

Model | Differential Pressure Gauge |
Series | 2000 Magnehelic |
Compatible Process Media | Cleanroom |
Pressure Range | 0 to 10 in wc |
Accuracy | ±2.0% |
Nominal Dial Size | 4" |
IP/NEMA Rating | IP67 |
Maximum Working Static Pressure | 80 psig |
Housing Material | Die Cast Aluminum |
Application | Clean Rooms; Fan Pressure Indication; Filtration Monitoring; Flow Measurement; HVAC/R; Vacuum Applications |
Sensor Type | Diaphragm |
Process Connection Location | Dual Side or Back |
Process Connection Size | 1/8" NPT |
Sensor Material | Silicone Rubber |
Standards | EU Directive 2011/65/EU (RoHS II) |
Mounting Type | Flush-Mount |
Accuracy Details | ±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C). |
Includes | Instructions; Three Mounting Adapters with Screws; Two 1/8 in NPT Plugs; Two 1/8 in NPT to 3/16 in ID Rubber Tubing Adapters |
