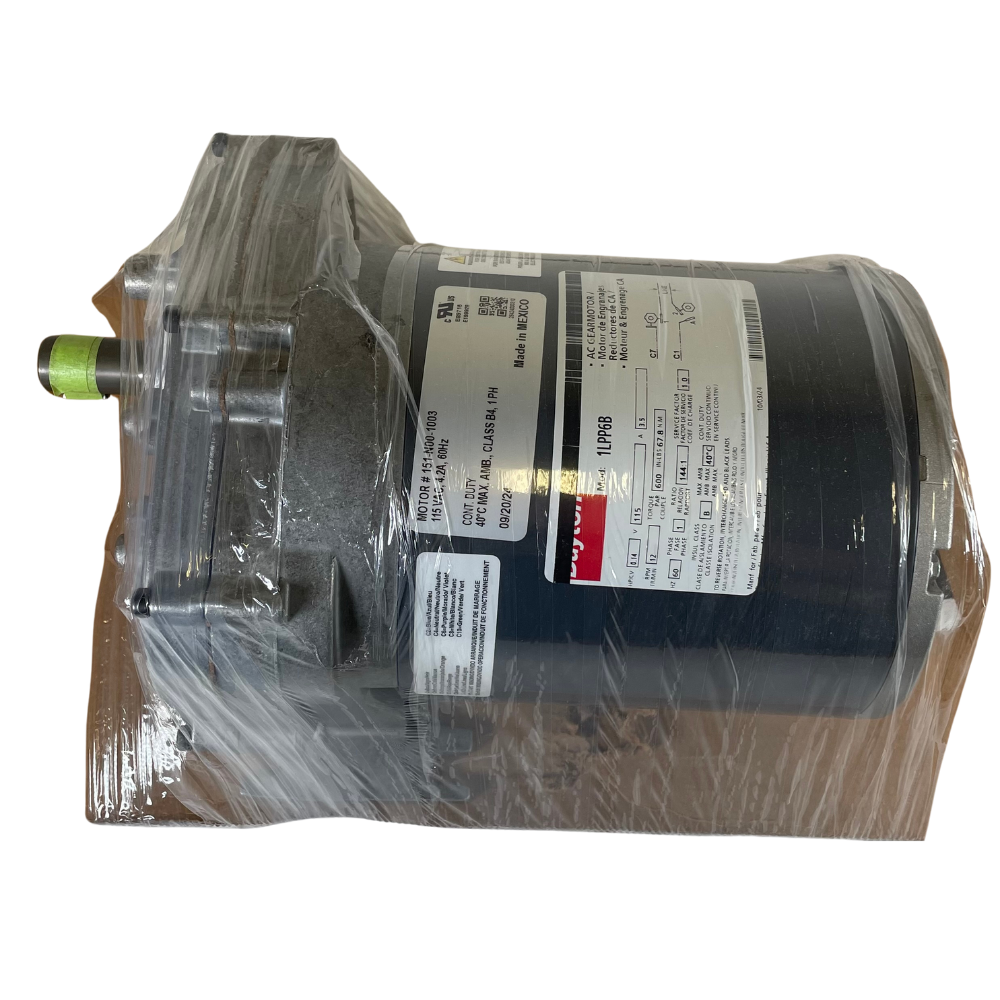

Name: Dayton 1LPP6 115V 12 RPM 0.143HP Open Dripproof Parallel AC Gearmotor
SKU: 6232s72C
Availability: InStock

Additional information

Brand	Dayton
MPN	1LPP6
Model	AC Gearmotor
Nameplate Speed	12 RPM
Input Horsepower	0.143HP
Overhung Load Capacity	300 ft-lb
Phase	Single
Operating Voltage	115V AC
Full Load Current	3.5A
Rotation	CW/CCW
Base to Center of Shaft	3"
Shaft Orientation	Parallel
Number of Output Shafts	1
Motor Type	Split-Phase
Motor Enclosure	Open Dripproof
Mounting Orientation	Any Angle
Motor Duty Class	Continuous
Thermal Protection	None
Motor Insulation Class	B
Maximum Ambient Temperature	104 °F
Gear Ratio	144:1
Gear Type	Helical (1st Stage); Spur (Subsequent Stages)
AGMA Gear Class	Class 9
Gear Material	Phenolic; Steel
Output Shaft Diameter	3/4"
Output Shaft Length	1-1/2"
Keyway Type	Woodruff
Keyway Width	3/16"
Keyway Depth	5/8"
Bearing Type	Ball on Motor; Porous Bronze Sleeve on Case
Seal Type	Lip Type on Input and Output Shaft
Lubrication	Grease Filled
Housing Material	Die Cast Zinc
Housing Material Finish	Motor painted, gearcase unpainted
Mount Type	Any Position
Mount Hole Center-to-Center Width	7.13"
Mount Hole Center-to-Center Length	2.38"
Length Less Shaft	9.28"
Overall Width	8.13"
Overall Height	6"
Standards	C-UL Recognized; UL Recognized
Frequency	60 Hz

Description

Dayton 1LPP6 115V 12 RPM 0.143HP Open Dripproof Parallel AC Gearmotor
