Additional information
| Brand | Harrington |
|---|---|
| MPN | CF010 |

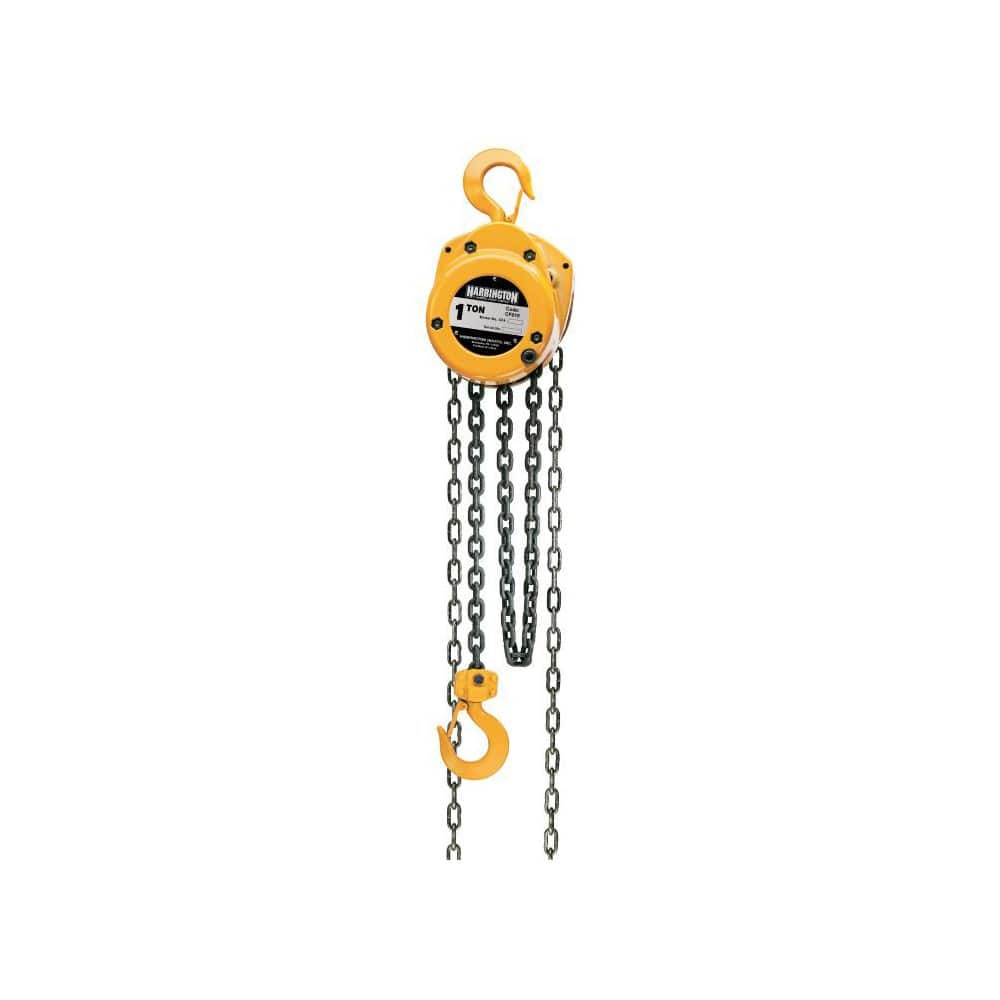

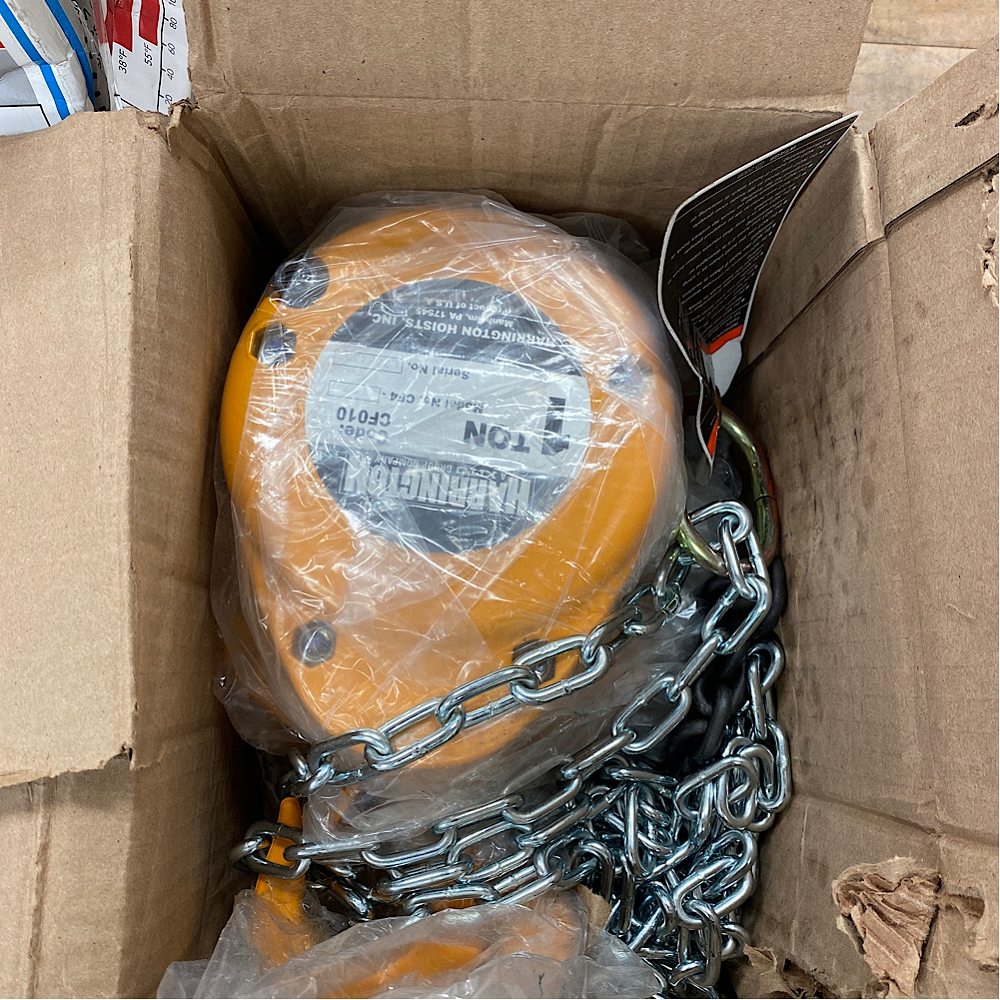

| Model | Chain Hoist |
| Hook Opening | 1-1/8 in |
| Capacity | 1-Ton |
| Lifting Method | Manual |
| Headroom | 14-19/32 in |
| Pull Force | 72 lbs. |
| Number of Reeves | 1 |
| Number of Load Chains | 1 |
| Temperature range | 4° to +140°F (-20° to +60°C) |
| Dimensions | 5.8 in L x 6.9 in W x 14.6 in D |
| Brake Type | Weston Style |
| Lifting Hook Type | Hook with Safety Latch |
| Lifting Hook Opening Width | 1-3/32 in |
| Lifting Hook Material | Carbon Steel |
| Chain Material | Manganese Alloy |
| Chain Grade | Grade 100 |
| Body Material | Die-Cast Aluminum |
| Body Width | 6-29/32 in |
| Body Depth | 5-13/16 in |
| Chain Finish | Nickel Plated |
| Features | Heat-Treated Main Pinion Shaft; Lightweight Die-Cast Aluminum Housing; Reliable Weston-Style Load Brake; Smooth Running Pre-Lubricated Bearings |
| Resistance Properties | Abrasion Resistant; Moisture Resistant; Wear Resistant |
| Standards | ANSI/ASME B30.16; ANSI/ASME HST-2M |
