| Country of Origin |
China |
| AC Frequency Rating |
N/A |
| AC Motor Type |
N/A |
| AC Phase |
Single Phase |
| Base RPM |
1725 |
| Brand |
My Store |
| Current Type |
AC |
| Duty Cycle |
Continuous |
| Enclosure Type |
TEFC (Totally Enclosed Fan Cooled) |
| Frame |
56H |
| Full Load Amps |
16.8/8.4-8.4 |
| HP |
2 |
| Hz |
60 |
| IEC Frame Size |
N/A |
| Insulation Class |
B |
| Length Less Shaft |
12 in |
| MPN |
5UKG3 |
| Max. Ambient Temp. |
40 °C |
| Model |
5UKG3 |
| Motor Bearings |
Ball |
| Motor Design |
Capacitor-Start/Run |
| Motor Enclosure Design |
Totally Enclosed Fan-Cooled |
| Motor Frame Material |
Steel |
| Motor Mounting Position |
All Angle |
| Motor Mounting Type |
Rigid Base |
| Motor Service Factor |
1.15 |
| Motor Shaft Design |
Keyed |
| Motor Shaft Rotation |
CW/CCW |
| Motor Thermal Protection |
Auto |
| Mounting Type |
Rigid Base |
| NEMA Frame Suffix |
N/A |
| Nameplate RPM |
3,450 |
| No. of Speeds |
1 |
| Nominal Rated Input Voltage |
115/208-230V AC |
| Phase |
2 |
| Rated Load (HP) |
2 |
| Service Factor |
1.15 |
| Shaft Dia. |
5/8 in |
| Shaft Diameter |
5/8 in |
| Shaft Length |
1-7/8 in |
| Shaft Type |
CW/CCW |
| Special Motor Construction |
N/A |
| Unit Quantity |
1 |
| Unit Type |
Unit |
| Voltage |
115/208-230V AC |

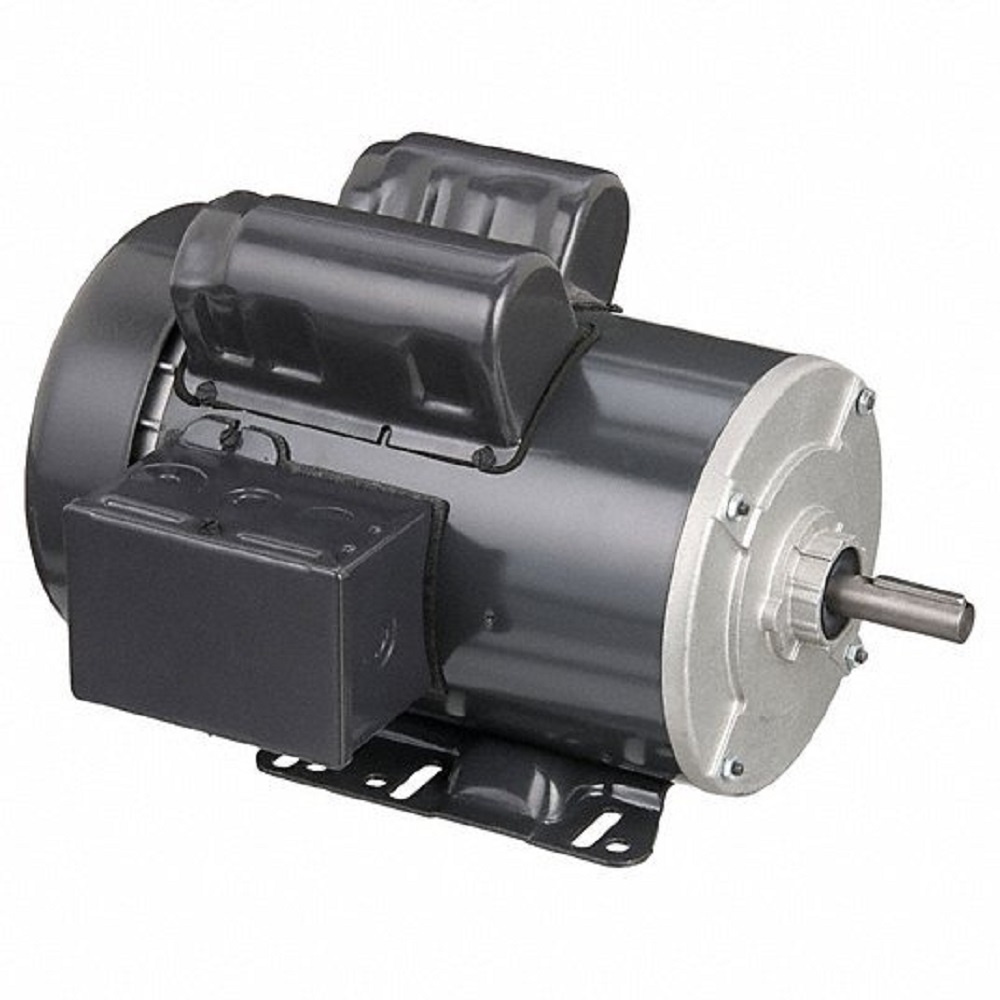

Dayton 5UKG3 115/208-230V 2HP 1P General Purpose Motor
/* Template: here_comes_dat_boi template Description: Version: 1.2 */ /* Template: RBT Template Description: Version: 1.2 */ /* Template: main template Description: Version: 1.2 */ /* user colors */ #wpl_store_header .hotline { color: #FFFFFF; background-color: #FF4400; display: block; float: right; } #wpl_wrapper .wpl_description h2 { color: #000000; } #wpl_wrapper h3.bar { color: #FFFFFF; background-color: #555555; background-image: -webkit-gradient(linear, left top, left bottom, from(#555555), to(#000000)); background-image: -webkit-linear-gradient(top, #555555, #000000); background-image: -moz-linear-gradient(top, #555555, #000000); background-image: -ms-linear-gradient(top, #555555, #000000); background-image: -o-linear-gradient(top, #555555, #000000); background-image: linear-gradient(to bottom, #555555, #000000); } /* layout */ #wpl_wrapper { width: 90%; margin-right: auto; margin-left: auto; margin-top: 30px; margin-bottom: 20px; font-size: 14px; font-family:Arial,Helvetica,sans-serif; } #wpl_wrapper h2 { font-size: 24px; line-height: 30px; } #wpl_wrapper h3.bar { margin-top: 30px; margin-bottom: 20px; padding-left: 10px; height: 30px; line-height: 30px; font-size: 16px; font-family: Helvetica, Arial, sans-serif; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; } #wpl_store_header { width:100%; overflow: hidden; } #wpl_store_header .logo { float: left; } #wpl_store_header .hotline { height: 40px; font-size: 16px; line-height: 40px; font-weight: bold; padding-right: 20px; padding-left: 20px; margin-top: 7px; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; text-decoration: none; text-shadow: 2px 2px 4px #713803; filter: dropshadow(color=#713803, offx=0, offy=1); } #wpl_wrapper .clearfix { clear:both; } #wpl_list_images a { border: 1px solid #ccc; display: block; float: left; height: 75px; margin-bottom: 20px; margin-left: 10px; margin-right: 10px; padding: 12px; width: 75px; } #wpl_wrapper .alignleft { float: left; } #wpl_wrapper .alignright { float: right; } #wpl_wrapper .section p { padding-left: 10px; padding-right: 10px; /* fix for firefox: */ line-height: 1.2em; margin: 1em 0; } #wpl_wrapper .section big { font-size: 18px; font-weight: bold; } .primary_image, .wpl_product_image { width: 100%; } #gallery a { text-decoration: none; } /* these only apply in preview to override default styles from wp-admin */ body.wp-admin #wpl_wrapper ul { list-style: disc inside none; } body.wp-admin #wpl_wrapper ul li { padding-left: 2em; } /** Media queries **/ @media (min-width: 320px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: left; } #gallery { width: 100%; } #wpl_list_images { display: none; } } @media (min-width: 481px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: right; display: inline-block; } #gallery { display: block; width: 48%; float: left; } #description { width: 48%; float: right; } #gallery #wpl_main_image { max-width: 220px; max-height: 225px; } #wpl_list_images { display: block; } #wpl_list_images a { width: 80px; height: 80px; } #wpl_list_images a img.wpl_thumb { width: 100%; } } @media (min-width: 641px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: right; } #gallery { display: block; width: 45%; float: left; } #description { width: 48%; float: right; } #gallery #wpl_main_image { width: 100%; height: 100%; max-height: 370px; max-width: 370px; } #wpl_list_images { display: block; } #gallery #wpl_list_images a { width: 80px; height: 80px; } #wpl_list_images a img.wpl_thumb { width: 80px; } } Dayton 5UKG3 115/208-230V 2HP 1P General Purpose Motor Thank you for your interest in this item. We do our best to accurately describe each item as best as possible. We ask you to please review all photos and the description of the item’s condition prior to purchase. If you have any questions or require any additional information, send us a message and we will happily assist you in a timely manner. Shipping Shipping cost:Expedited shipping options available. Please contact us for overnight or express shipping. We are happy to offer these services. Delivery time:All items are shipped within one business day of purchase. Payment We accept the following payment methods: Paypal Credit Card or Debit Card Please contact us if you have any questions. Service All of our products are brand-new and unused, unless otherwise clearly stated. Packaging for our products has been opened for picture-taking and inspecting only. Products may or may not be in original packaging. Our mission is to please all of our customers. Please let us know if you have any questions or concerns. We are happy to help. Thank you.
Dayton 5UKG3 115/208-230V 2HP 1P General Purpose Motor
Thank you for your interest in this item. We do our best to accurately describe each item as best as possible. We ask you to please review all photos and the description of the item’s condition prior to purchase. If you have any questions or require any additional information, send us a message and we will happily assist you in a timely manner.
Shipping
Shipping cost:
Expedited shipping options available. Please contact us for overnight or express shipping. We are happy to offer these services.
Delivery time:
All items are shipped within one business day of purchase.
Payment
We accept the following payment methods:
- Paypal
- Credit Card or Debit Card
Please contact us if you have any questions.
Service
All of our products are brand-new and unuséd, unless otherwise clearly stated. Packaging for our products has been opened for picture-taking and inspecting only. Products may or may not be in original packaging. Our mission is to please all of our customers. Please let us know if you have any questions or concerns. We are happy to help. Thank you.
