Additional information
| Brand | Speedaire |
|---|---|
| MPN | 3FFT9 |

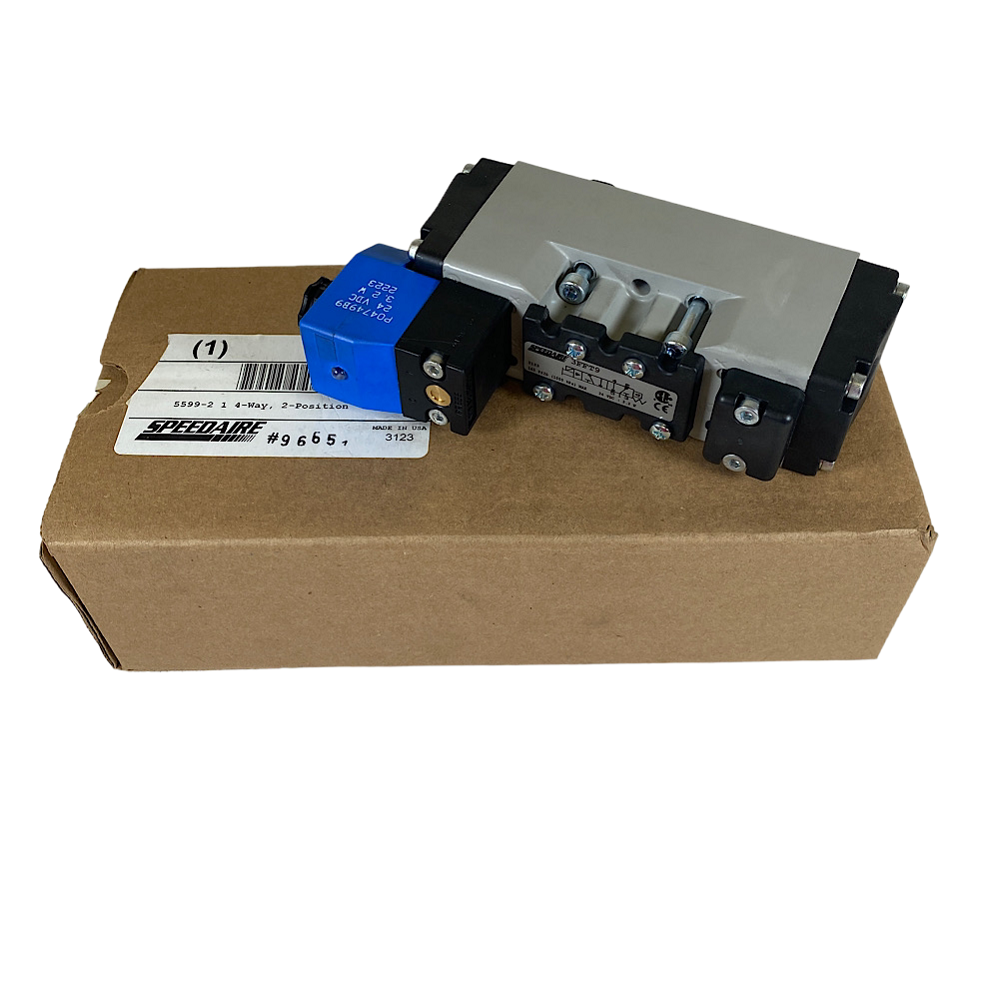

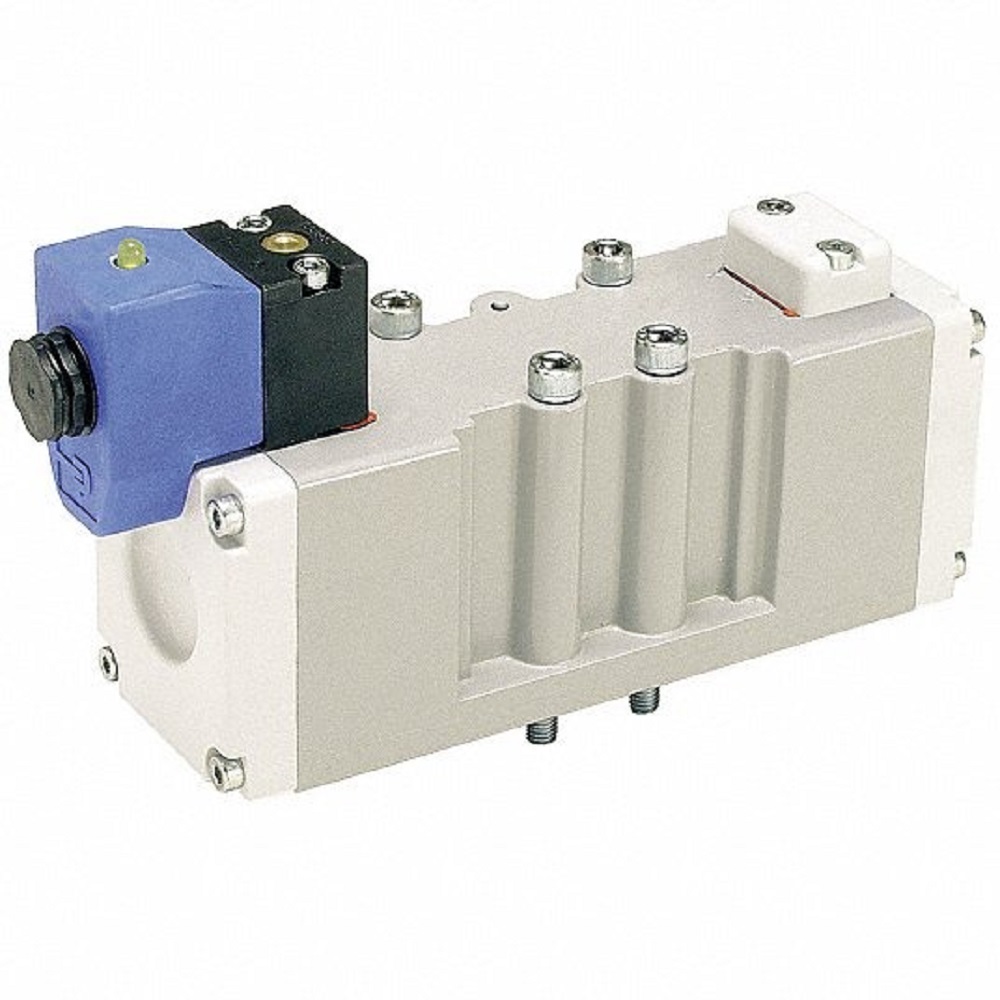

| Model | Solenoid Air Control Valve |
| Voltage | 24V DC |
| Power Consumption | 2.7 W |
| Valve Ways and Positions | 4-Way/2-Position |
| Valve Actuator / Return | Solenoid / Spring Air Assist |
| Max. CFM - Valves | 1.5 cfm |
| ISO Class | 5599-2 |
| Operational Pressure Range | 35 to 145 psi |
| NEMA Classification | NEMA 4 |
| Valve Vacuum Range | 0 to 28 in Hg |
| Body Style | Base Mounted |
| Electrical Connections | Plug-In |
| Shifting Technology | Packed Spool |
| Ambient Temp. Range | 5° to 120°F |
| Dimensions | 3-1/2 in x 6-1/2 in x 1-1/2 in |
| Standards | CE; CSA; cUS; Meet ISO 1179 |
