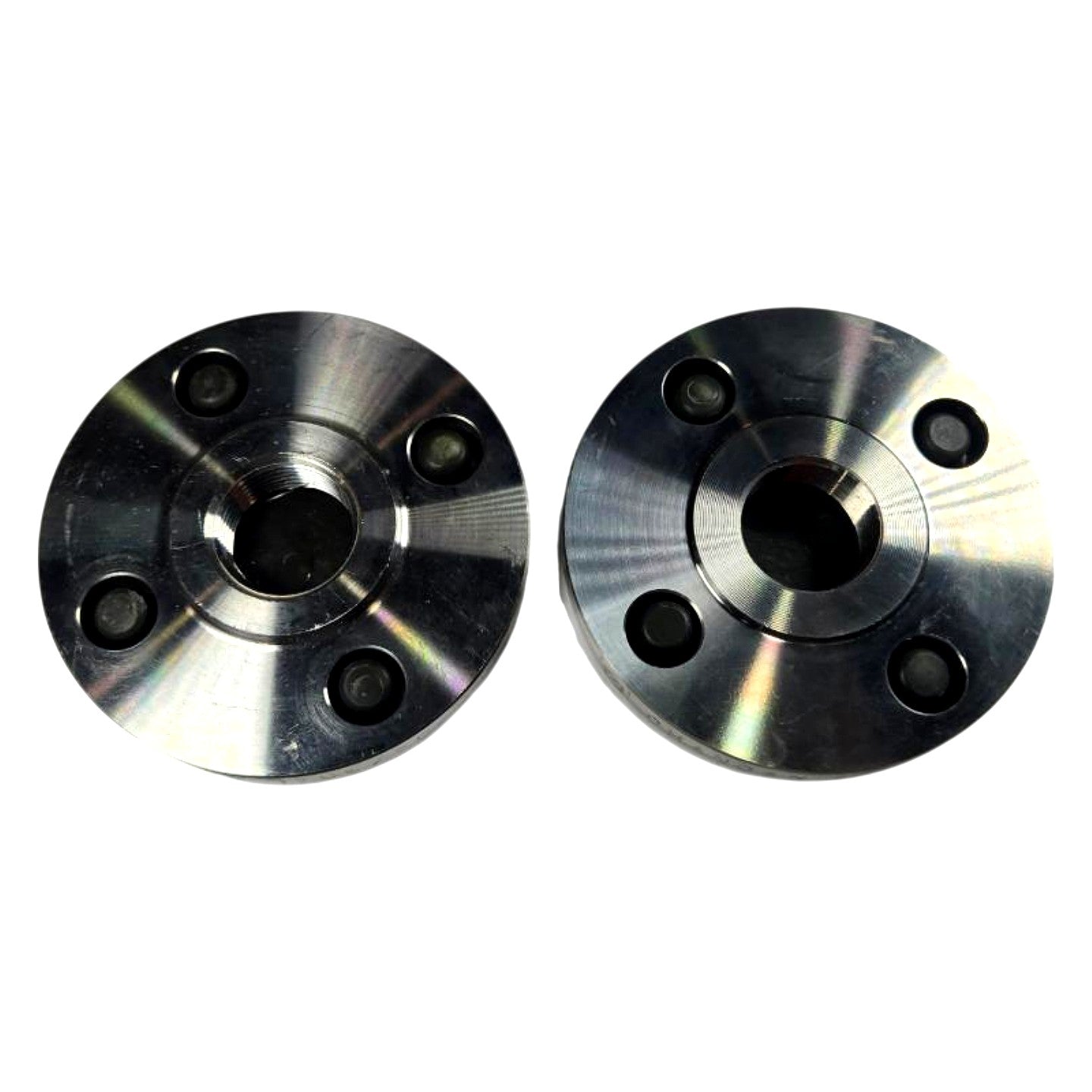

1 in Class 150 304/304L SS Threaded Raised Face Pipe Flange PK2
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

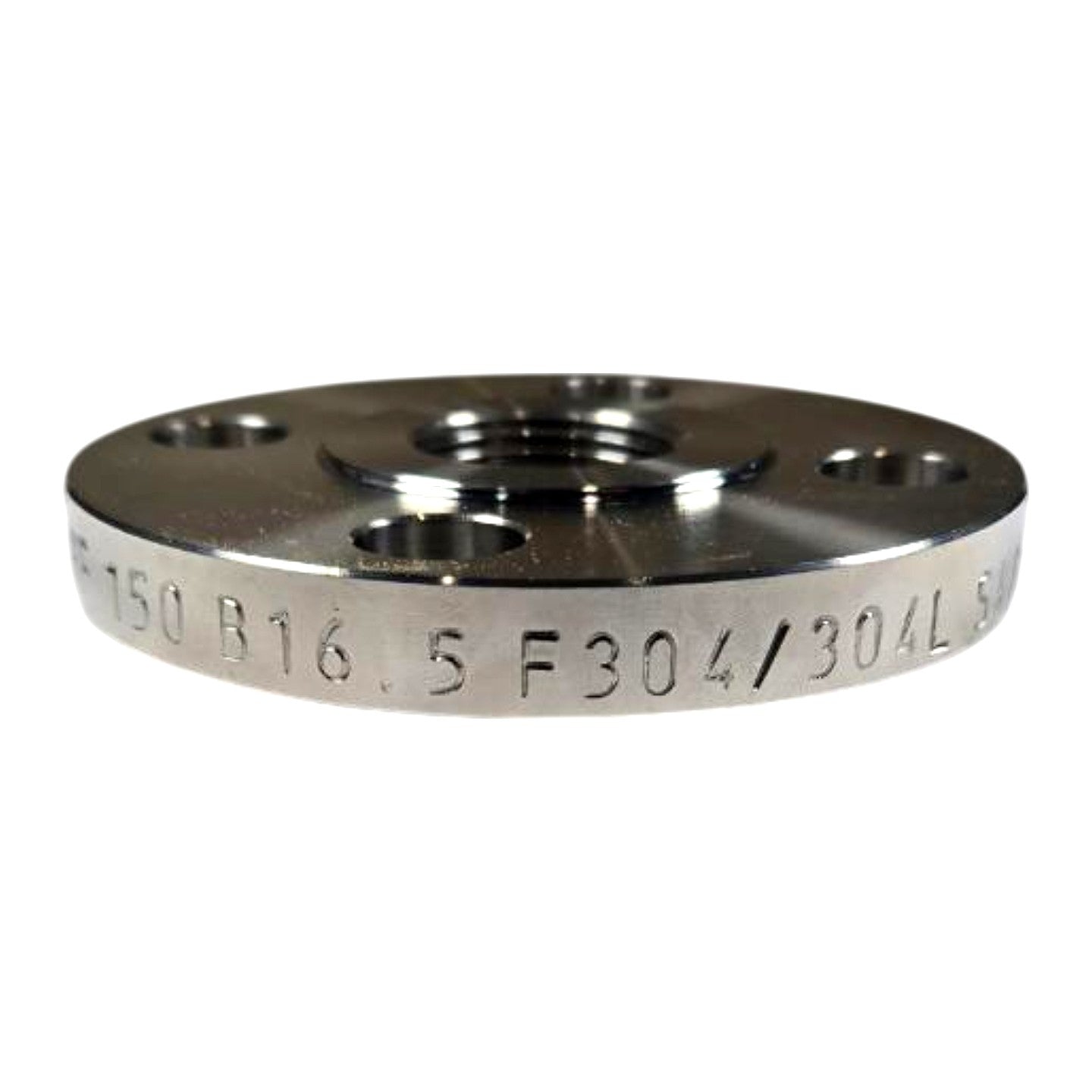

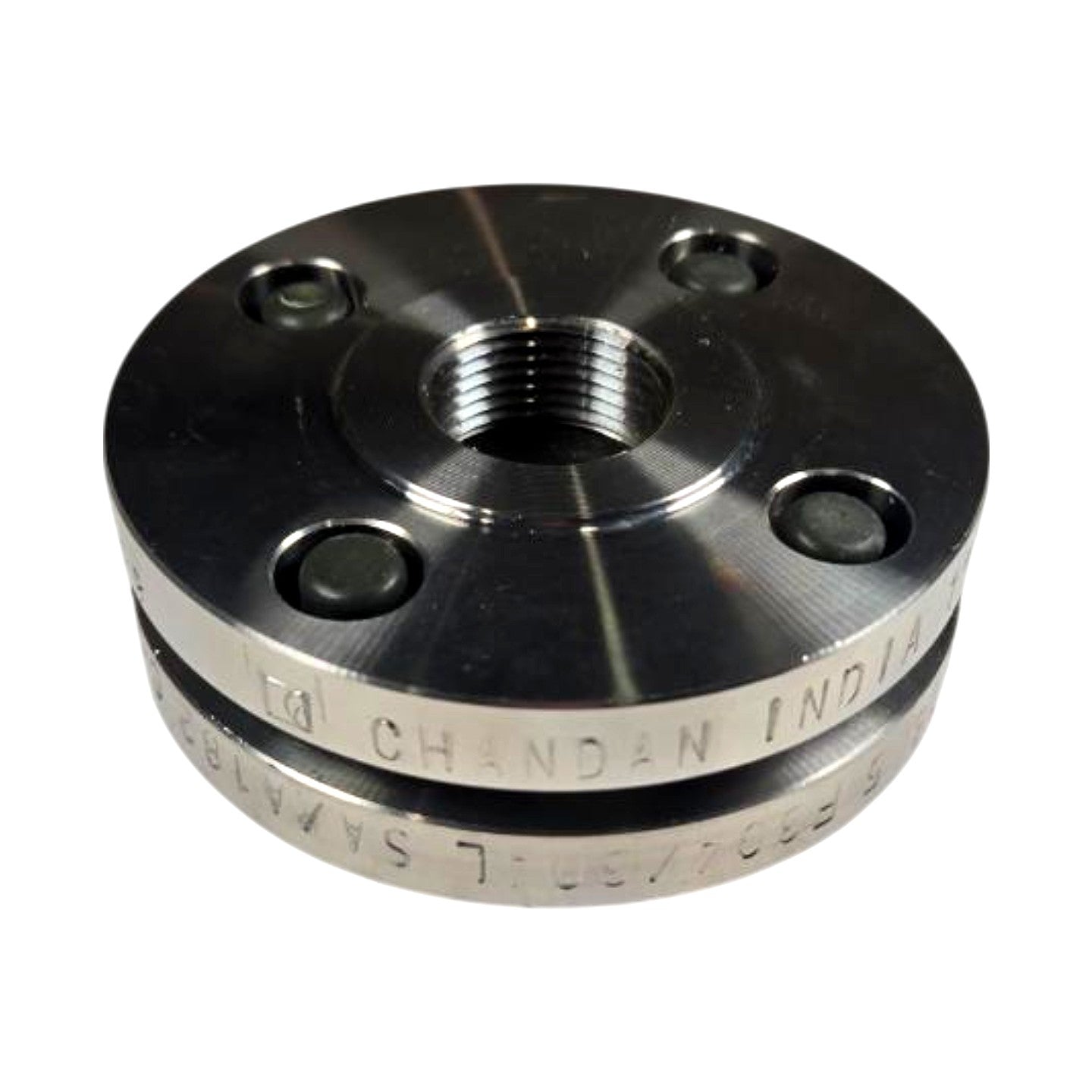

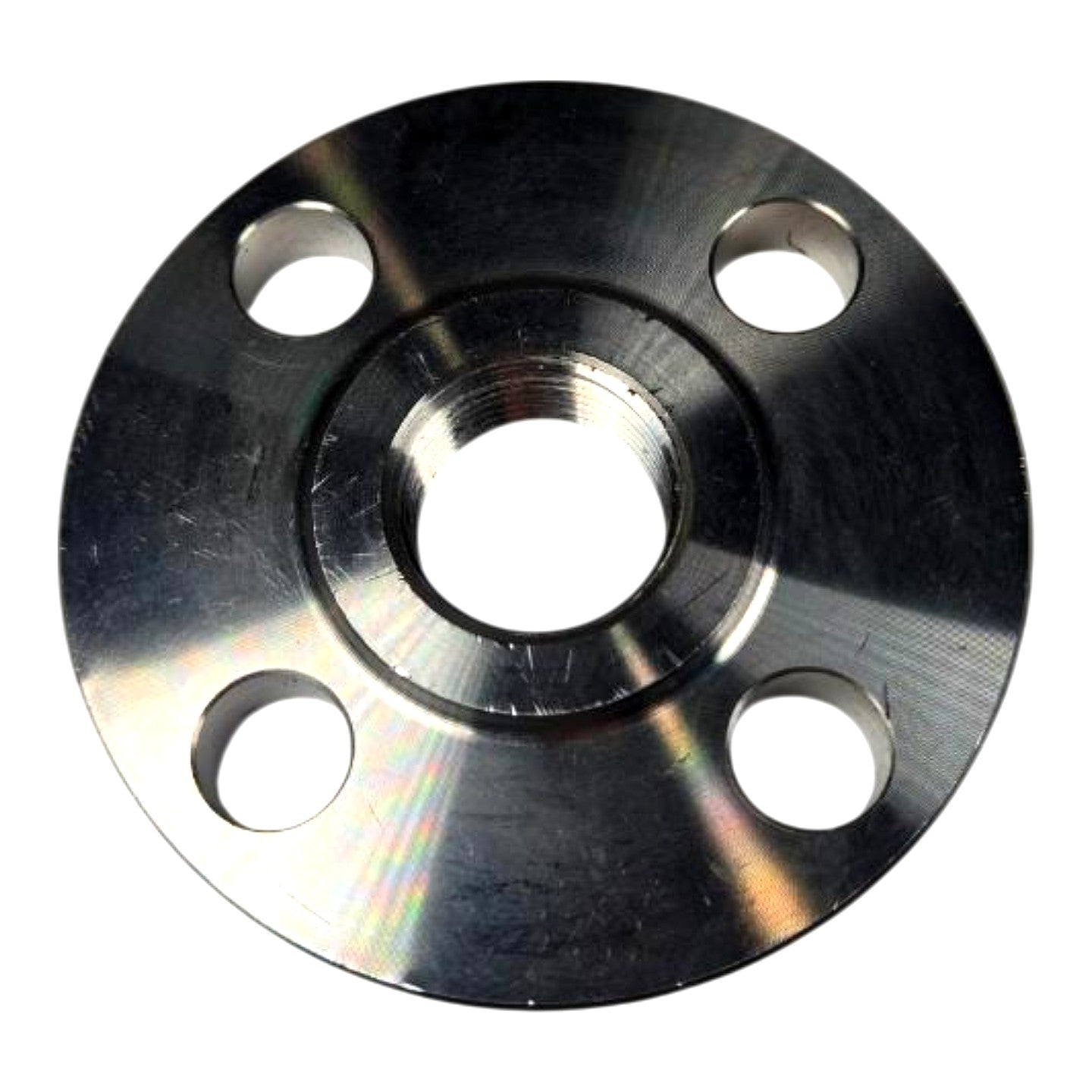

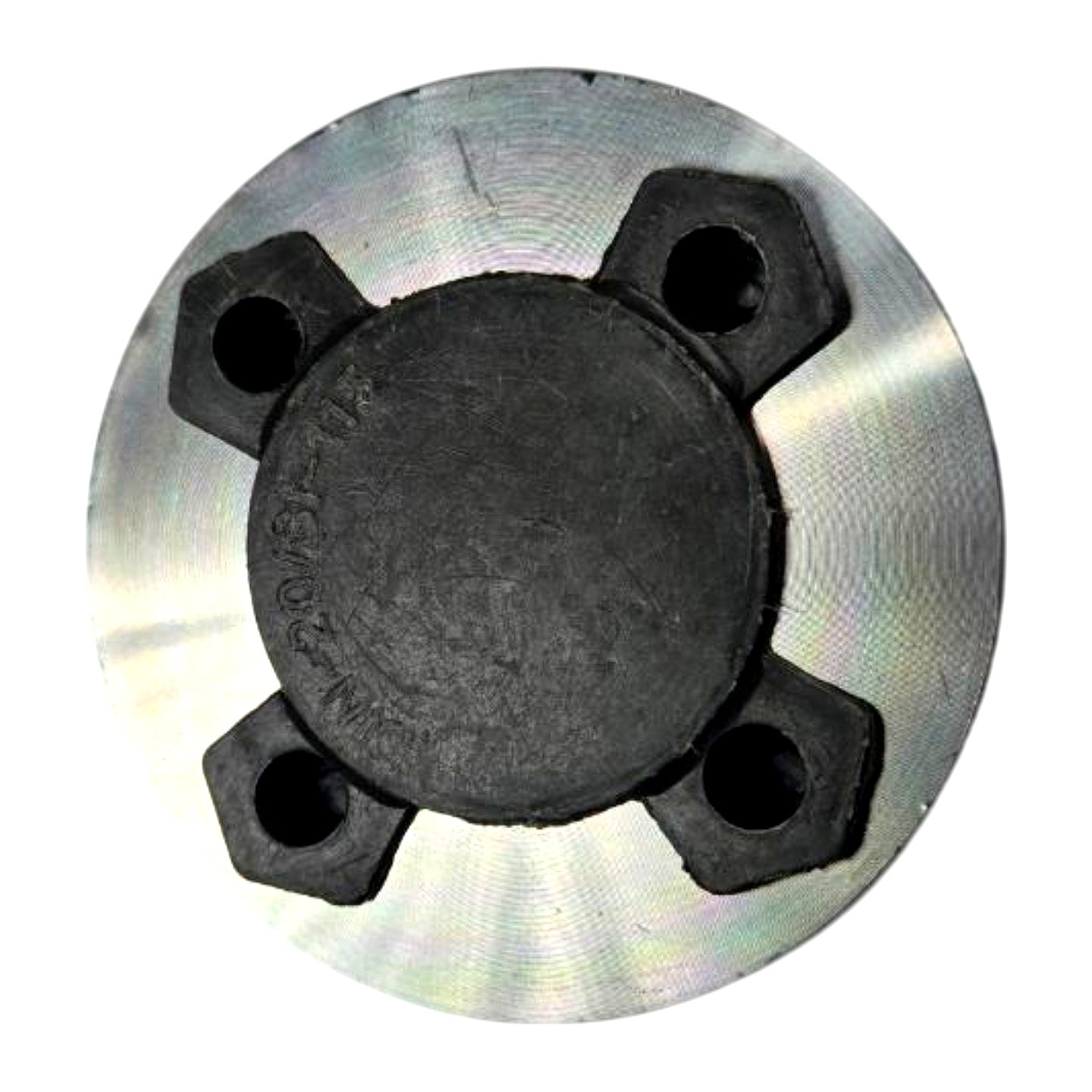

This is a new 1-inch Class 150 threaded (screwed) raised face pipe flange manufactured from dual-certified ASTM A182 F304/304L stainless steel, as stamped directly on the flange OD. Conforming to ASME B16.5, this flange features a raised face sealing surface and 4 bolt holes on the standard 150# bolt circle pattern, accepting 1/2-inch diameter bolts at a 3-1/8-inch bolt circle diameter per ASME B16.5 tabulation for 1-inch 150# service. The threaded bore accepts 1-inch NPT male pipe end for easy field installation without welding, making it well suited for chemical processing, water treatment, food and beverage, and general industrial piping systems where corrosion resistance is required. The back face shows a protective rubber/plastic shipping plug installed in the threaded bore, confirming the flange is new and uninstalled.
Product Specifications
| Pipe Size | 1 in |
| Pressure Class | Class 150 |
| Flange Type | Threaded (Screwed) |
| Facing Type | Raised Face (RF) |
| Material | 304/304L Dual Cert Stainless Steel |
| Material Standard | ASTM A182 F304/304L |
| Dimensional Standard | ASME B16.5 |
| Number of Bolt Holes | 4 |
| Bolt Hole Diameter | 0.625 in (5/8 in) |
| Bolt Circle Diameter | 3.125 in (3-1/8 in) |
| Flange OD | 3.50 in |
| Bore Thread Type | 1 in NPT |
| Condition | New |
