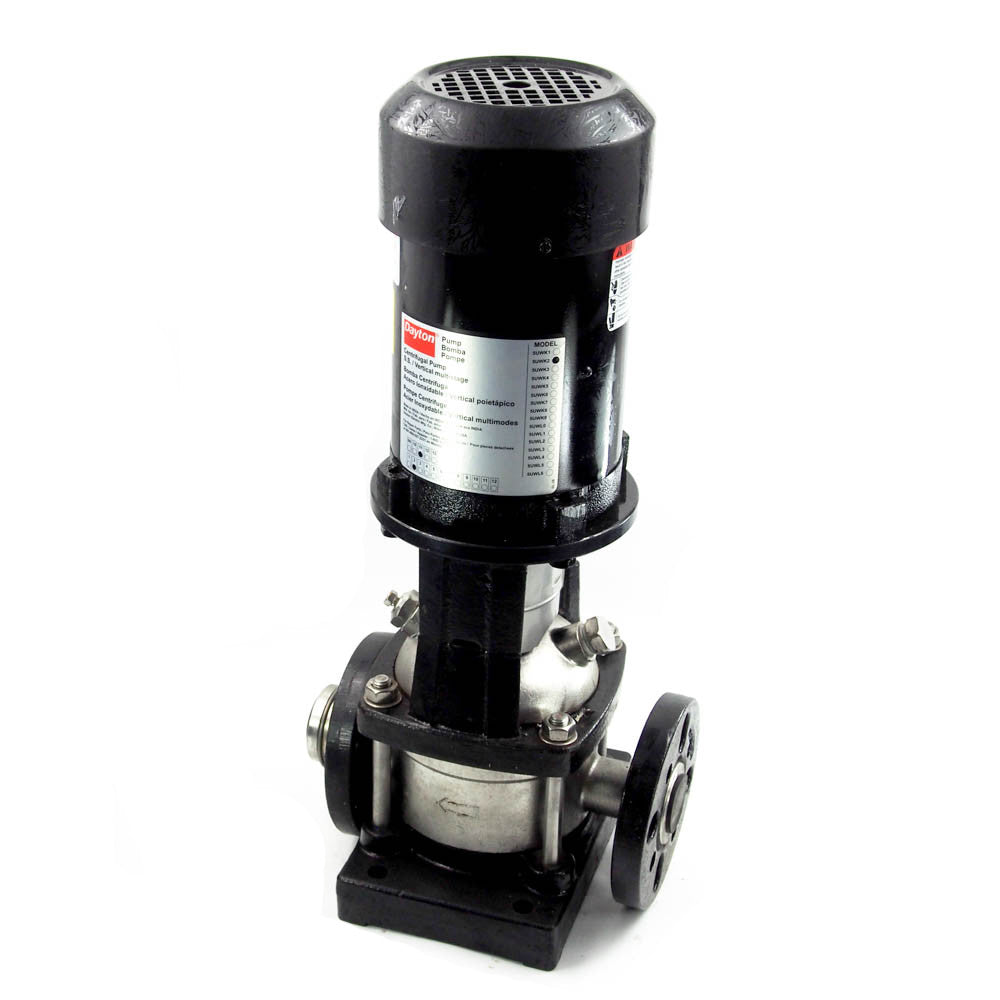

2-Stage Booster Pump 1/2 HP 1-1/4" Flanged Inlet/Outlet 208-240/480VAC TEFC -

Only 1 left
SKU: 5532X5C
Regular price $124.80

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Amps 1.7-1.6/0.8
Brand My Store
Duty Continous
Frame 56C
GPM @ 10 PSI 21
Housing Material Stainless Steel
Impeller Material Stainless Steel
Impeller Type Closed
Inlet Diameter 1-1/4 inch
Inlet/Outlet 1-1/4" Flanged
MPN 5UWK2
Max. Case Pressure 362 psi
Max. Dia. Solids 5/64"
Max. Liquid Temp. 248 Degrees F
Max. Pressure 27 spi
Motor Enclosure Totally Enclosed Fan-Cooled (TEFC)
Number of Stages 2
Outlet Diameter 1-1/4 inch
Phase 3
Pump Mounting Position Horizontal
Rated Power 1/2
Seal Material Silicon Carbide, Stainless Steel, EPDM
Supply Voltage 208-240/480 V
Type Multi-Stage Booster Pump
Voltage 208-240/480VAC

2-Stage Booster Pump 1/2 HP 1-1/4" Flanged Inlet/Outlet 208-240/480VAC TEFC

/* Template: RBT Template Description: Version: 1.2 */ /* Template: main template Description: Version: 1.2 */ /* user colors */ #wpl_store_header .hotline { color: #FFFFFF; background-color: #FF4400; display: block; float: right; } #wpl_wrapper .wpl_description h2 { color: #000000; } #wpl_wrapper h3.bar { color: #FFFFFF; background-color: #555555; background-image: -webkit-gradient(linear, left top, left bottom, from(#555555), to(#000000)); background-image: -webkit-linear-gradient(top, #555555, #000000); background-image: -moz-linear-gradient(top, #555555, #000000); background-image: -ms-linear-gradient(top, #555555, #000000); background-image: -o-linear-gradient(top, #555555, #000000); background-image: linear-gradient(to bottom, #555555, #000000); } /* layout */ #wpl_wrapper { width: 90%; margin-right: auto; margin-left: auto; margin-top: 30px; margin-bottom: 20px; font-size: 14px; font-family:Arial,Helvetica,sans-serif; } #wpl_wrapper h2 { font-size: 24px; line-height: 30px; } #wpl_wrapper h3.bar { margin-top: 30px; margin-bottom: 20px; padding-left: 10px; height: 30px; line-height: 30px; font-size: 16px; font-family: Helvetica, Arial, sans-serif; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; } #wpl_store_header { width:100%; overflow: hidden; } #wpl_store_header .logo { float: left; } #wpl_store_header .hotline { height: 40px; font-size: 16px; line-height: 40px; font-weight: bold; padding-right: 20px; padding-left: 20px; margin-top: 7px; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; text-decoration: none; text-shadow: 2px 2px 4px #713803; filter: dropshadow(color=#713803, offx=0, offy=1); } #wpl_wrapper .clearfix { clear:both; } #wpl_list_images a { border: 1px solid #ccc; display: block; float: left; height: 75px; margin-bottom: 20px; margin-left: 10px; margin-right: 10px; padding: 12px; width: 75px; } #wpl_wrapper .alignleft { float: left; } #wpl_wrapper .alignright { float: right; } #wpl_wrapper .section p { padding-left: 10px; padding-right: 10px; /* fix for firefox: */ line-height: 1.2em; margin: 1em 0; } #wpl_wrapper .section big { font-size: 18px; font-weight: bold; } .primary_image, .wpl_product_image { width: 100%; } #gallery a { text-decoration: none; } /* these only apply in preview to override default styles from wp-admin */ body.wp-admin #wpl_wrapper ul { list-style: disc inside none; } body.wp-admin #wpl_wrapper ul li { padding-left: 2em; } /** Media queries **/ @media (min-width: 320px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: left; } #gallery { width: 100%; } #wpl_list_images { display: none; } } @media (min-width: 481px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: right; display: inline-block; } #gallery { display: block; width: 48%; float: left; } #description { width: 48%; float: right; } #gallery #wpl_main_image { max-width: 220px; max-height: 225px; } #wpl_list_images { display: block; } #wpl_list_images a { width: 80px; height: 80px; } #wpl_list_images a img.wpl_thumb { width: 100%; } } @media (min-width: 641px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: right; } #gallery { display: block; width: 45%; float: left; } #description { width: 48%; float: right; } #gallery #wpl_main_image { width: 100%; height: 100%; max-height: 370px; max-width: 370px; } #wpl_list_images { display: block; } #gallery #wpl_list_images a { width: 80px; height: 80px; } #wpl_list_images a img.wpl_thumb { width: 80px; } }    2-Stage Booster Pump 1/2 HP 1-1/4" Flanged Inlet/Outlet 208-240/480VAC TEFC 2-Stage Booster Pump 1/2 HP 1-1/4" Flanged Inlet/Outlet 208-240/480VAC TEFC Designed for a wide range of applications involving the transfer of liquids, circulation and pressure boosting of hot or cold clean water and any thin, non-explosive liquids which do not contain any solid particles or fibers and those liquids that do not attack chemically, the pump material of construction. Typical areas where the vertical inline pumps are widely used is as under, municipal water supply, cooling water systems, and irrigation. Thank you for your interest in this item. We do our best to accurately describe each item as best as possible. We ask you to please review all photos and the description of the item’s condition prior to purchase. If you have any questions or require any additional information send us a message and we will happily assist you in a timely manner. Thanks.     Shipping Shipping cost: Expedited shipping options available. Please contact us for overnight or express shipping. We are happy to offer these services.  Delivery time: All items are shipped within one business day of purchase. Payment We accept the following payment methods: Paypal Credit Card or Debit Card Please contact us if you have any questions. Service Our mission is to please all of our customers. Please let us know if you have any questions or concerns. We are happy to help. Thank you.


2-Stage Booster Pump 1/2 HP 1-1/4" Flanged Inlet/Outlet 208-240/480VAC TEFC

2-Stage Booster Pump 1/2 HP 1-1/4" Flanged Inlet/Outlet 208-240/480VAC TEFC

  • Designed for a wide range of applications involving the transfer of liquids, circulation and pressure boosting of hot or cold clean water and any thin, non-explosive liquids which do not contain any solid particles or fibers and those liquids that do not attack chemically, the pump material of construction.
  • Typical areas where the vertical inline pumps are widely uséd is as under, municipal water supply, cooling water systems, and irrigation.
