3/4" Size E HSS Keyway Broach with Shims New
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

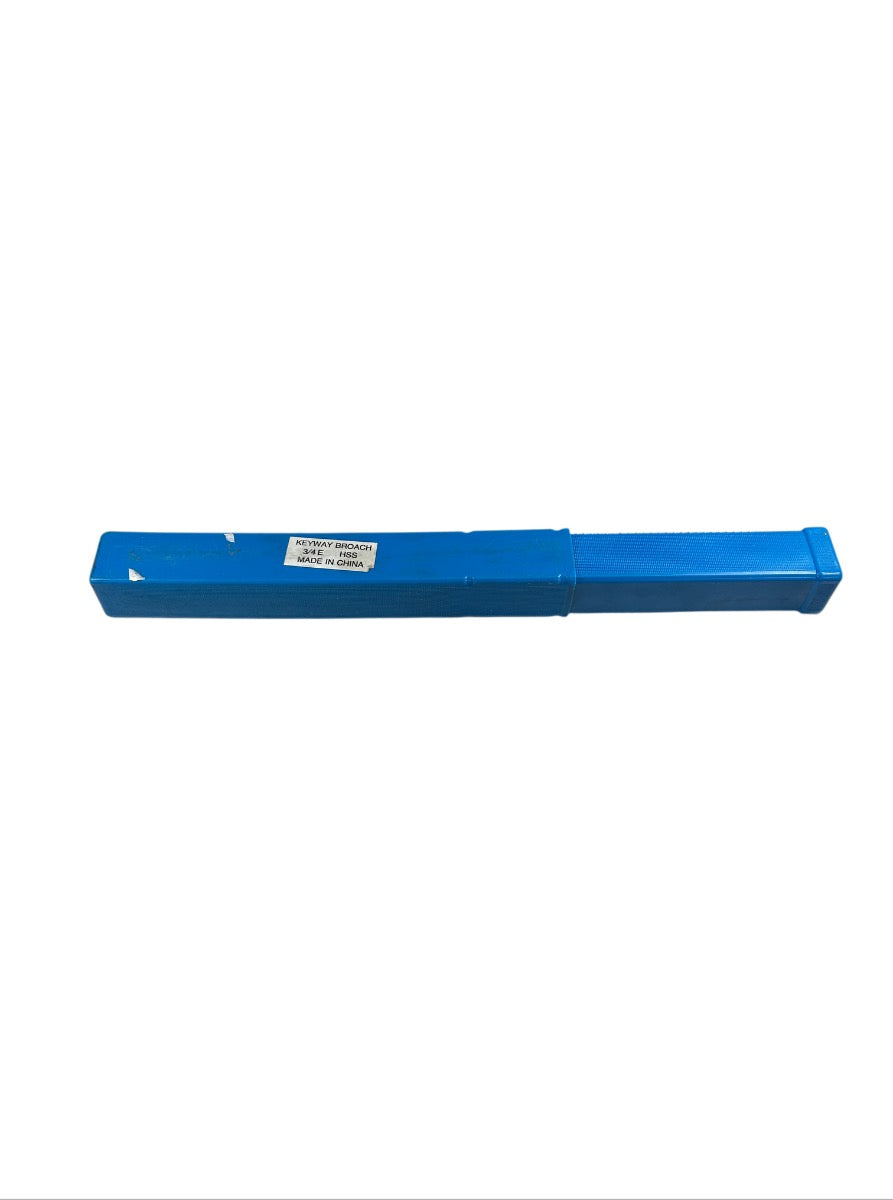

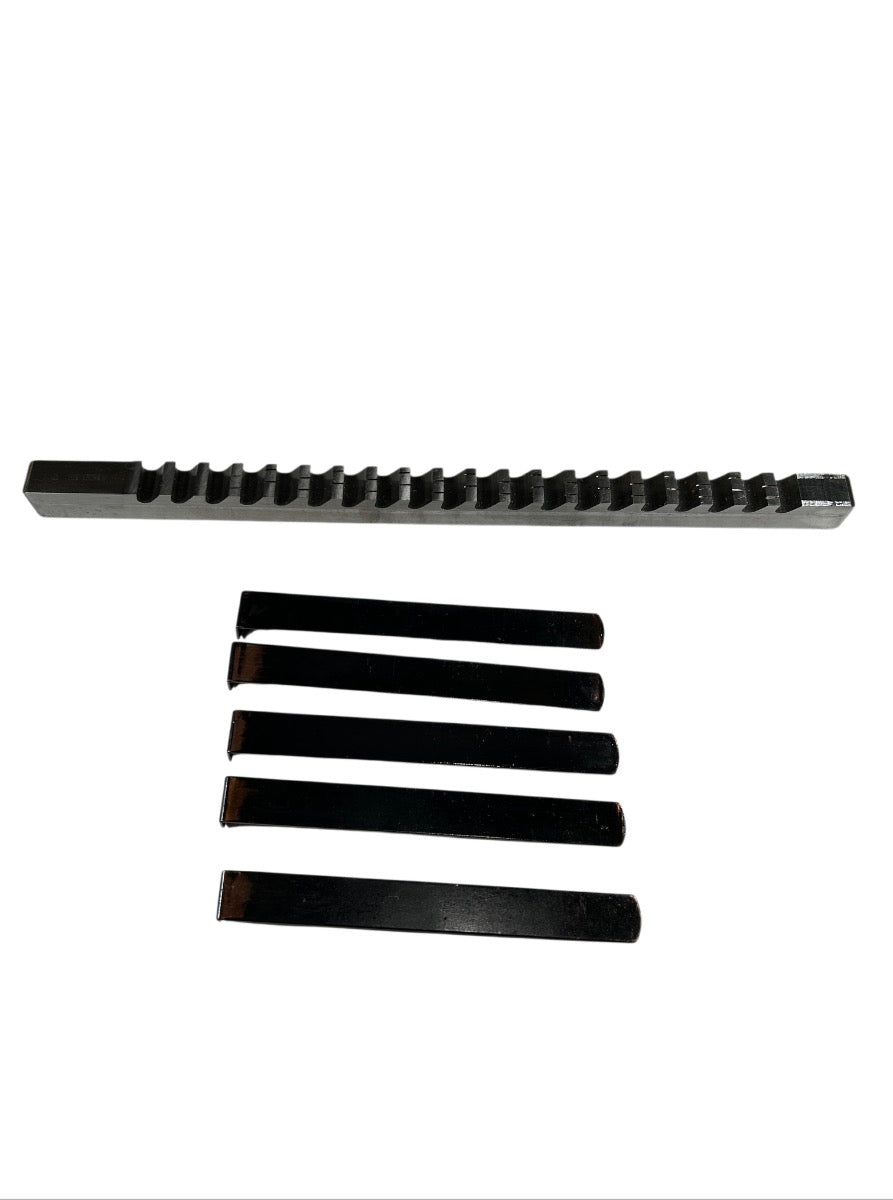

This is a new 3/4" bore, Size E HSS (High Speed Steel) keyway broach set, as labeled on the blue plastic storage case visible in the photos. The broach is designed to cut a standard inch-series keyway in a 3/4" bore using an arbor press or hydraulic press, following the push-broaching method. The set includes the main broach — a multi-tooth, progressive-cut HSS bar with a square shank pull end — along with five shim (spacer) plates that allow the broach to be used across multiple passes to achieve the full keyway depth. Size E designation corresponds to the ANSI/AGMA standard keyway width for a 3/4" bore, which is 3/16" wide keyway. The oxide-black finish on the shims and the broach body provides corrosion resistance during storage and use.
Product Specifications
| Bore Size | 3/4 in |
| Keyway Width (Size E) | 3/16 in |
| Material | High Speed Steel (HSS) |
| Broach Style | Push-type keyway broach |
| ANSI Size Designation | E |
| Number of Shims Included | 5 |
| Surface Treatment | Black oxide |
| Country of Origin | China |
| Condition | New |
