3M 1181 Copper Foil 1/4in x 18yd Conductive Electrical Tape PK2
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

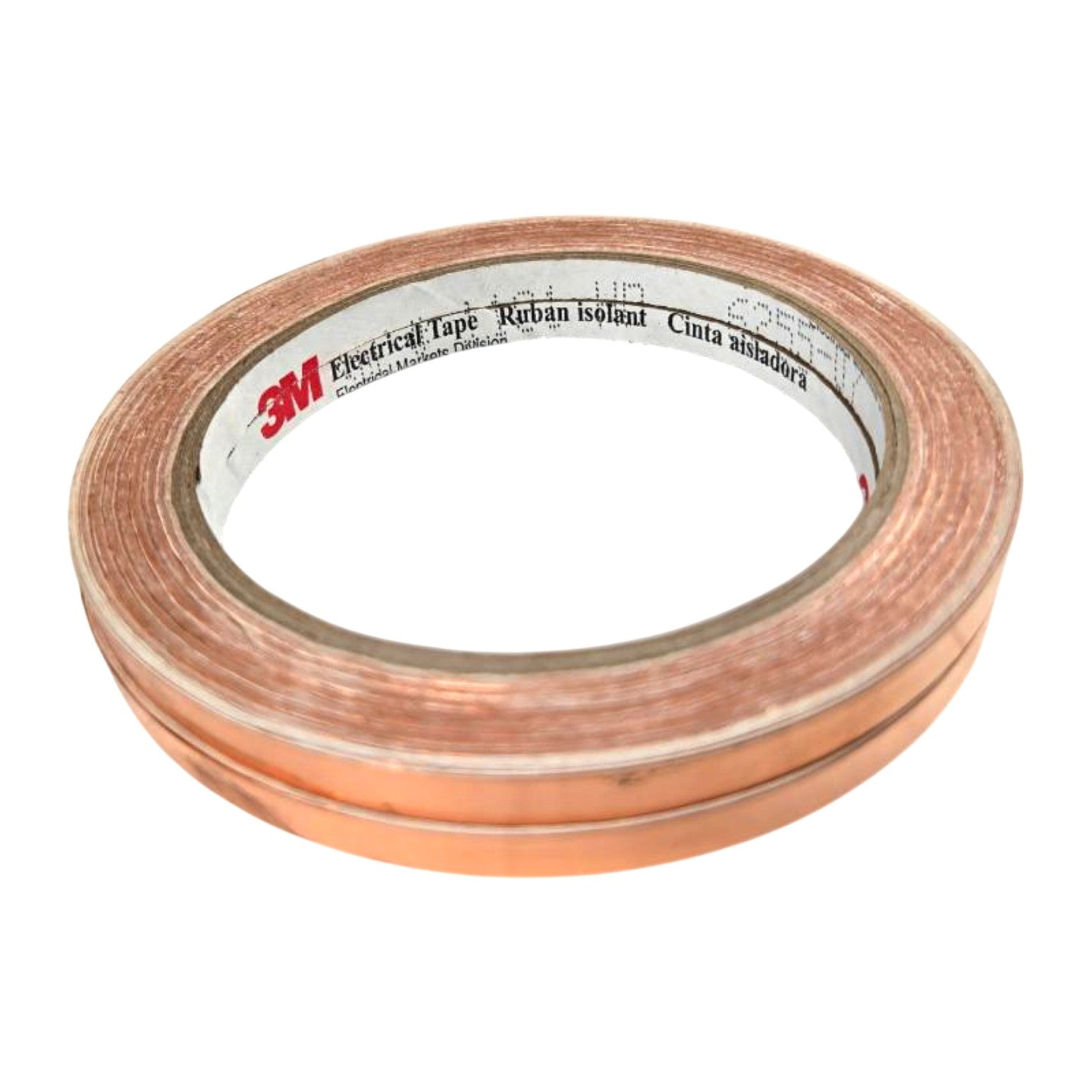

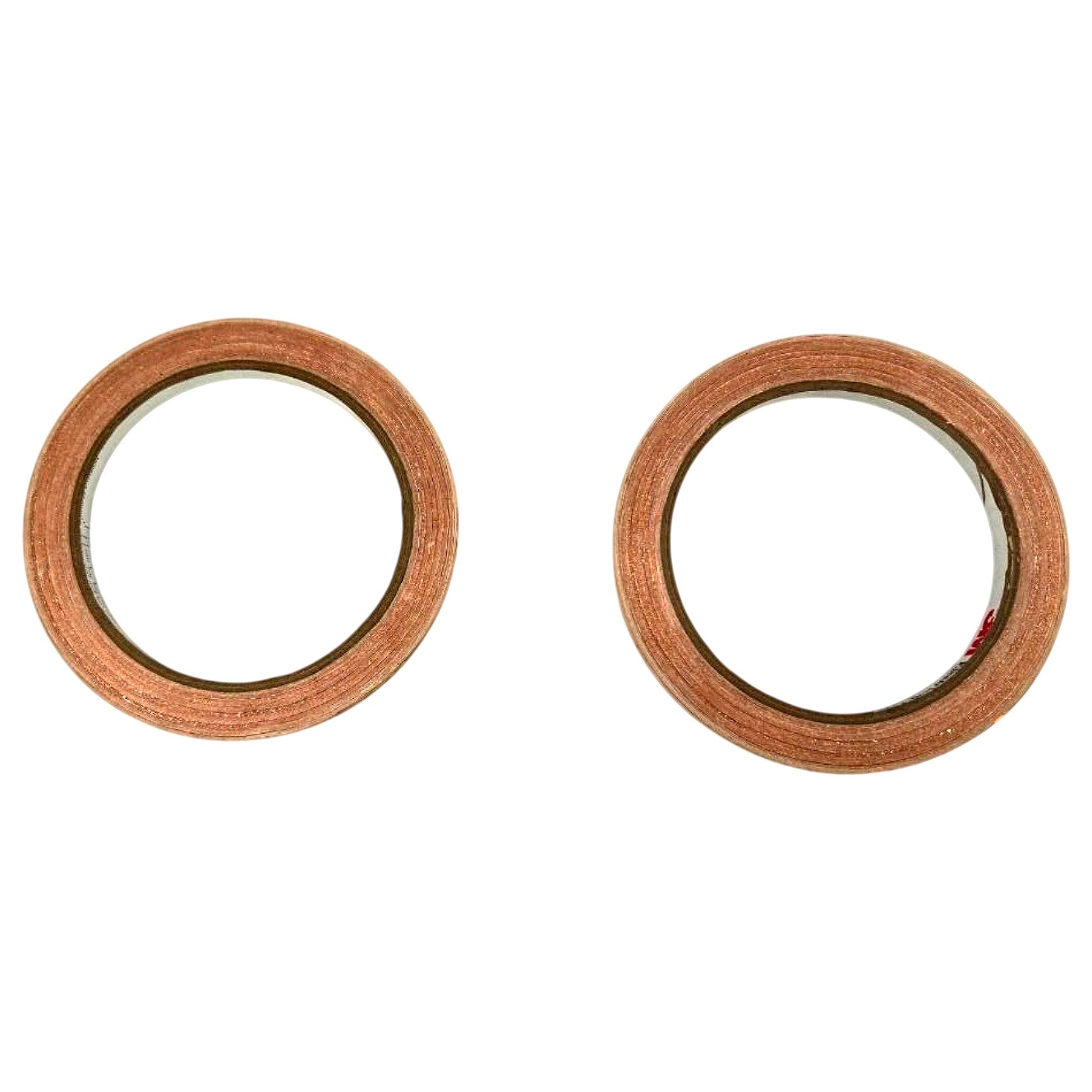

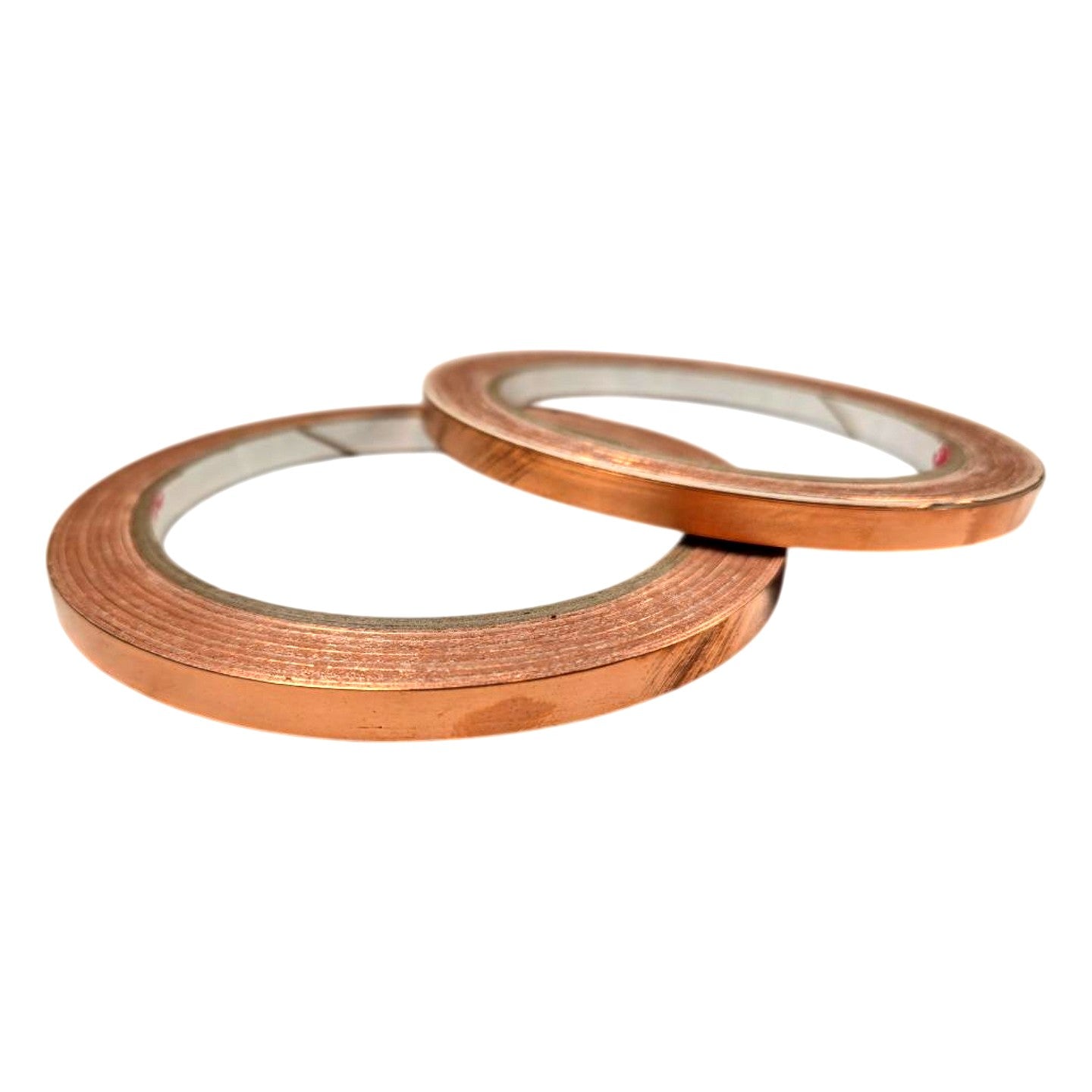

This listing is for two new rolls of 3M 1181 copper foil conductive electrical tape from 3M's Electrical Markets Division, as confirmed by the label visible in the photos. The 1181 series consists of a soft annealed copper foil backing with a thermally conductive acrylic adhesive that is electrically conductive through the thickness, providing a total thickness of 2.6 mil (0.066 mm) and a voltage rating of 600 V. Each roll measures 1/4 in (6.35 mm) wide by 18 yards (16.5 m) long and is rated for use across a broad temperature range, making it suitable for EMI/RFI shielding, grounding, cable shielding, circuit board repairs, and stained glass work. The conductive acrylic adhesive maintains electrical continuity through overlapping layers, and the copper foil surface is solderable, supporting applications requiring a permanent bonded ground path.
Product Specifications
| Brand | 3M |
| MPN | 1181 |
| Series | 3M 1181 |
| Tape Type | Copper Foil Conductive Electrical Tape |
| Backing Material | Soft Annealed Copper Foil |
| Adhesive Type | Conductive Acrylic |
| Width | 1/4 in (6.35 mm) |
| Length per Roll | 18 yd (16.5 m) |
| Total Thickness | 2.6 mil (0.066 mm) |
| Voltage Rating | 600 V |
| Color | Copper/Brown |
| Quantity | 2 Rolls |
| Adhesive Conductivity | Electrically conductive through thickness |
| Solderable | Yes |
| Condition | New |
