3M 7696-T-150 QT-III Silicone Cold Shrink Termination Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

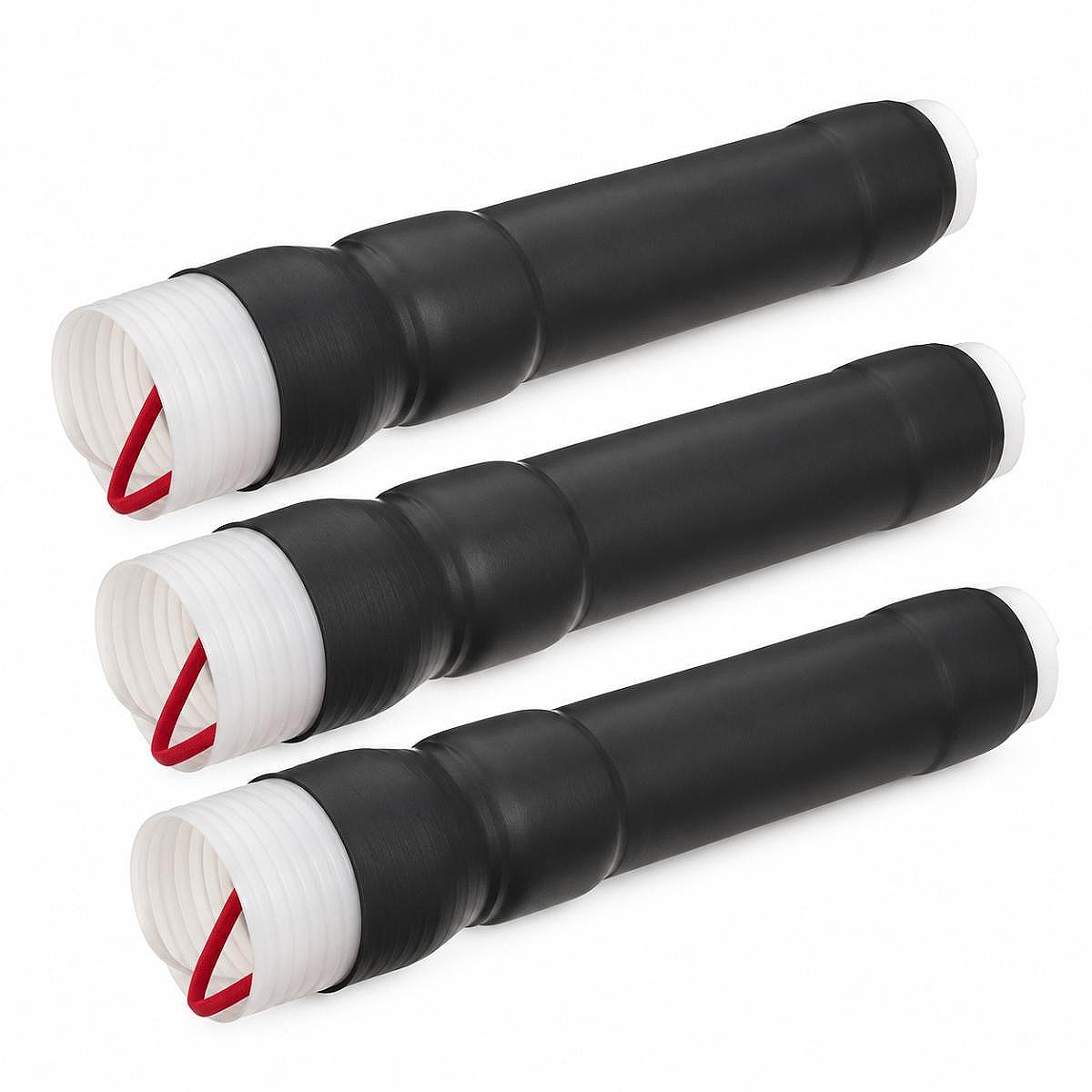

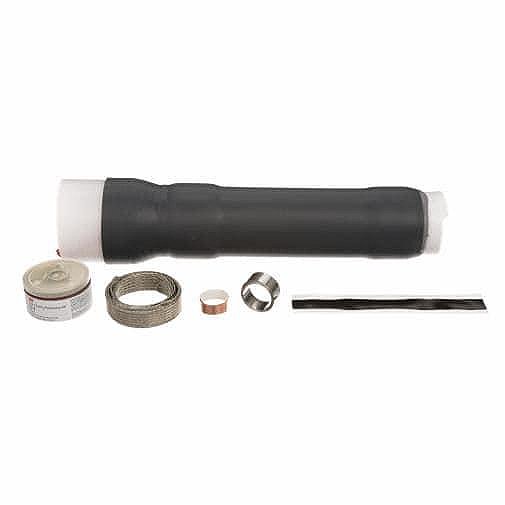

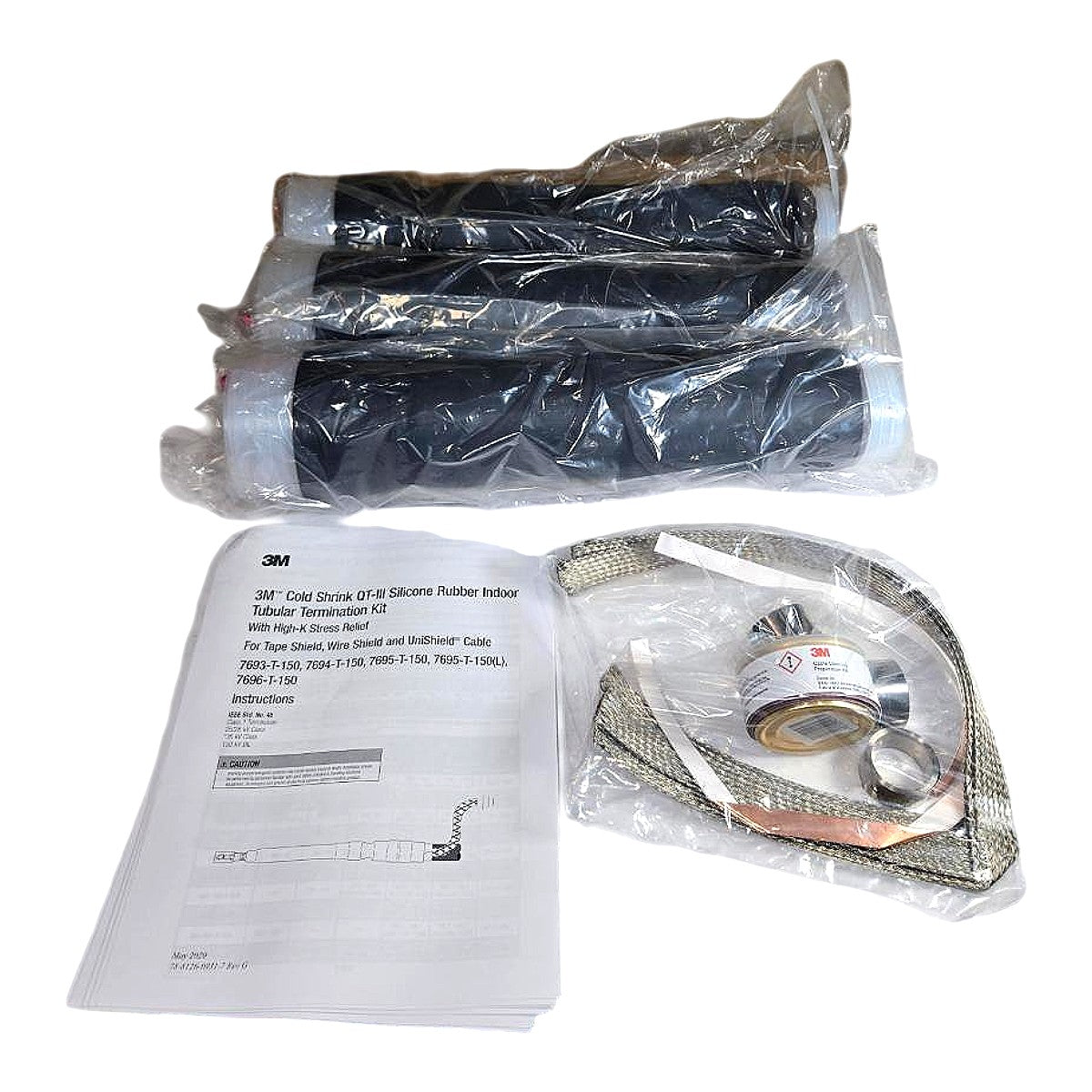

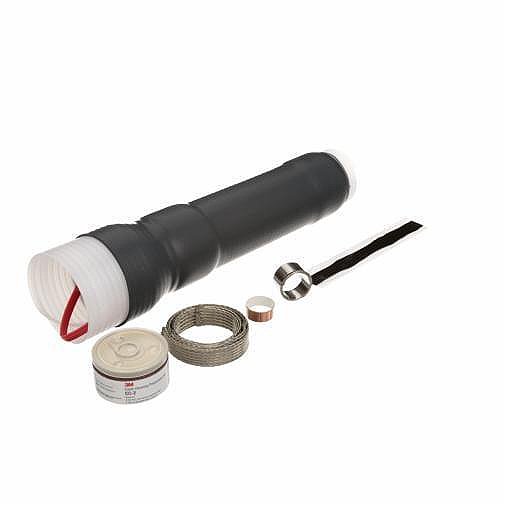

The 3M 7696-T-150 is a Cold Shrink QT-III silicone rubber indoor tubular termination kit with high-K stress relief, supplied as a new kit containing 3 terminations. It is designed for tape shield and wire shielded cables with an insulation O.D. range of 1.53 to 2.32 in (38.9 to 58.9 mm). Cable coverage per the box label is 5 kV at 1750-2000 kcmil, 8 kV at 1500-2000 kcmil, 15 kV at 1250-2000 kcmil (500-1000 mm2), 25/28 kV at 900-1750 kcmil (500-800 mm2) and 35 kV at 700-1500 kcmil (400-725 mm2), with a 150 kV impulse level that meets impulse requirements for 35 kV class equipment where indoor terminations are used. The pre-expanded silicone rubber bodies on removable spiral cores install without heat or torch, and the kit includes ground braid, cable cleaning preparation pads, copper mesh, a constant force spring, tape and instructions for installation.
Product Specifications
| Brand | 3M |
| MPN | 7696-T-150 |
| Series | Cold Shrink QT-III |
| Material | Silicone Rubber |
| Termination Type | Tubular, Indoor |
| Terminations per Kit | 3 |
| Insulation O.D. Range | 1.53-2.32 in (38.9-58.9 mm) |
| Cable Shield Type | Tape Shield, Wire Shield |
| Impulse Level | 150 kV |
| Voltage Class | 5 kV, 8 kV, 15 kV, 25/28 kV, 35 kV |
| Cable Size 5 kV | 1750-2000 kcmil |
| Cable Size 8 kV | 1500-2000 kcmil |
| Cable Size 15 kV | 1250-2000 kcmil (500-1000 mm2) |
| Cable Size 25/28 kV | 900-1750 kcmil (500-800 mm2) |
| Cable Size 35 kV | 700-1500 kcmil (400-725 mm2) |
| Stress Relief | High-K |
| Installation Method | Cold Shrink, No Heat Required |
| Color | Black |
| Alternate Part Number | 80-6108-3429-5 |
| Material Number | 7000006106 |
| Standard | IEEE Std. 48 Class 1 |
| Included Items | Ground braid, prep pads, copper mesh, spring, tape, instructions |
