3M Scotchcast 82-B1N 5kV Non-Shielded #2 AWG Inline Resin Splice Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

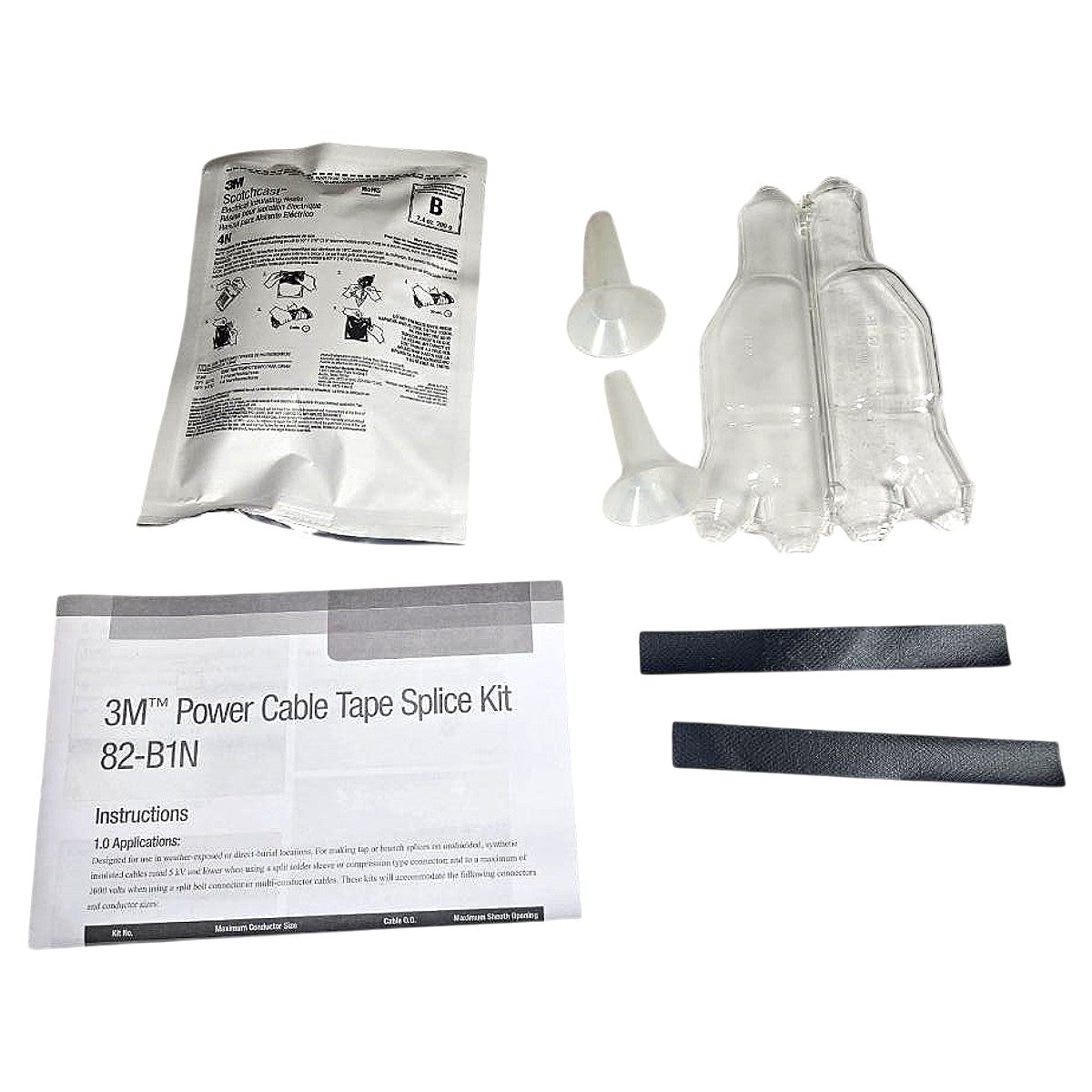

The 3M Scotchcast 82-B1N is an inline resin splice kit (3M ID 80-6116-1674-1, UPC 7100123111) for making tap or branch splices on unshielded, synthetic-insulated cables rated 5 kV and lower when using a split solder sleeve or compression-type connector, and to a maximum of 1000 volts when using a split bolt connector or multi-conductor cables. It is designed for weather-exposed or direct-burial locations. The kit accommodates split bolt connectors up to #4 AWG maximum and crimped connectors up to #2 AWG maximum, with a cable O.D. range of 1/4 in to 5/8 in (6.3-15.9 mm). The kit includes a Scotchcast electrical insulating resin pouch (7.4 oz / 200 g, Part B), a clear two-cavity plastic mold, two cable-entry funnel pieces, two gray tape strips, and the instruction sheet. This unit is new, made in the USA with globally sourced materials.
Product Specifications
| Brand | 3M |
| Series | Scotchcast |
| MPN | 82-B1N |
| Manufacturer Part Number | 80-6116-1674-1 |
| UPC/Item Number | 7100123111 |
| Kit Type | Inline Resin Splice Kit |
| Voltage Rating | 5 kV max (1000 V w/ split bolt or multi-conductor) |
| Shielding | Non-Shielded |
| Cable Insulation | Synthetic |
| Max Conductor Size, Split Bolt | #4 AWG |
| Max Conductor Size, Crimped | #2 AWG |
| Cable O.D. Range | 1/4 in-5/8 in (6.3-15.9 mm) |
| Application | Tap/Branch Splice, Weather-Exposed or Direct-Burial |
| Resin Quantity | 7.4 oz (200 g) |
| Included Components | Resin pouch, mold, 2 funnels, 2 tape strips, instructions |
| Country of Origin | USA |
