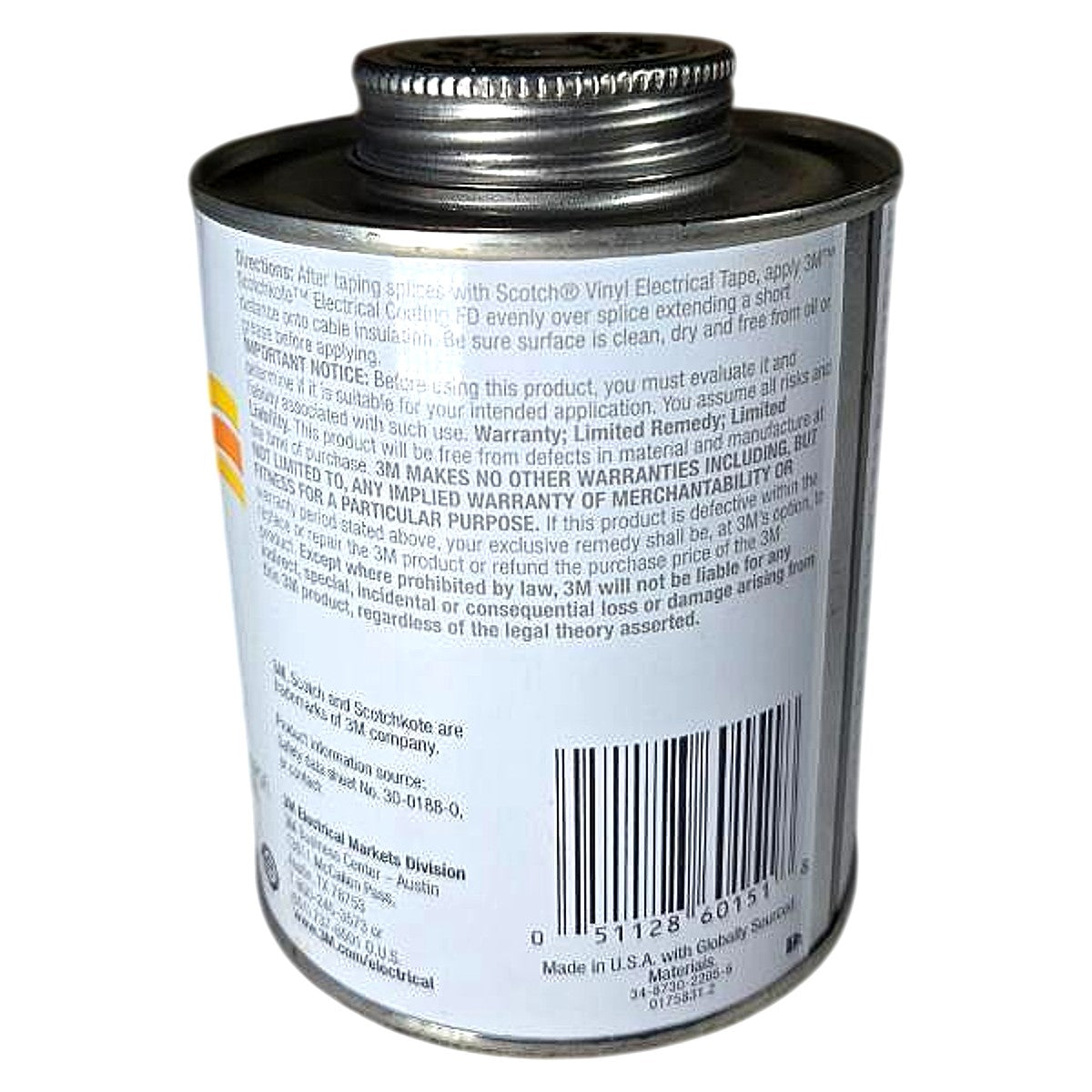

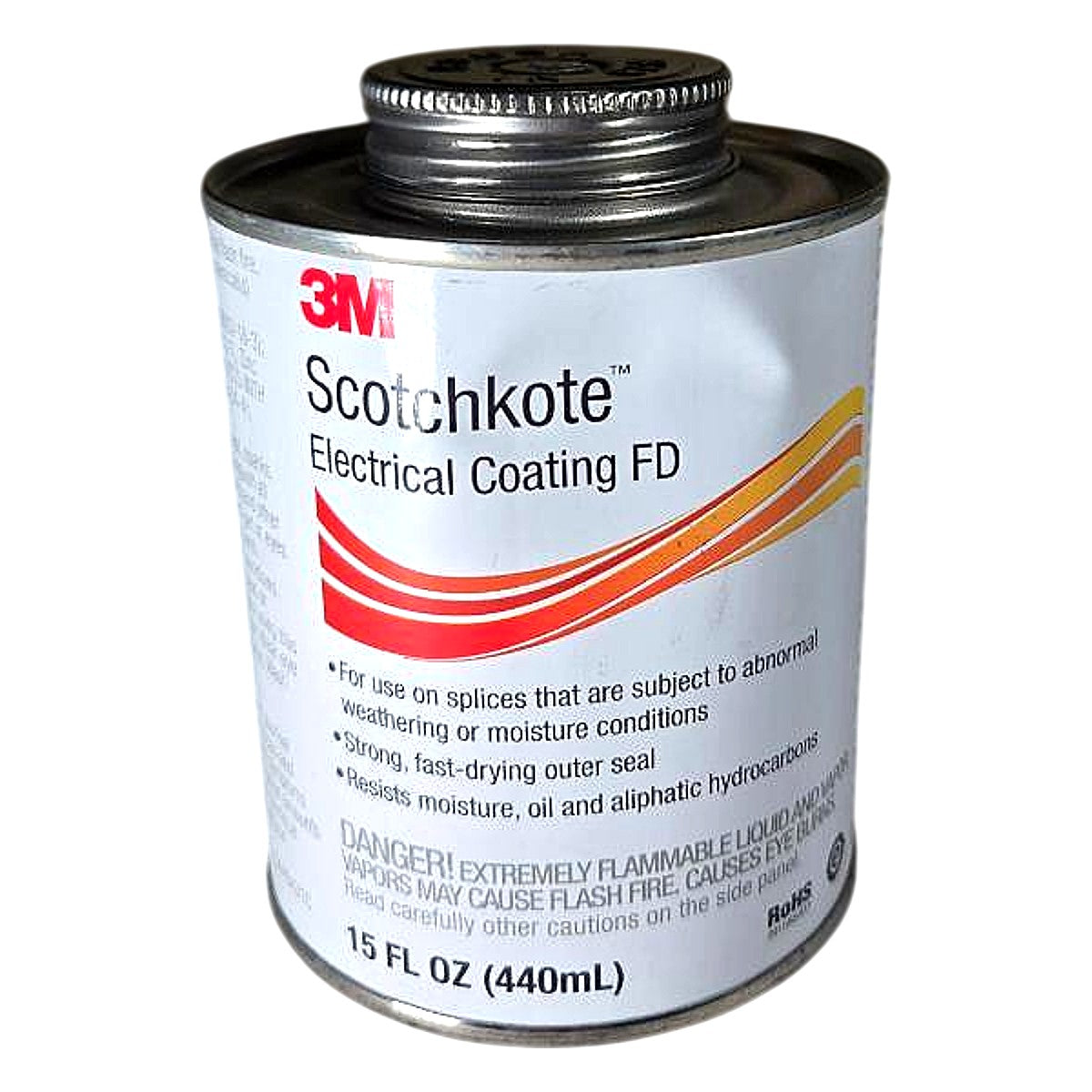

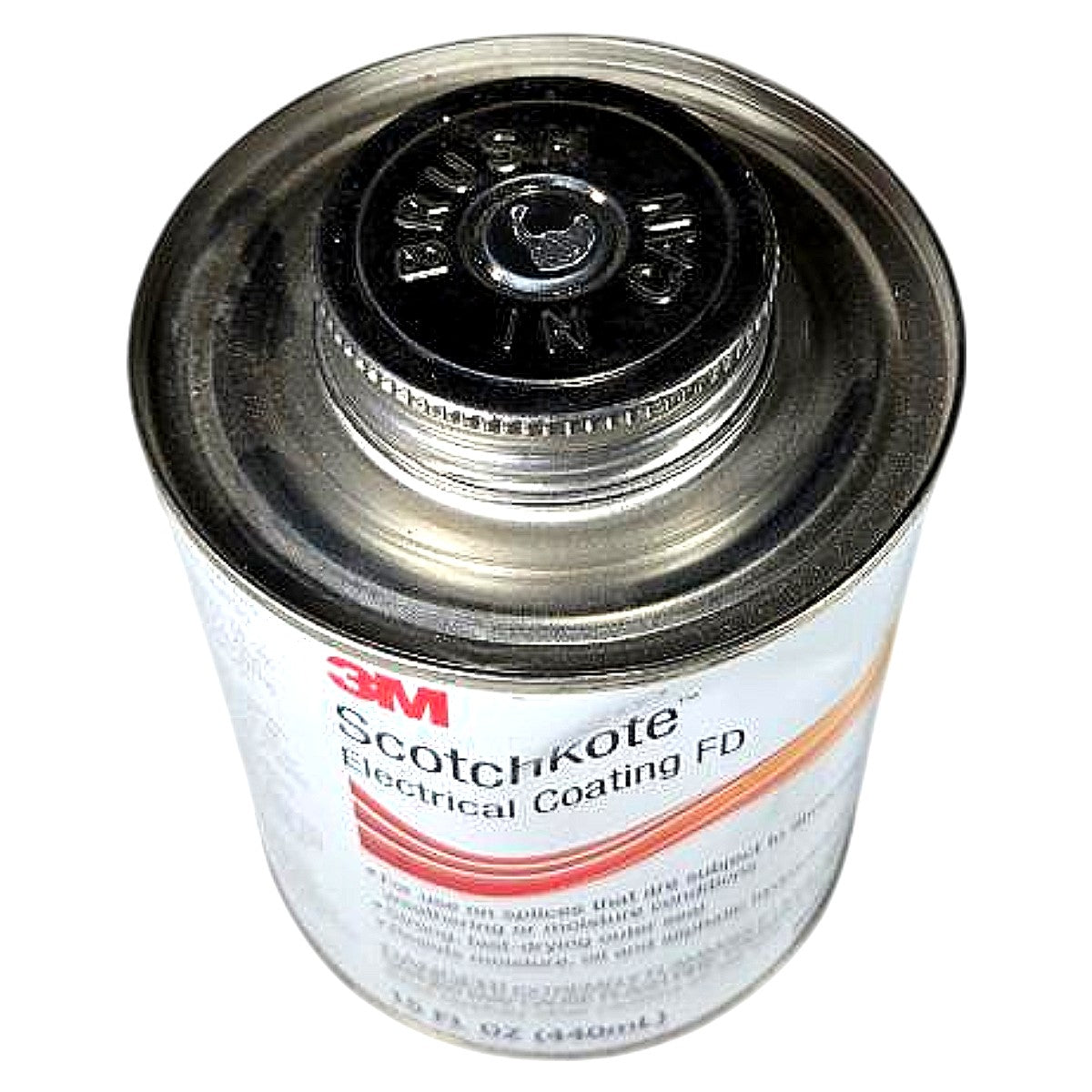

The 3M Scotchkote Electrical Coating FD is a fast-drying, brush-applied insulating coating supplied in a 15 fl oz (440 mL) metal can with an integrated brush-in-cap applicator, as confirmed by the label and top-view photo. It is specifically formulated for use on electrical splices subject to abnormal weathering or moisture conditions, providing a strong, fast-drying outer seal that resists moisture, oil, and aliphatic hydrocarbons. The product is designed for application over splices that have been taped with Scotch Vinyl Electrical Tape — the coating is brushed evenly over the splice and extended onto adjacent cable insulation. The formula is classified as an extremely flammable liquid (flash-fire hazard) and is RoHS compliant, as indicated by the RoHS symbol visible on the label. This is a new, factory-sealed can made in the U.S.A. with globally sourced materials, sold by 3M Electrical Markets Division under catalog/sales reference No. 30-0188-0.
Product Specifications
| Brand | 3M |
| Product Line | Scotchkote |
| Product Name | Electrical Coating FD |
| Part Number / MPN | 80611615784 |
| 3M Sales Reference No. | 30-0188-0 |
| Net Volume | 15 fl oz (440 mL) |
| Container Type | Metal can w/ integrated brush-in-cap |
| Application Method | Brush-on |
| Primary Use | Insulating coating for electrical splices |
| Resistance | Moisture, oil, aliphatic hydrocarbons |
| Drying Type | Fast-drying |
| Flammability | Extremely flammable liquid and vapor |
| RoHS Compliant | Yes |
| Country of Origin | Made in U.S.A. w/ globally sourced materials |
| Condition | New |
