3M Scott 804101-01 Aluminum 2216 PSI 30-Min SCBA Breathing Air Cylinder

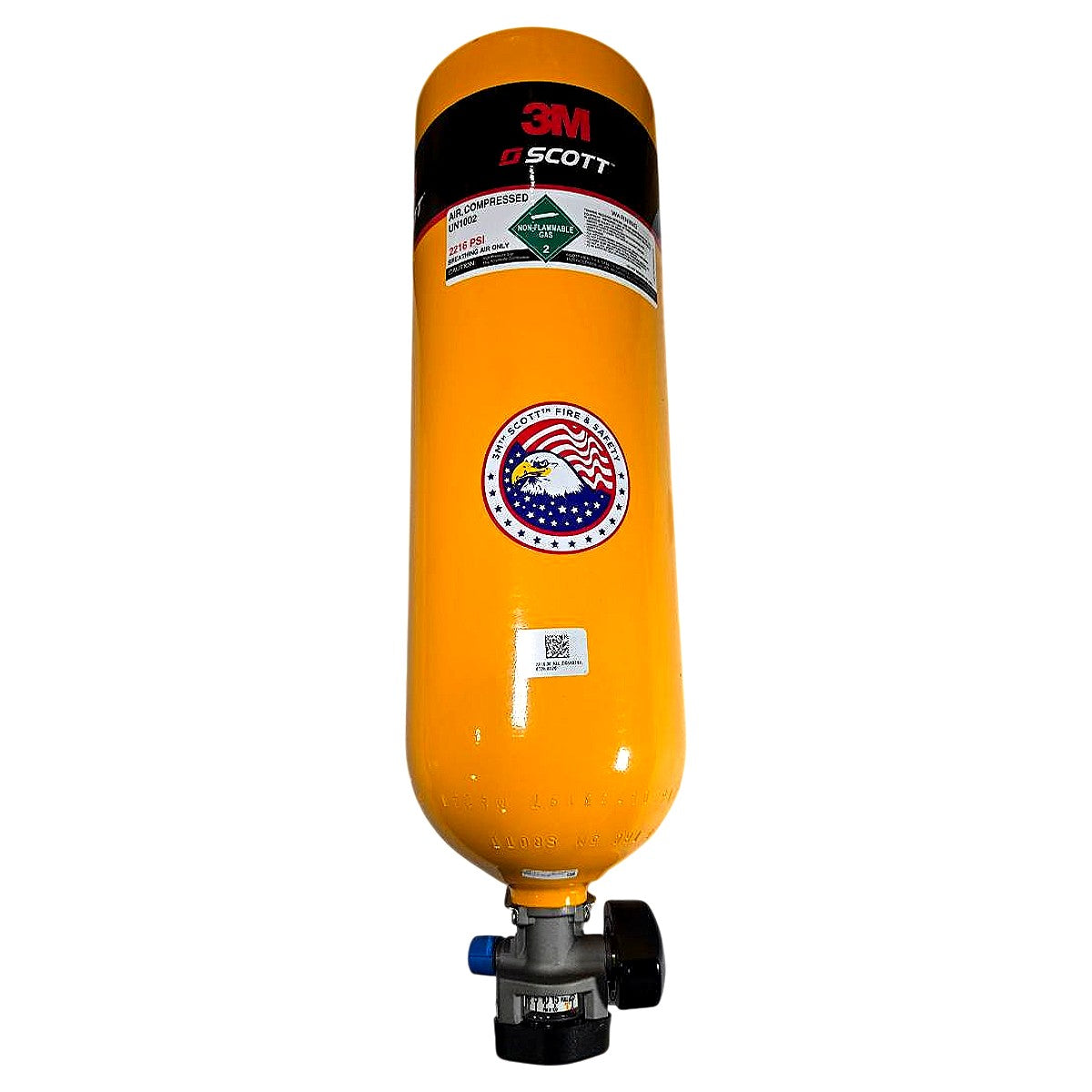

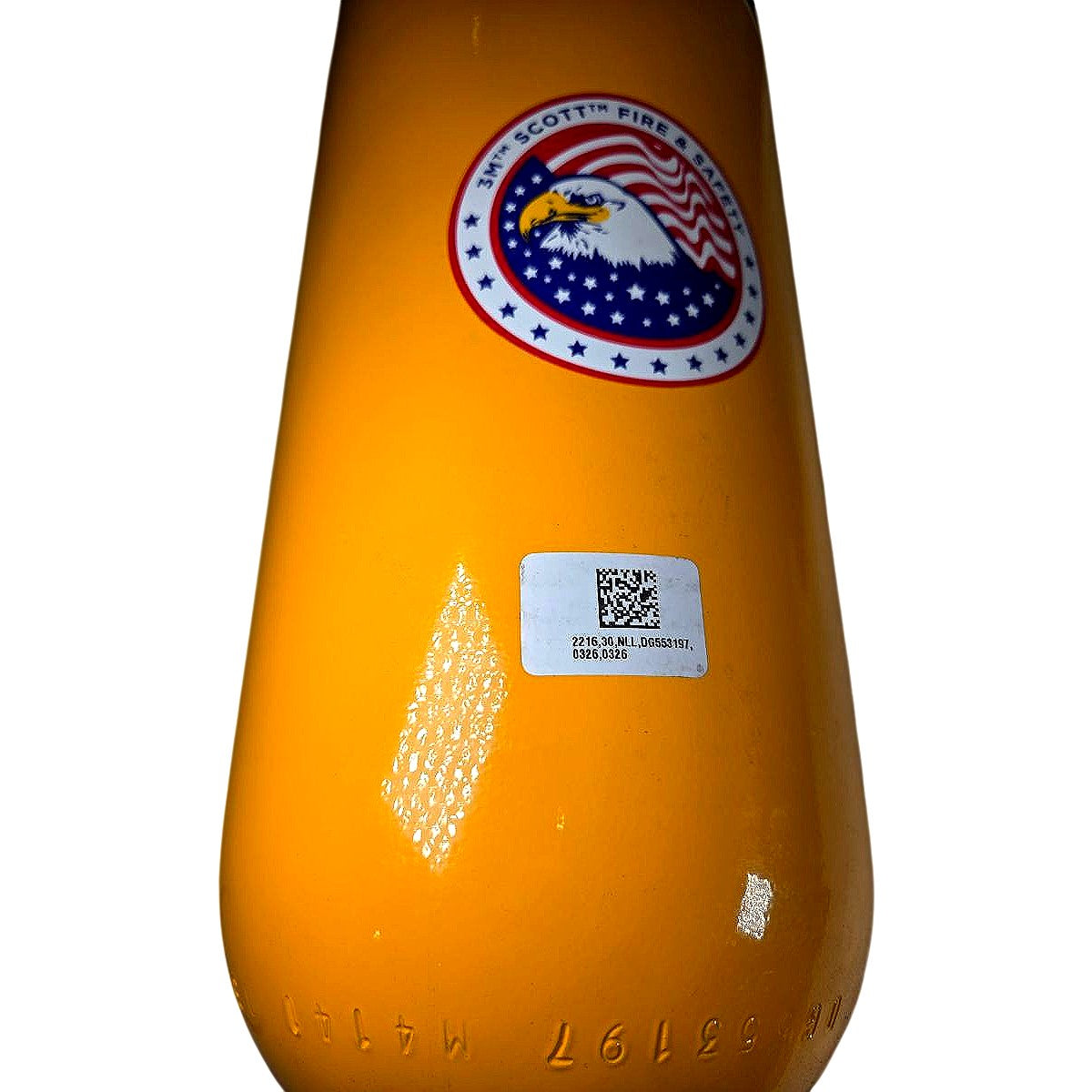

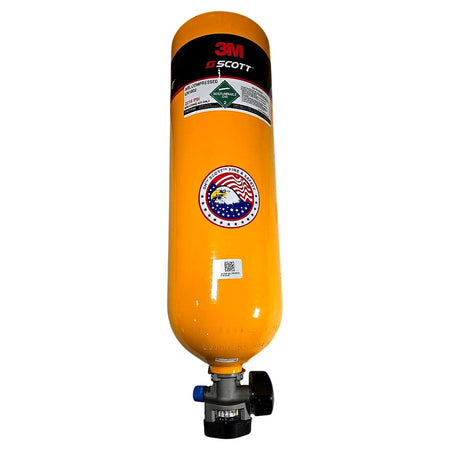

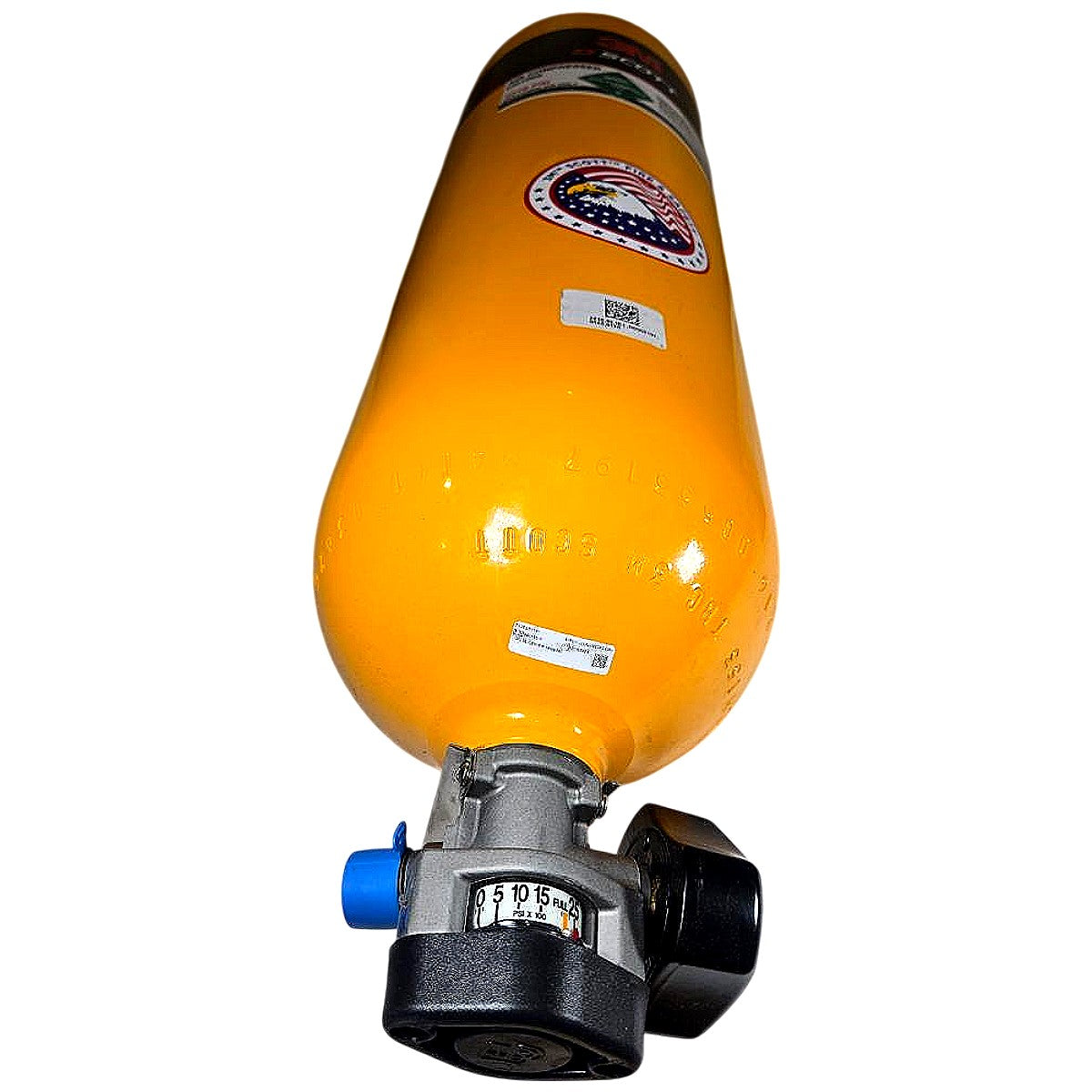

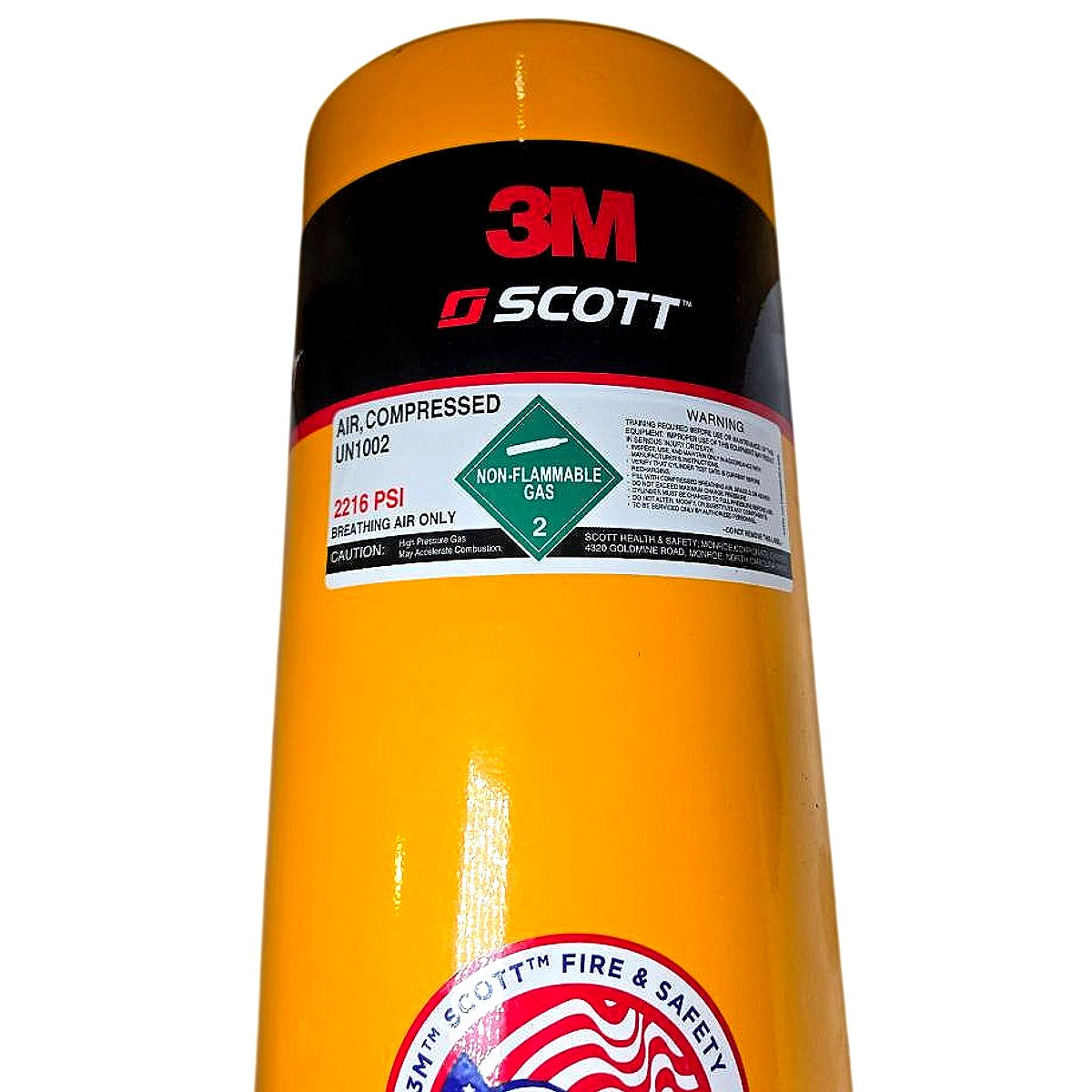

The 3M Scott 804101-01 is a new, pre-filled aluminum SCBA (Self-Contained Breathing Apparatus) cylinder rated at 2,216 PSI service pressure, classified UN1002 as compressed breathing air (non-flammable gas, Division 2.2). The cylinder body is DOT-3AL-2216 aluminum construction, finished in high-visibility yellow, and fitted with an integrated CGA valve assembly featuring a built-in pressure gauge reading 0–2,000 PSI (×100 scale) and a blue quick-connect port for SCBA harness/regulator attachment. Decoding the part number 804101-01: 804101 is the 3M Scott base cylinder assembly, suffix -01 designates the aluminum, CGA-valve, 30-minute (30M), 2,216 PSI configuration — confirmed by the box label reading "SPRE,CYL,BV,ALUM,CGA,2.2,30M" with P/N 804101-01. The QR sticker on the cylinder body reads "2216,30,NLL,DG553197,0326,0326," confirming 2,216 PSI, 30-minute rated service life, and a hydrostatic test/manufacture date of March 2026. This cylinder is compatible with 3M Scott Air-Pak X3 Pro, Air-Pak 75, and other Scott SCBA harness assemblies using the standard CGA valve interface; it is intended for firefighting, hazmat, and industrial confined-space breathing air applications and must be serviced and refilled only by an authorized facility.

Product Specifications
