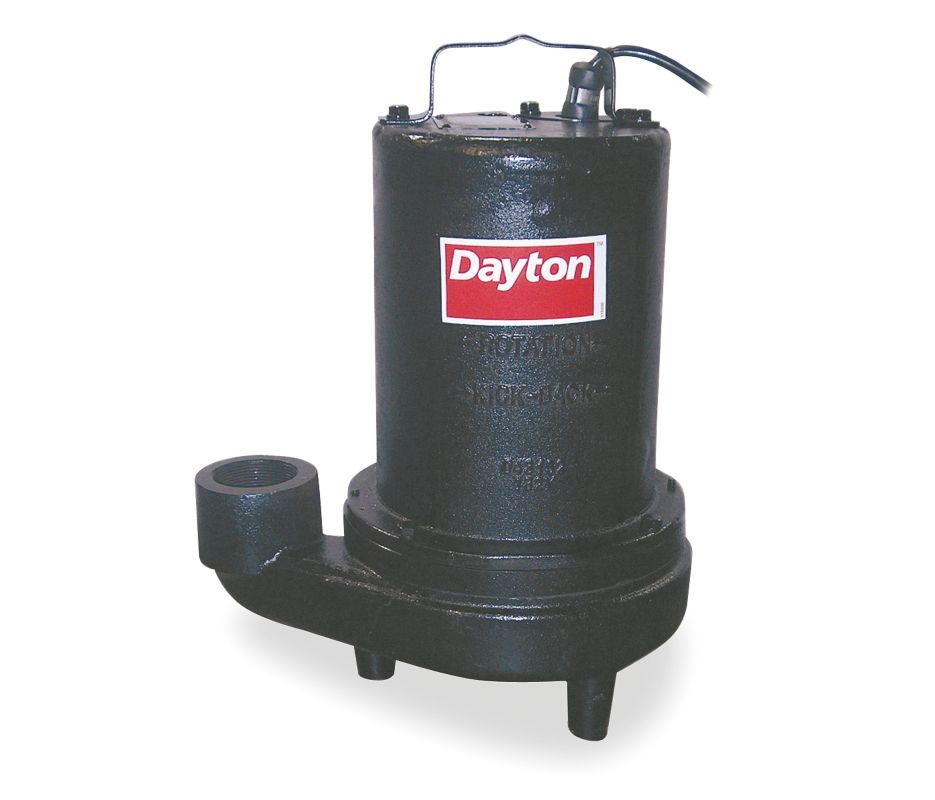

4LE11 1/2 HP Submersible Effluent Pump 230V 2" NPT Discharge Cast Iron -
Regular price
$152.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Base Material | Cast Iron |
| Bearing Type | Ball |
| Brand | My Store |
| Cord Length | 20" |
| Duty | Intermittent |
| GPM of Water @ 10 Ft. of Head | 92 |
| GPM of Water @ 15 Ft. of Head | 84 |
| GPM of Water @ 20 Ft. of Head | 76 |
| GPM of Water @ 25 Ft. of Head | 65 |
| GPM of Water @ 30 Ft. of Head | 53 |
| GPM of Water @ 40 Ft. of Head | 20 |
| GPM of Water @ 5 Ft. of Head | 96 |
| HP | 1/2 |
| Height | 17-5/16" |
| Housing Material | Cast Iron |
| Impeller Material | Polypropylene |
| Item | Submersible Effluent Pump |
| MPN | 4LE11 |
| Motor RPM | 3450 |
| Motor Type | Oil Filled PSC |
| Phase | 1 |
| Shaft Seal | Silicon Carbide |
| Switch Type | None |
| Top Material | Cast Iron |
SPECS
Dayton submersible ejectors are self-contained and recommended for use in a sump or basin, where they should be vented in accordance with local plumbing codes. They are designed to pump effluent or wastewater, nonexplosive and noncorrosive liquids, and shall not be installed in locations classified as hazardous in accordance with the United Stated Electrical Code (NEC), ANSI/NFPA 70. Never install the pump in a trench, ditch, or hole with a dirt bottom; the legs will sink into the dirt and suction will become plugged.
