723-2520 M42 Cobalt 3/16-3/4in 2&4 Flute 20 Pc Center Cut End Mill Set
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

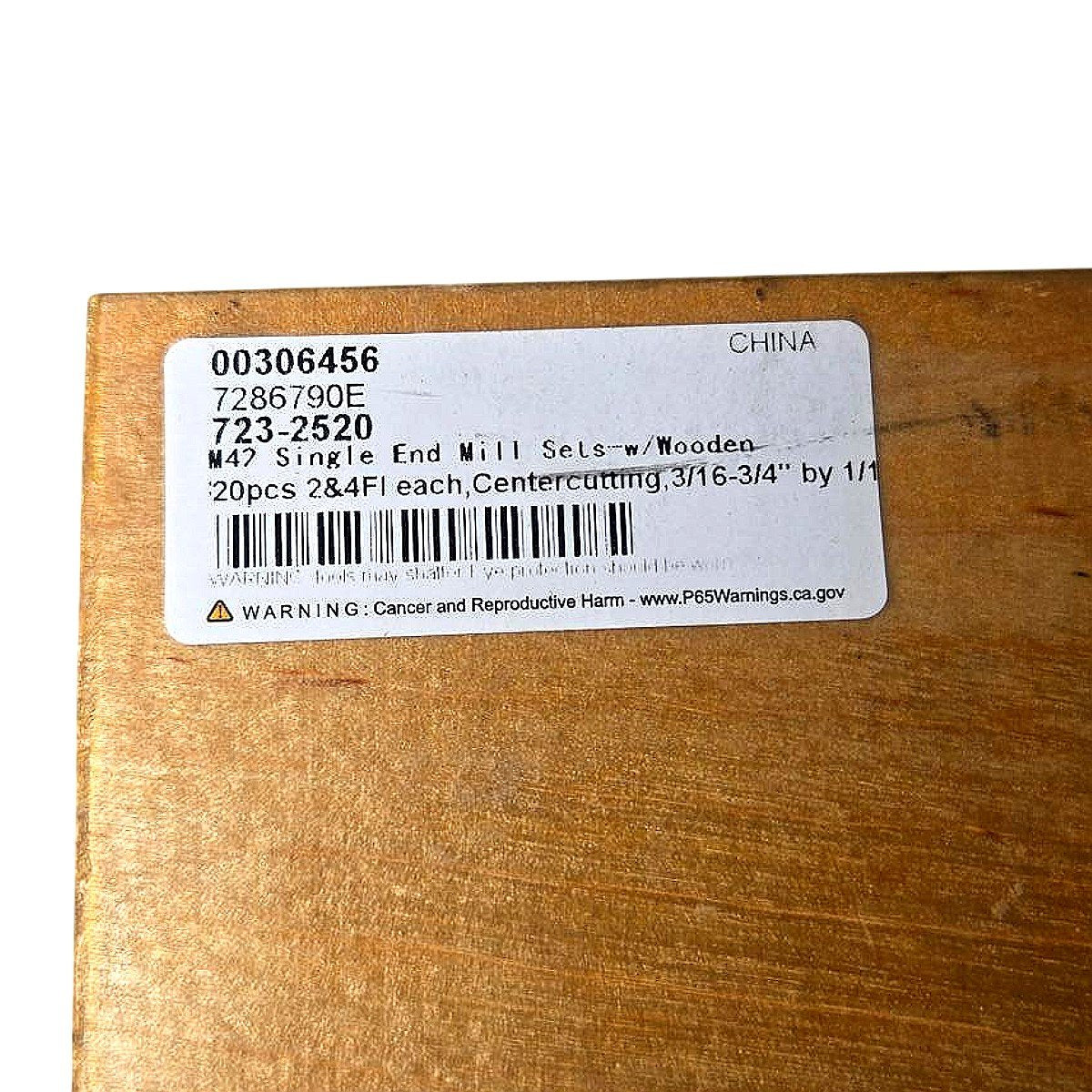

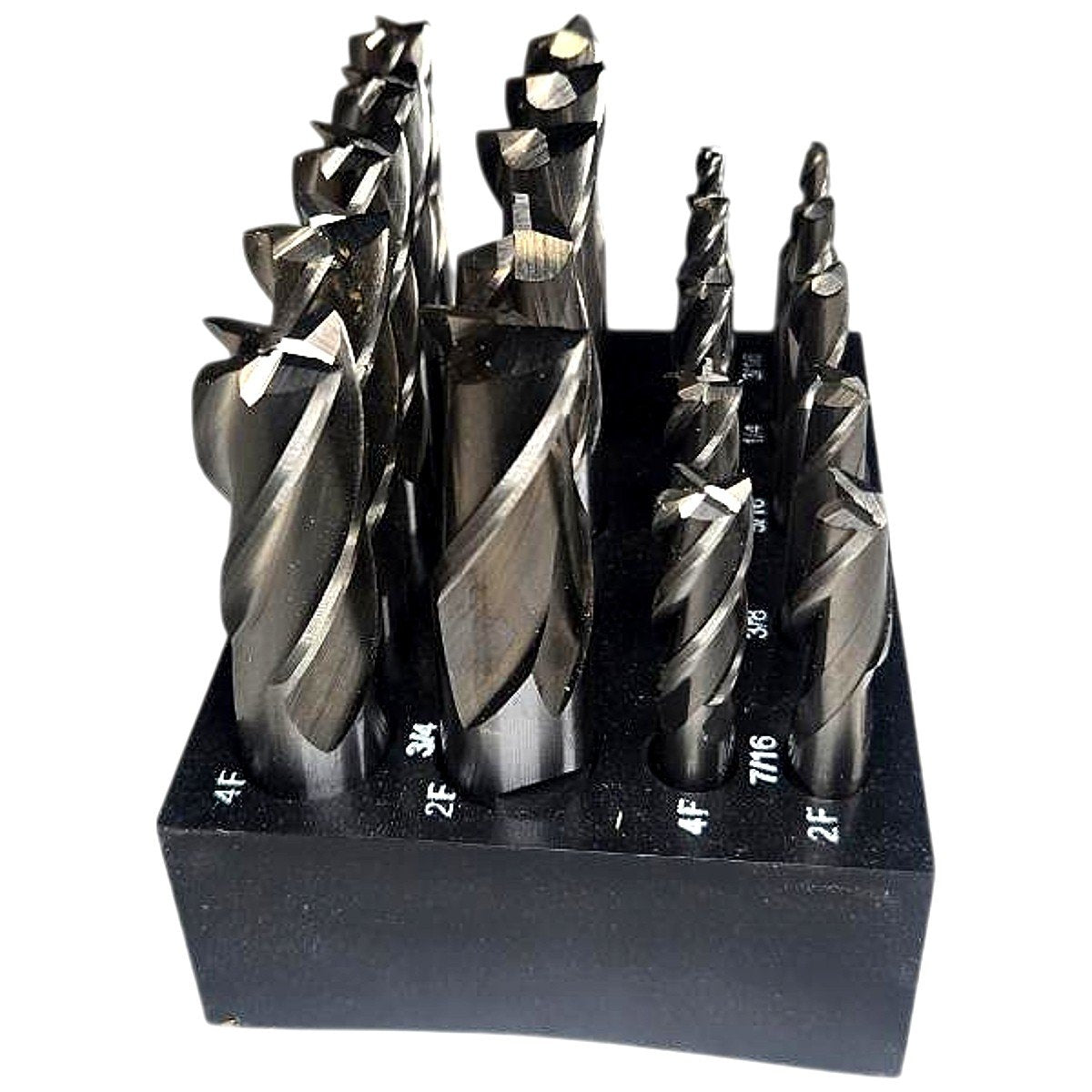

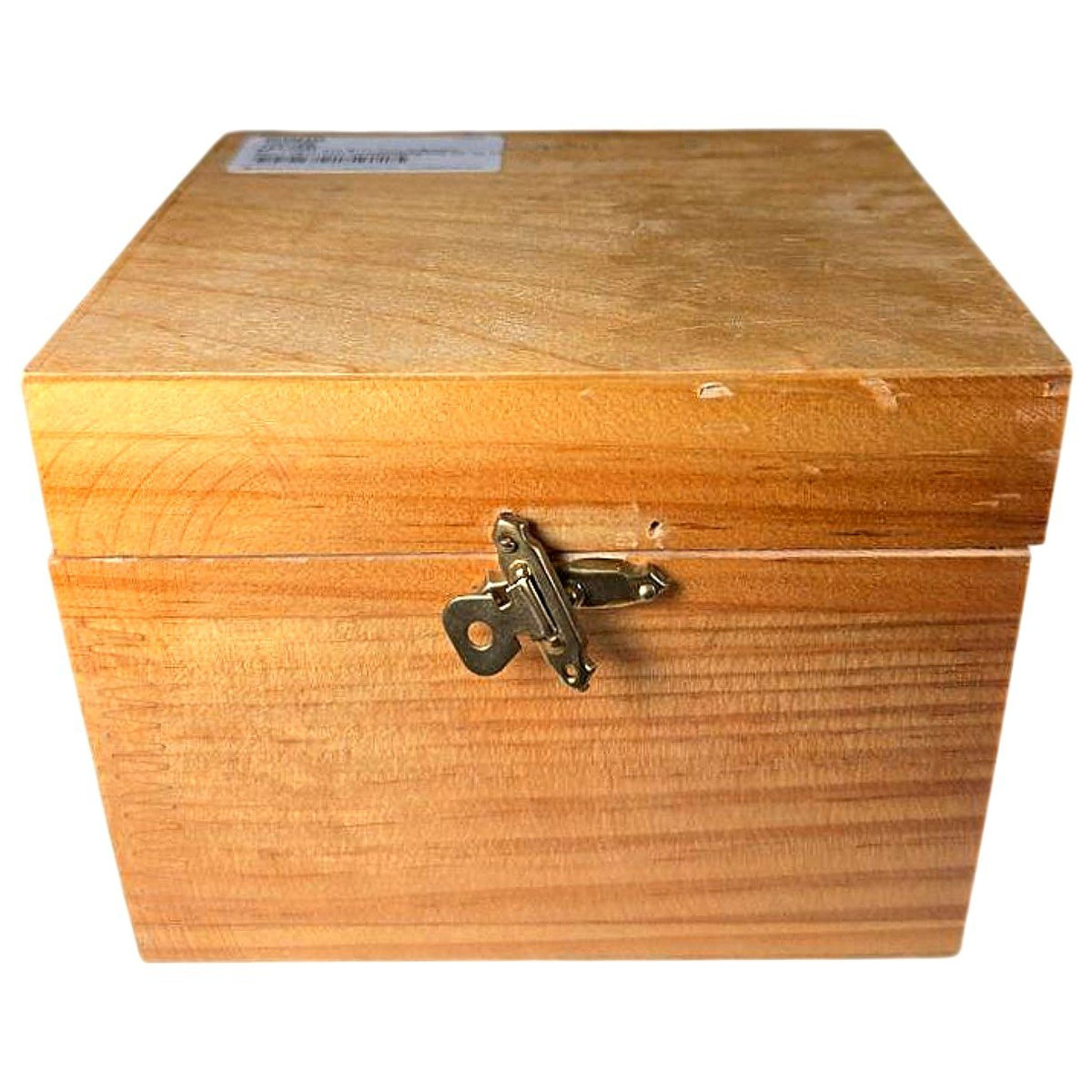

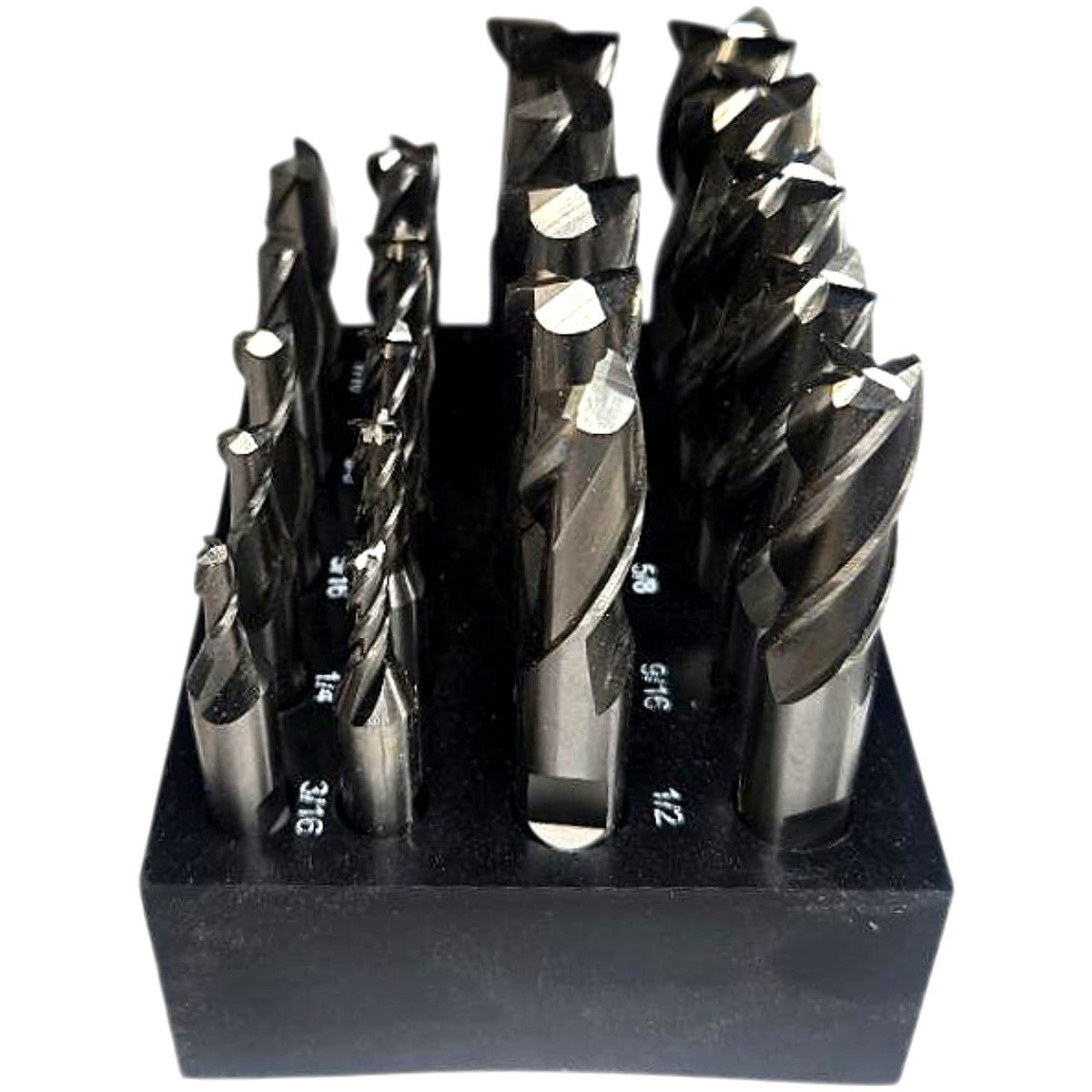

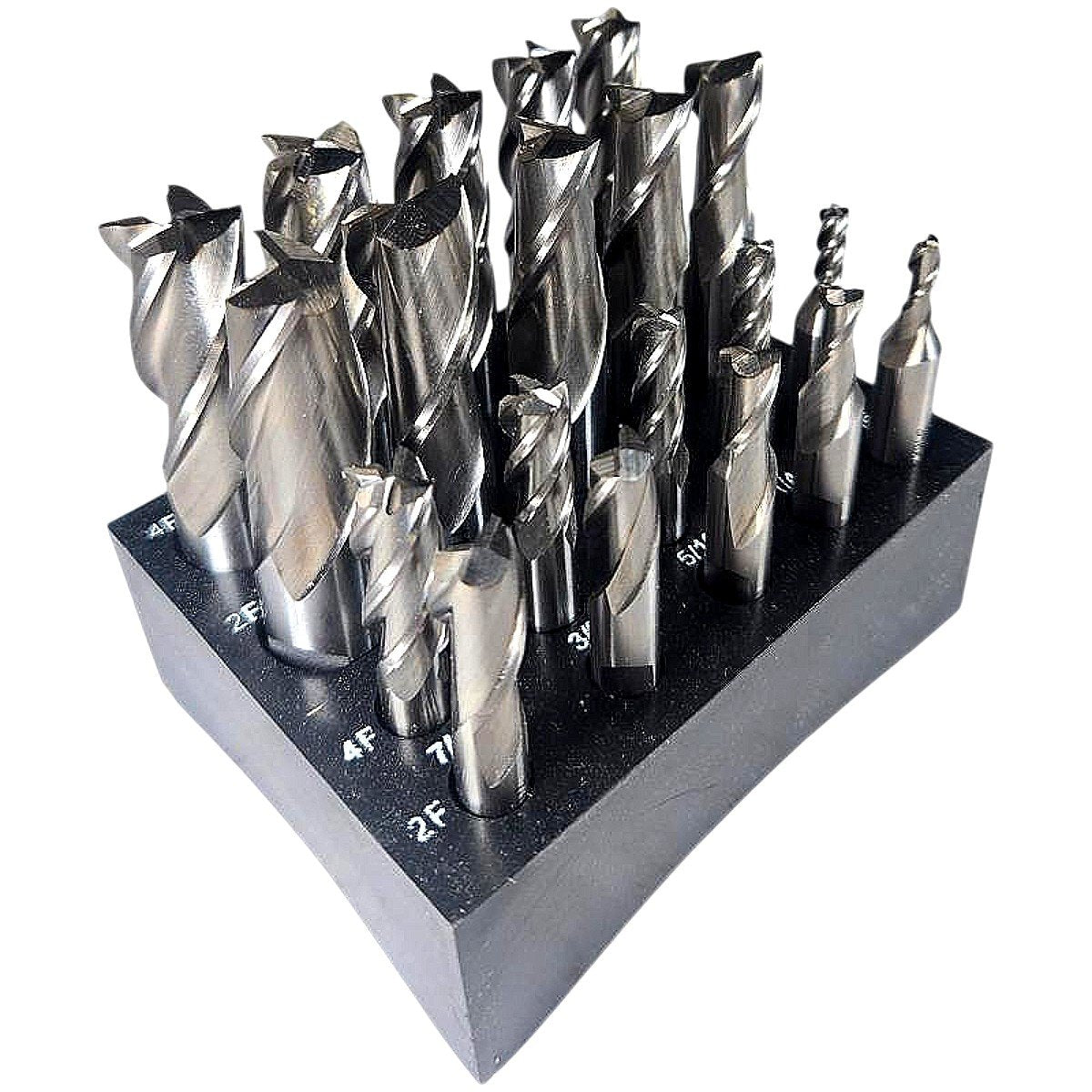

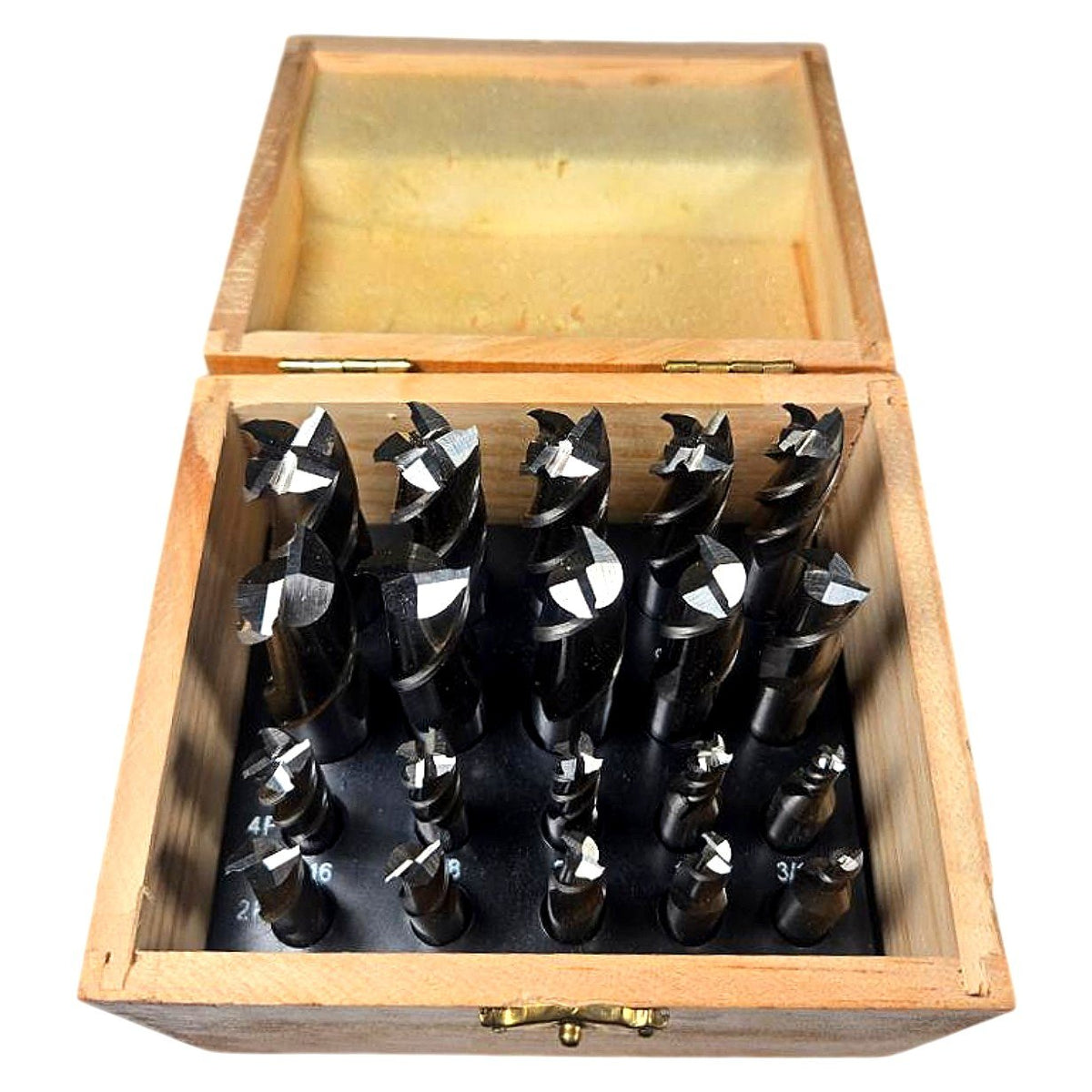

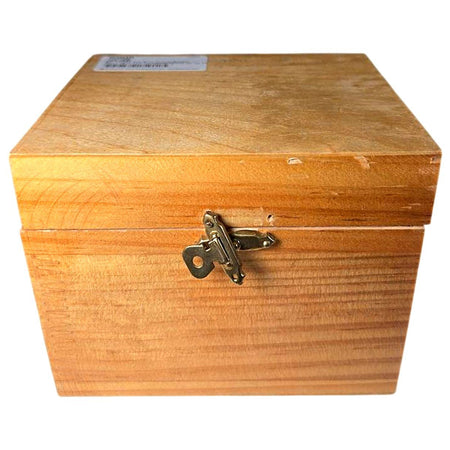

This 20-piece single-end end mill set, item 723-2520, is made from M42 cobalt high-speed steel and has a bright, uncoated finish. It includes ten diameters from 3/16 in to 3/4 in, each in a 2-flute and a 4-flute style, and every cutter is center cutting so it can plunge as well as side mill. The square-end cutters are single ended and are suited to slotting, profiling and pocketing on milling machines. M42 is an 8% cobalt grade known for red hardness and wear resistance when cutting stainless steels, alloy steels and other tough materials. The set is supplied new in a fitted wooden storage box, with each end mill seated in a labeled holder block that marks its size and flute count.
Product Specifications
| MPN | 723-2520 |
| Alternate Part Number | 00306456, 7286790E |
| Material | M42 Cobalt HSS |
| Coating/Finish | Uncoated (Bright) |
| Set Size | 20 Pc |
| Diameter Range | 3/16 in to 3/4 in |
| Diameter Increment | 1/16 in |
| Number of Flutes | 2 Flute, 4 Flute |
| Pieces per Flute Style | 10 each of 2 Flute and 4 Flute |
| Cutting Style | Center Cutting |
| End Type | Square End |
| Number of Ends | Single End |
| Operation | Milling |
| Country of Origin | China |
| Case/Storage | Wooden Box w/ Holder Block |
| Unit System | Inch |
