ABB E91/30 CC 2CSM299872R1801 1P 30A 600V Class CC Fuse Holder PK6

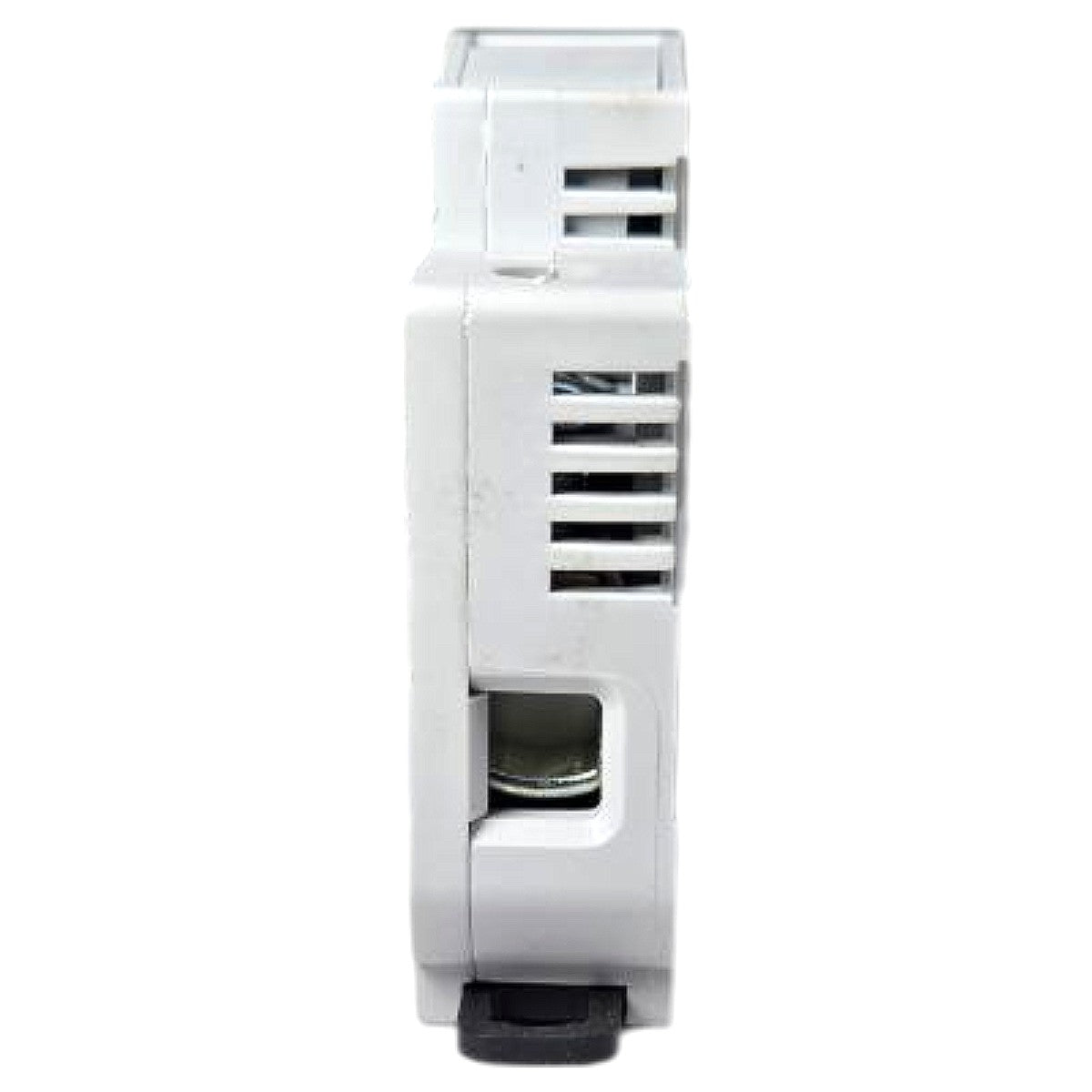

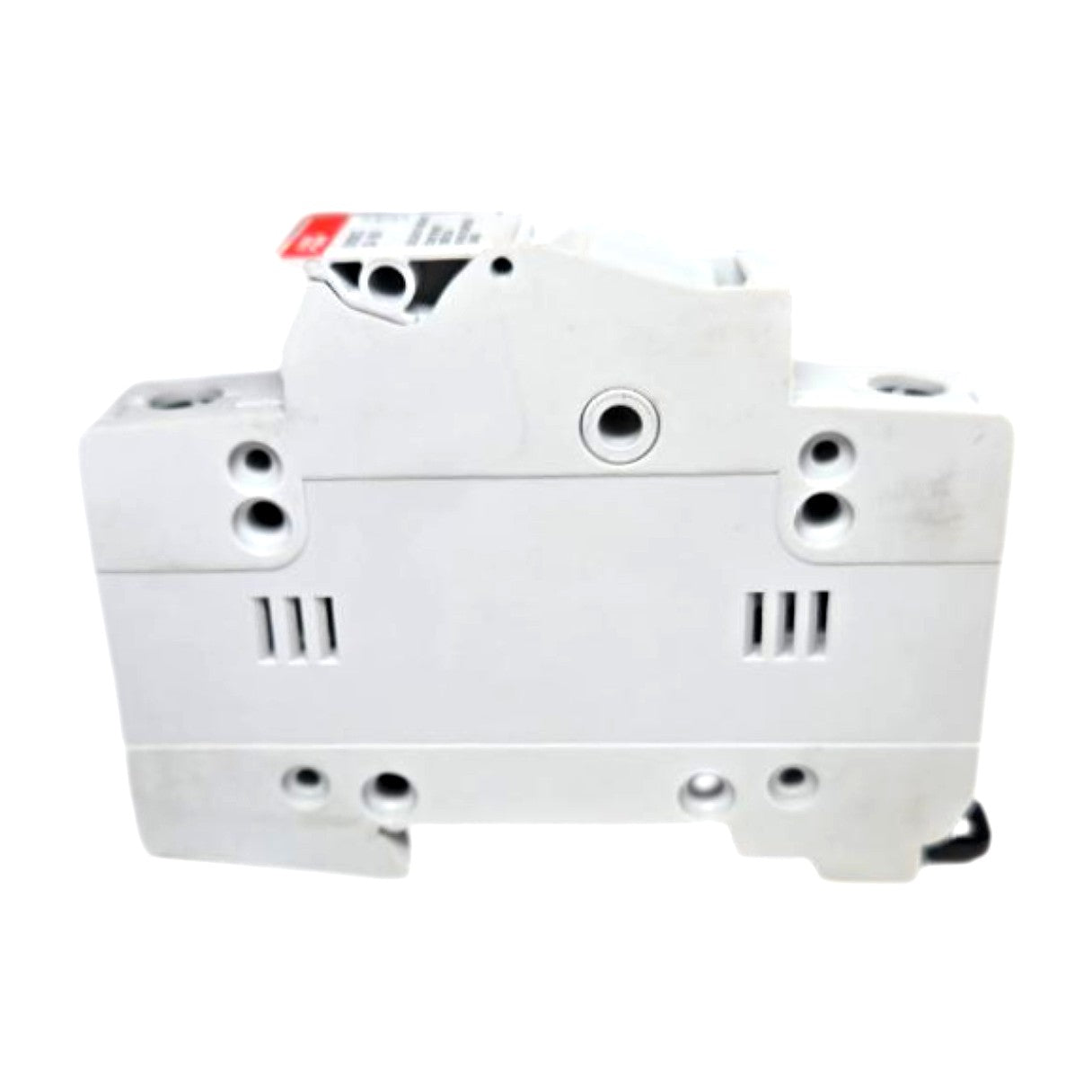

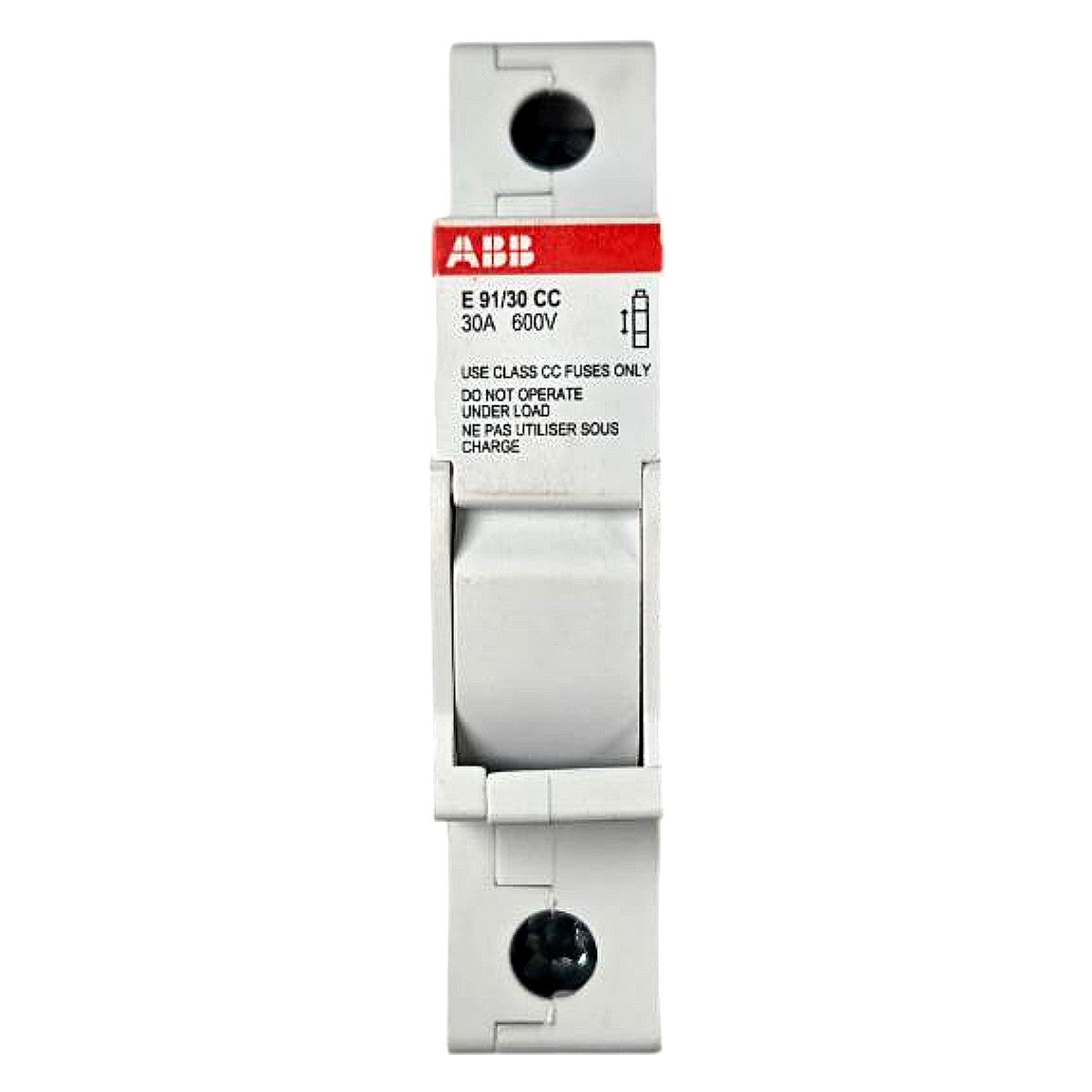

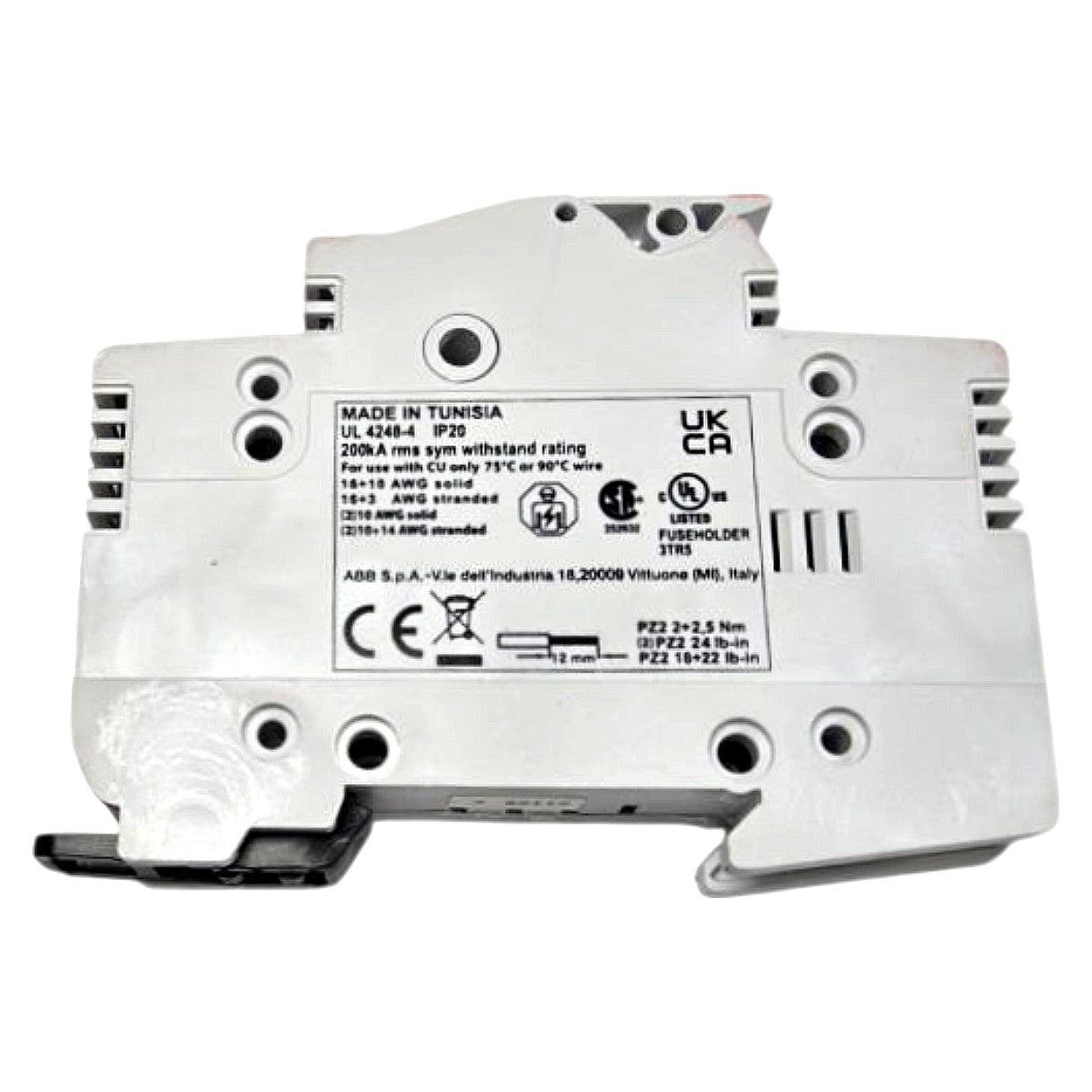

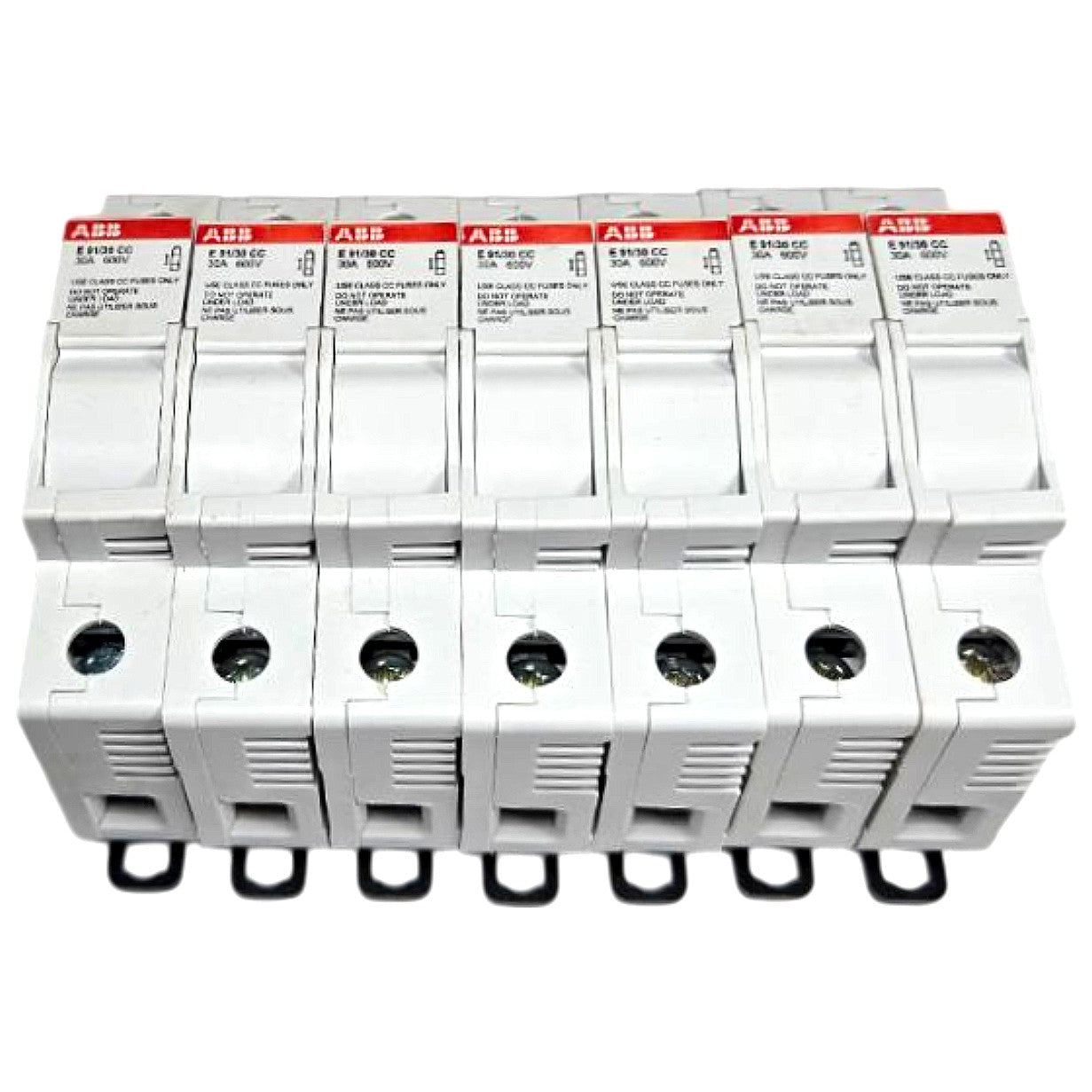

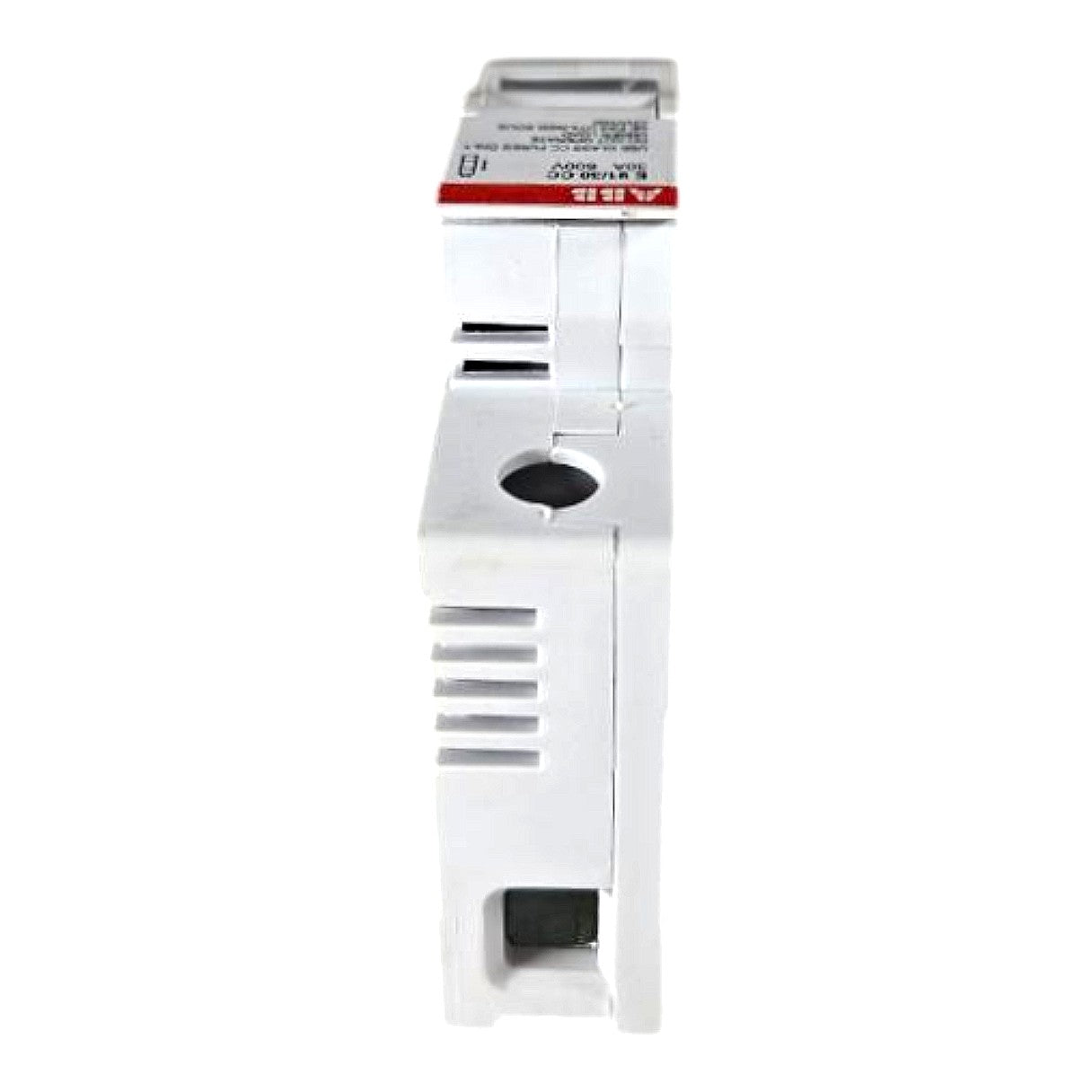

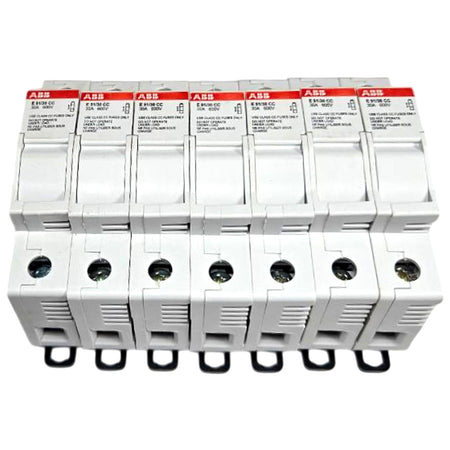

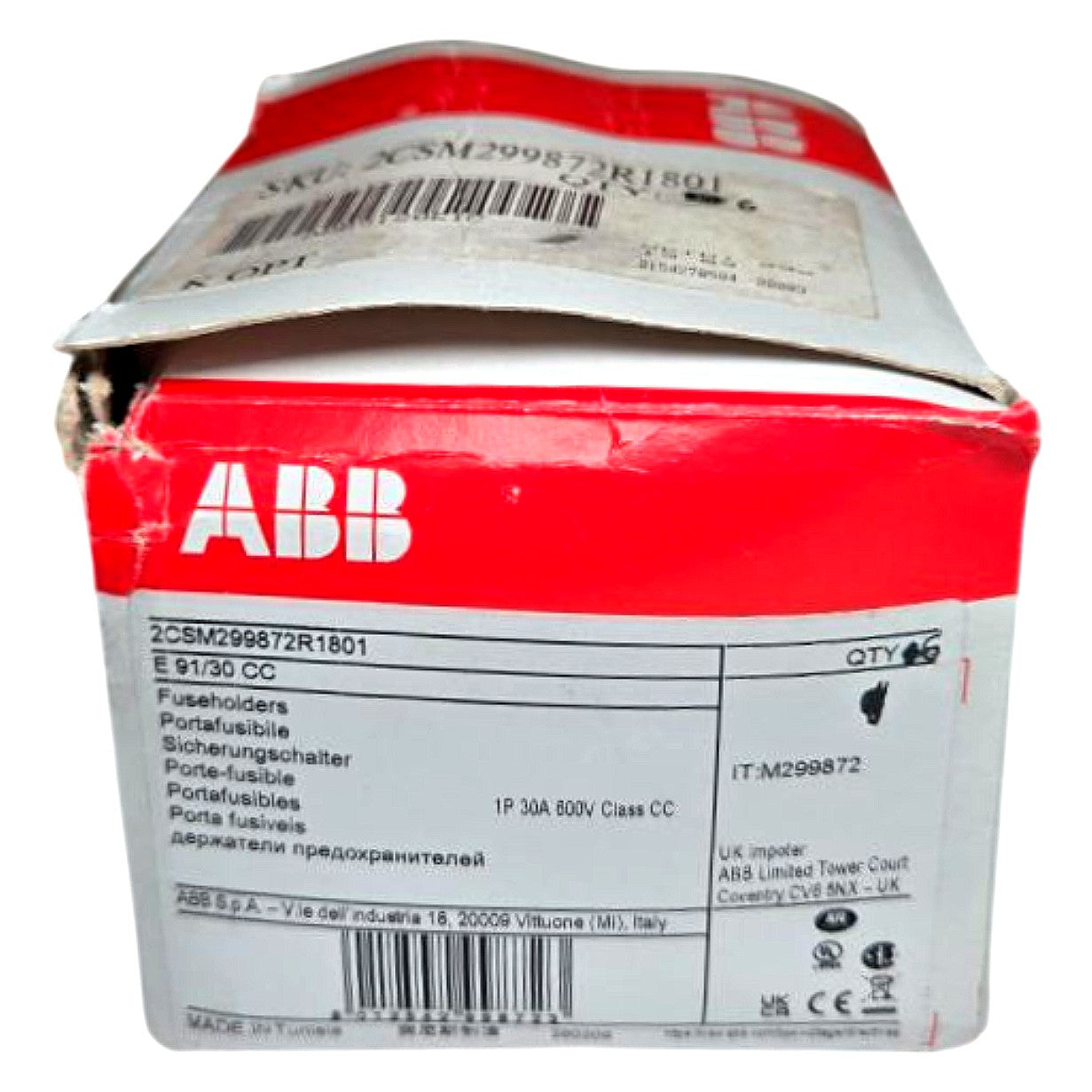

The ABB E 91/30 CC (MPN 2CSM299872R1801) is a new, single-pole (1P) DIN rail-mount fuse holder rated 30A at 600V AC, designed exclusively for Class CC ferrule fuses. The unit snaps onto standard 35mm DIN rail and features screw-clamp terminals accepting 16–10 AWG solid or 16–3 AWG stranded copper conductors (75°C or 90°C wire), with a terminal torque of 2–2.5 Nm (18–22 lb-in) per the rear label. Rated to UL 4248-4 and listed as a fuseholder (UL file 3TR5) with a 200 kA rms symmetrical withstand rating and IP20 finger-safe protection; the holder is also CE and UKCA marked. It must not be operated under load (disconnect power before opening), and accepts only Class CC fuses to prevent mis-fusing — making it suitable for branch-circuit protection in industrial control panels, MCC buckets, and machine tool enclosures. This listing is for a package of 7 units pulled from an original ABB factory box (box label shows QTY 6, but 7 units are confirmed present in the first photo).

Product Specifications
