Abbott KTT8S1 3-Pc Set 1.5" OAW 3" OAH 4" OAL Steel Serrated Soft Chuck Jaws

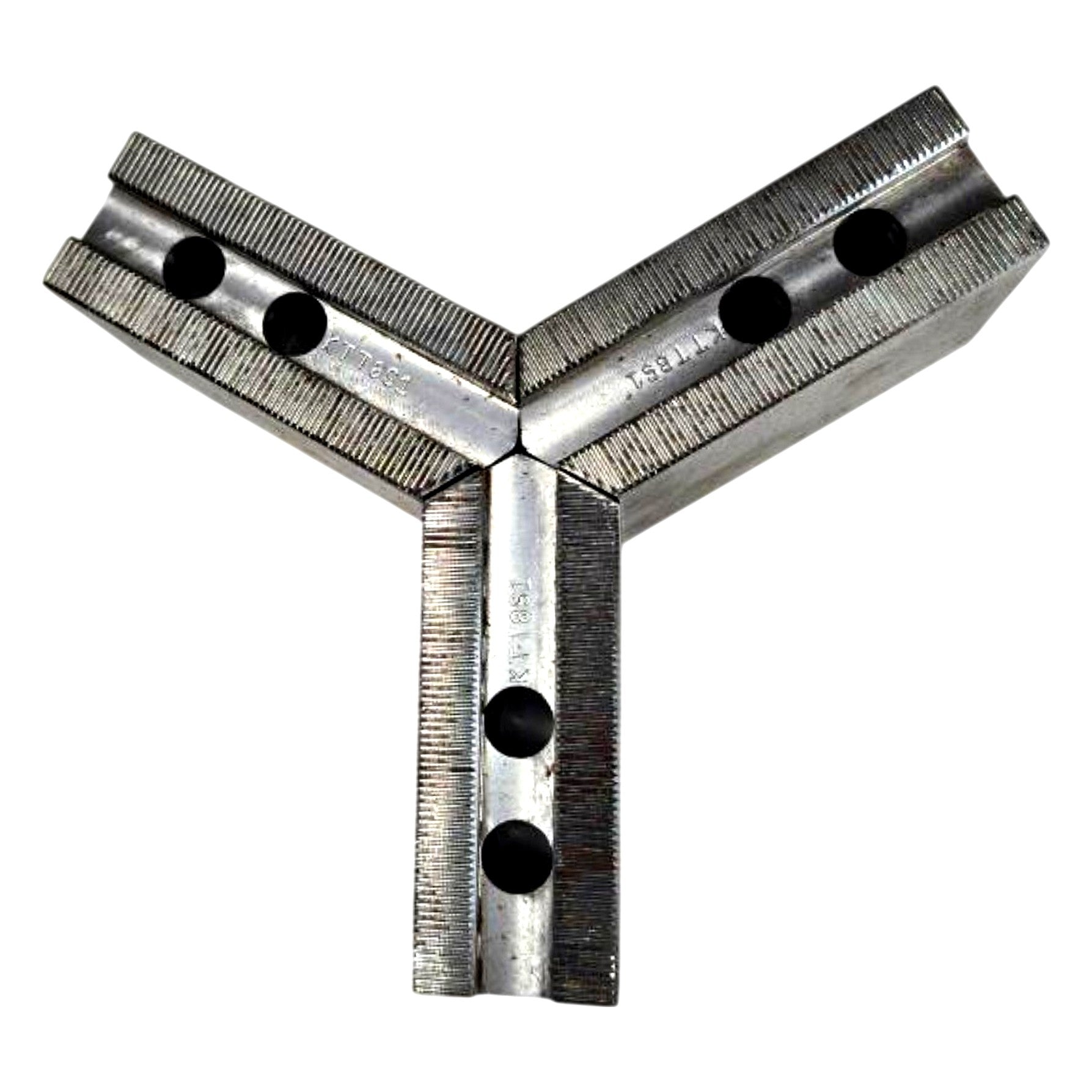

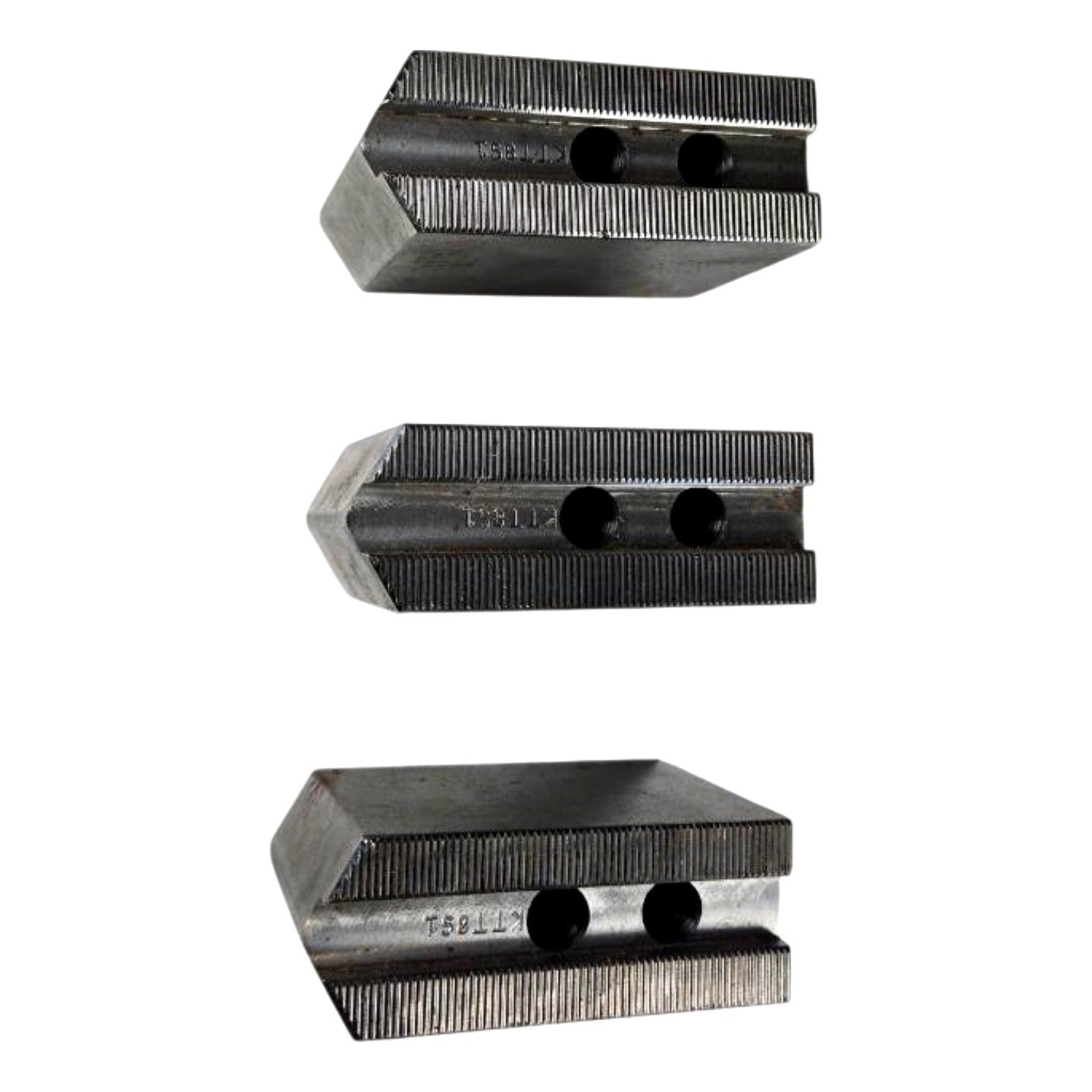

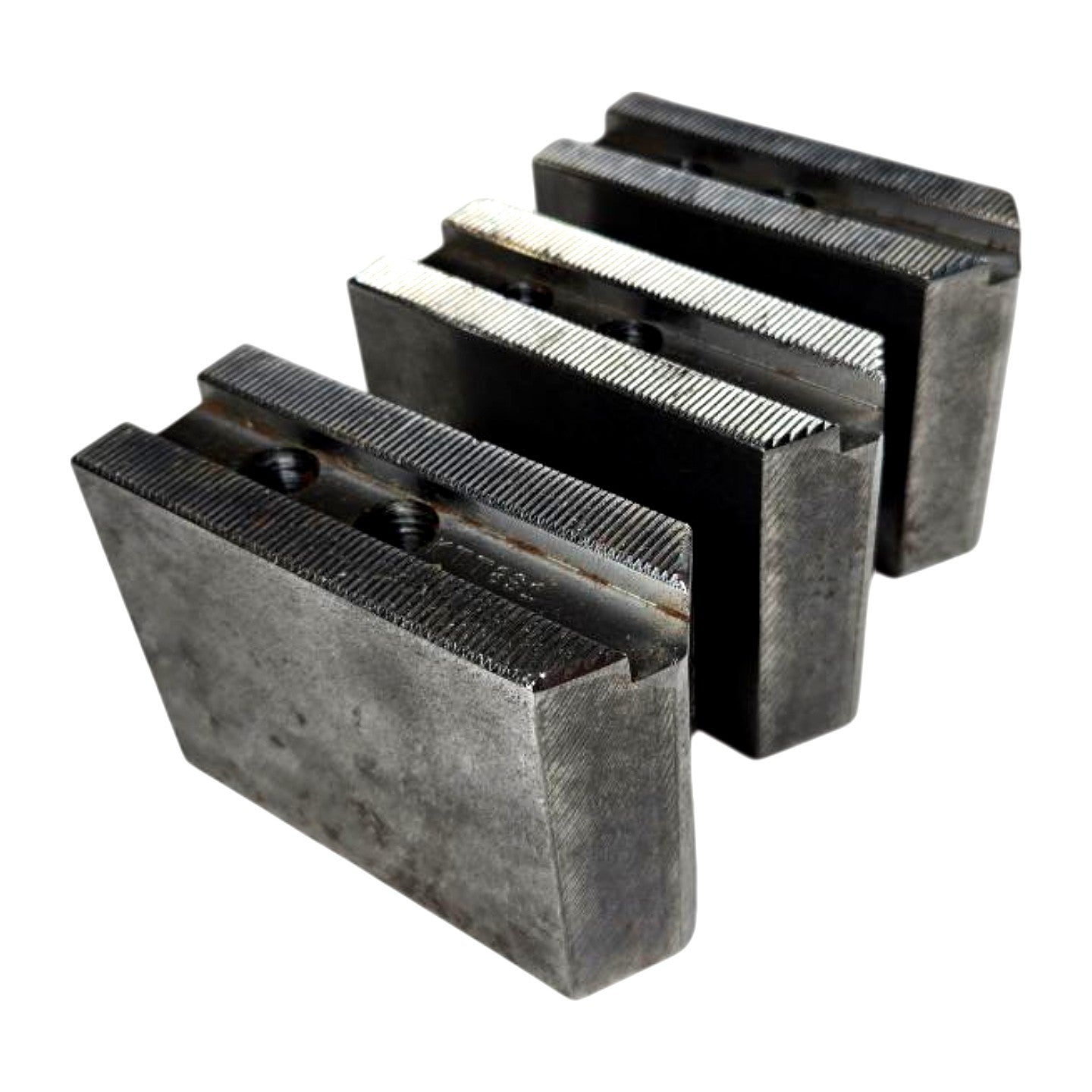

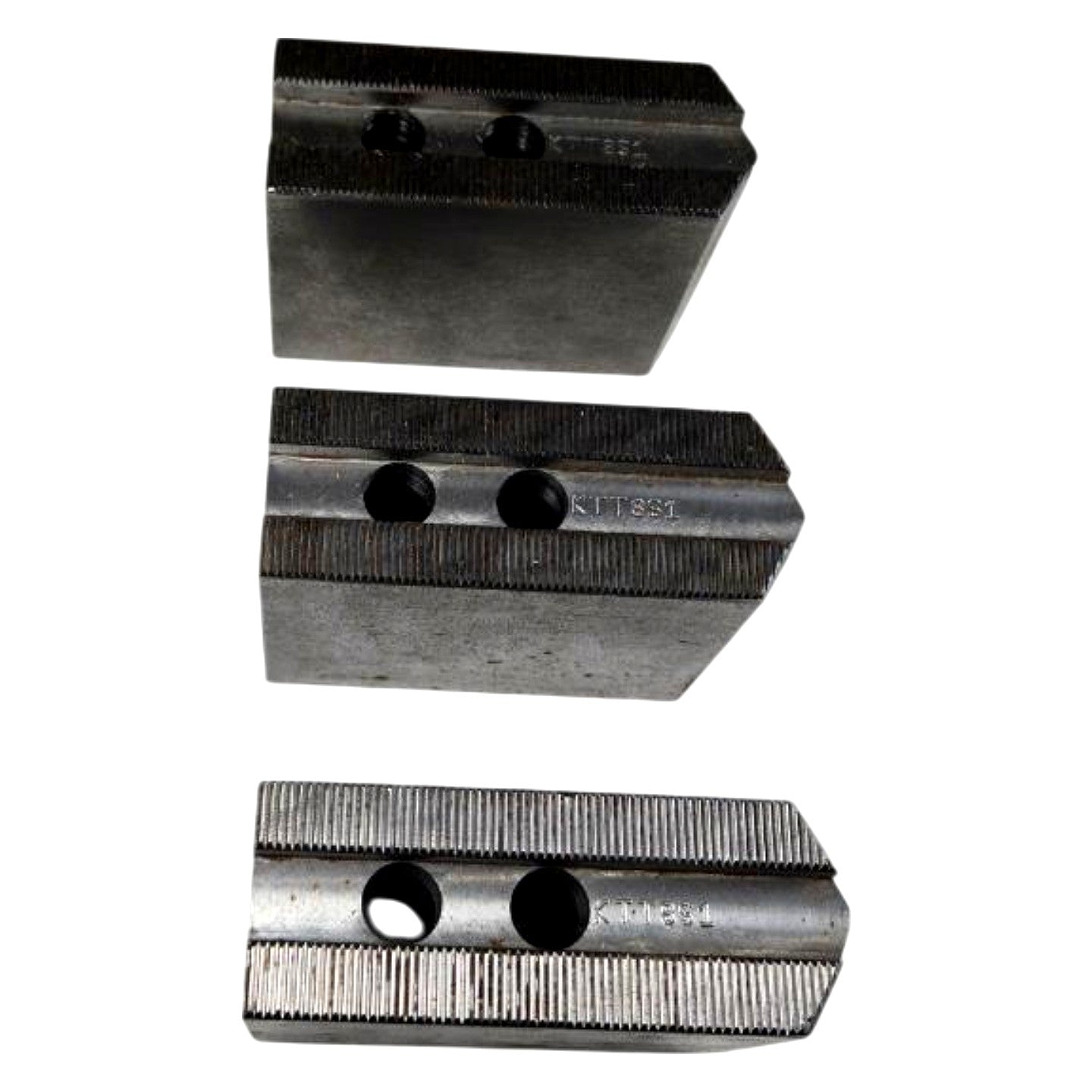

Abbott Workholding KTT8S1 soft lathe chuck jaws are sold as a matched set of three (PK3), machined from steel and featuring a fully serrated top surface with 90° serrations for positive grip engagement against master jaw serrations on compatible 3-jaw lathe chucks. Each jaw measures 1-1/2" overall width (OAW), 3" overall height (OAH), and 4" overall length (OAL), with a 0.9843" (approximately 25 mm) center-to-center distance between mounting holes and a 0.4724" (approximately 12 mm) fastener bore diameter. As soft (un-bored) jaws, they are supplied without a finished workholding bore, allowing the machinist to bore the gripping face in-situ to precise workpiece diameter for maximum concentricity and zero runout — a standard practice in precision turning and chuck reconditioning. The part number "KTT8S1" stamped on each jaw (visible in photos) confirms identity and matching; the serrated interface is compatible with chucks using 1.5 mm pitch metric serrations on the master jaw slide. New condition, unfinished gripping face ready for custom boring to application requirements.

Product Specifications
