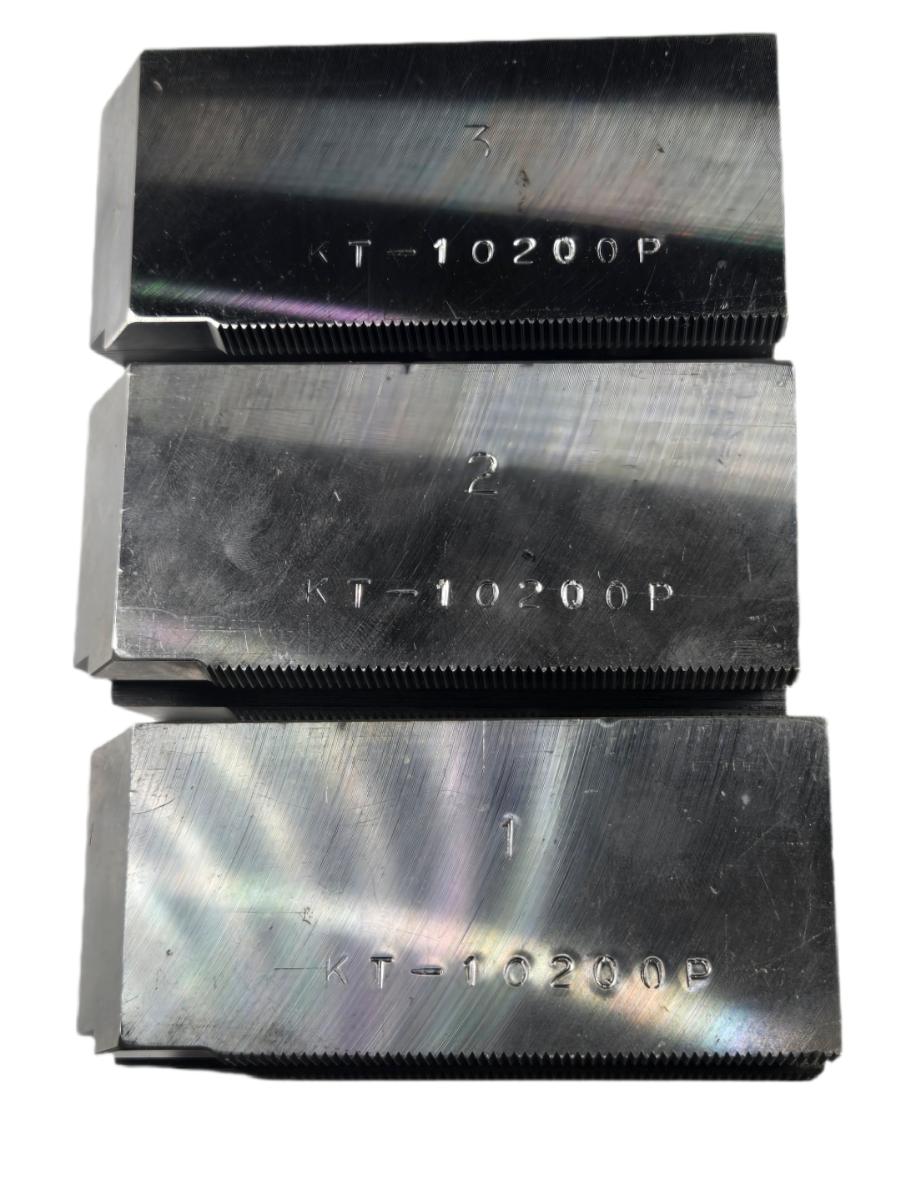

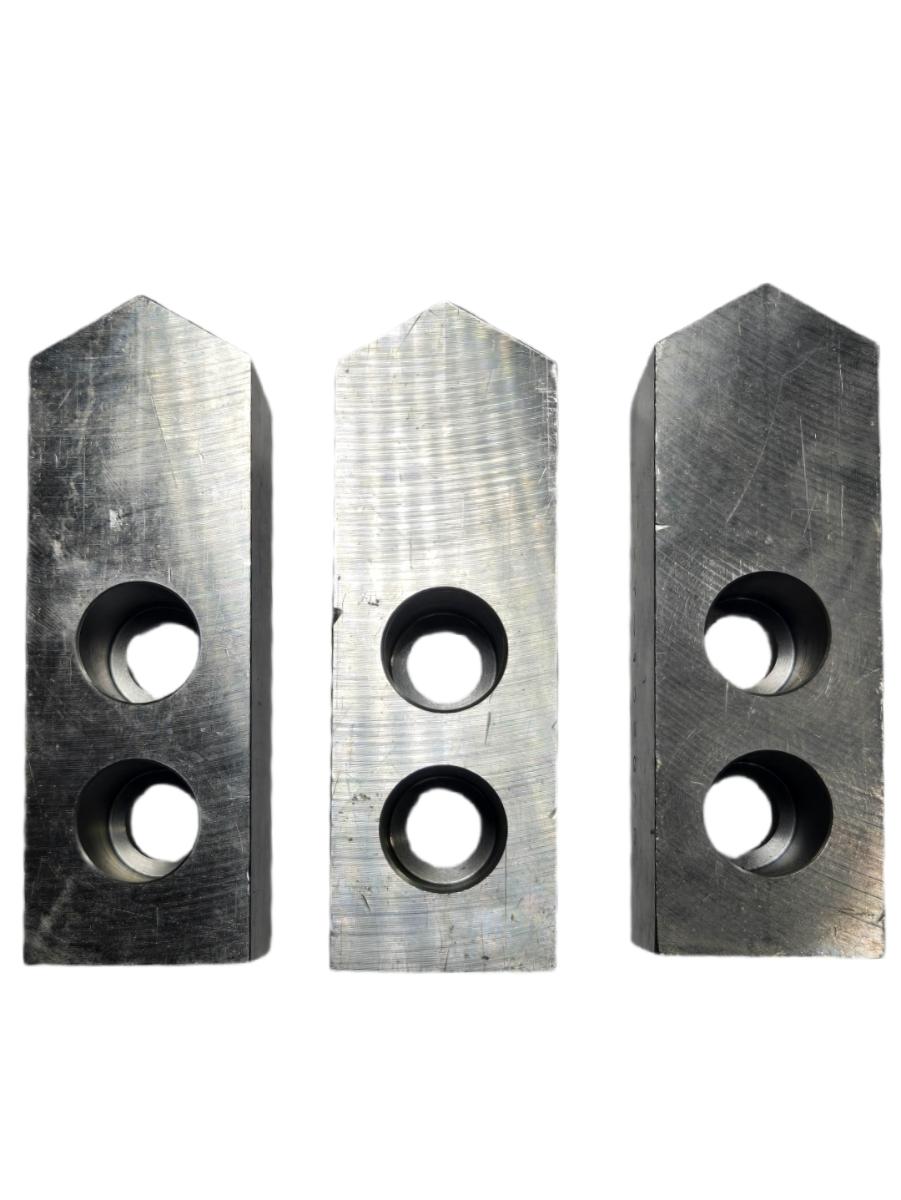

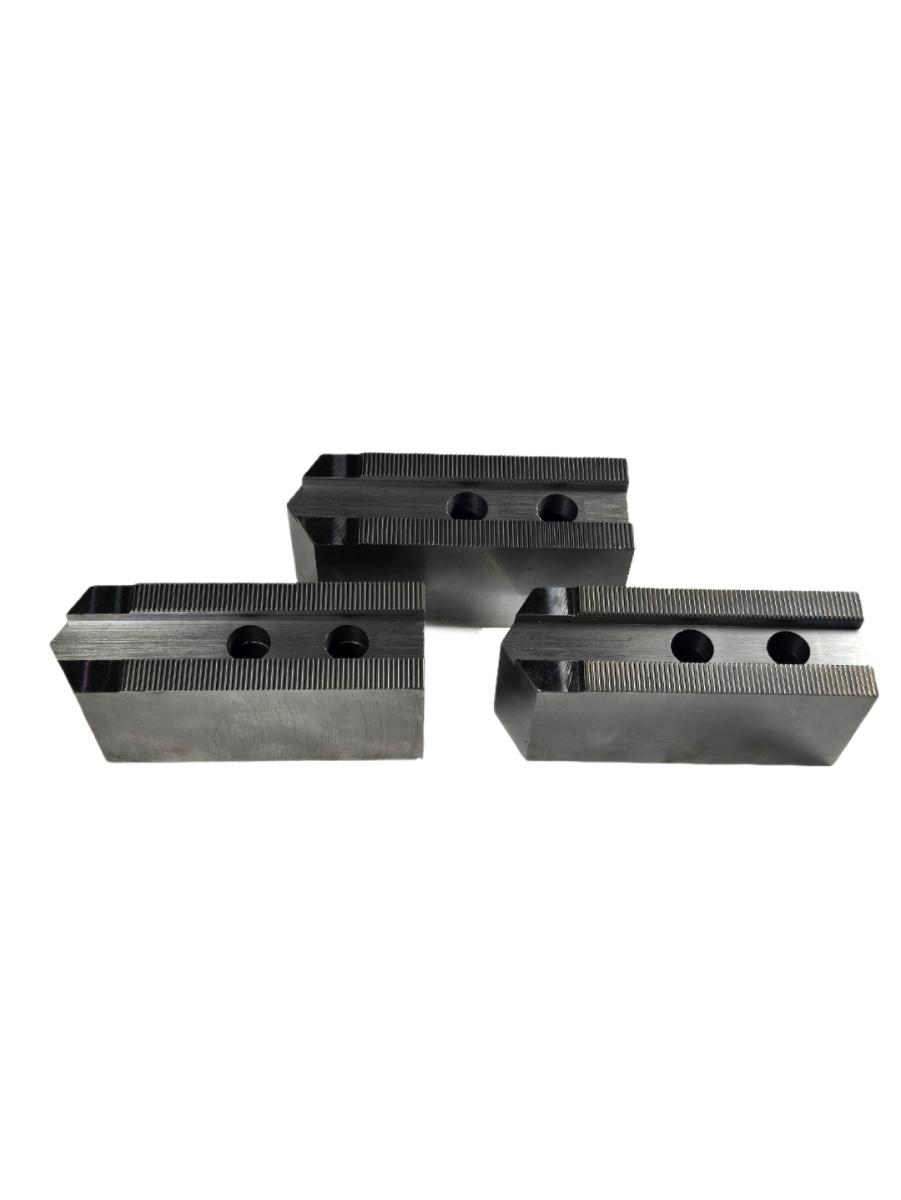

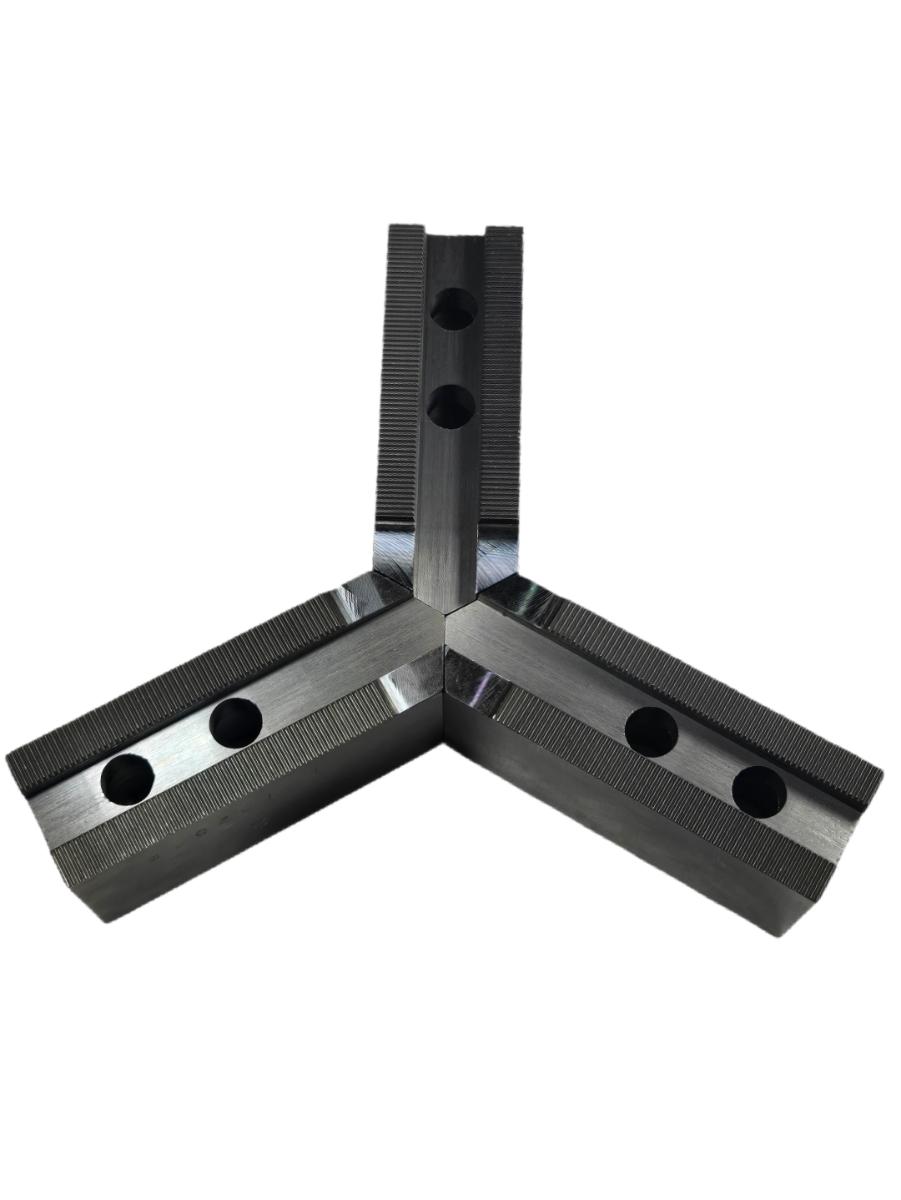

This is a new matched set of three Abbott Workholding KT-1020-OP soft top jaws designed for 10-inch lathe chucks. Each jaw is machined from a machinable steel blank and features a serrated (knurled) bottom mating surface for positive engagement with the master jaw T-nut serrations, with two counterbored bolt holes per jaw for secure attachment. The jaws are individually numbered 1, 2, and 3 as stamped on each piece, ensuring correct matched-set installation and balanced chuck assembly. The 'OP' suffix in Abbott's KT-series designation indicates these are outside-profile (OD gripping) soft jaws in the un-bored blank condition, ready for the end user to bore to a specific workpiece diameter. Compatible with 10-inch 3-jaw scroll chucks using the standard 1.5mm × 60° serration pattern common to that chuck size.
Product Specifications
| Part Number | KT-1020-OP |
| Set Quantity | 3 jaws |
| Chuck Size Compatibility | 10 in |
| Jaw Type | Soft Top Jaw (machinable blank) |
| Gripping Configuration | Outside Profile (OD gripping) |
| Jaw Numbering | Individually numbered 1, 2, 3 (matched set) |
| Mating Surface | Serrated bottom for master jaw engagement |
| Bolt Holes per Jaw | 2 counterbored holes |
| Material | Machinable steel |
| Condition | New, un-bored blank |
| Brand | Abbott Workholding |
