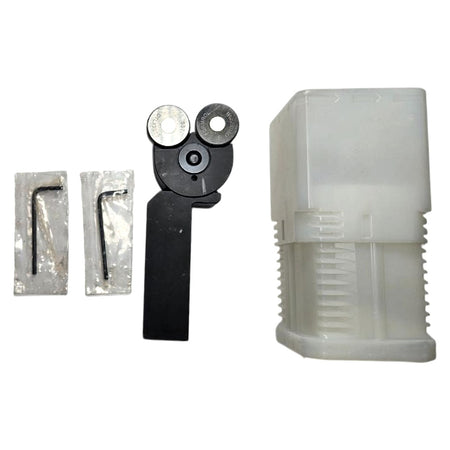

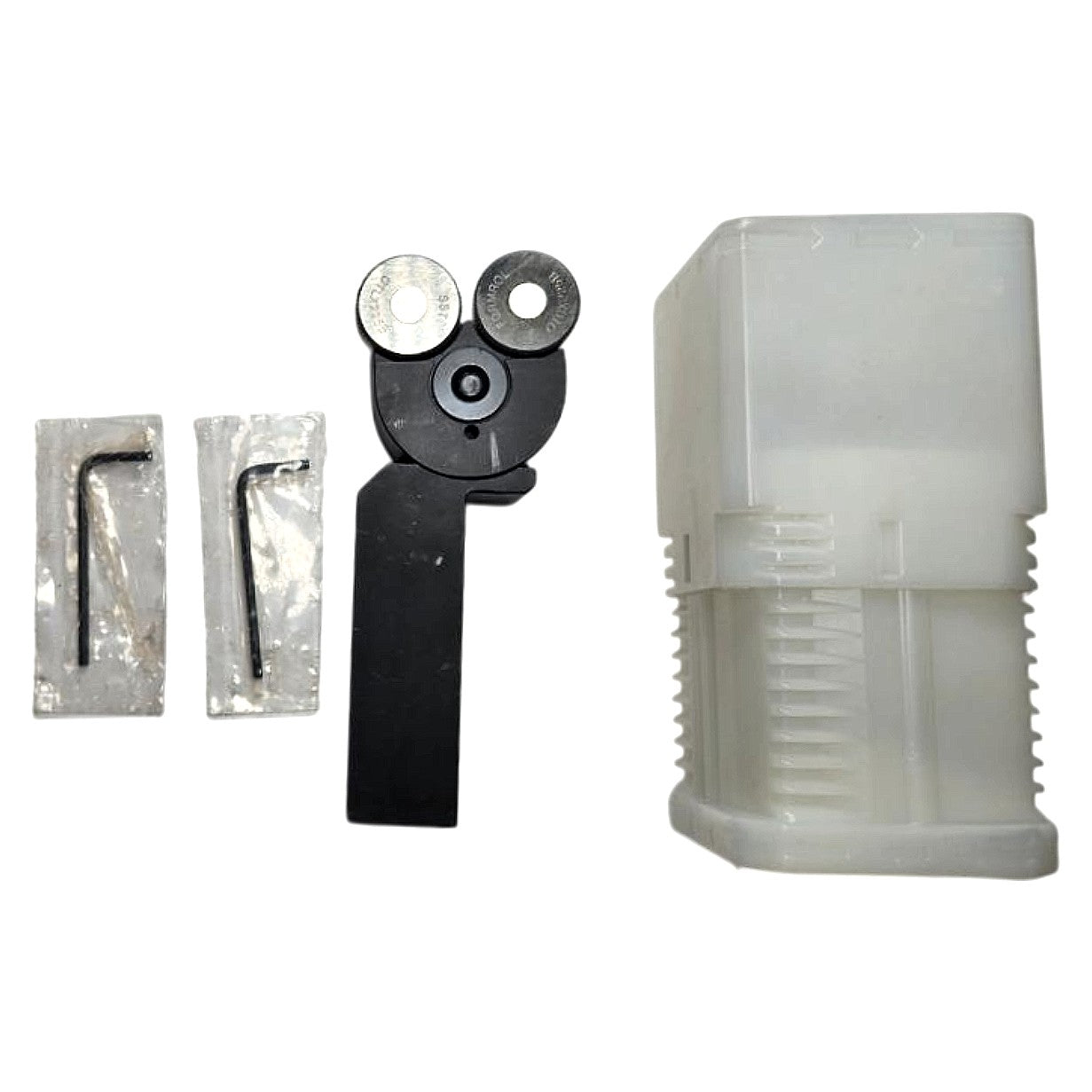

The Accu-Trak BOT2X-16-K is a new, right-hand, up-to-shoulder bump knurling toolholder in the Series OT configuration, designed for square-shank lathe toolposts. The shank measures 1 in. wide × 1 in. high × 3 in. long, seating securely in standard 1 in. square toolpost holders. The tool head pivots on a floating rocker mechanism that allows both knurl wheels to self-align to the workpiece diameter automatically, eliminating the need for precise pre-sizing. Two diamond-pattern knurl wheels are included (1 in. diameter × 5/16 in. face width, 5/16 in. hole diameter), and the kit ships with two hex wrenches and a plastic storage case as seen in the photos. The "BOT2X" designation indicates a 2-knurl, bump-style (single-pass) head; the "-16" denotes the 1 in. (16/16) shank size; and the "-K" suffix confirms the diamond knurl pattern. This tool is suited for bump knurling steel, aluminum, brass, and similar machinable metals on manual or CNC lathes where shoulder clearance is required.
Product Specifications
| Brand | Accu-Trak |
| MPN | BOT2X-16-K |
| Series | OT |
| Knurling Style | Bump (Single-Pass) |
| Cut Direction | Right Hand (RH) |
| Knurl Pattern | Diamond |
| Number of Knurls | 2 (Included) |
| Shank Width | 1 in |
| Shank Height | 1 in |
| Shank Length | 3 in |
| Shank Shape | Square |
| Knurl Wheel Diameter | 1 in |
| Knurl Face Width | 5/16 in |
| Knurl Hole Diameter | 5/16 in |
| Head Type | Up-To-Shoulder / Floating Rocker |
| Included Accessories | 2 hex wrenches, plastic storage case |
| Condition | New |
