Accupro 06298624 1/8x1/8 4-Flute 90° Drill Point Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

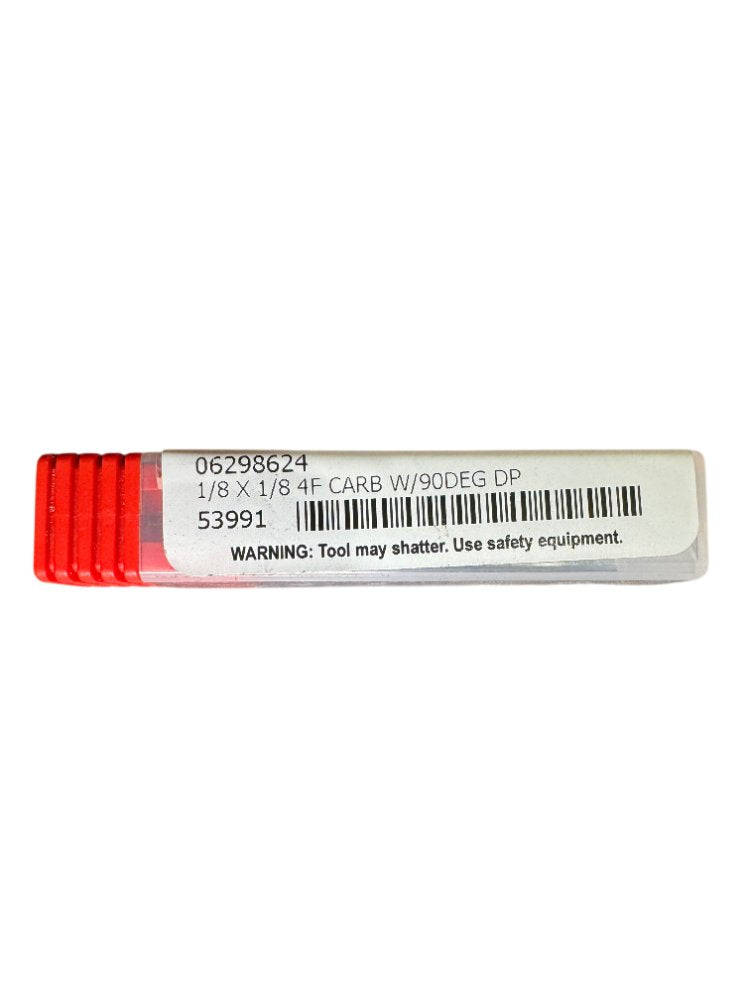

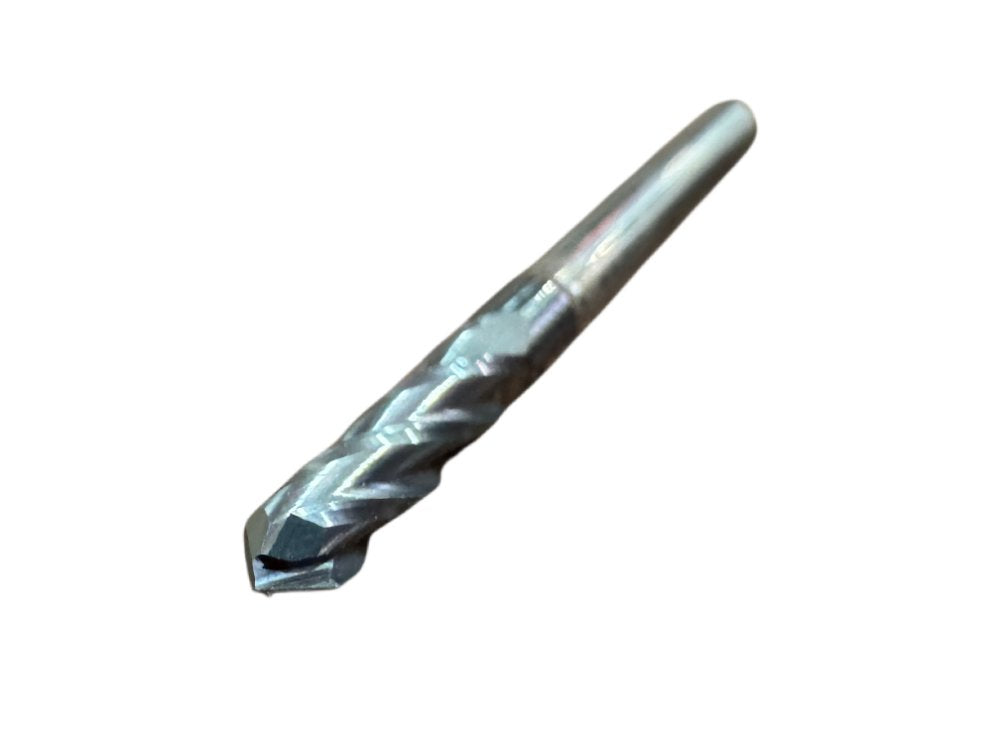

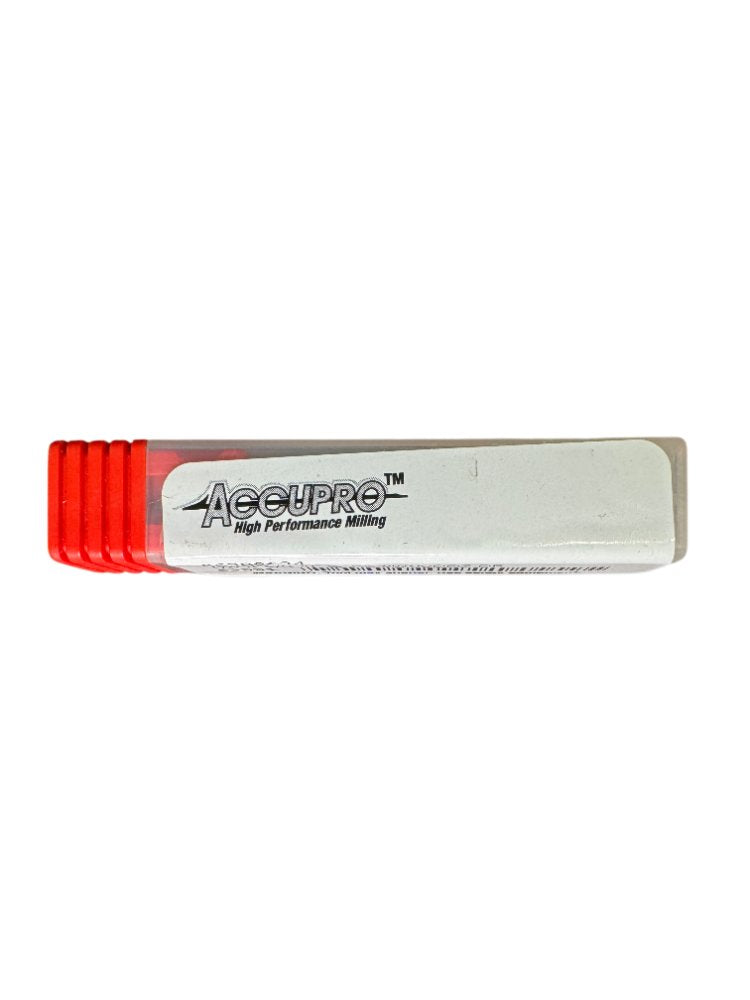

This is a new Accupro High Performance Milling solid carbide end mill with a 90-degree drill point, part number 06298624, in 1/8 inch cutting diameter with a 1/8 inch shank diameter and 4 flutes. The 90-degree included-angle drill point enables this tool to plunge directly into a workpiece without a pre-drilled pilot hole, making it suited for combined drilling and milling operations in a single tool path. The uncoated carbide construction is visible in the photos, with helical flutes ground for chip evacuation consistent with Accupro's High Performance Milling line. Compatible with any standard 1/8 inch collet or end mill holder on CNC machining centers and manual mills. The tool is new and unused, supplied in its original Accupro plastic case.
Product Specifications
| Brand | Accupro |
| Manufacturer Part Number (MPN) | 06298624 |
| Internal/Catalog Number | 53991 |
| Cutting Diameter | 1/8 in (0.125 in) |
| Shank Diameter | 1/8 in (0.125 in) |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Point Type | 90 Degree Drill Point |
| Shank Type | Straight (Cylindrical) |
| Coating | Uncoated (Bright) |
| Condition | New |
