Accupro 31490139 7/16in 4FL .090 Rad AlTiCrN Carbide End Mill
Regular price
$44.65
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

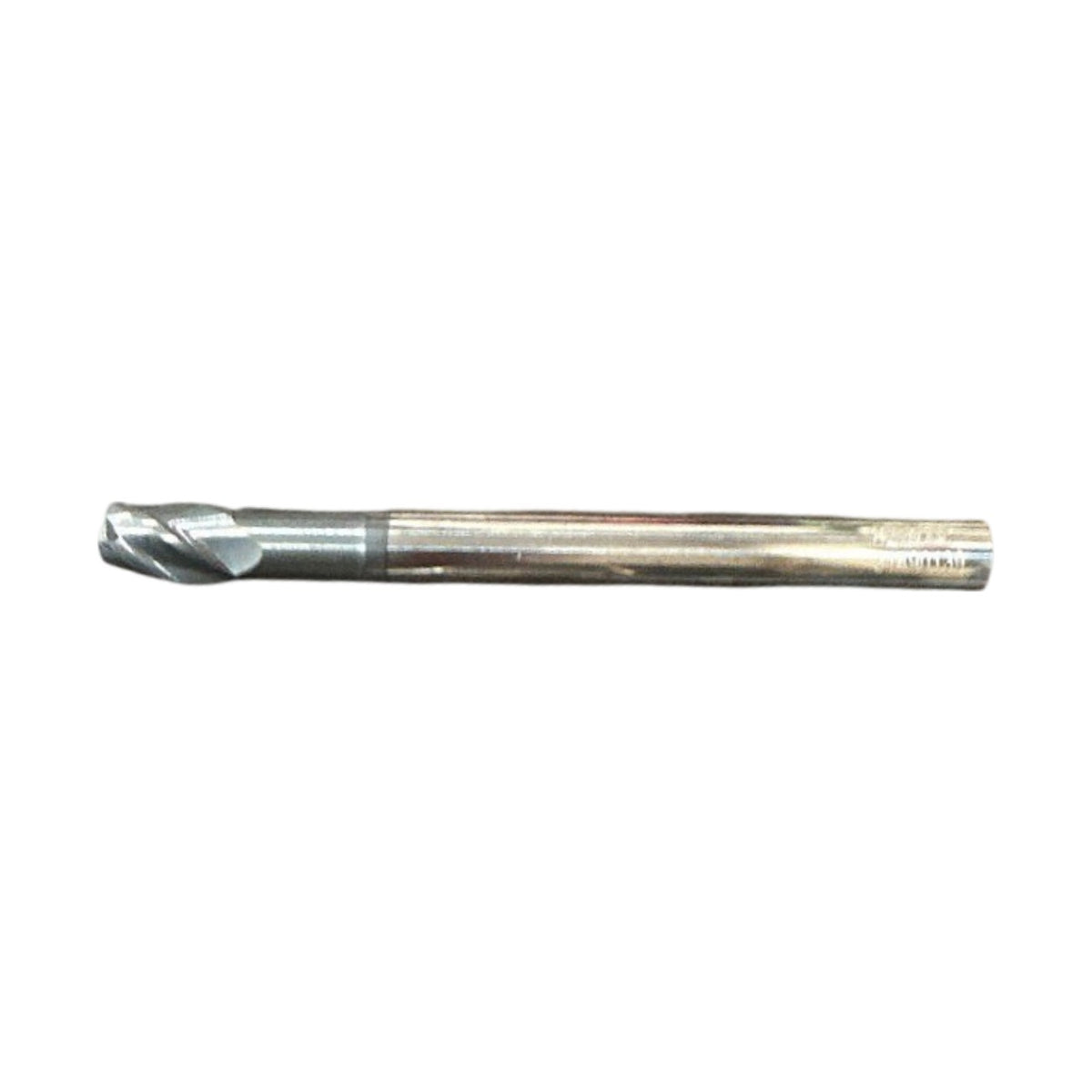

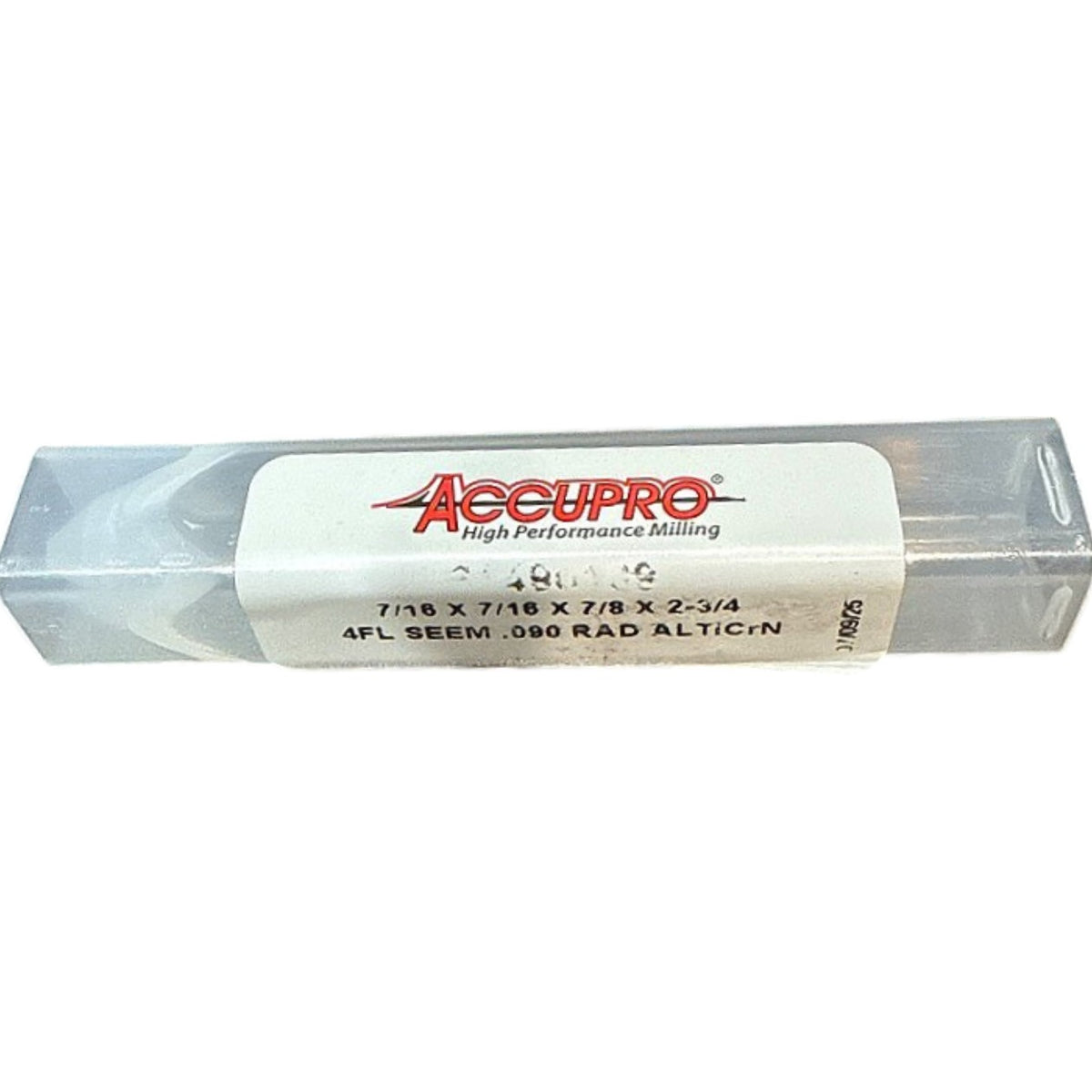

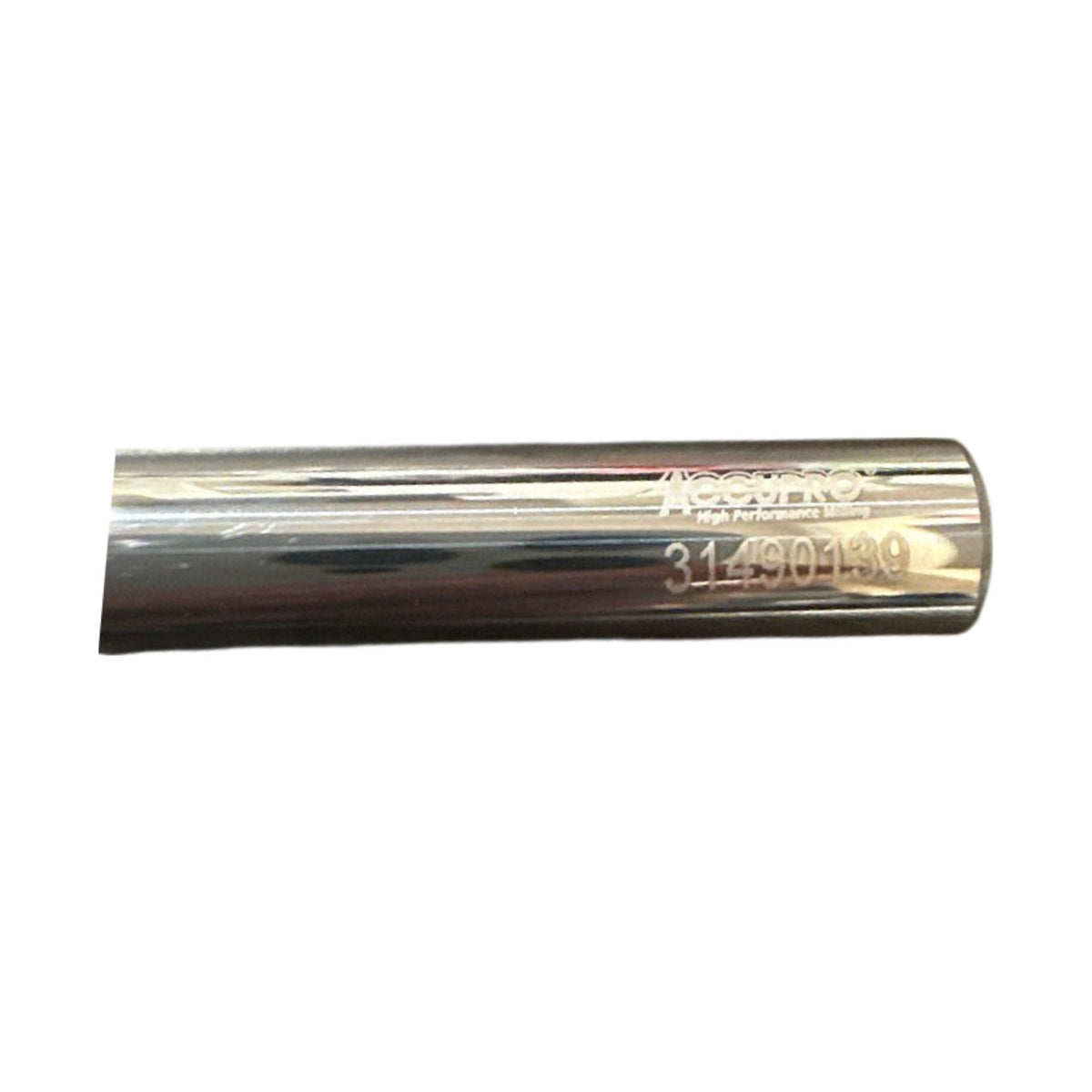

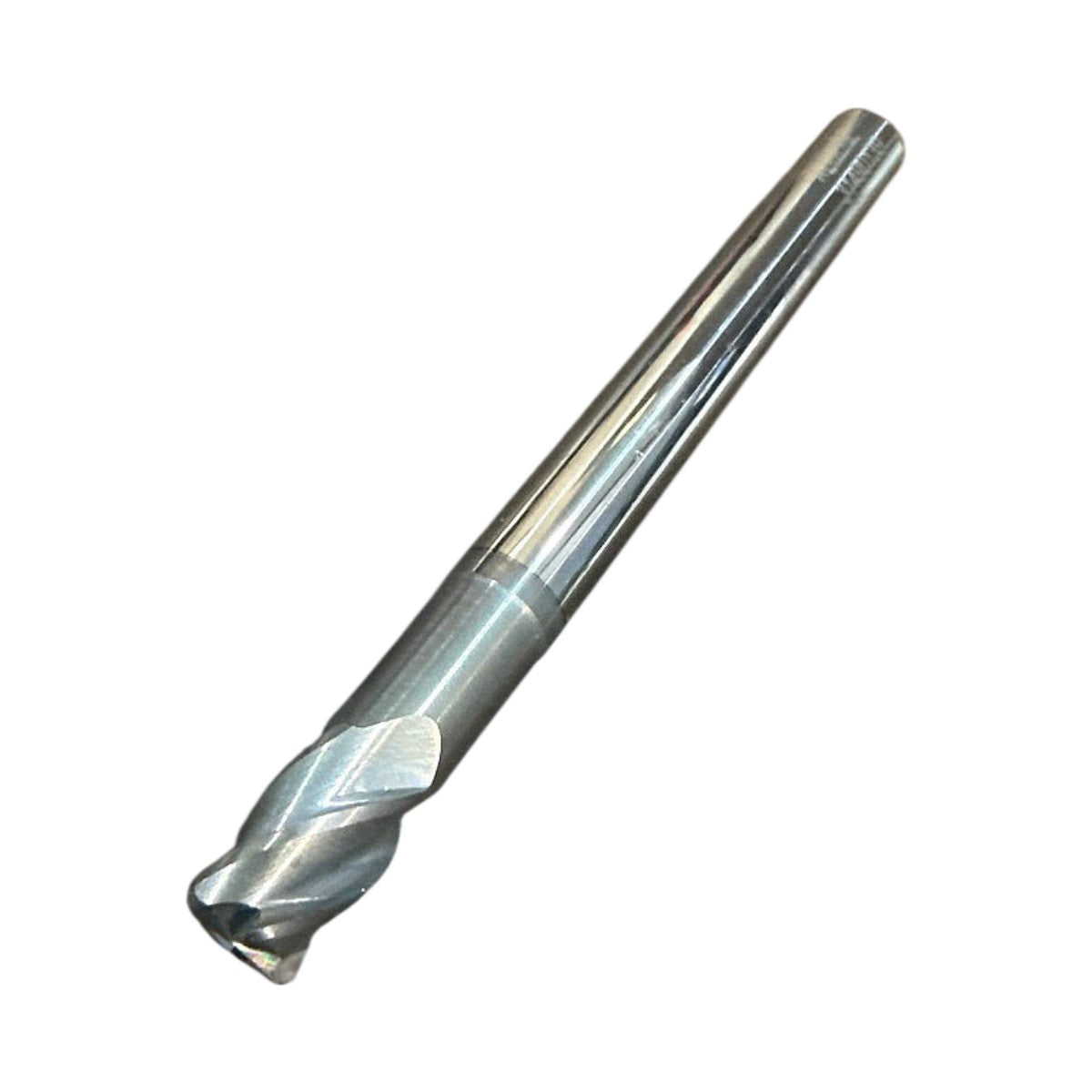

This Accupro 31490139 is a 4-flute square-end corner radius end mill with a 7/16 in cutting diameter, 7/16 in shank, 7/8 in length of cut and 2-3/4 in overall length, per the label. The corner radius is .090 in, which strengthens the cutting corners and reduces chipping compared with a sharp-corner tool. It carries an AlTiCrN coating for heat and wear resistance in high-performance milling, and the tool is made of solid carbide. The shank is plain and polished, and the Accupro logo and part number are laser-etched on it. This item is new.
Product Specifications
| Brand | Accupro |
| MPN | 31490139 |
| Cutting Diameter | 7/16 in |
| Shank Diameter | 7/16 in |
| Length of Cut | 7/8 in |
| Overall Length | 2-3/4 in |
| Number of Flutes | 4 |
| Corner Radius | .090 in |
| Coating | AlTiCrN |
| End Type | Square End, Corner Radius |
| Material | Solid Carbide |
| Length Type | Standard (SEEM) |
| Series | High Performance Milling |
| Operation | Milling |
| Shank Type | Straight |
