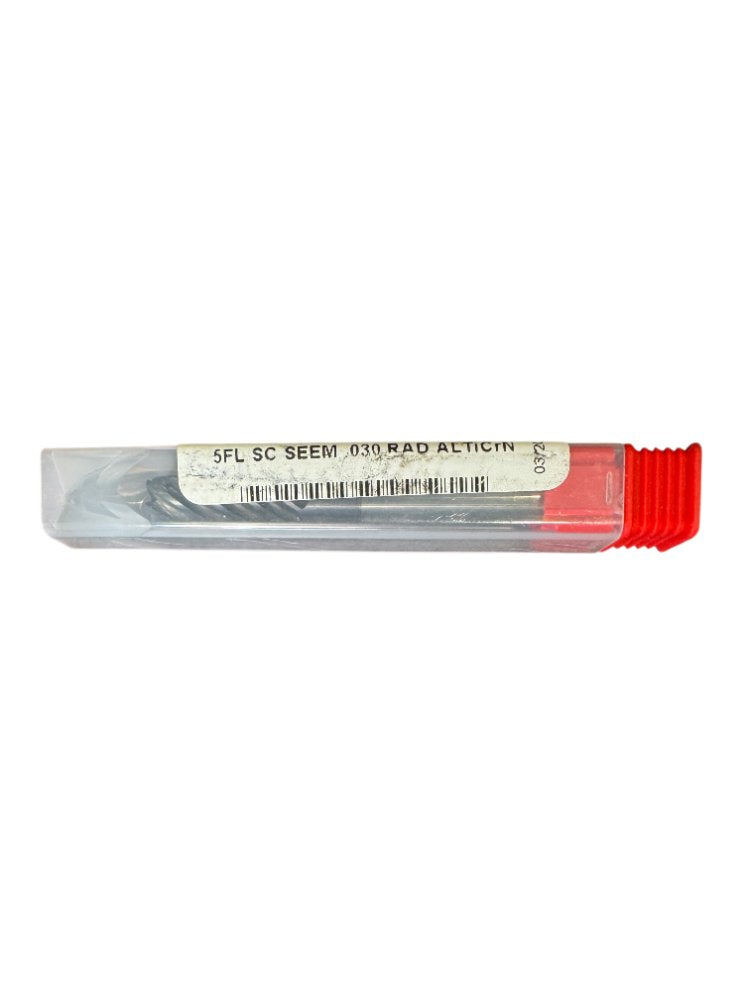

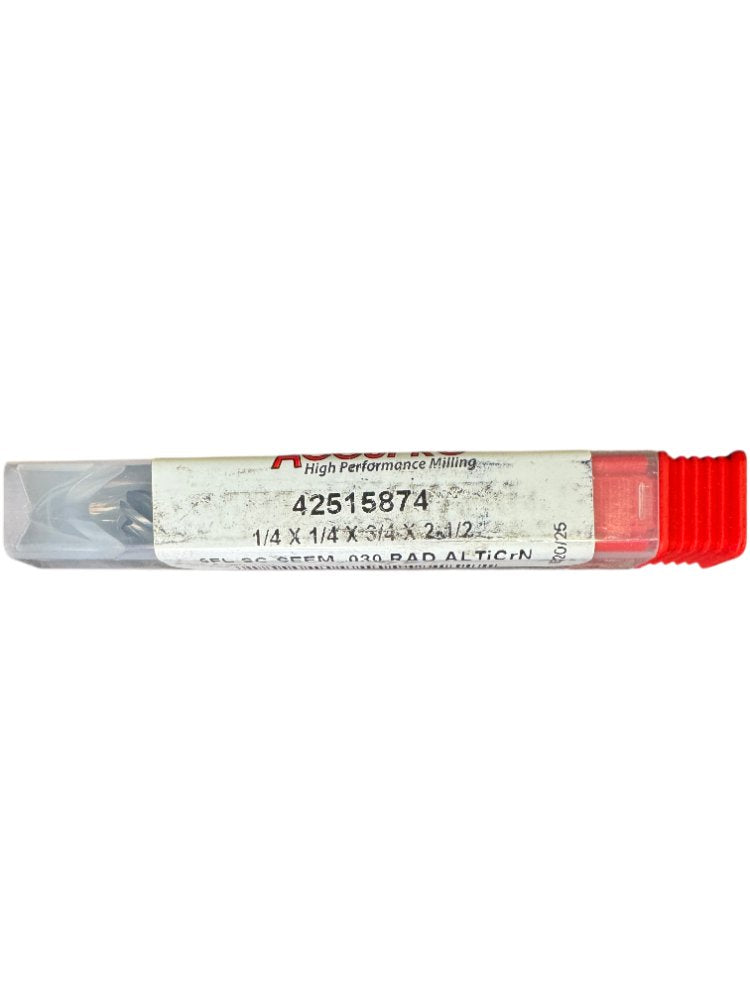

Accupro 42515874 1/4in 5FL .030 Rad ALTiCrN SC End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

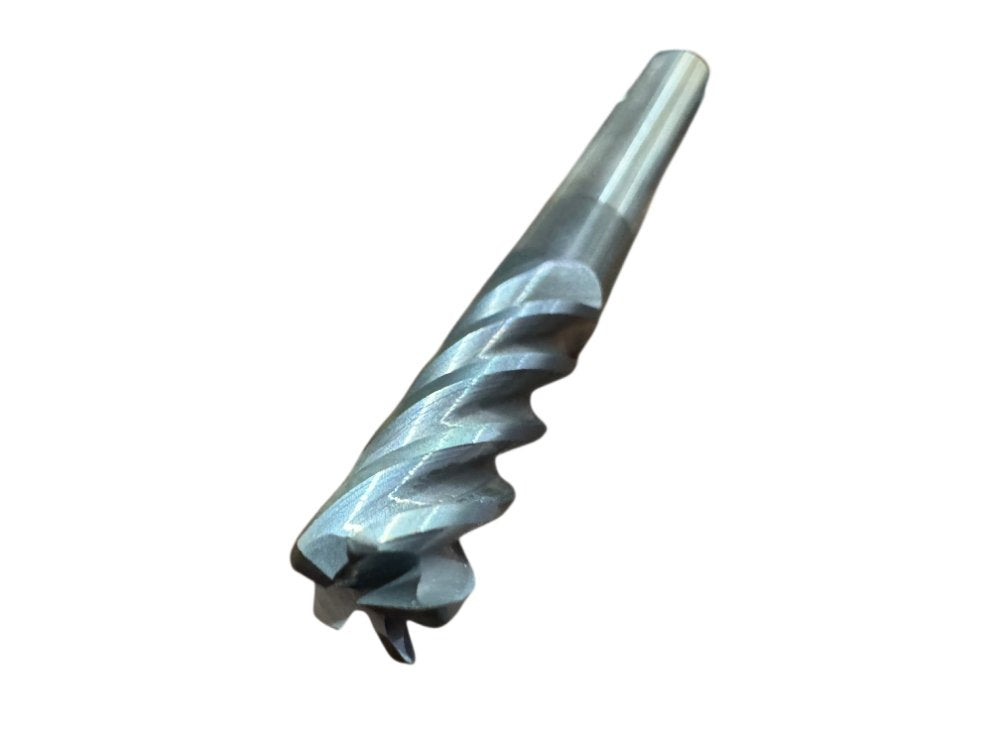

This is a new Accupro 42515874 solid carbide square-end mill with a .030 in corner radius, 5-flute geometry, and ALTiCrN (aluminum titanium chromium nitride) PVD coating. Dimensions are 1/4 in cutting diameter x 1/4 in shank diameter x 3/4 in length of cut x 2-1/2 in overall length. The 5-flute SEEM (square end, extra-long reach) design provides higher feed rates and improved surface finish compared to 4-flute equivalents, and the ALTiCrN coating delivers superior hardness, oxidation resistance to approximately 1100°C, and extended tool life in hardened steels, stainless, and aerospace alloys. The 1/4 in straight shank is compatible with standard ER16/ER20 collet chucks, shrink-fit holders, and hydraulic chucks with 1/4 in bore.
Product Specifications
| Brand | Accupro |
| MPN | 42515874 |
| Cutting Diameter | 1/4 in (0.250 in) |
| Shank Diameter | 1/4 in (0.250 in) |
| Length of Cut (LOC) | 3/4 in (0.750 in) |
| Overall Length (OAL) | 2-1/2 in (2.500 in) |
| Number of Flutes | 5 |
| Corner Radius | 0.030 in |
| End Type | Corner Radius (SEEM) |
| Substrate | Solid Carbide (SC) |
| Coating | ALTiCrN |
| Shank Type | Straight |
| Condition | New |
| Series | High Performance Milling |
