Accupro 61536546 1/32in 4 Flute Ball Nose AlTiN Carbide End Mill
Regular price
$20.46
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

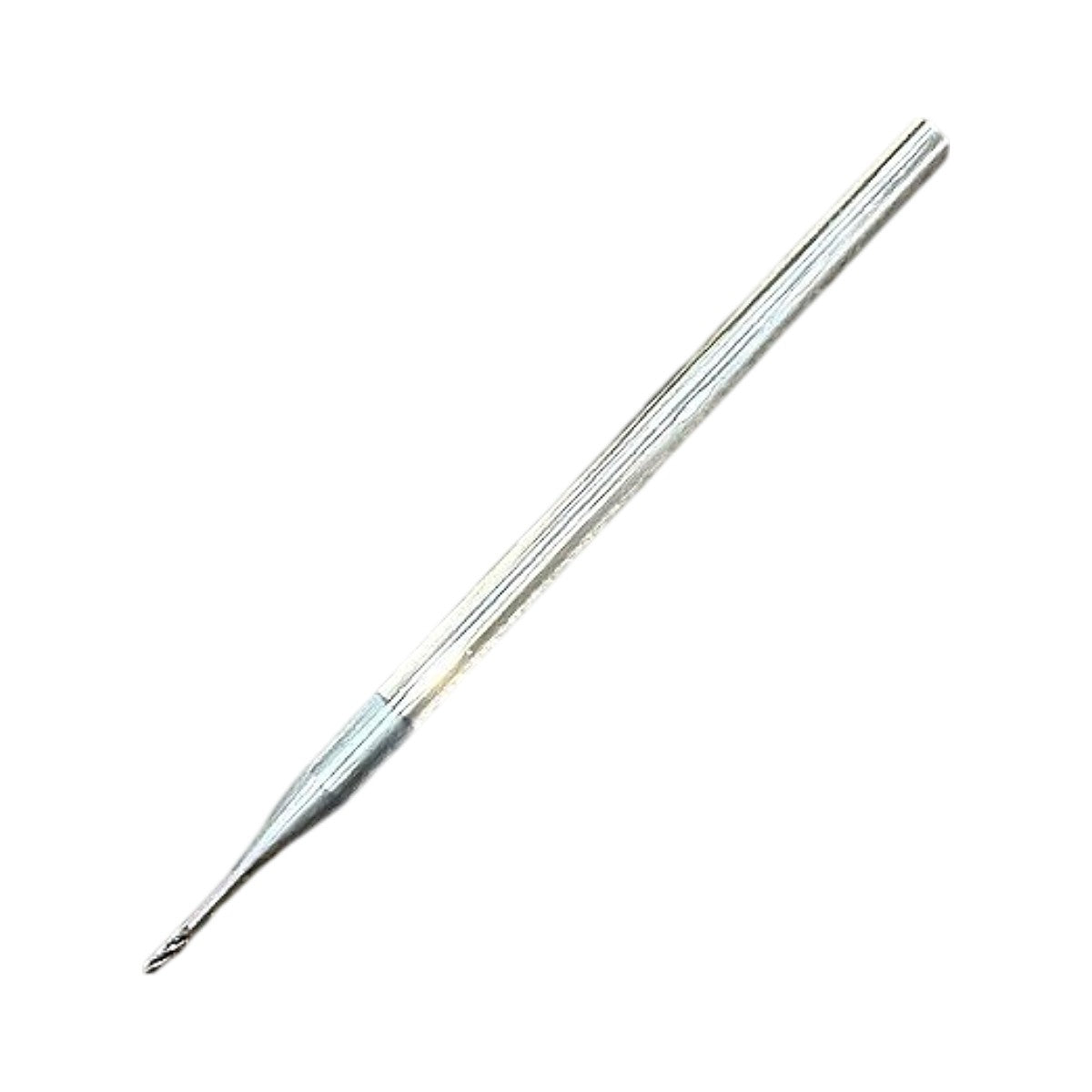

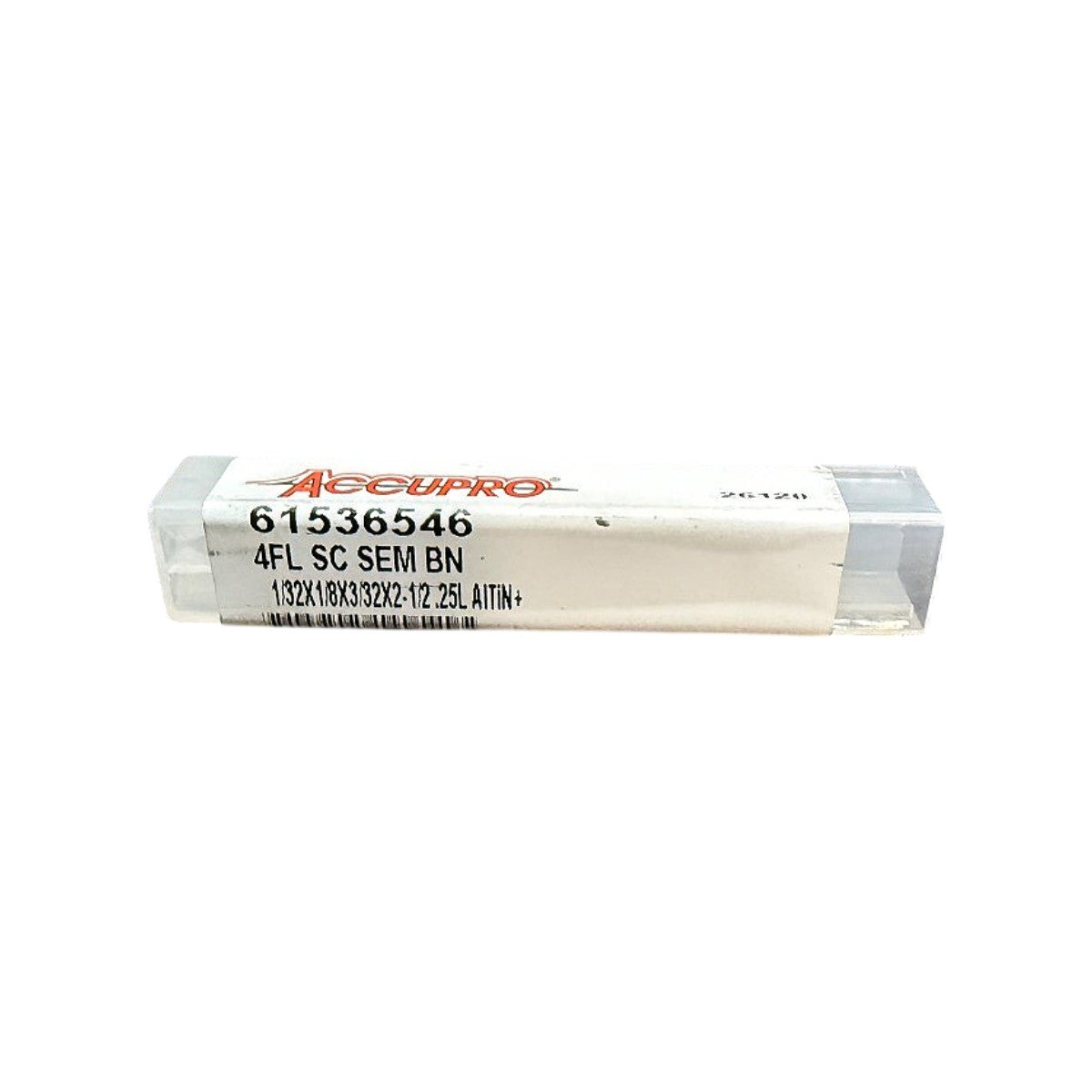

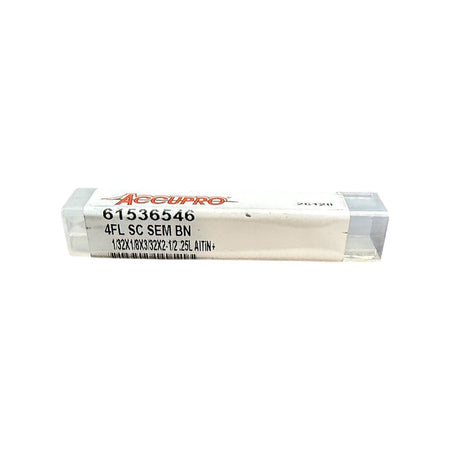

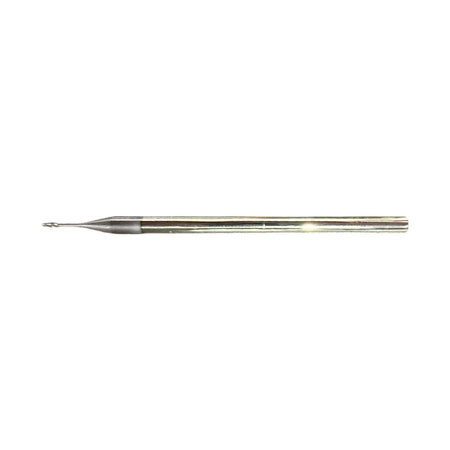

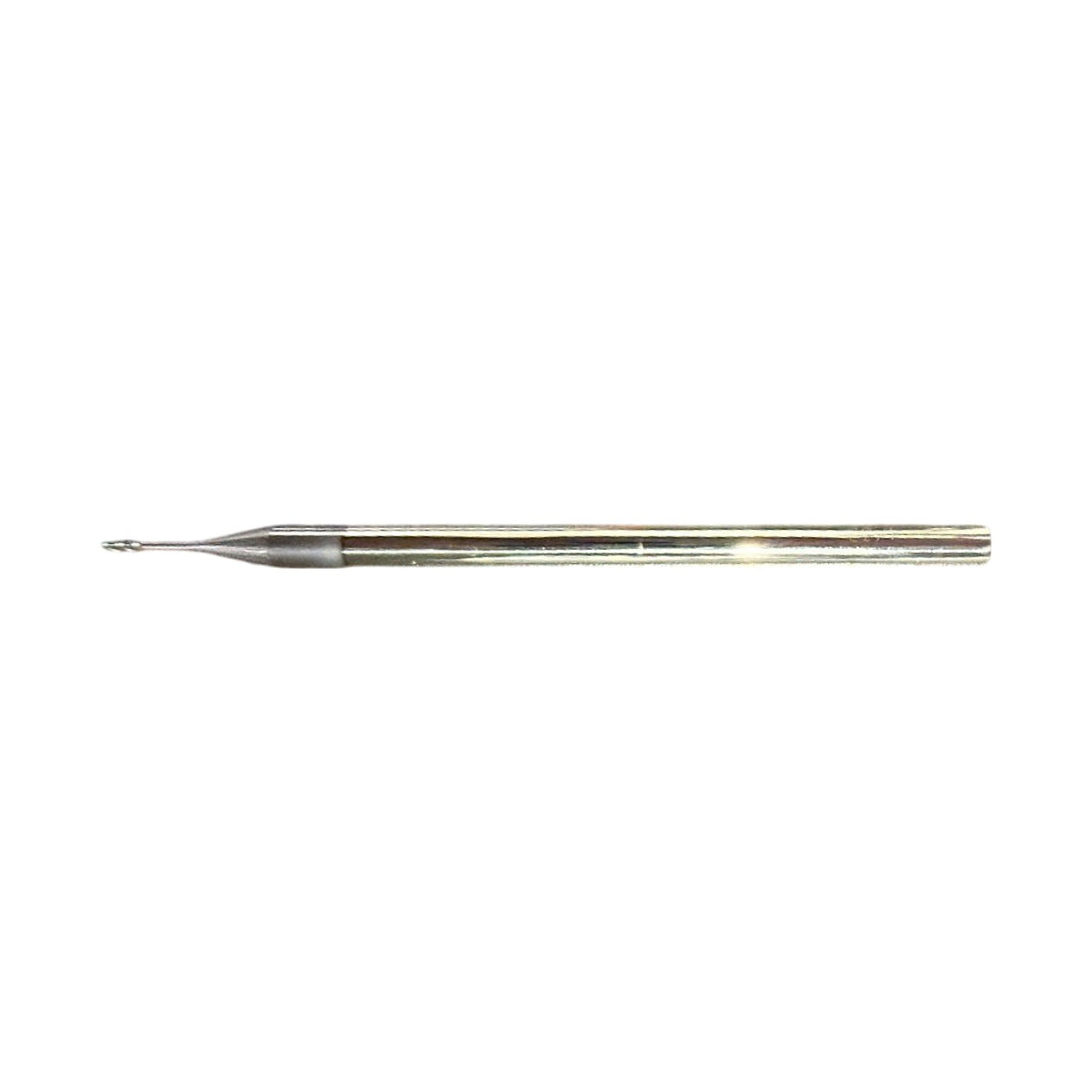

This Accupro 61536546 is a new 4-flute solid carbide ball nose end mill with a 1/32 in cutting diameter and a 1/8 in length of cut. It has a 3/32 in shank, a 2-1/2 in overall length, and a 0.25 in reduced neck, which gives the reach needed for small 3D contours and detail work in deep pockets. The AlTiN+ coating improves heat and wear resistance when milling hardened steels and other ferrous materials. The ball nose profile makes it suited to profiling, contouring, and die and mold finishing on CNC milling machines.
Product Specifications
| Brand | Accupro |
| MPN | 61536546 |
| Cutting Diameter | 1/32 in |
| Length of Cut | 1/8 in |
| Shank Diameter | 3/32 in |
| Overall Length | 2-1/2 in |
| Neck Length | 0.25 in |
| Number of Flutes | 4 |
| End Type | Ball Nose |
| Material | Solid Carbide |
| Coating | AlTiN+ |
| Shank Type | Straight |
| Cutter Style | Single End, Necked |
| Operation | Milling, Profiling, Contouring |
| Unit of Measure | Inch |
