Accupro 76005818 1/2x1/2x1-1/4x3 4FL SC SEEM V2 .010R AlTiN End Mill

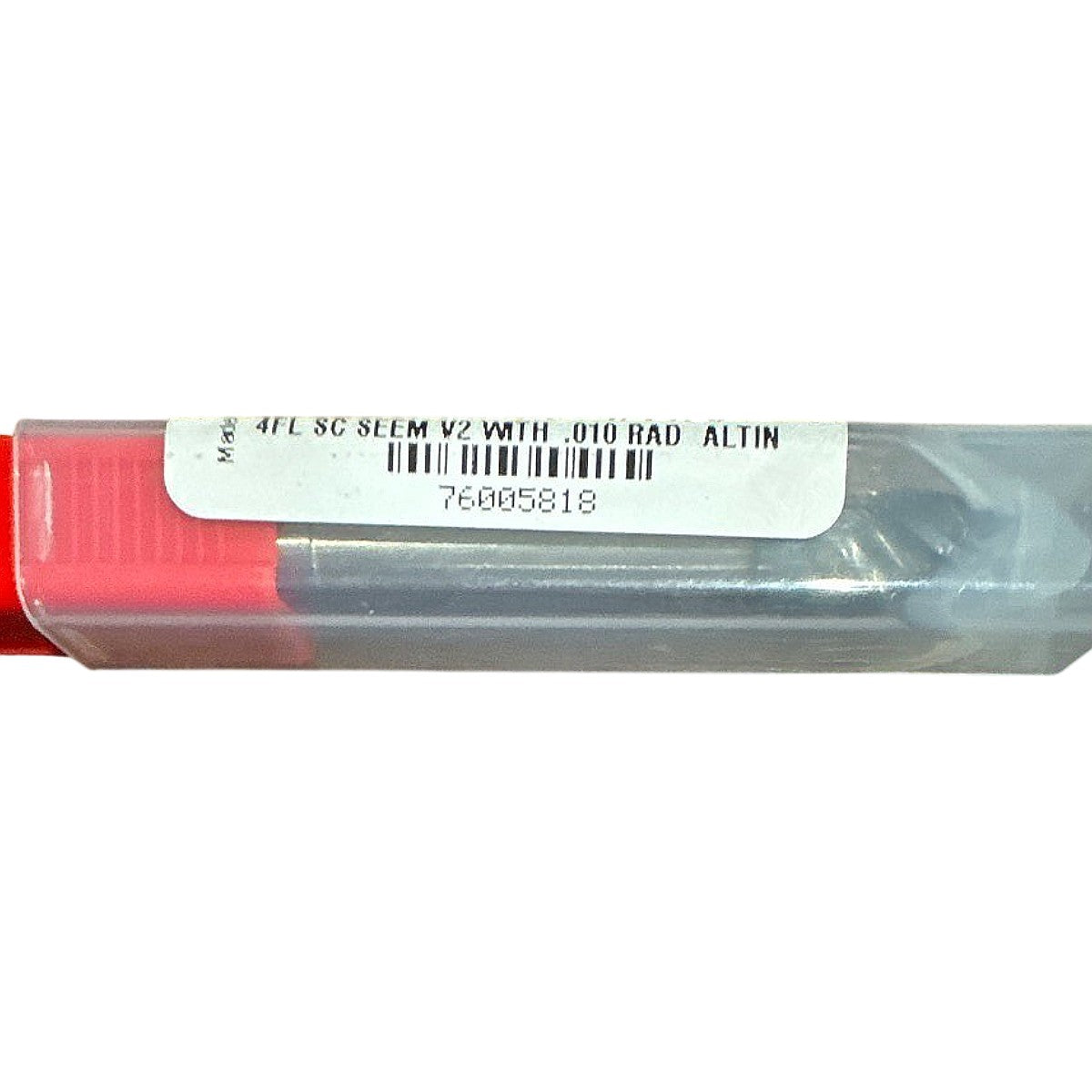

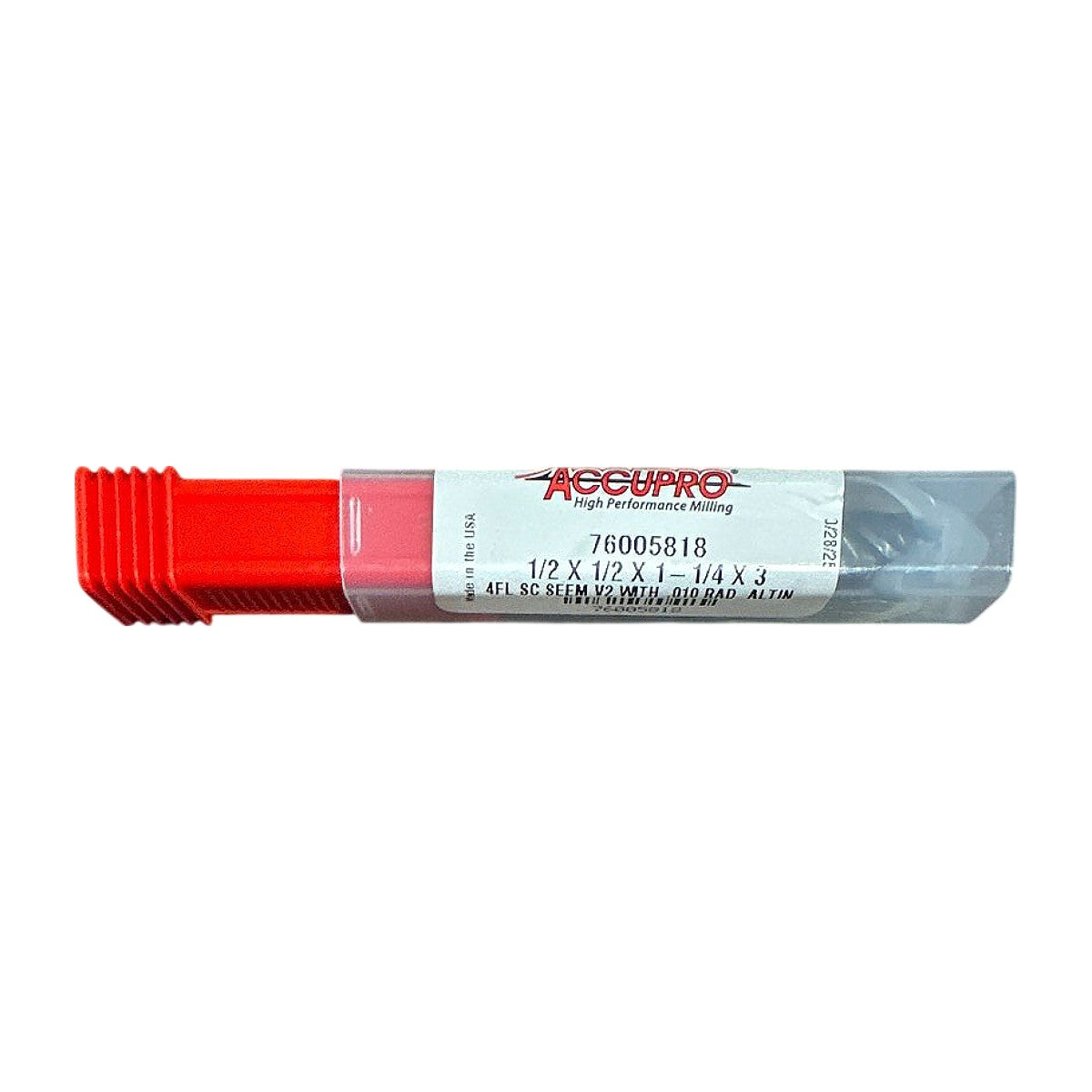

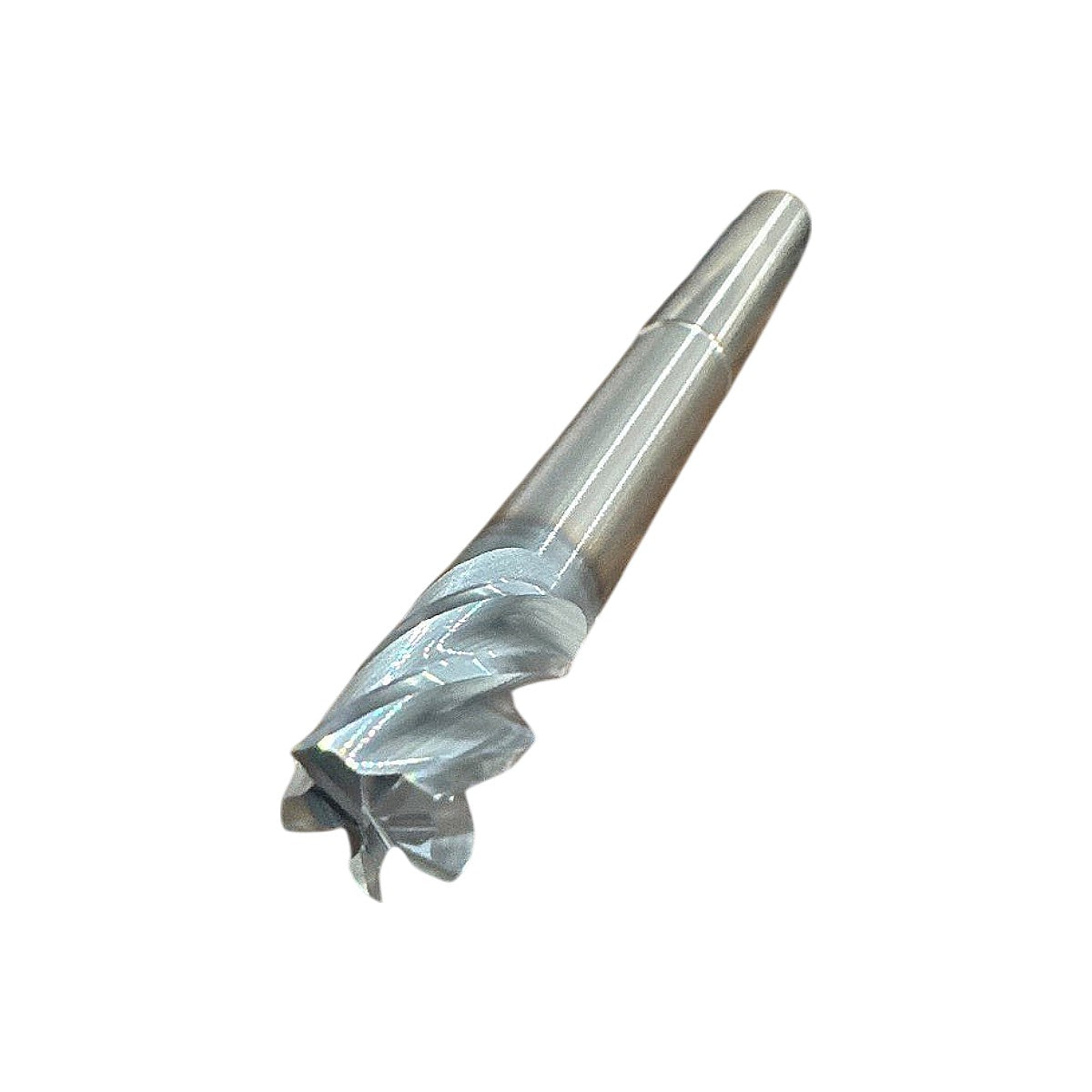

The Accupro 76005818 is a new, USA-made solid carbide square-end end mill with a 0.010 in corner radius, AlTiN (Aluminum Titanium Nitride) coating, and a 4-flute V2 variable-helix geometry — a configuration specifically engineered for reduced chatter and improved surface finish in steels, stainless steels, and hardened materials. Label-decoded dimensions are 1/2 in cutting diameter × 1/2 in shank diameter × 1-1/4 in length of cut × 3 in overall length, fitting standard 1/2 in ER, Weldon, or collet-style toolholders. The "SC SEEM V2" designation identifies it as a Solid Carbide Square End End Mill with Accupro's second-generation variable-pitch flute geometry, which unequally spaces the flutes to break up harmonic resonance during aggressive peripheral milling. The AlTiN coating provides high oxidation resistance up to approximately 1,600°F, making the tool well-suited for dry or minimum-quantity-lubrication (MQL) cutting in ferrous and hardened materials up to approximately 55 HRC. This is a single, new-in-package tool protected by a red plastic end cap and sealed sleeve as shown.

Product Specifications
