Accupro 771194 CAT40 3/4in Shell Mill Holder 4.00in Projection
Regular price
$112.10
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

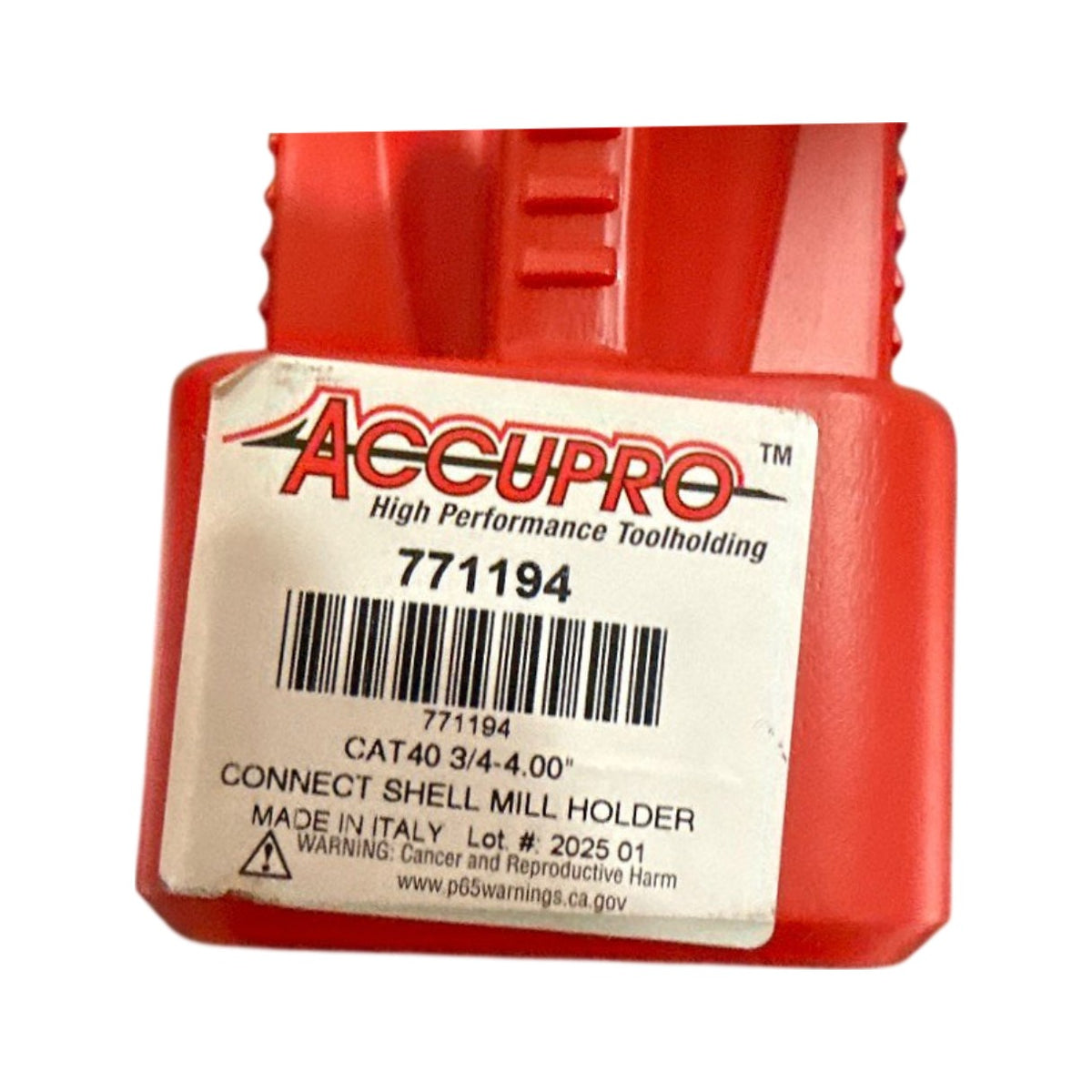

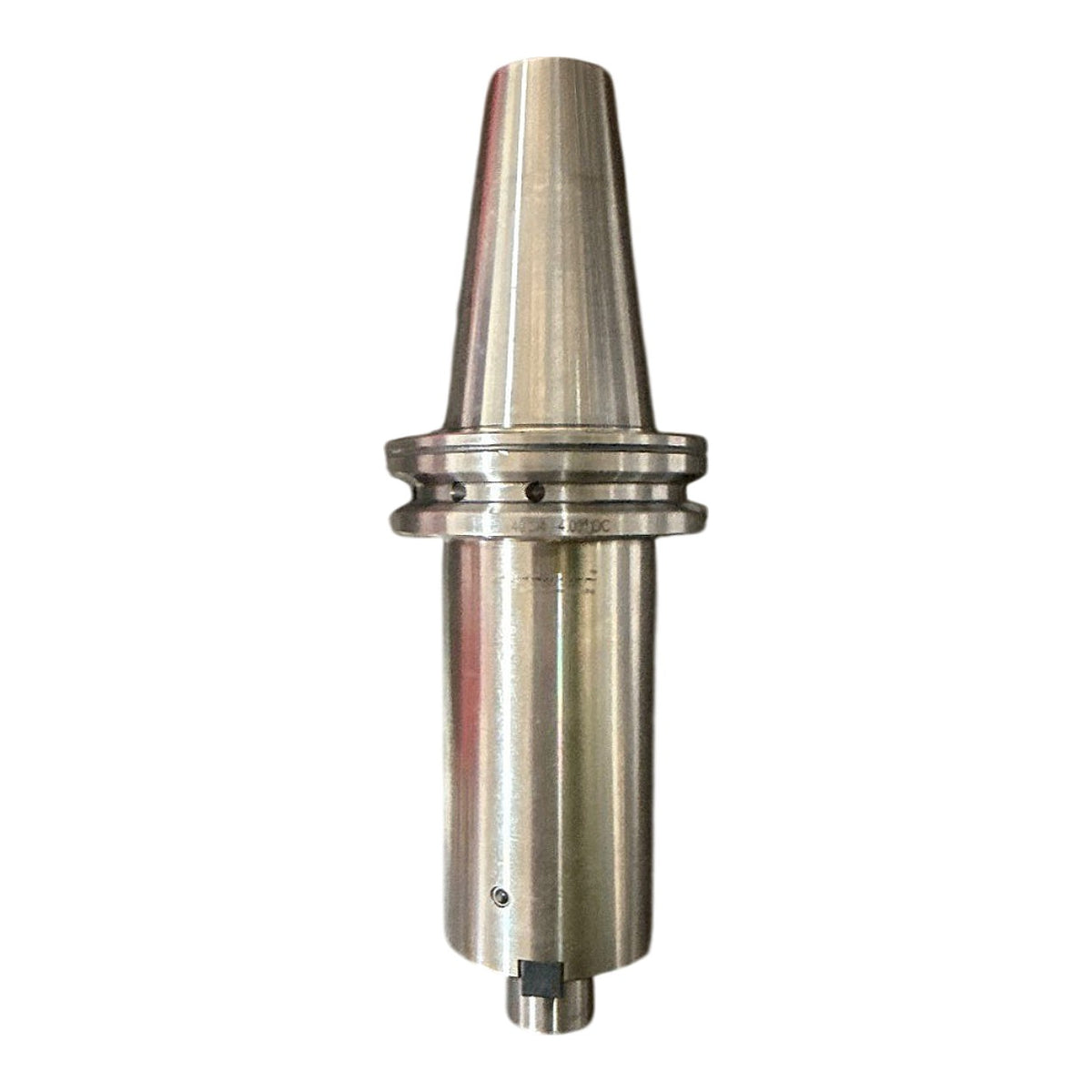

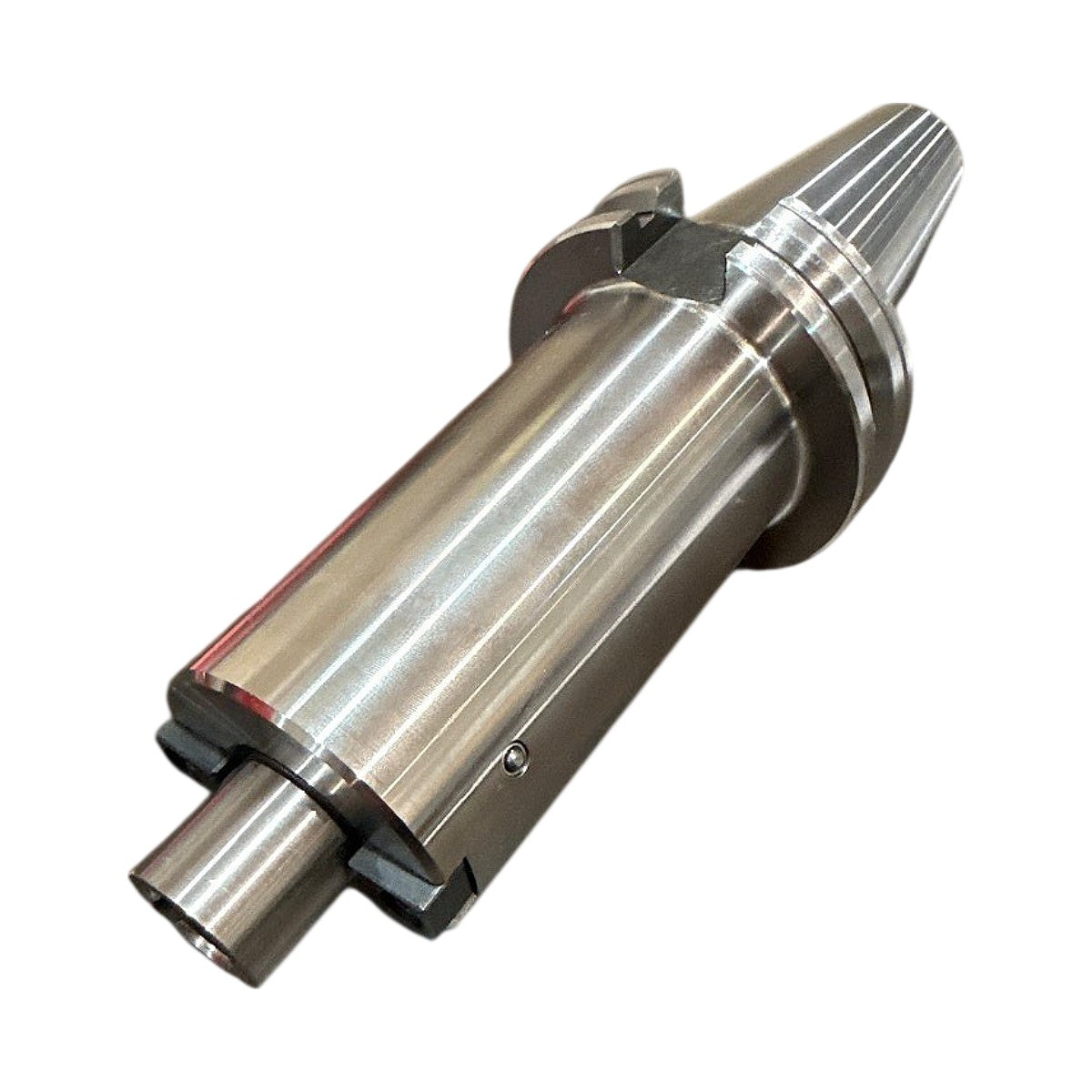

The Accupro 771194 is a new CAT40 shell mill holder from the Accupro High Performance Toolholding line, made in Italy. It is labeled 3/4-4.00" and is a Connect-style shell mill holder, with a 3/4 in pilot diameter and a 4.00 in projection length. The holder has a CAT40 (V-flange, 7/24 taper) shank with drive keys and a through-bore for coolant. It is designed for mounting shell mills and face mills with a 3/4 in arbor bore on CNC machining centers with a CAT40 spindle.
Product Specifications
| Brand | Accupro |
| MPN | 771194 |
| Taper/Shank Type | CAT40 |
| Arbor/Pilot Diameter | 3/4 in |
| Projection Length | 4.00 in |
| Country of Origin | Italy |
| Series | Accupro High Performance Toolholding |
| Holder Style | Connect Shell Mill Holder |
| Material | Steel |
| Finish | Uncoated |
| Operation | Milling |
| Taper Angle | 7/24 taper |
