Accupro 86800224 1/2in 4 Flute AlTiN Carbide Corner Radius End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

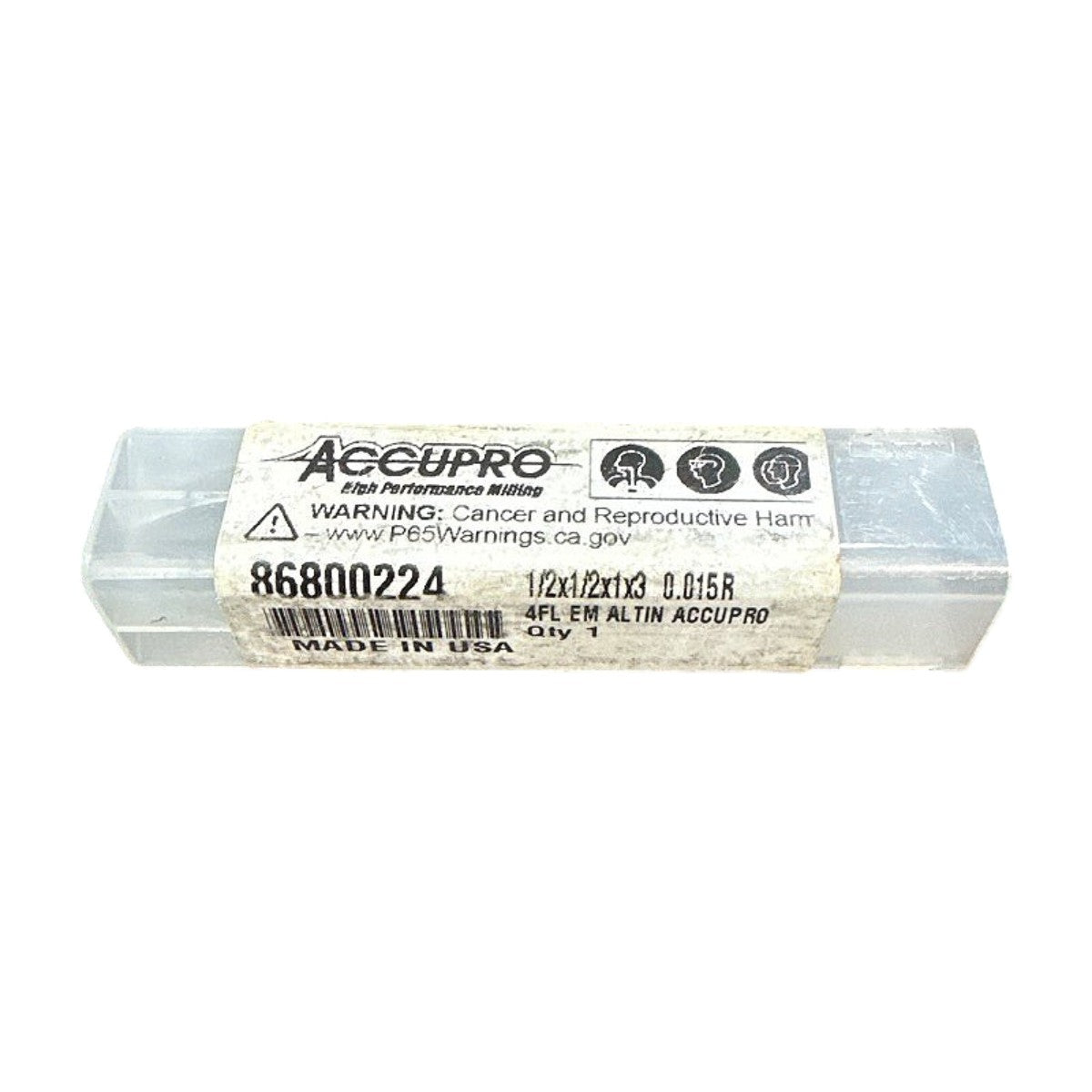

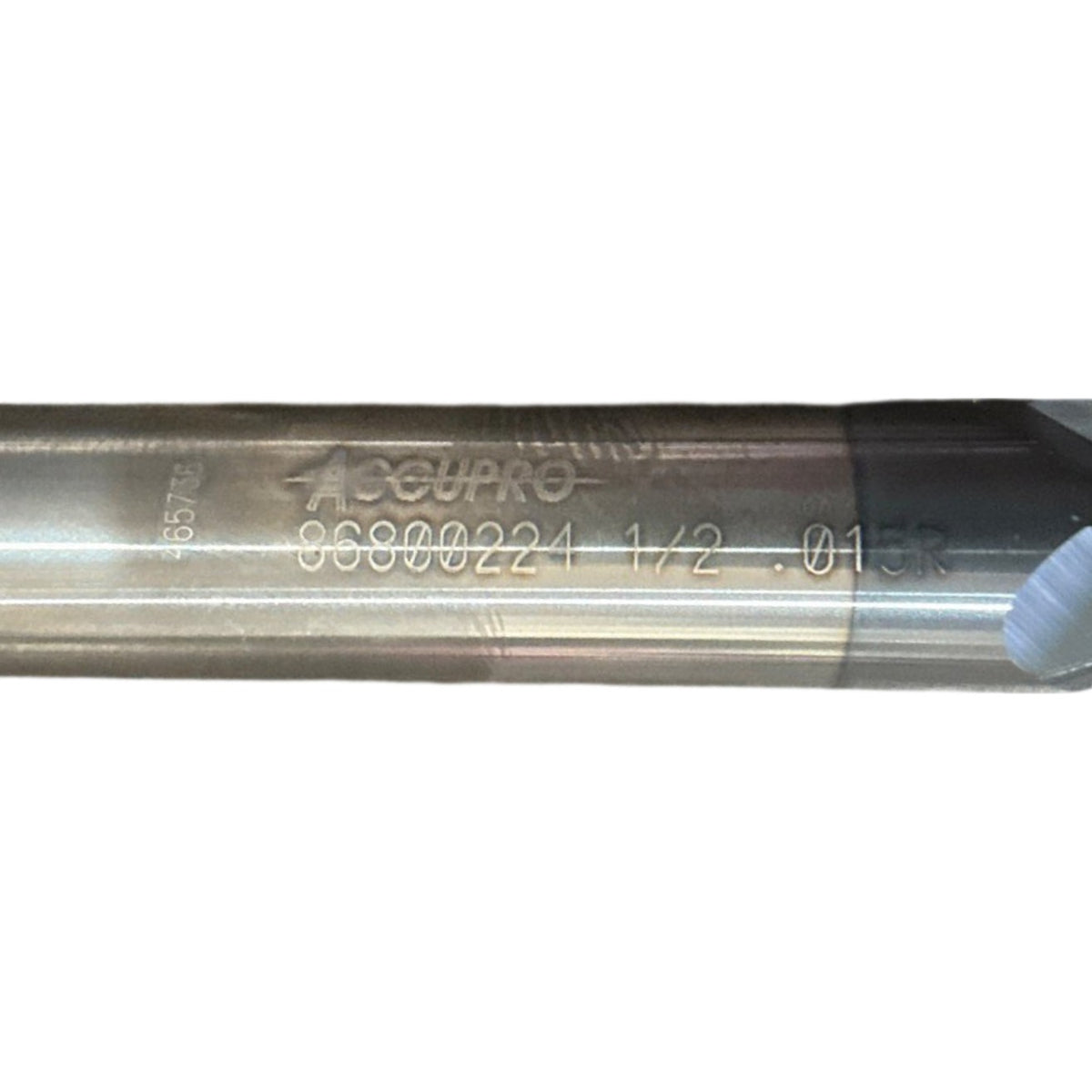

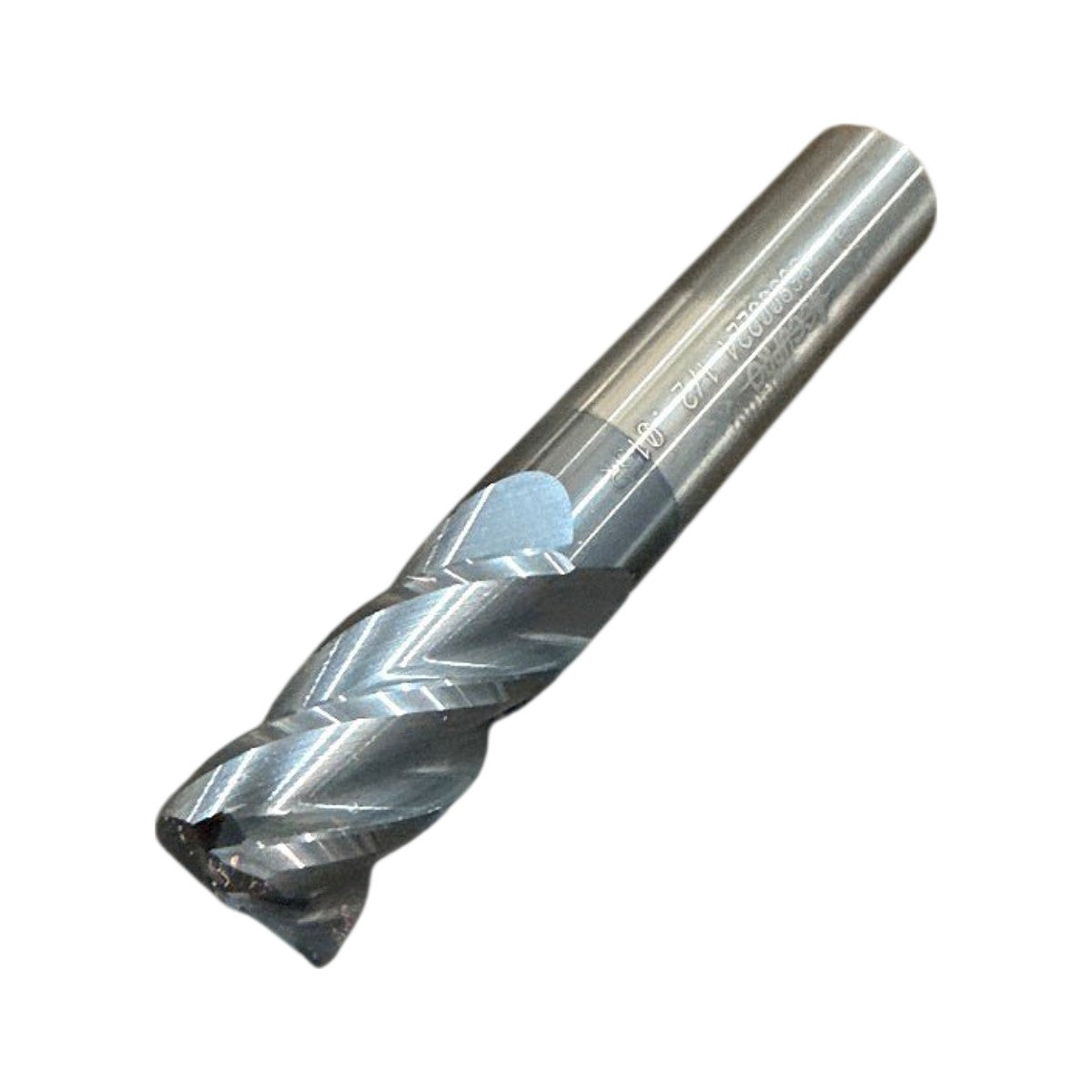

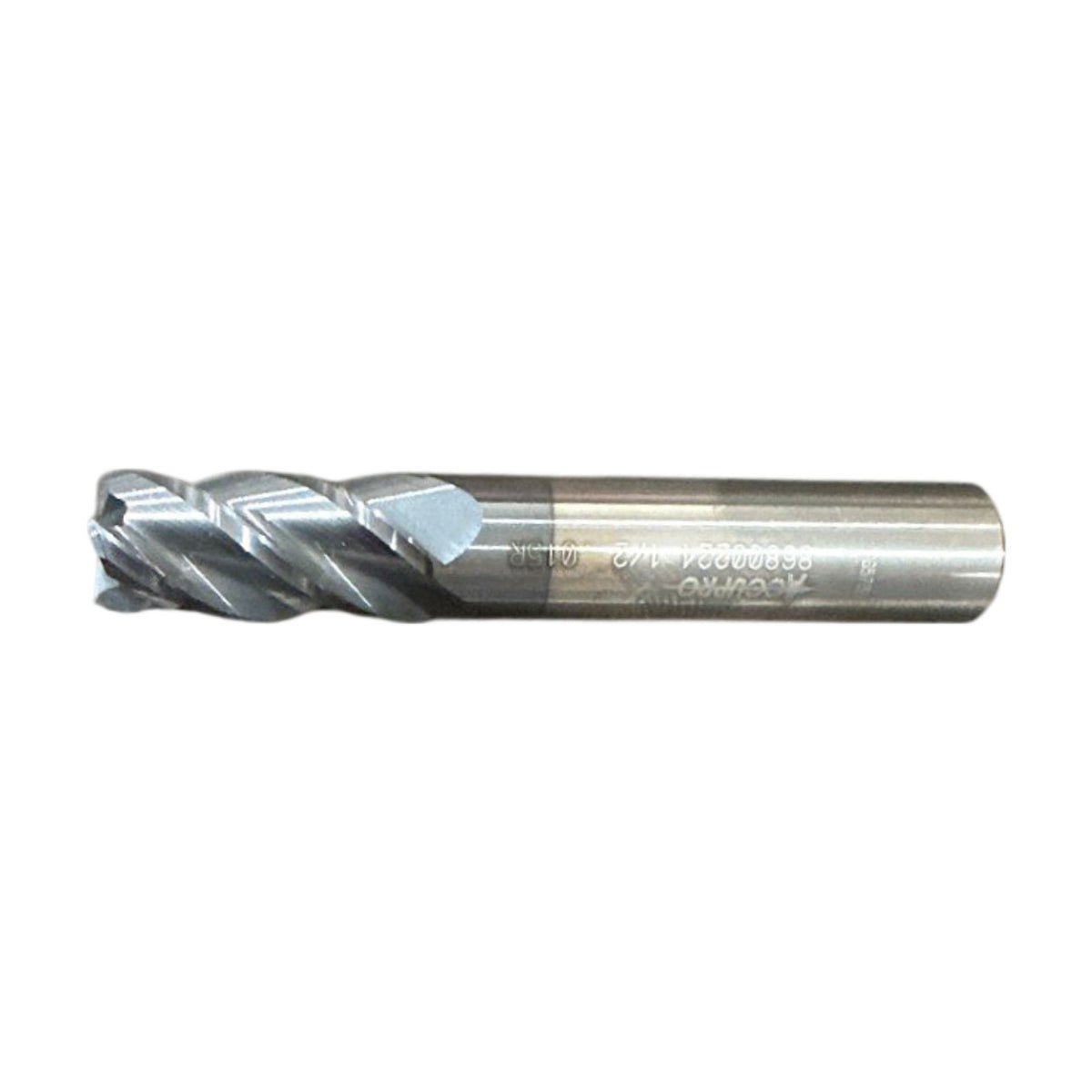

This Accupro 86800224 is a 4-flute corner radius end mill with a 1/2 in cutting diameter, 1/2 in shank, 1 in length of cut and 3 in overall length, per the box label (1/2x1/2x1x3). It carries a 0.015 in corner radius, which strengthens the cutting corners and reduces chipping compared with a sharp-corner tool. The tool is AlTiN coated, which provides heat and wear resistance for milling at elevated temperatures, and the Accupro mark on the shank indicates solid carbide construction. It was made in the USA and is used for general-purpose high-performance milling on CNC machining centers. This unused end mill is new and comes in its original plastic tube.
Product Specifications
| Brand | Accupro |
| MPN | 86800224 |
| Cutting Diameter | 1/2 in |
| Shank Diameter | 1/2 in |
| Length of Cut | 1 in |
| Overall Length | 3 in |
| Corner Radius | 0.015 in |
| Number of Flutes | 4 |
| Coating | AlTiN |
| Material | Solid Carbide |
| End Type | Corner Radius |
| Shank Type | Straight |
| Operation | Milling |
| Country of Origin | USA |
