Accupro CCMT060202WSF+ ACM25P Carbide Turning Insert (8 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

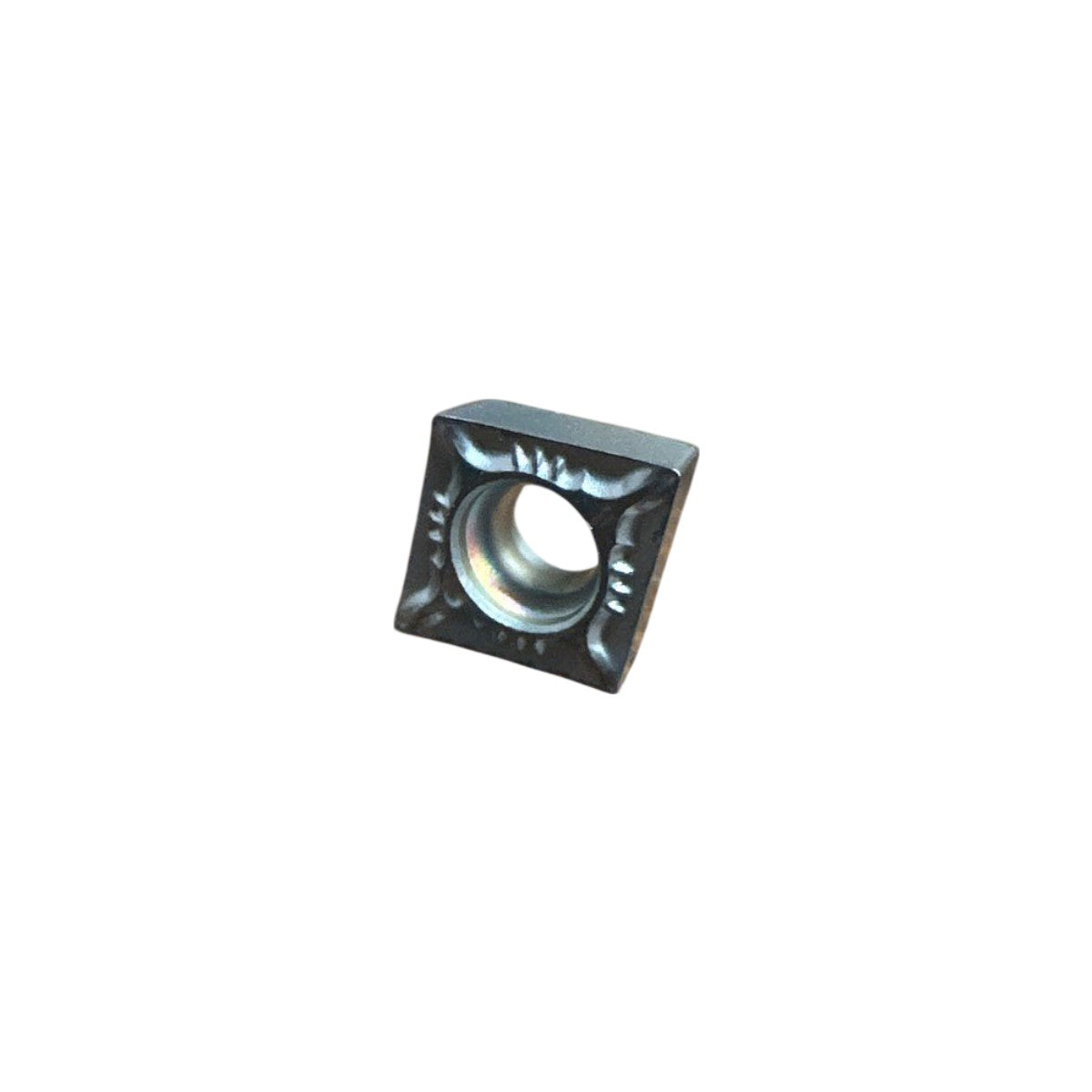

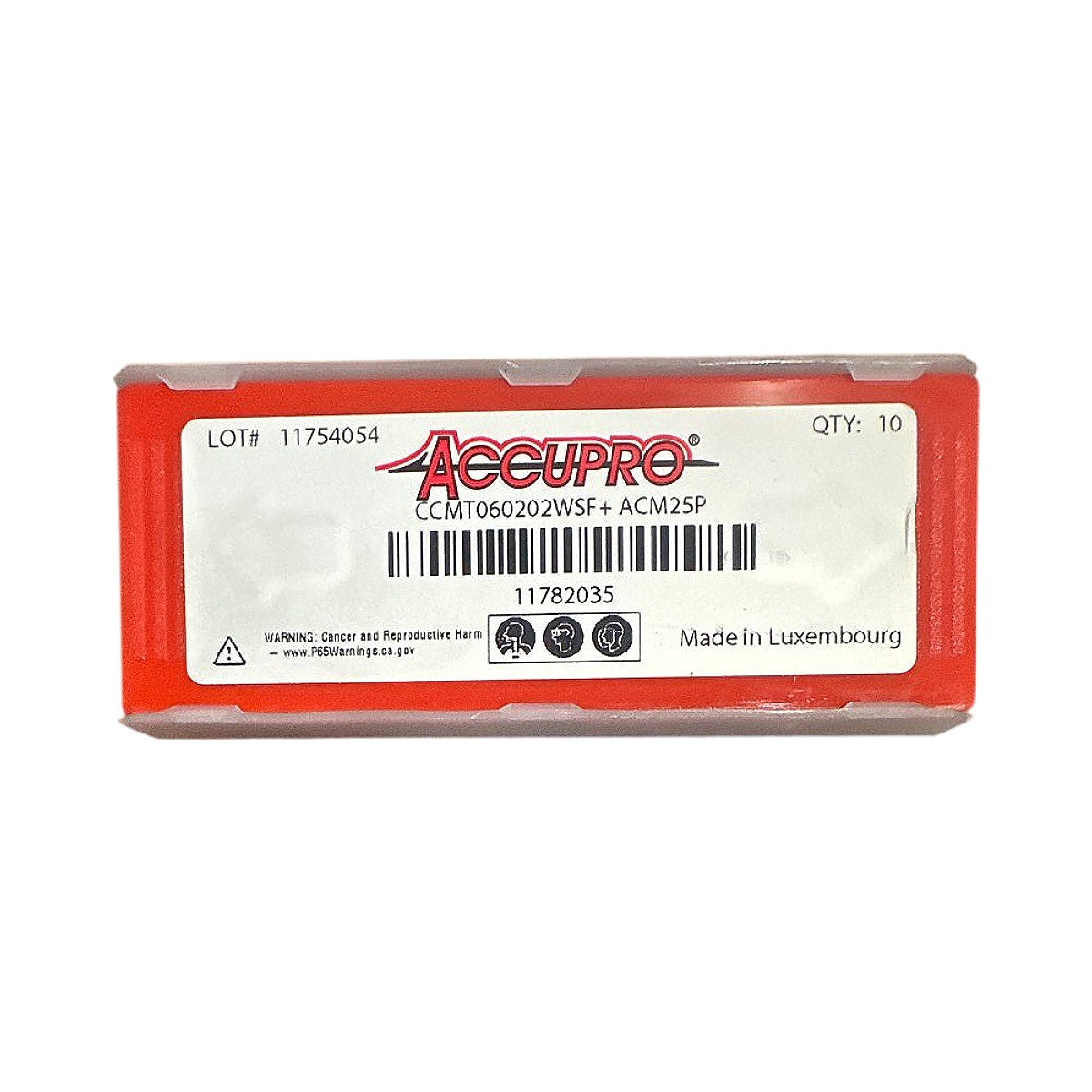

The Accupro CCMT060202WSF+ in grade ACM25P is a new, 80° diamond-shaped (C) carbide turning insert with a 7° clearance angle (M tolerance class), single-sided with a central hole for screw clamping, featuring a WSF+ precision-ground chipbreaker geometry optimized for finishing and semi-finishing cuts. The ACM25P grade is a PVD-coated submicron cemented carbide targeted at steel and stainless steel turning (ISO P and M material groups), delivering excellent wear resistance and toughness for light-to-medium interrupted and continuous cuts. Decoded from the ISO designation CCMT060202: 6.35 mm (1/4 in) inscribed circle, 2.38 mm thickness, and a 0.2 mm nose radius, making it compatible with standard SCLCR/SCLCL and equivalent CCMT-style toolholders. Manufactured in Luxembourg and supplied in factory-sealed boxes of 10 inserts per the packaging label.
Product Specifications
| Brand | Accupro |
| MPN | CCMT060202WSF+ ACM25P |
| ISO Designation | CCMT060202WSF+ |
| Grade | ACM25P |
| Insert Shape | C - 80° Diamond |
| Clearance Angle | M - 7° |
| Tolerance Class | M |
| Insert Type | T - Single-sided w/ hole |
| Chipbreaker | WSF+ (finishing/semi-finishing) |
| Inscribed Circle (IC) | 6.35 mm (1/4 in) |
| Insert Thickness | 2.38 mm (3/32 in) |
| Nose Radius | 0.2 mm (0.008 in) |
| Coating | PVD |
| Substrate | Cemented Carbide |
| ISO Material Group | P, M (Steel, Stainless Steel) |
| Quantity per Box | 10 |
| Country of Origin | Luxembourg |
| Condition | New |
