Accutek 87921320B ER32 Type Z Balanced 40x12.4mm Slotted Collet Nut
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

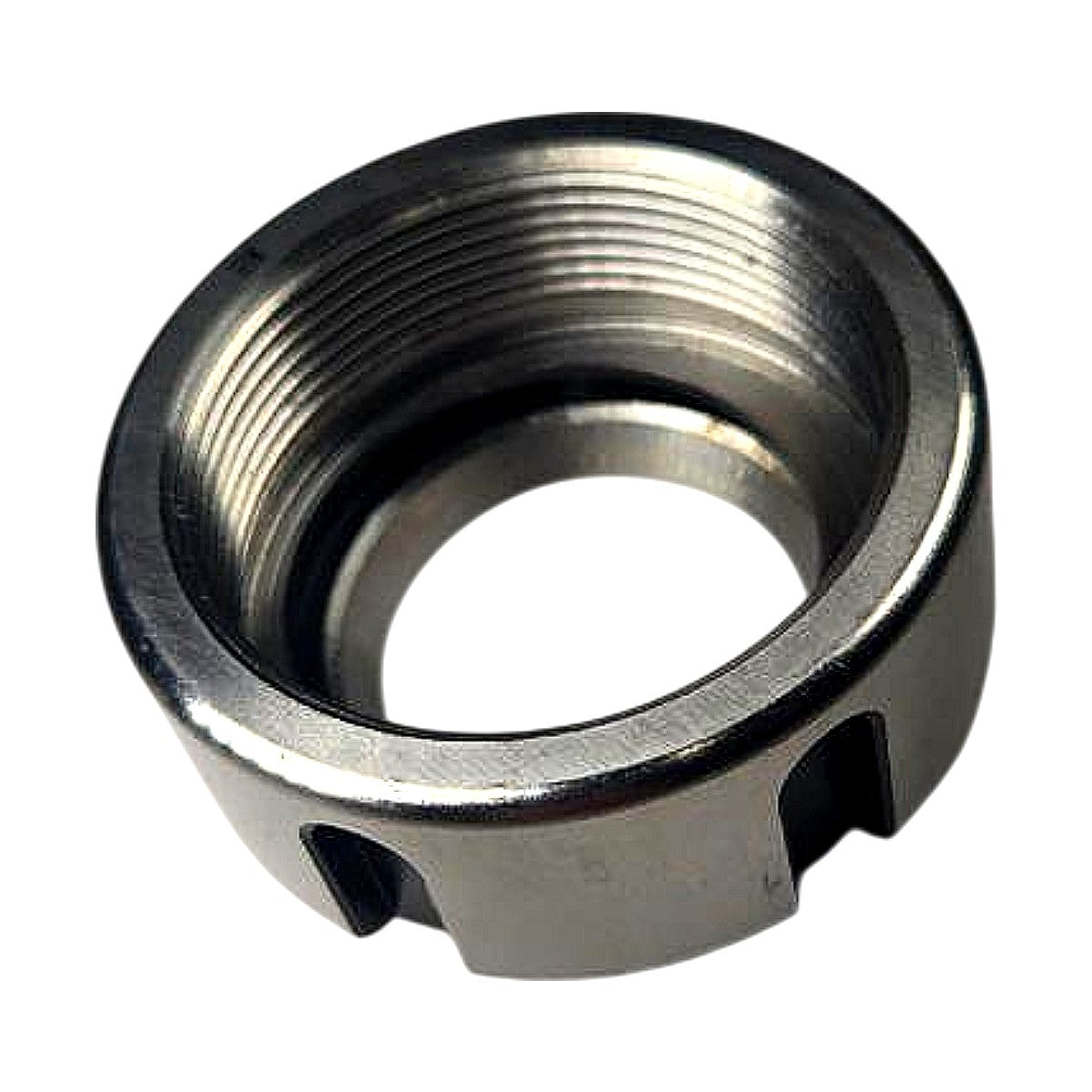

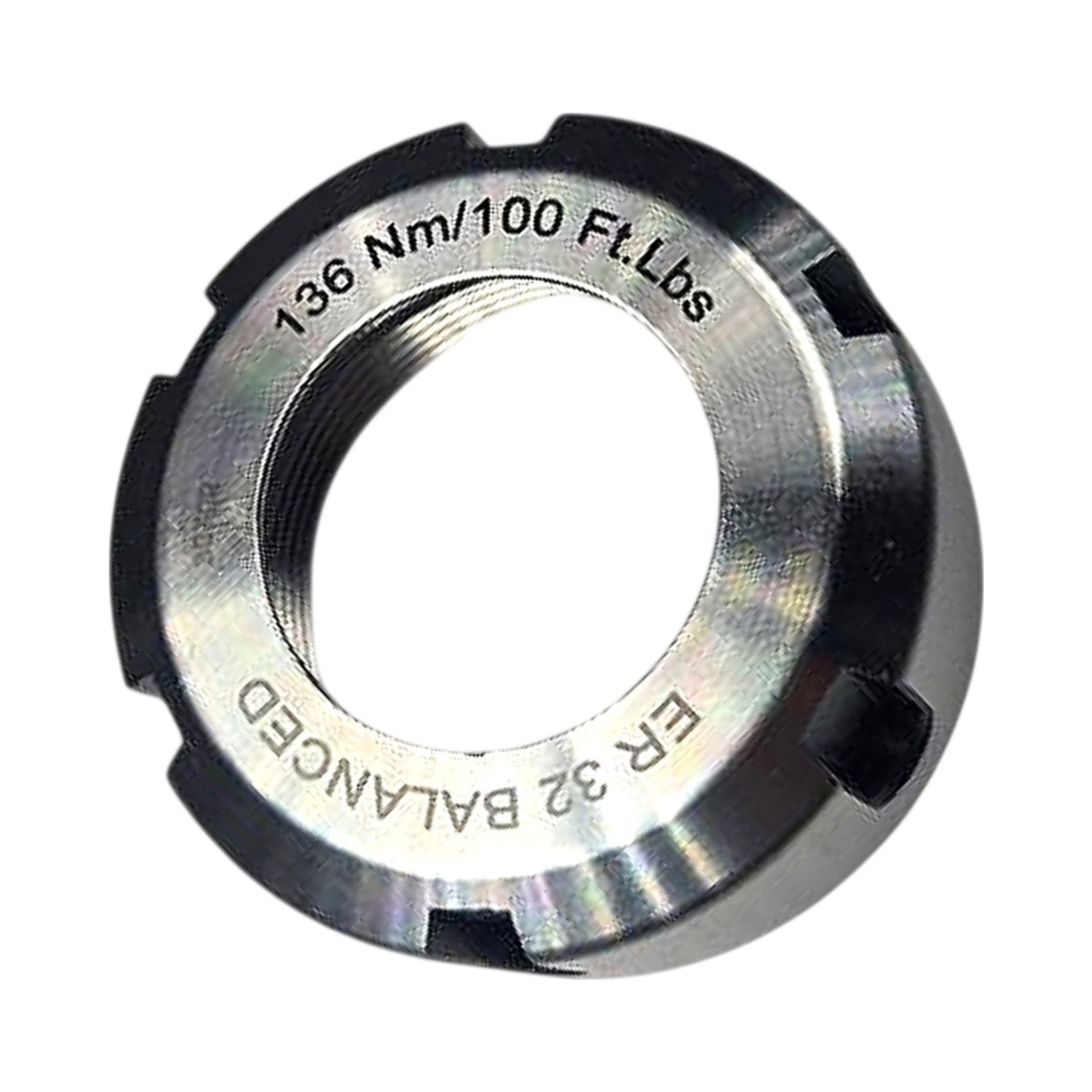

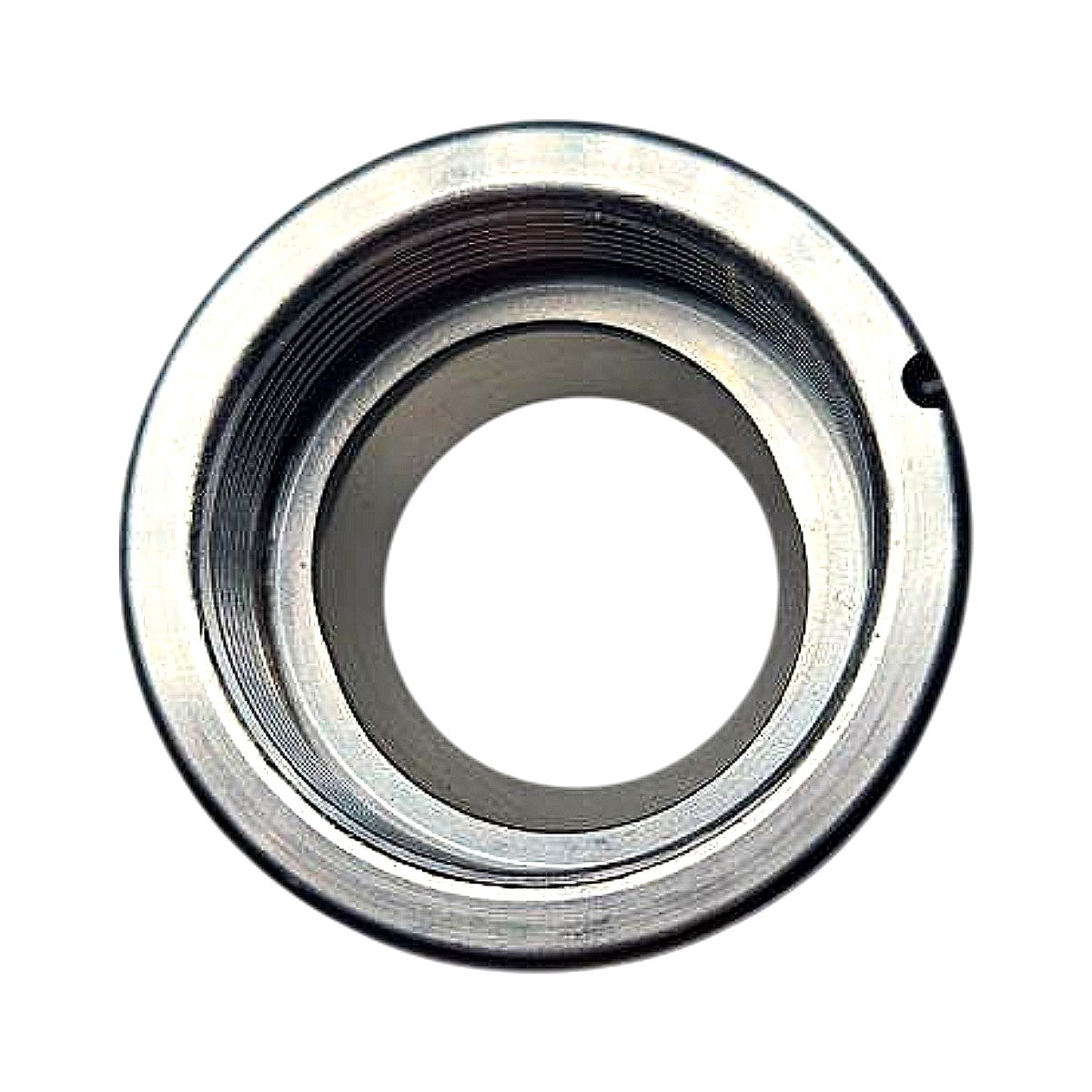

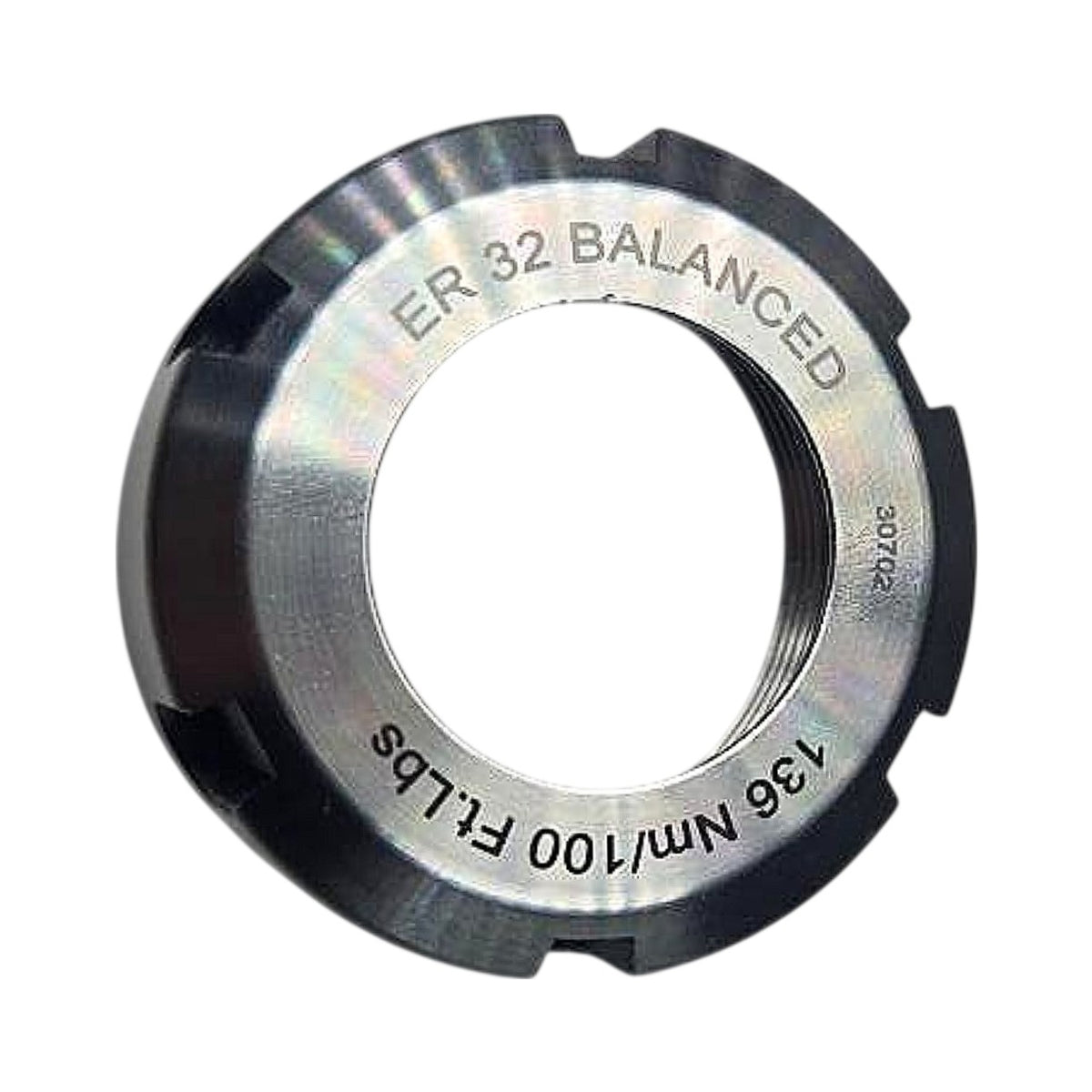

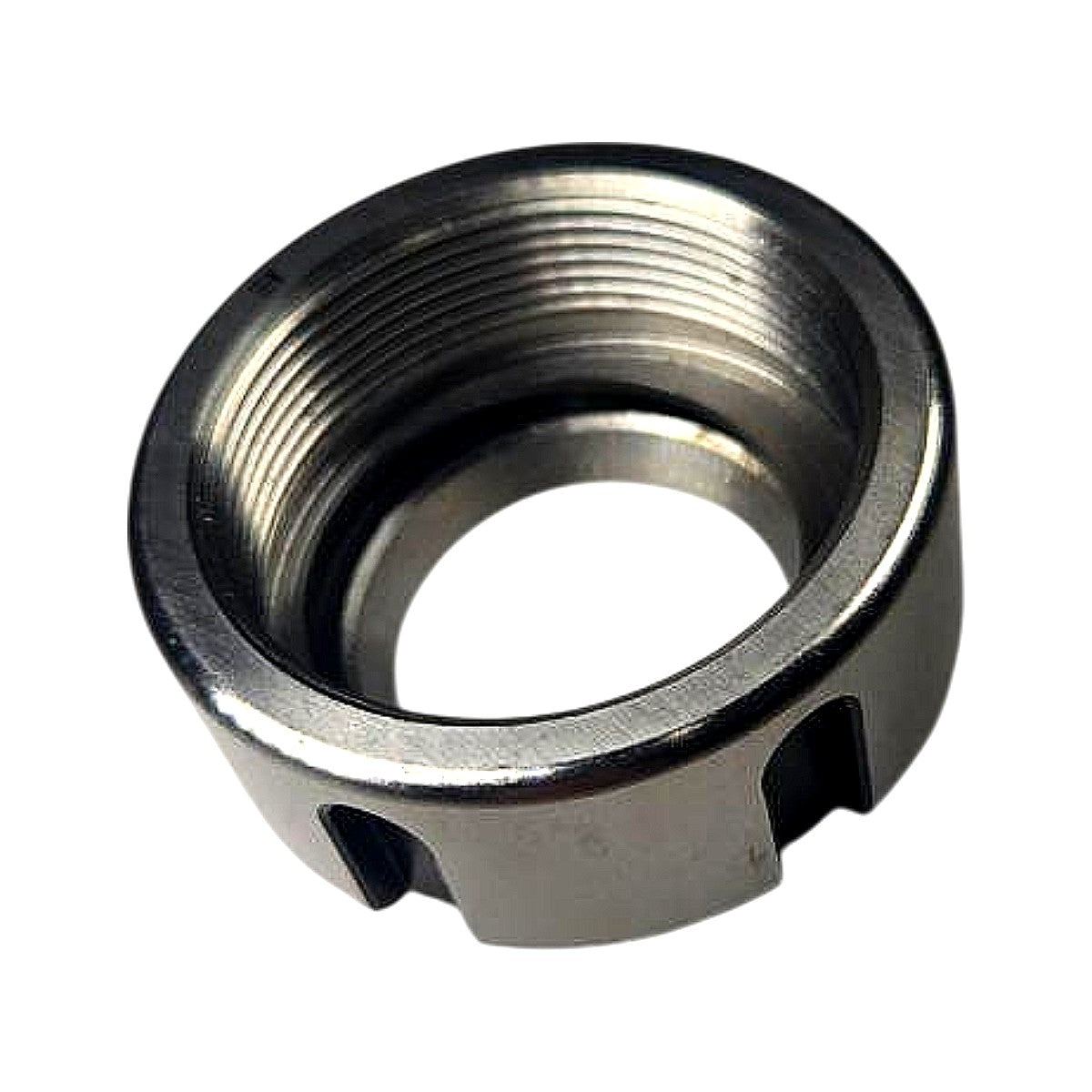

The Accutek 87921320B is a new ER32 Type Z dynamically balanced collet clamping nut, measuring 40mm outer diameter by 12.4mm height, machined from alloy steel with a natural bright finish. The Type Z designation denotes a slotted (spanner-wrench) style nut with symmetrically distributed slots that enable the balanced design — the nut is manufactured to balance grade G2.5 at 25,000 RPM, making it suitable for high-speed spindle applications on CNC machining centers, milling machines, and high-frequency spindles where vibration-induced runout must be minimized. The internal thread is the standard ER32 M39×1.5 metric thread, compatible with all ISO/DIN 6499-compliant ER32 toolholders, and the nut is rated to a tightening torque of 136 Nm (100 ft·lbs) as clearly engraved on the face — applying this torque delivers maximum collet clamping force without overstressing the thread. The slotted OD accepts a standard ER32 spanner wrench or hook wrench for installation and removal.
Product Specifications
| Collet System | ER32 |
| Nut Style | Type Z (Slotted / Spanner) |
| Balance Specification | Balanced (G2.5 @ 25,000 RPM) |
| Outer Diameter | 40 mm |
| Height (Width) | 12.4 mm |
| Internal Thread | M39 x 1.5 mm |
| Max Tightening Torque | 136 Nm / 100 ft·lbs |
| Material | Alloy Steel |
| Finish | Bright / Natural Steel |
| Compatible Standard | ISO/DIN 6499 ER32 |
| Condition | New |
| Part Number | 87921320B |
| Brand | Accutek |
