Acorn 1652-1-BP-04-M SS Wall-Mount ADA Lavatory Sink w/ Valve Pkg

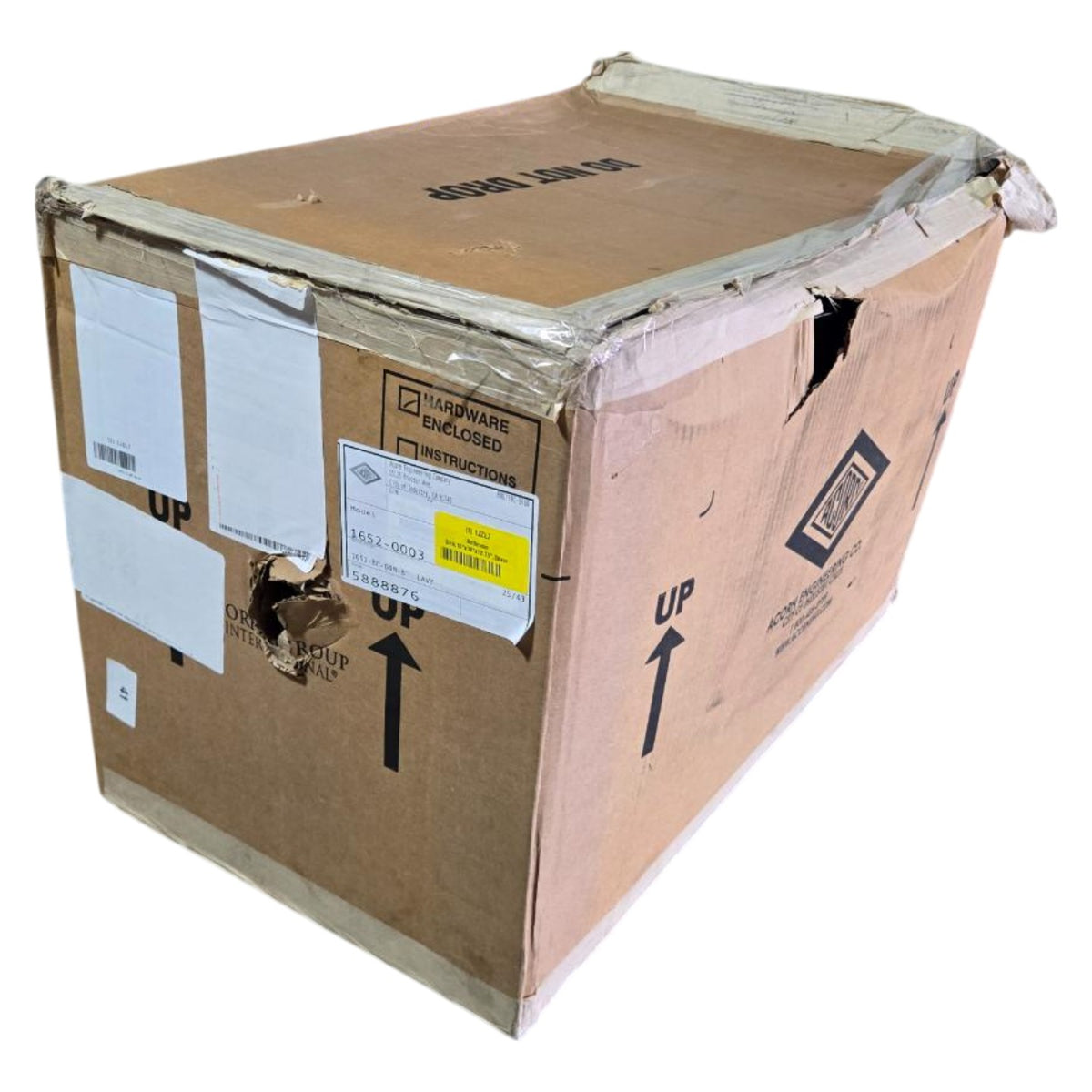

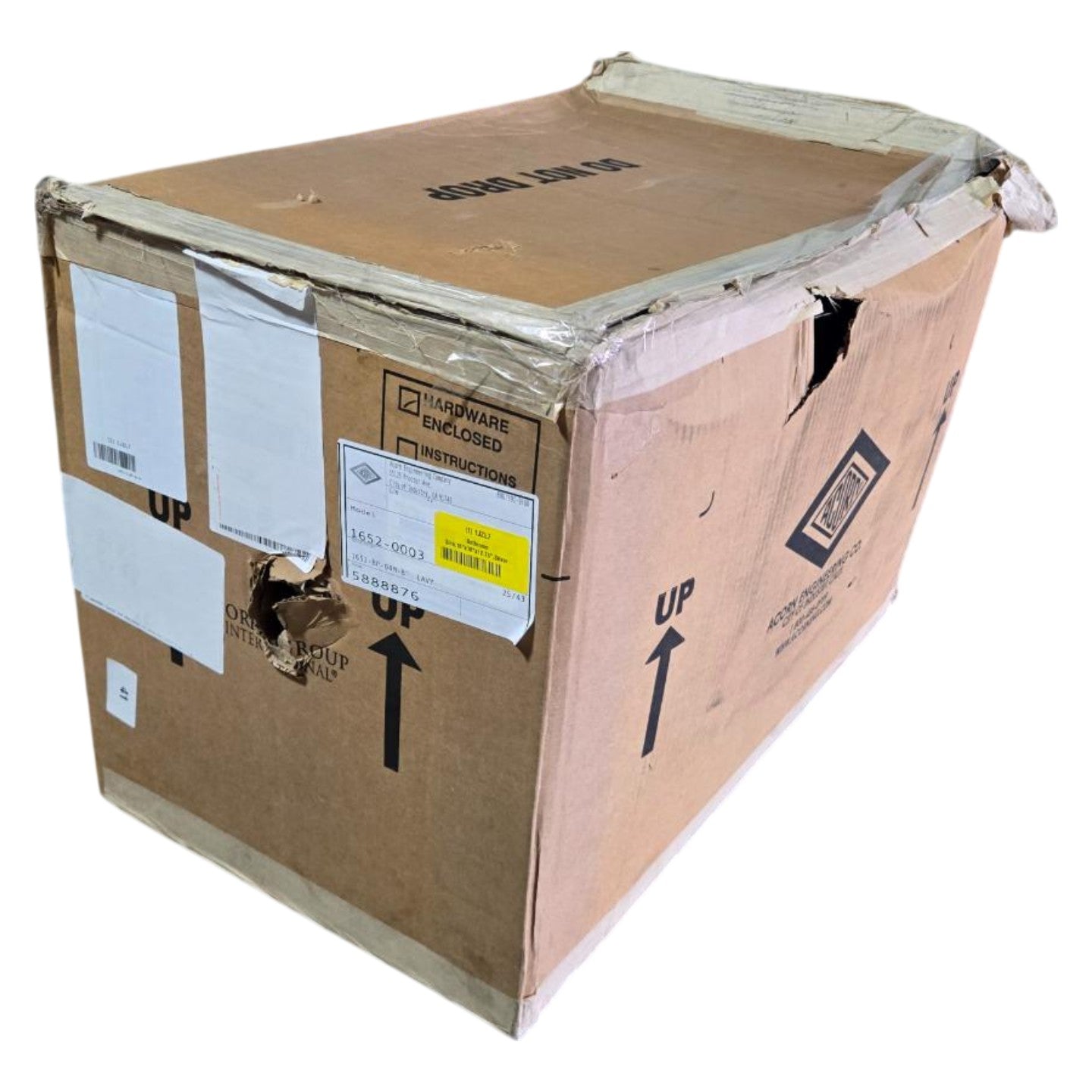

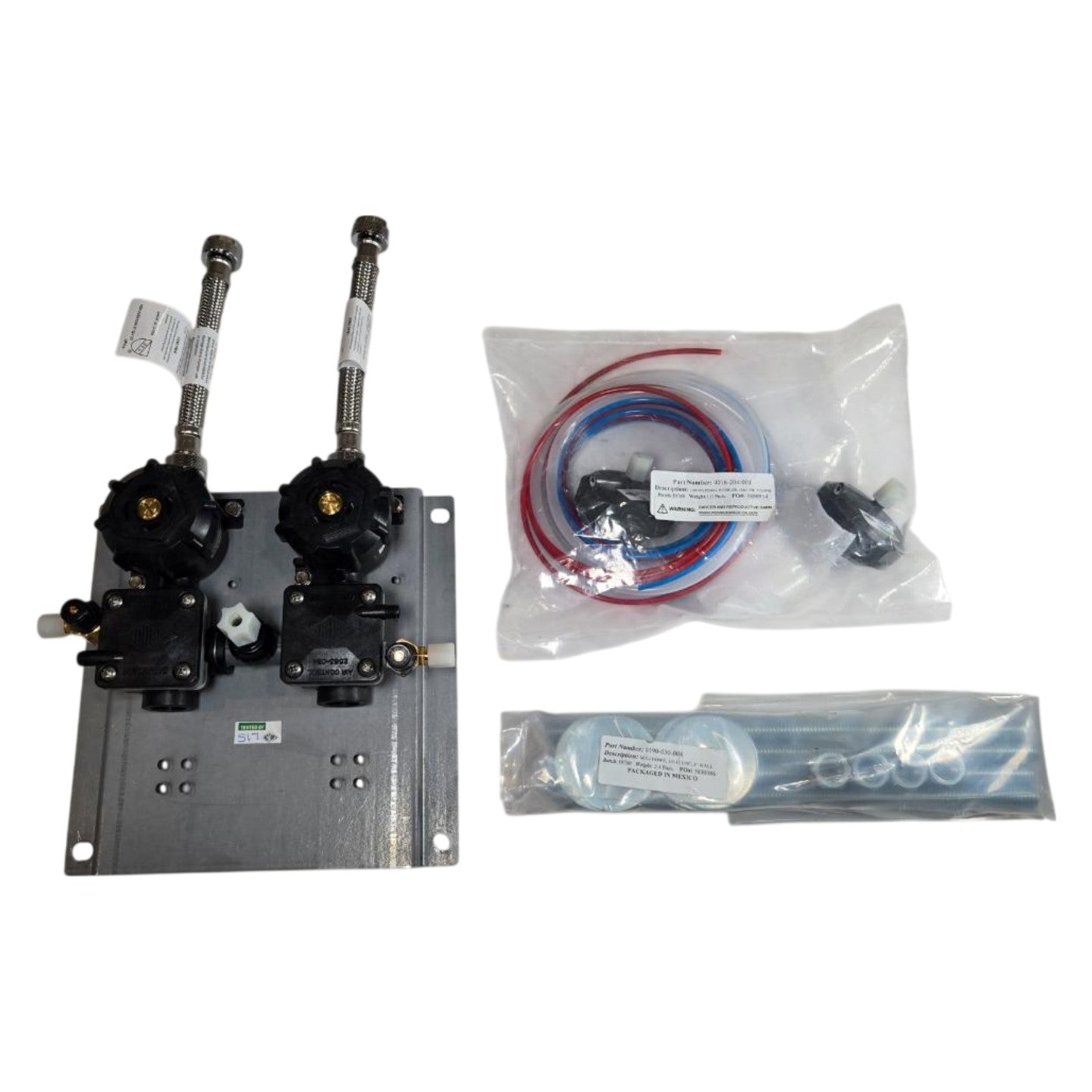

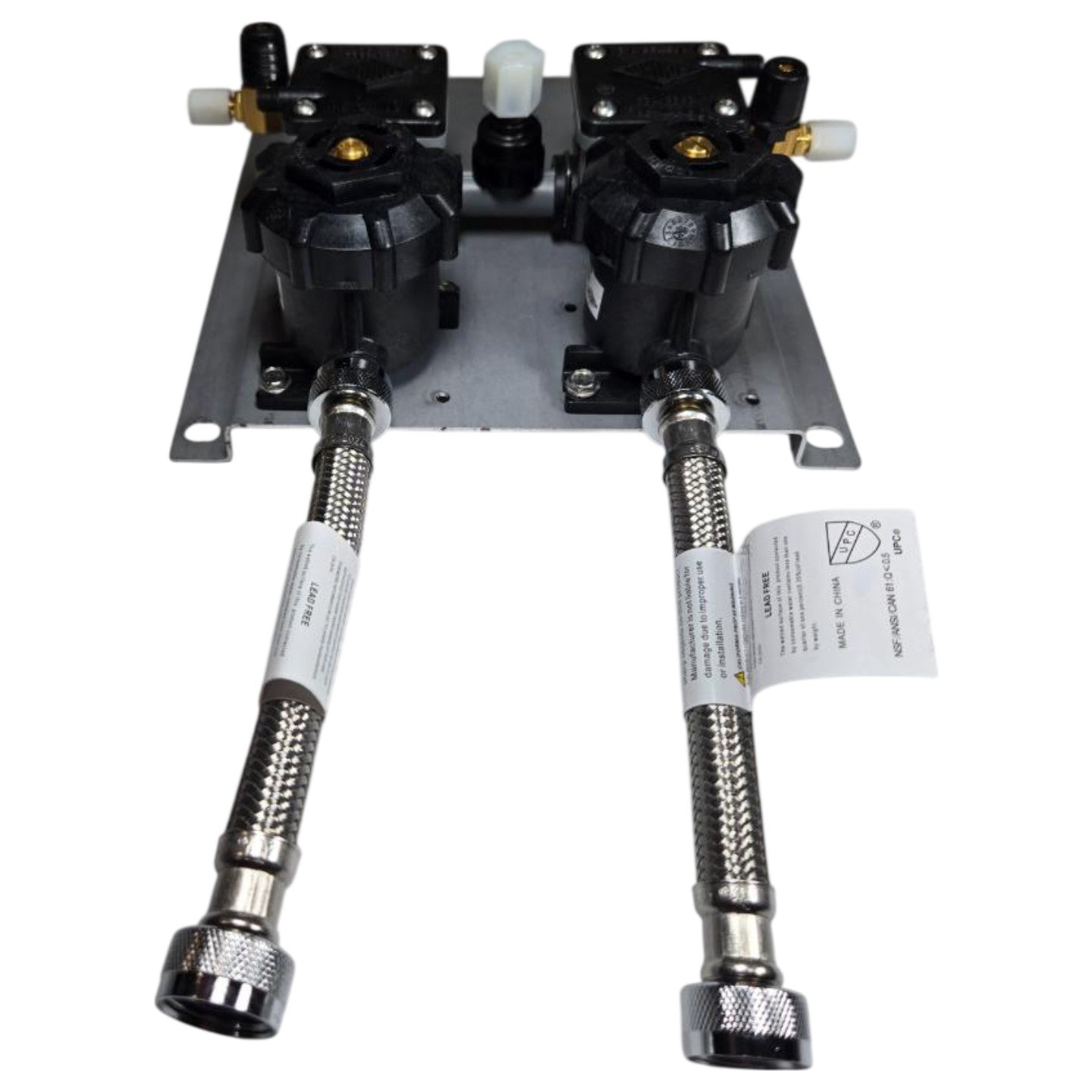

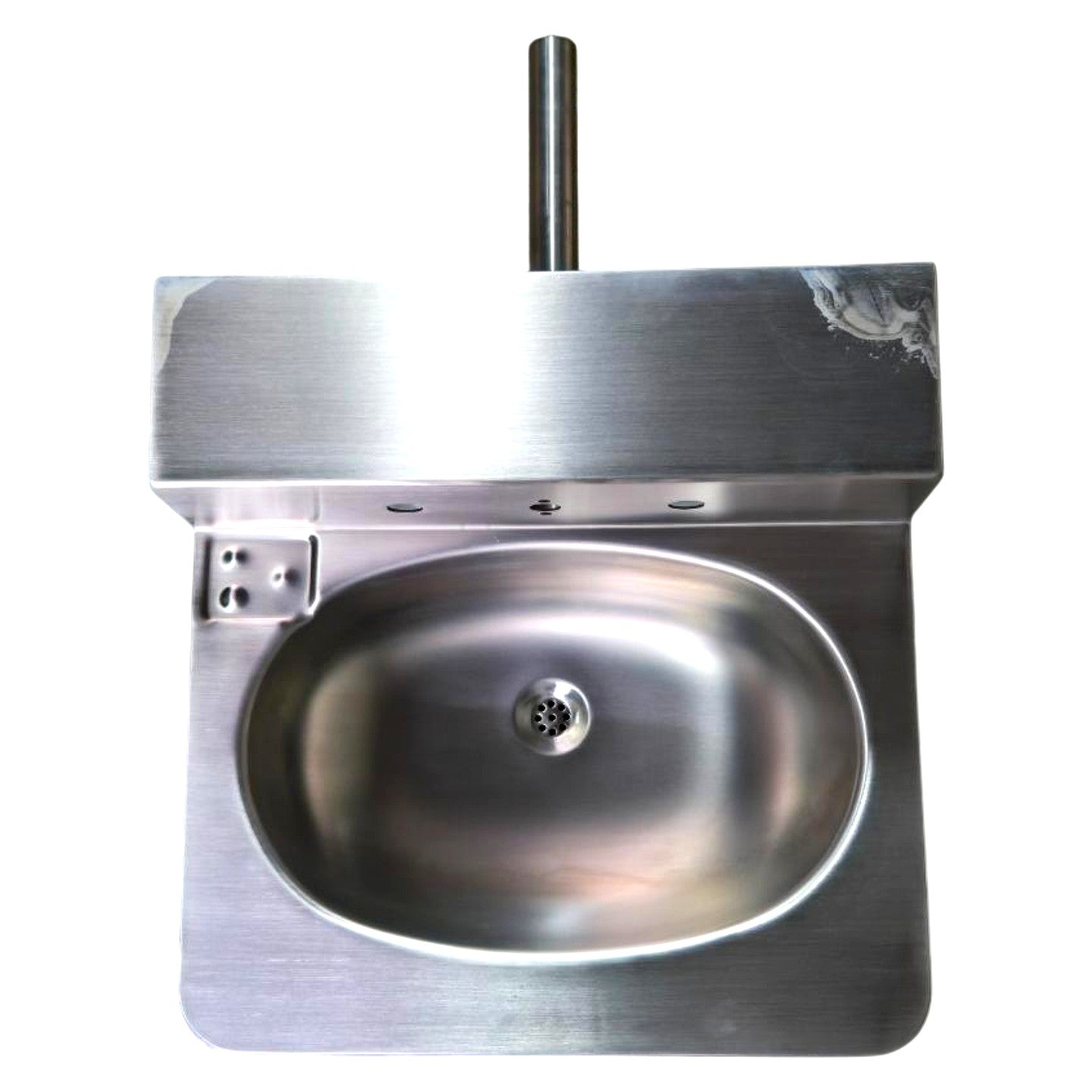

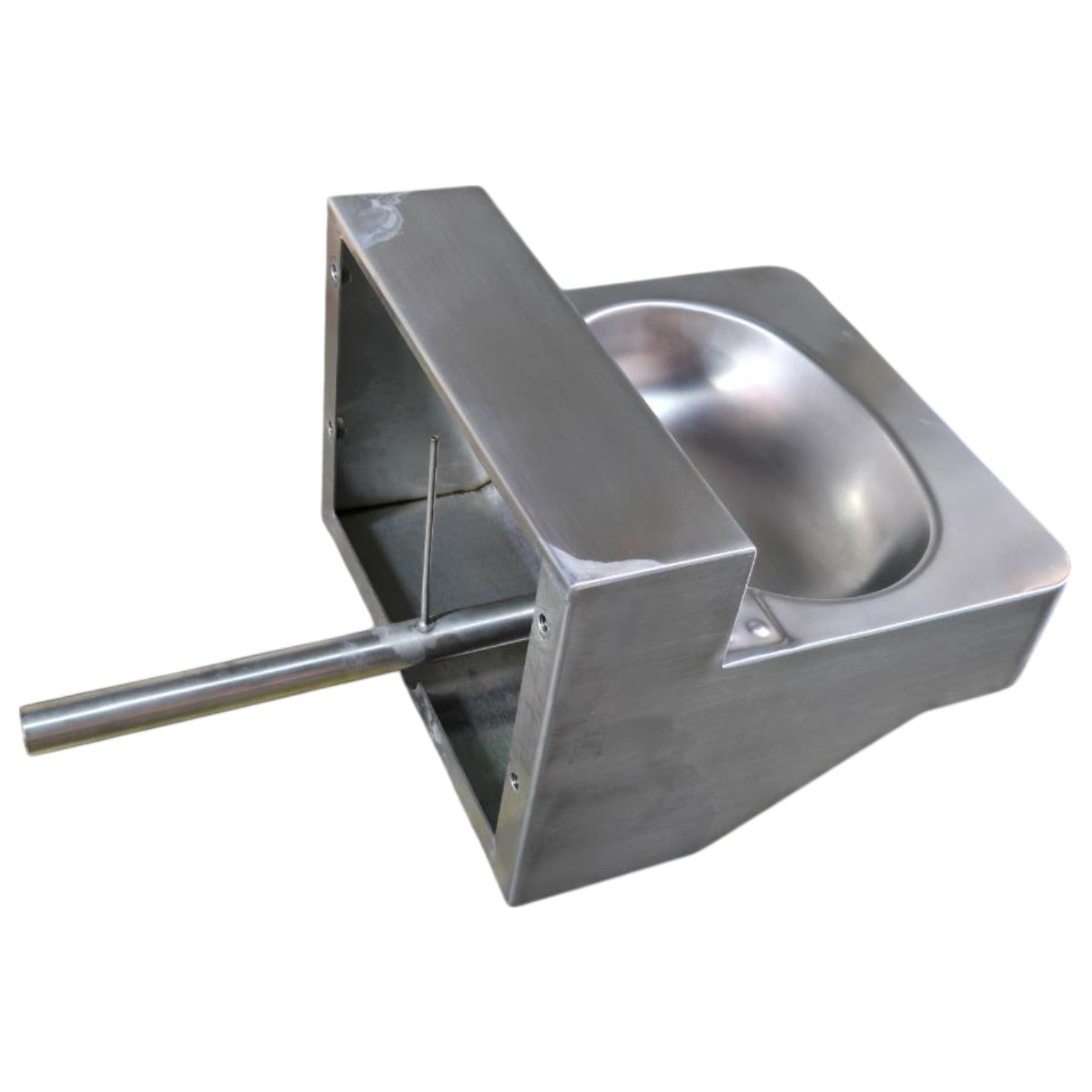

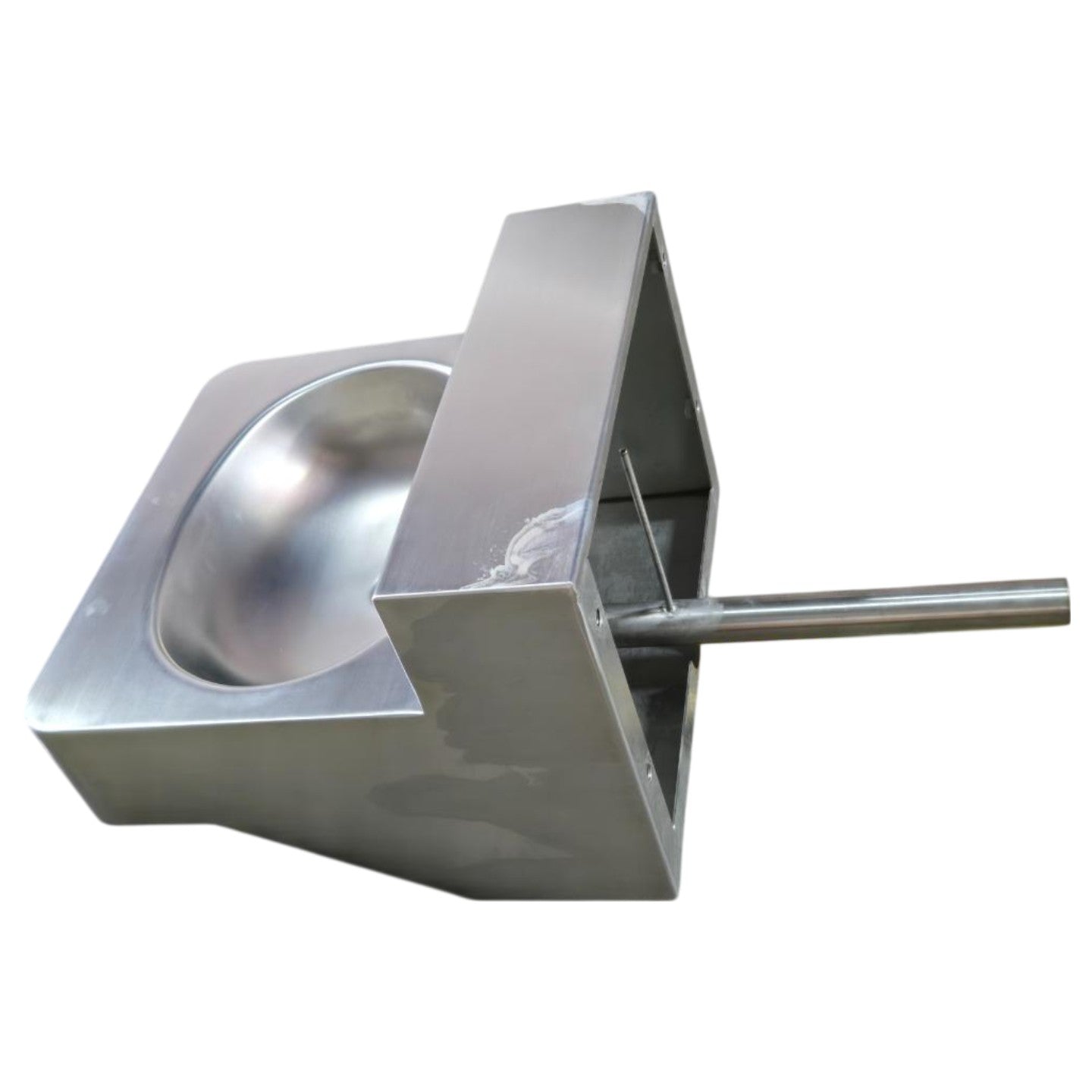

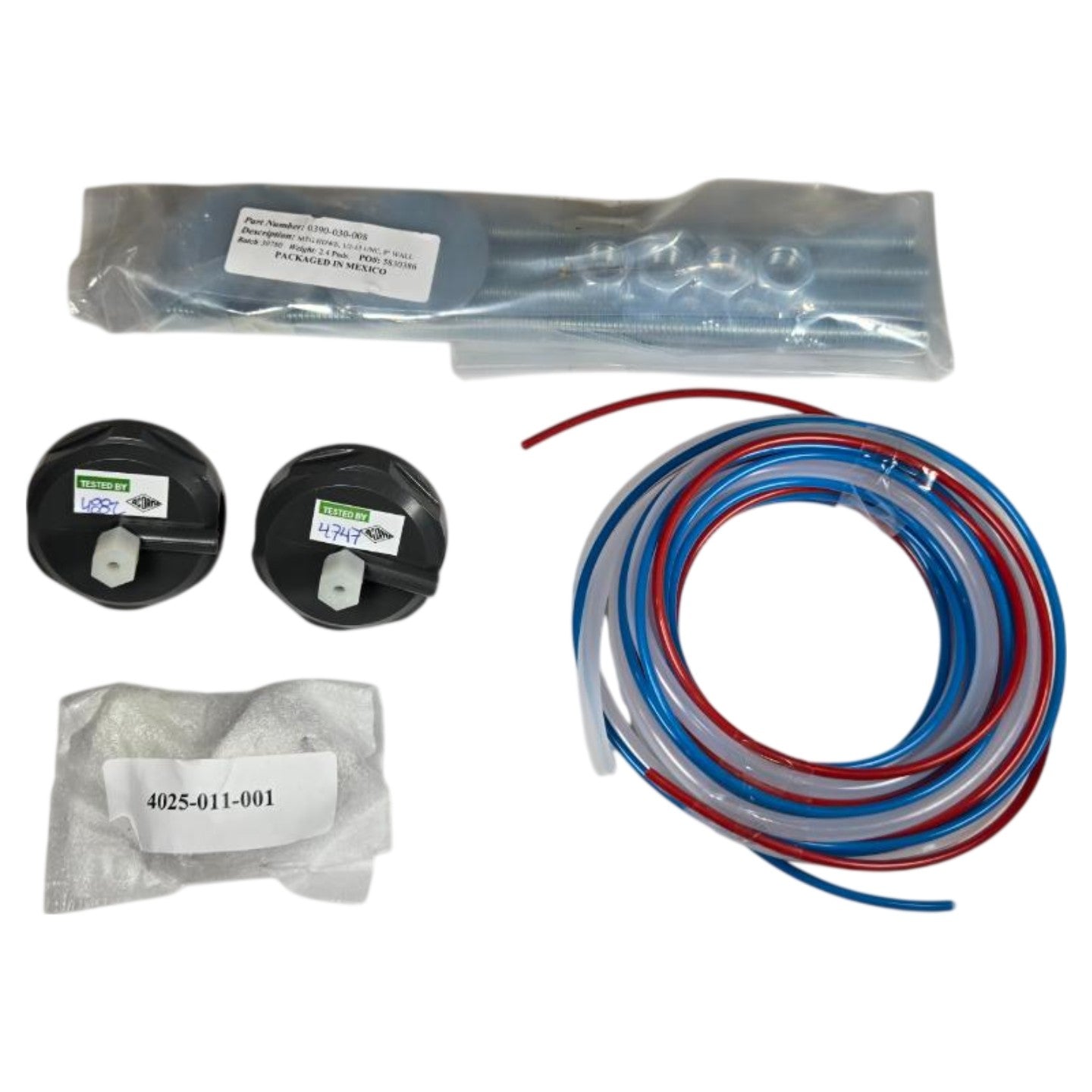

The Acorn Engineering 1652-1-BP-04-M is a new, wall-mounted stainless steel lavatory designed for ADA-compliant installations in institutional, correctional, and high-traffic commercial environments. The sink features an oval-bowl basin measuring 14-3/4 in length and 4-1/2 in depth, a brushed stainless steel field with integral backsplash, and a concealed wall-box mounting system with a protruding supply stub-out for in-wall rough-in. The -BP suffix indicates a back-plate/box panel mounting configuration, -04 denotes a metering valve package (dual push-button or timer-controlled metering valves on a pre-plumbed panel), and -M signifies the metering valve option; included accessories consist of a dual-valve pre-plumbed panel with braided stainless supply connectors, colored supply tubing (hot/cold/drain identification), wall anchors, and hardware pack per visible part labels 4016-204-001, 0190-030-005, and 4025-011-001. The box label confirms manufacturer Acorn Engineering Co. and model 1652-0003, consistent with the 1652 series prison/institutional lavatory line. Product Specifications MPN 1652-1-BP-04-M Brand ACORN Series 1652 Mounting Type Wall-mount, concealed back-box (BP) Material Stainless Steel Bowl Length 14-3/4 in Bowl Depth 4-1/2 in Bowl Shape Oval ADA Compliant Yes Valve Type Metering push-button, dual valve Valve Configuration Pre-plumbed dual-valve panel, hot & cold Supply Connections Braided SS flex connectors, lead-free Supply Connection Std NSF/ANSI 61, UPC Drain Location Center of bowl Finish Brushed stainless Application Institutional, correctional, commercial Included Hardware Valve panel, supply hoses, tubing, anchors, hdwe
