Air Systems International ASI-1000 1/2 in NPT 140 psi Venturi Air Blower
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

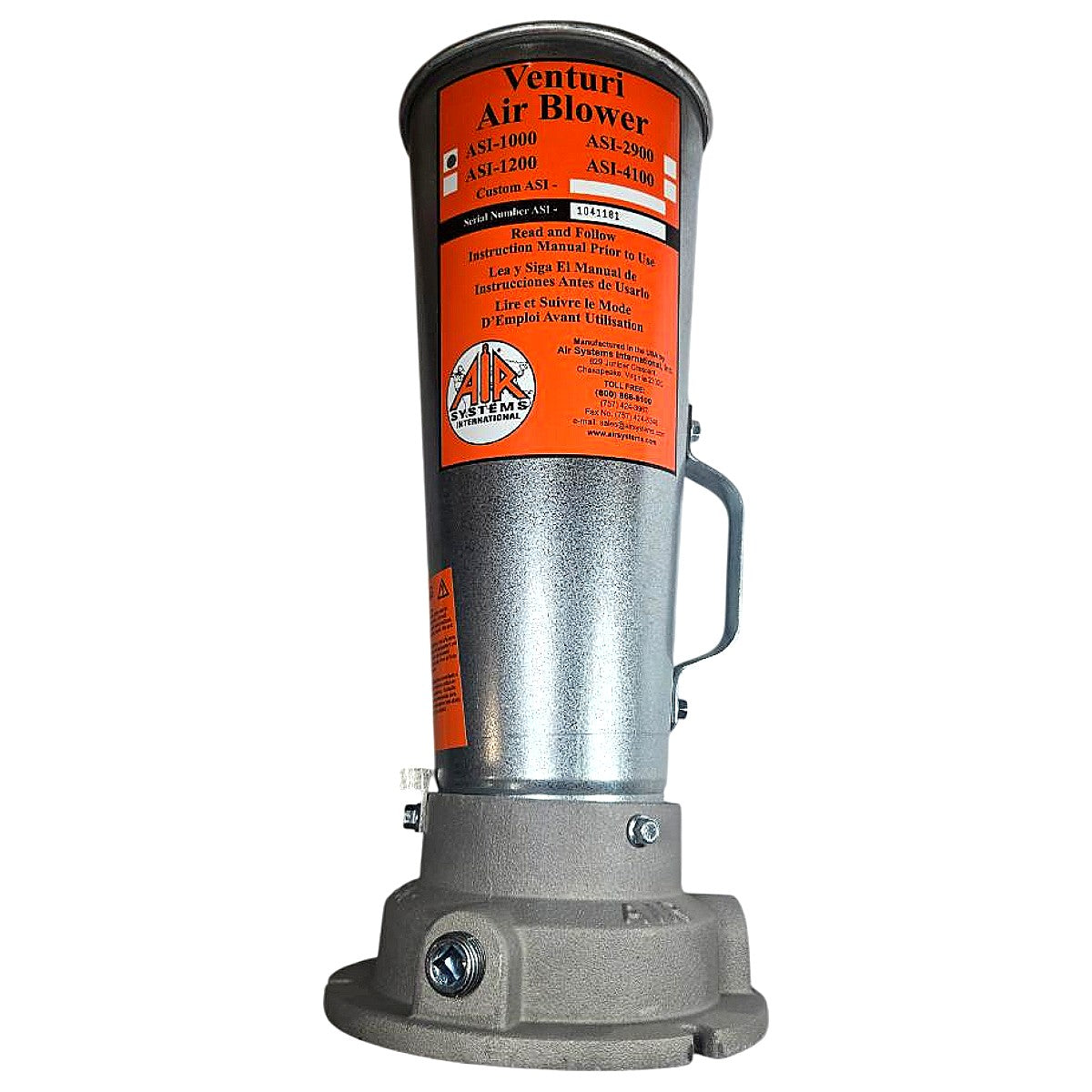

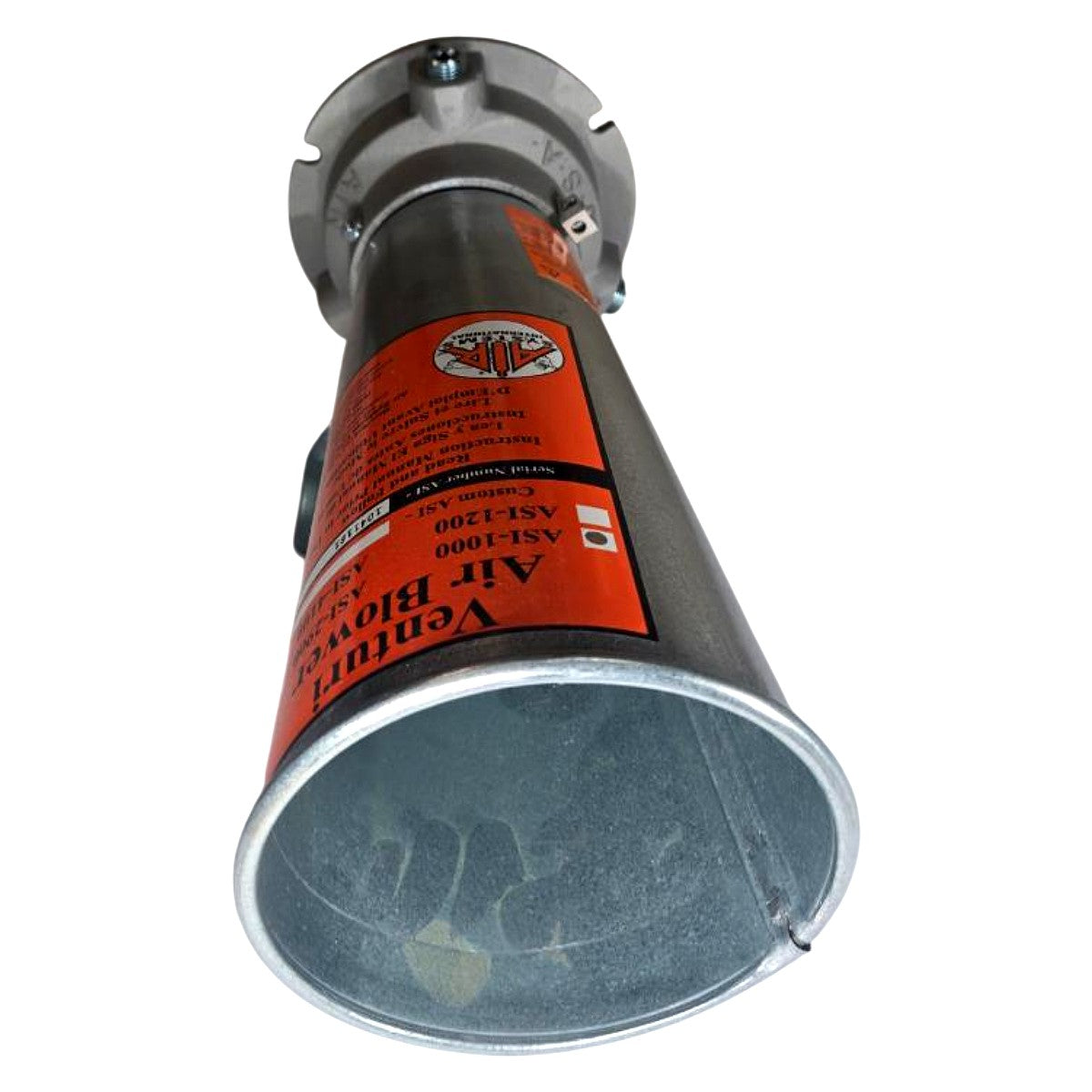

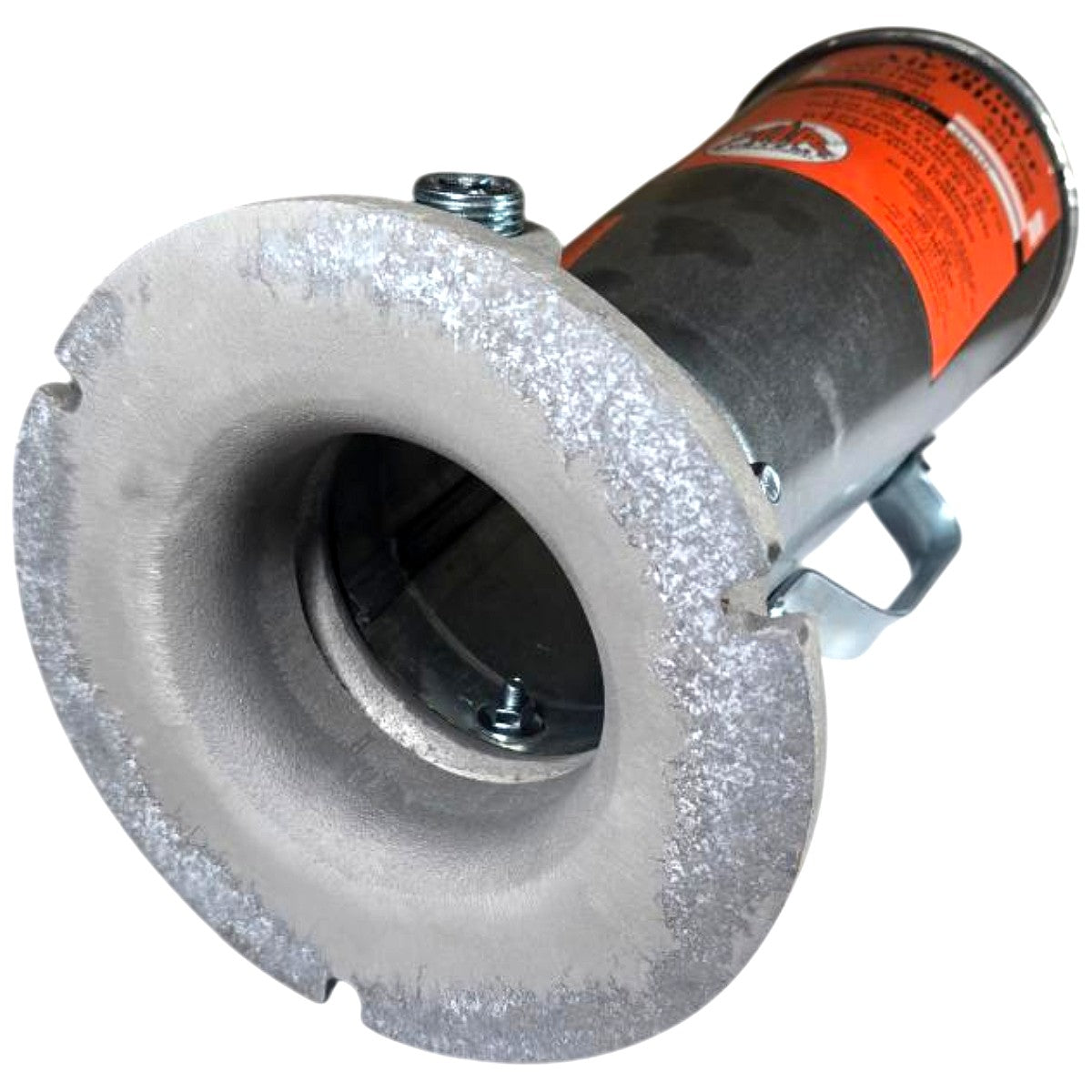

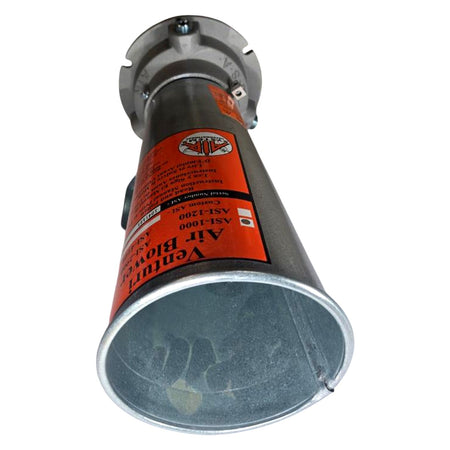

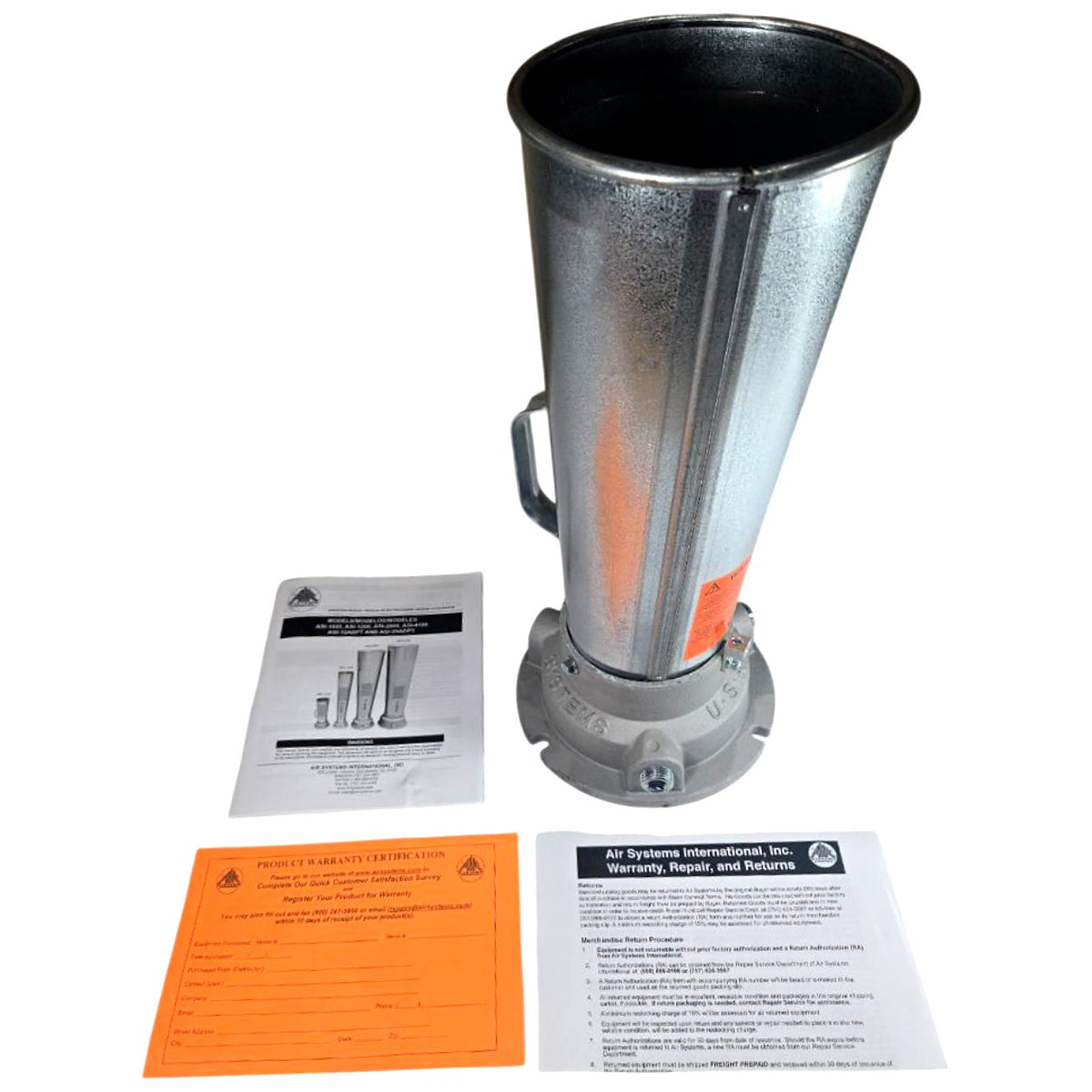

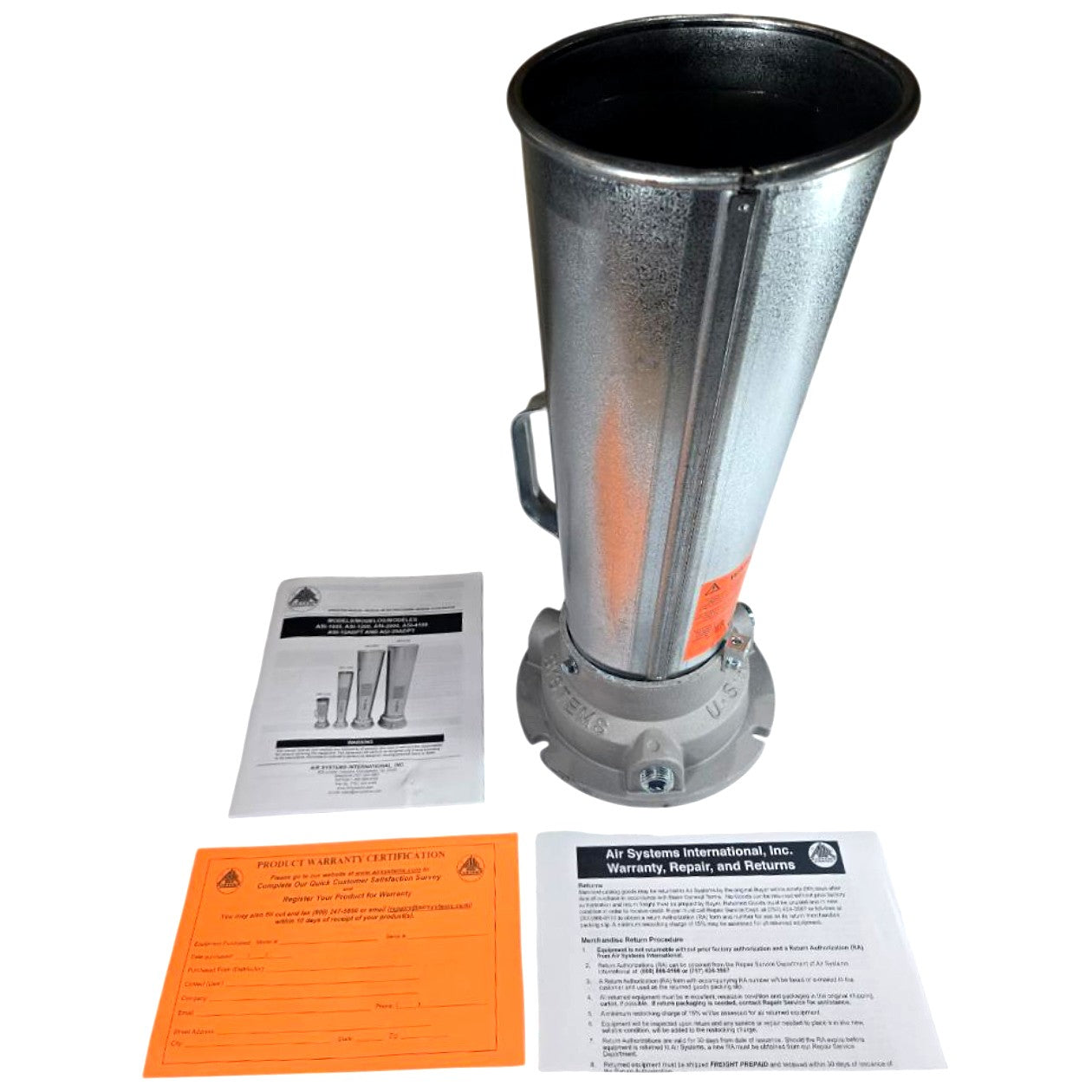

The Air Systems International ASI-1000 is a new pneumatic venturi air blower designed for confined space ventilation, supplying fresh air to personnel working in tanks, vaults, manholes, and other permit-required confined spaces. It operates on compressed air using the venturi (eductor) principle — a compressed air supply drives a high-velocity jet through the venturi nozzle, entraining surrounding air and producing a large-volume airflow output with no moving parts, no motor, and no electrical hazard. The inlet connection is 1/2 in NPT with a maximum allowable inlet pressure of 140 psi; the cast aluminum base flanges for standard duct attachment and the galvanized steel horn directs the amplified airflow into the duct or space. As part of ASI's blower family (ASI-1000, ASI-1200, ASI-2900, ASI-4100), the ASI-1000 is the entry-level model and is manufactured in the USA by Air Systems International, Inc. of Chesapeake, VA; it ships complete with instruction manual and warranty registration card as shown.
Product Specifications
| Brand | Air Systems International |
| Model / MPN | ASI-1000 |
| Blower Type | Venturi (Eductor / Pneumatic) |
| Inlet Connection | 1/2 in NPT |
| Max Inlet Pressure | 140 psi |
| Power Source | Compressed Air (no electricity required) |
| Moving Parts | None |
| Horn / Duct Body Material | Galvanized Steel |
| Base / Flange Material | Cast Aluminum |
| Country of Origin | USA |
| Condition | New |
| Includes | Instruction manual, warranty card |
