Allied Machine 111028-534 #4 TA AM200 48mm Spade Drill Insert
Regular price
$48.40
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

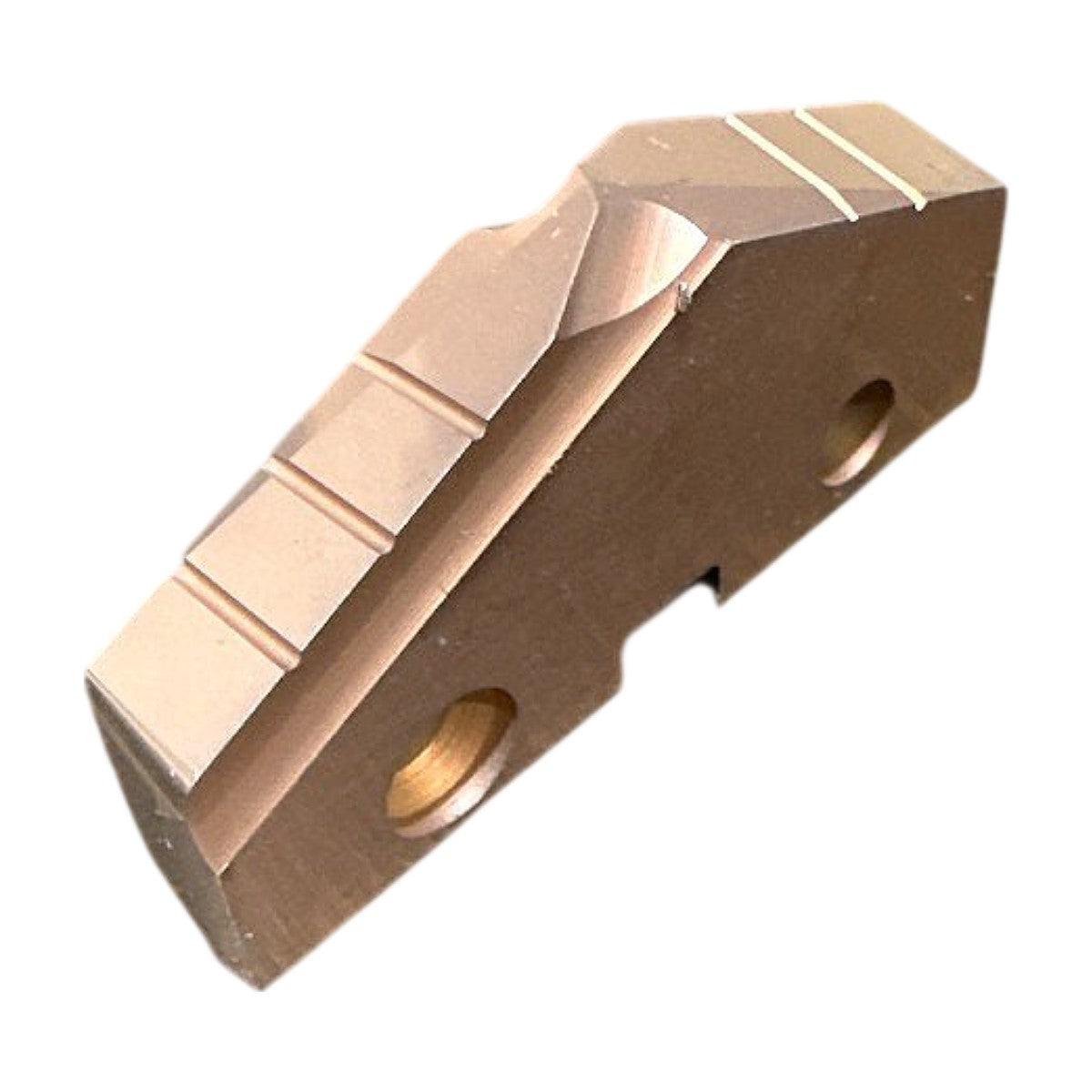

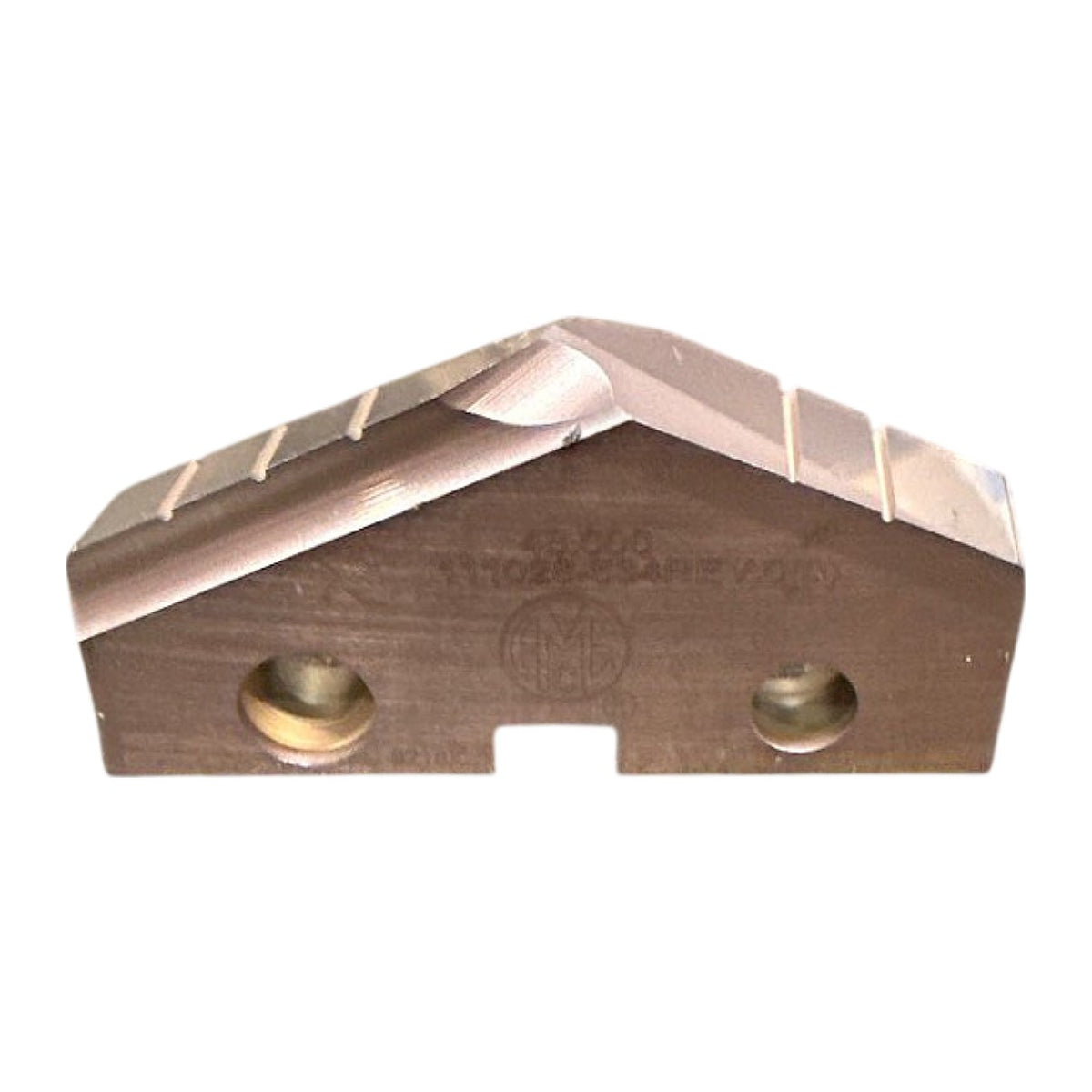

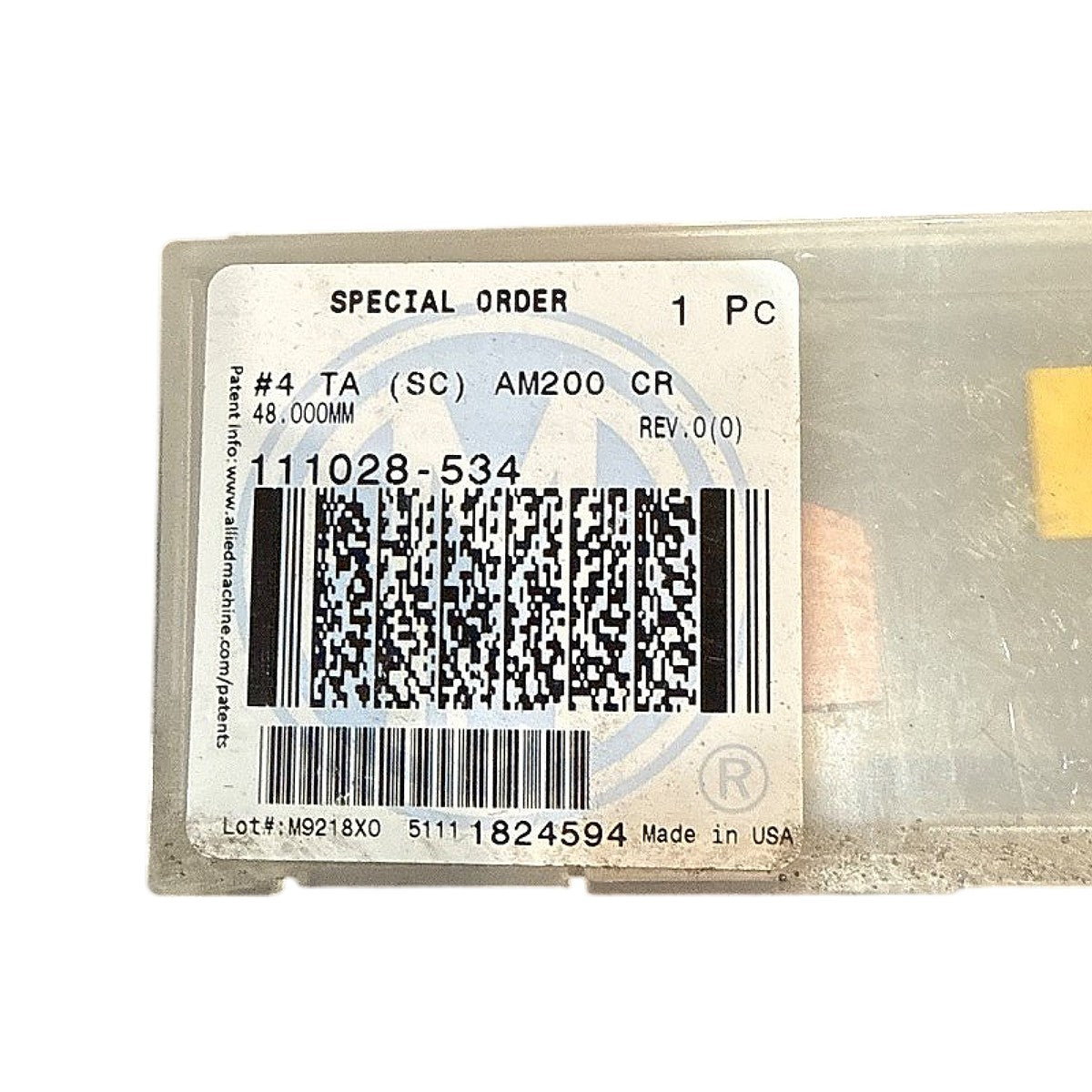

This new Allied Machine & Engineering (AMEC) T-A spade drill insert is size #4 with a 48.000 mm (about 1.890 in) cutting diameter, part number 111028-534, and is supplied as a single piece marked Special Order. It carries the AM200 coating designation and a (SC) designation as printed on the label, and the insert has a bronze-colored coated finish with chip-splitting notches along the cutting edges. It has two mounting screw holes and a drive slot at the base and is made in the USA. It is intended for T-A series spade drill holders from Allied Machine, and the T-A insert size must match the holder pocket.
Product Specifications
| Brand | Allied Machine & Engineering (AMEC) |
| Manufacturer Part Number | 111028-534 |
| Series | T-A |
| Insert Size | #4 |
| Cutting Diameter | 48.000 mm |
| Coating | AM200 |
| Coating Color | Bronze |
| Designation | #4 TA (SC) AM200 CR |
| Revision | REV.0(0) |
| Quantity | 1 Pc |
| Country of Origin | USA |
| Mounting Holes | 2 |
| Operation | Drilling |
| Compatible Holder | Allied Machine T-A spade drill holders |
| Insert Type | Spade Drill Insert |
| Chip Splitters | Yes, notched cutting edges |
