Allied Machine 7C213P-.546AS GEN3SYS XT 35/64" Stainless Drill Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

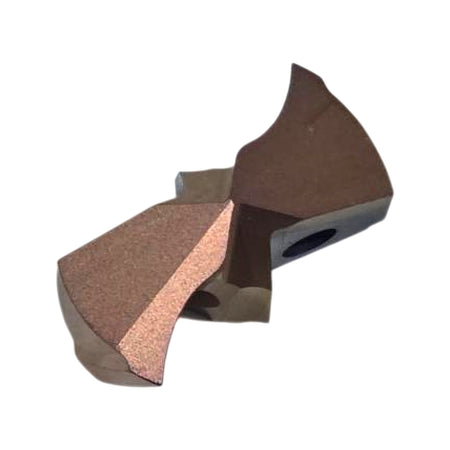

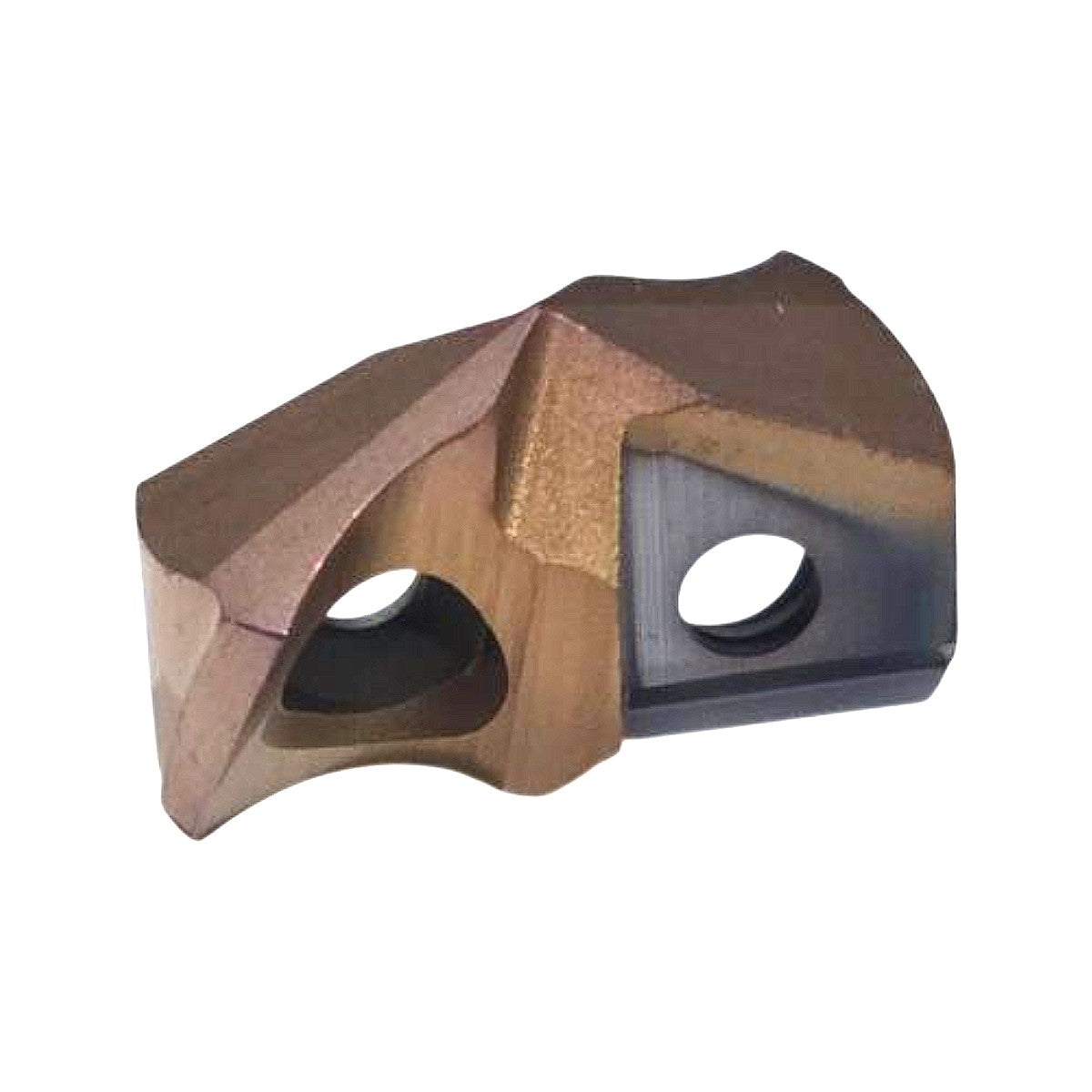

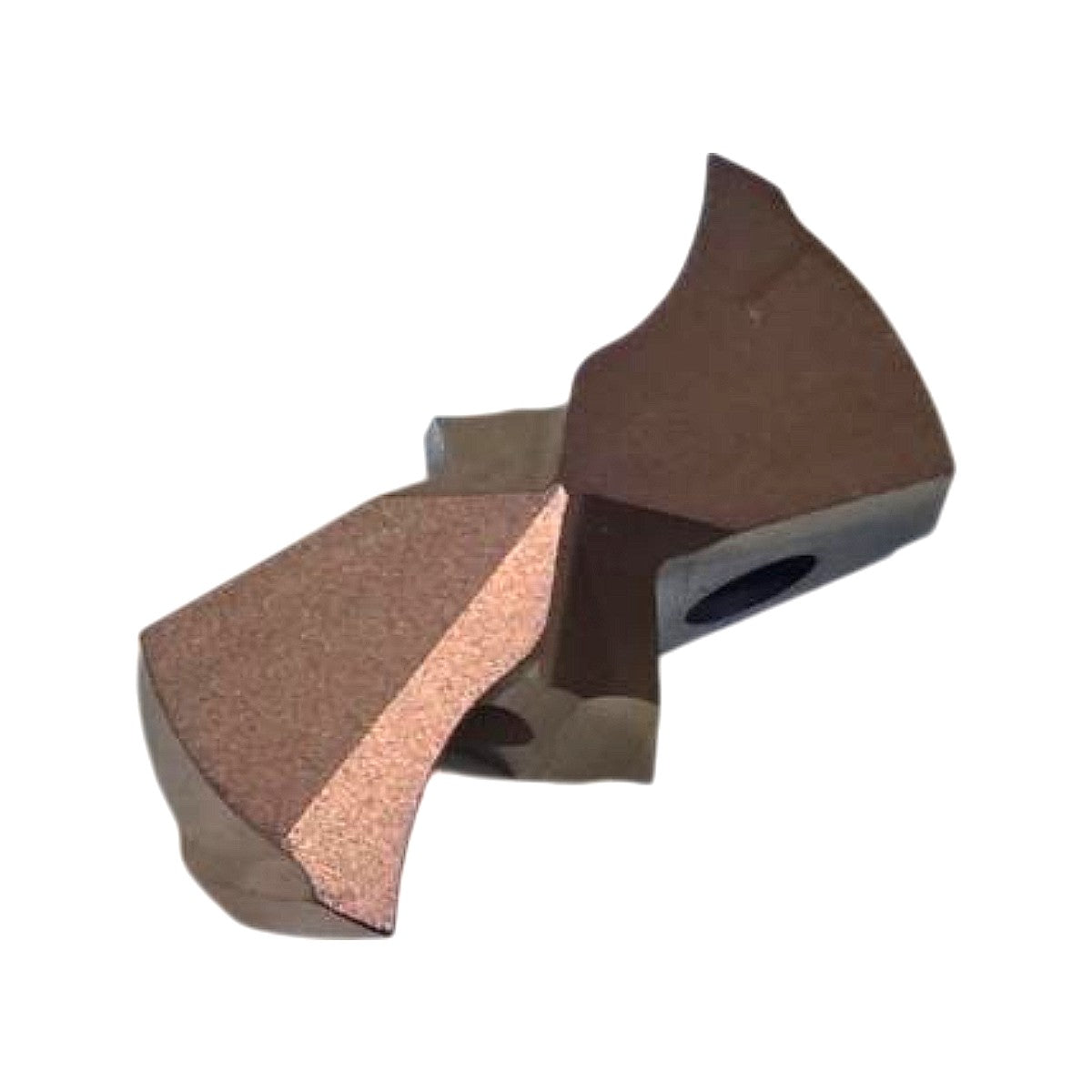

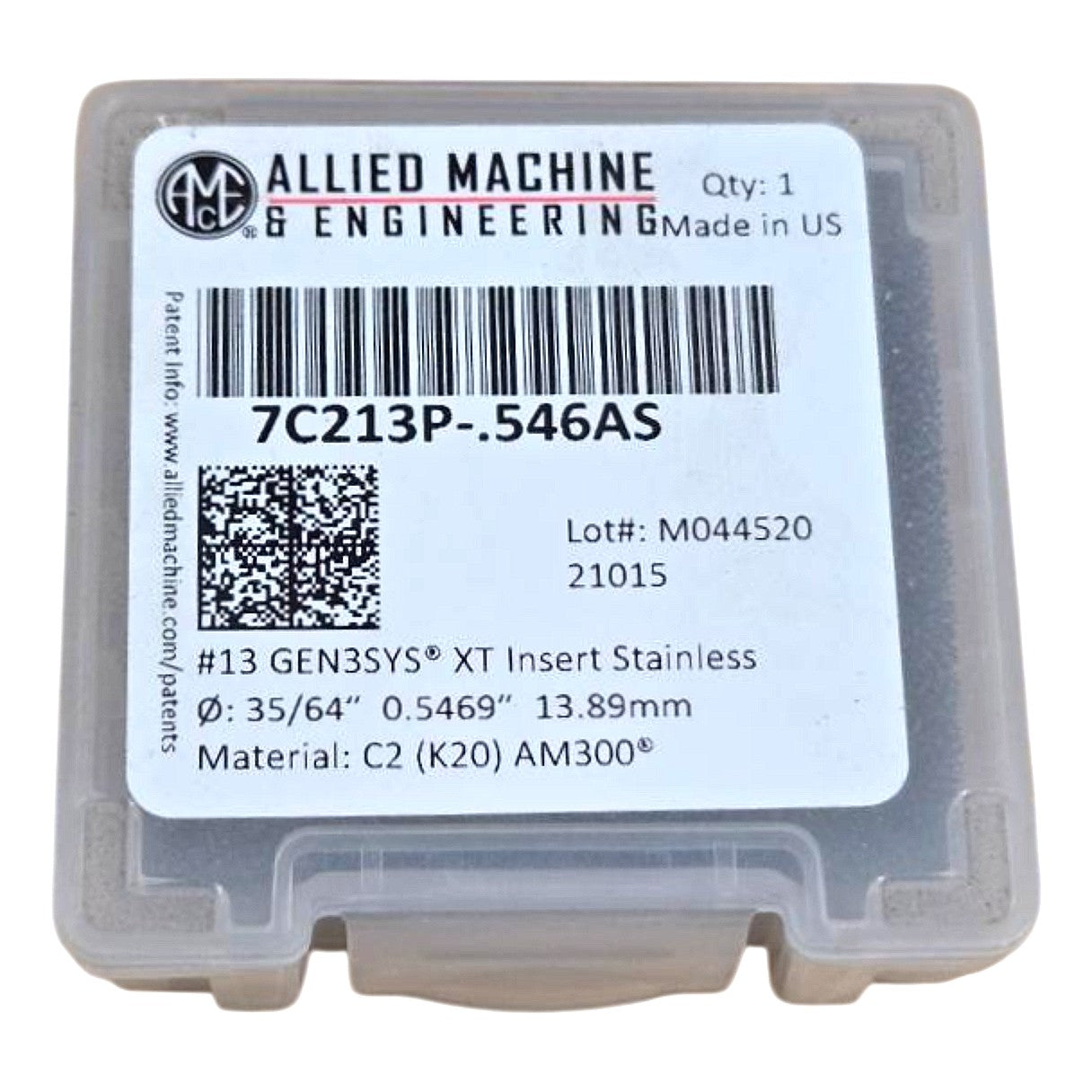

The Allied Machine & Engineering 7C213P-.546AS is a new, replaceable-tip carbide drill insert from the GEN3SYS XT platform, specifically engineered for stainless steel machining (the "AS" suffix designates the Stainless geometry). The insert cuts a diameter of 35/64" (0.5469" / 13.89mm) and is manufactured from AM300® carbide grade — a C2 (K20) uncoated carbide — with the copper/bronze-toned PVD TiN-family coating visible in the photos providing enhanced lubricity and wear resistance on austenitic and ferritic stainless steels. The GEN3SYS XT insert seats into Allied Machine's #13 size XT modular drill body via a twin-screw clamping interface (two mounting holes visible in photos), providing a precision-repeatable tip change without removing the holder from the spindle; the system is compatible with Allied Machine GEN3SYS XT #13 series drill bodies. This insert features a self-centering point geometry with optimized flute form for chip evacuation in stainless applications, supporting through-coolant delivery through the body. Qty: 1 insert per package, Made in USA.
Product Specifications
| Brand | Allied Machine & Engineering (AMEC) |
| MPN | 7C213P-.546AS |
| Product Line | GEN3SYS XT |
| Insert Size / Series | #13 |
| Cutting Diameter (Fractional) | 35/64 in |
| Cutting Diameter (Decimal) | 0.5469 in |
| Cutting Diameter (Metric) | 13.89 mm |
| Carbide Grade | AM300 C2 (K20) |
| Geometry / Application | Stainless Steel (AS) |
| Coating | PVD TiN-family (copper/bronze appearance) |
| Substrate Material | Cemented Carbide |
| Mounting Style | Twin-screw replaceable tip (2 mounting holes) |
| Compatible Holder Series | GEN3SYS XT #13 drill bodies |
| Country of Origin | USA |
| Quantity | 1 per package |
| Condition | New |
