Allweiler ANP 3.2 B2 000HPW0071 Progressive Cavity Pump

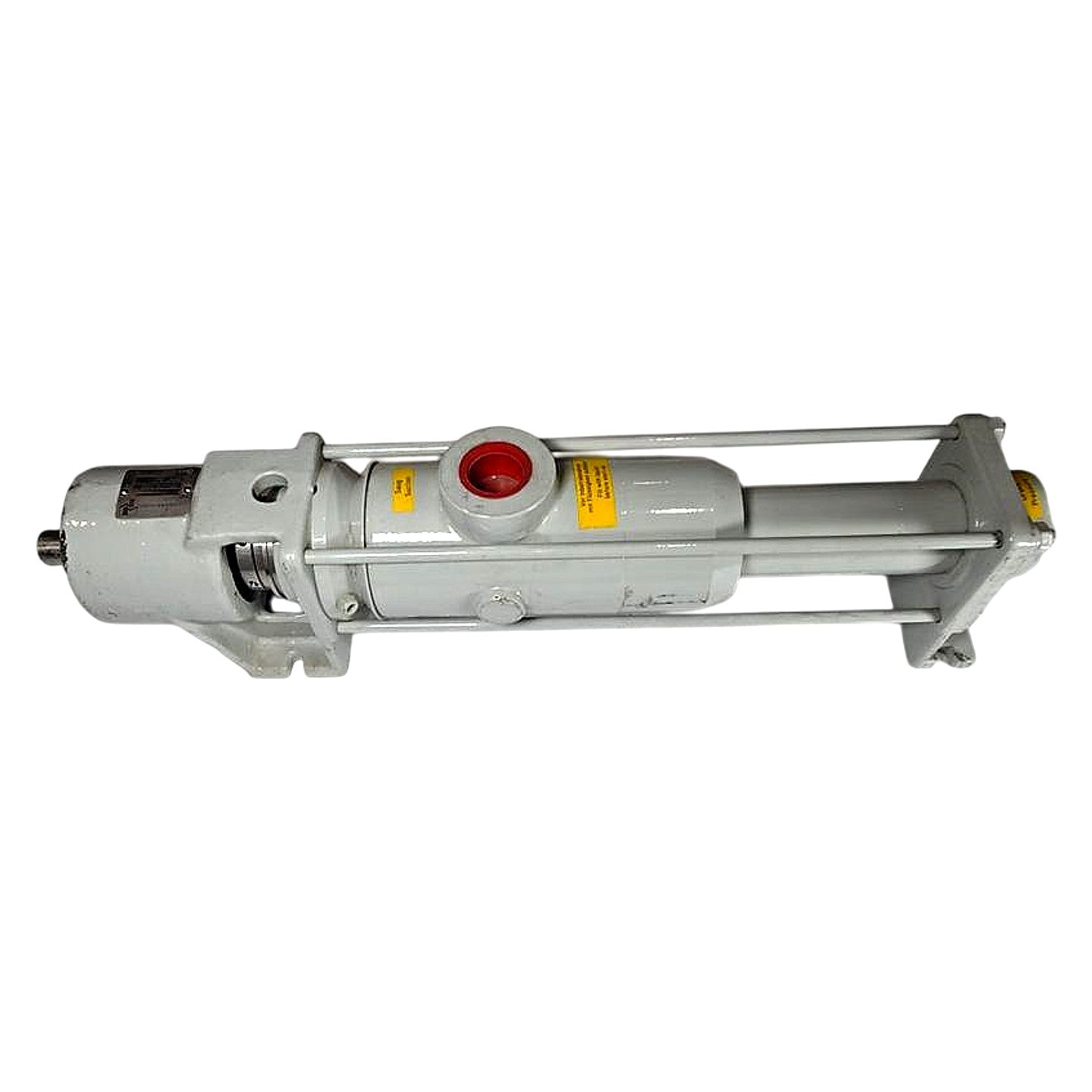

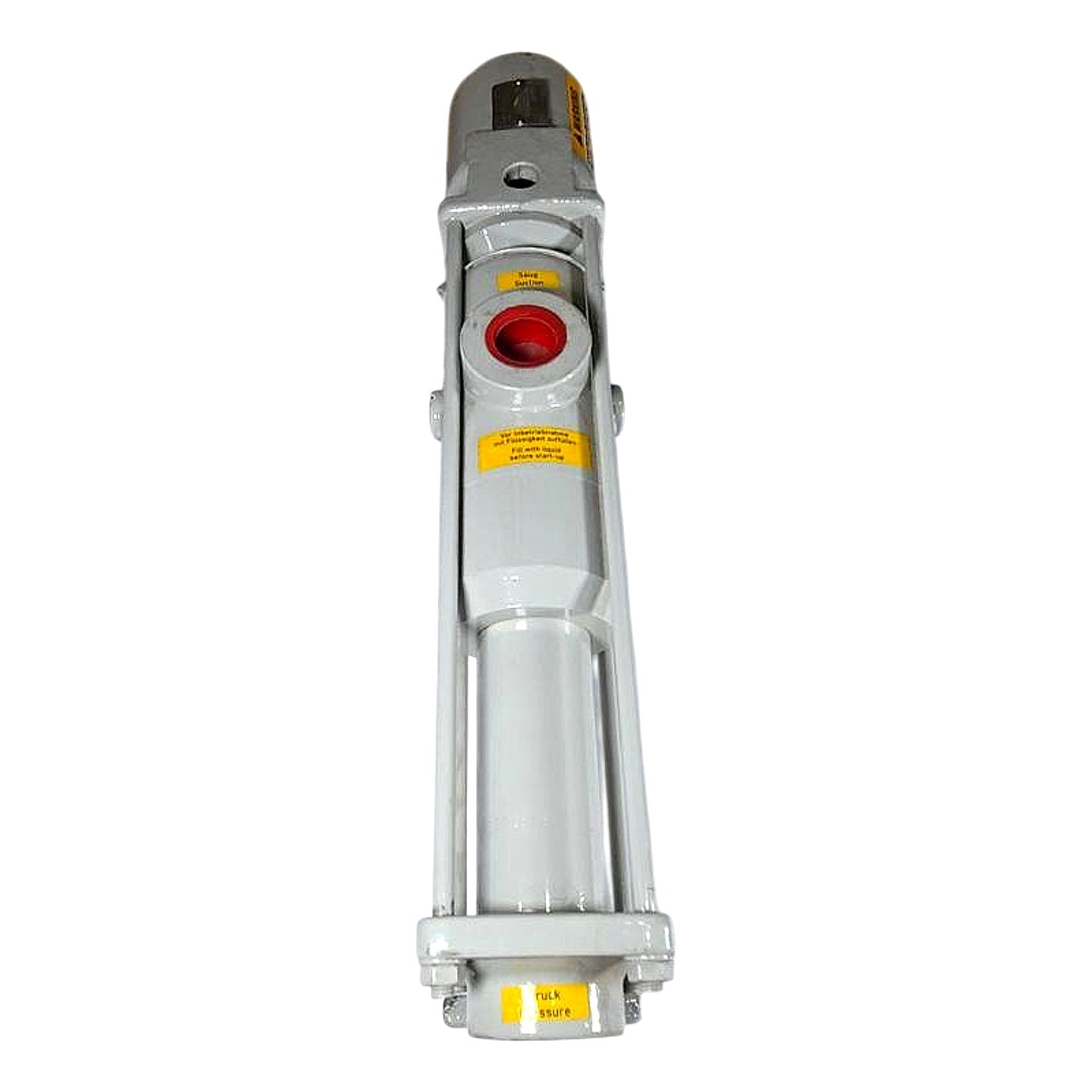

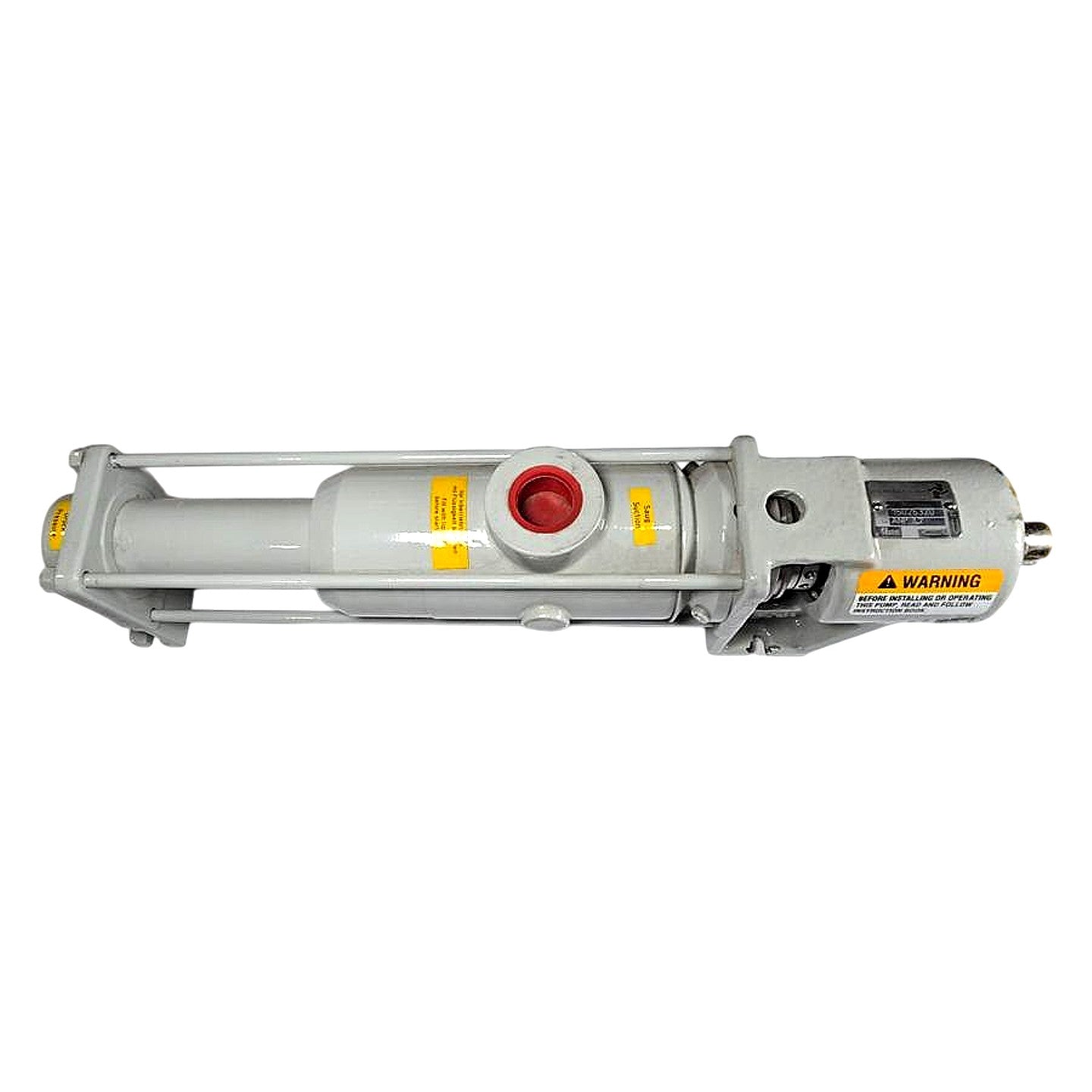

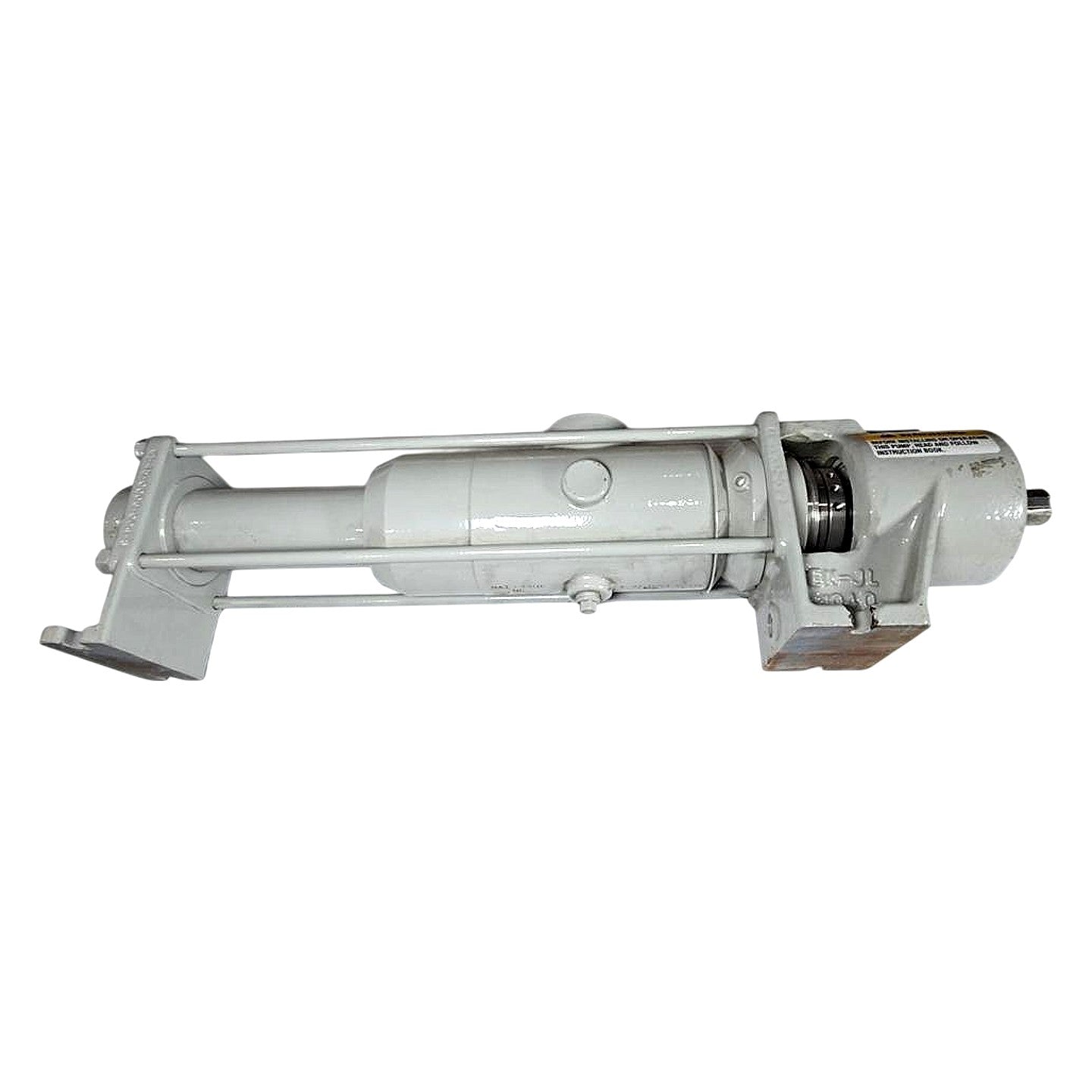

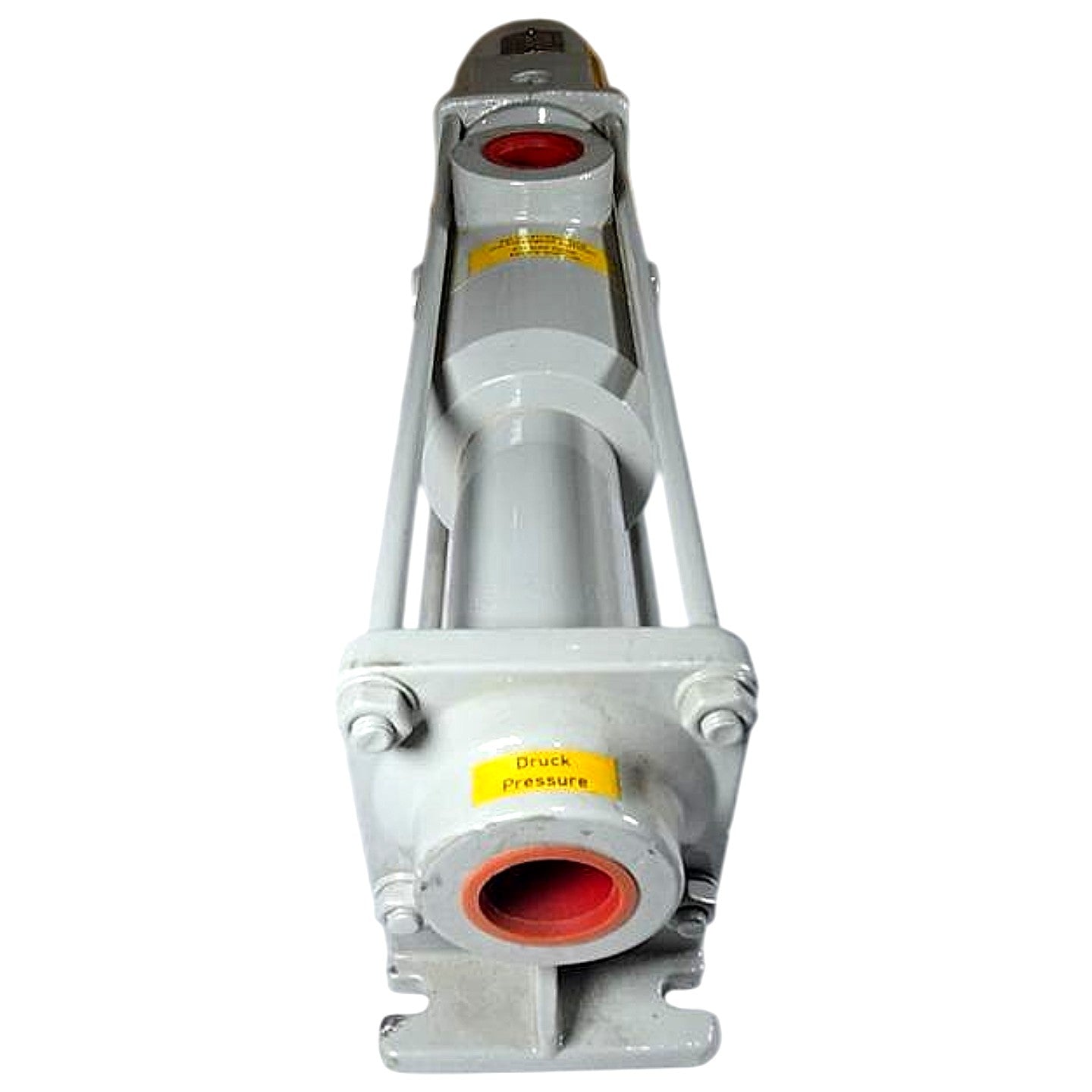

This is a new Allweiler ANP 3.2 B2 progressive cavity (Moineau-type) pump, part number 000HPW0071, reference 61-45-0006-004-3, painted in Allweiler's standard industrial gray and mounted on a welded steel tie-rod cradle frame typical of the ANP series. The ANP (Allweiler Nemo Pump) designation indicates a single-stage progressing cavity design with a helical rotor turning inside an elastomeric stator, generating non-pulsating, shear-sensitive fluid transfer suitable for viscous, abrasive, or shear-sensitive media such as sludge, slurry, pastes, adhesives, and food-grade fluids. The "3.2" in the model code denotes the pump size/displacement stage, "B2" encodes the stator elastomer variant and configuration within Allweiler's ANP series, and the bilingual labels visible in the photos (German "Druck/Sauction" and English "Pressure/Suction") confirm European-market manufacture consistent with Allweiler's German production. Port caps are installed on both the suction and pressure flanges, and the exposed rotor drive stub shaft on the drive end accepts a motor or gearmotor coupling; no motor is included. Progressive cavity pumps of this series are widely used in wastewater treatment, chemical processing, food and beverage, and paper/pulp industries where gentle, metered, or high-viscosity fluid handling is required.

Product Specifications
