Aloris #3-IP CXA Series 13-18in Lathe Swing Quick-Change Tool Post Set

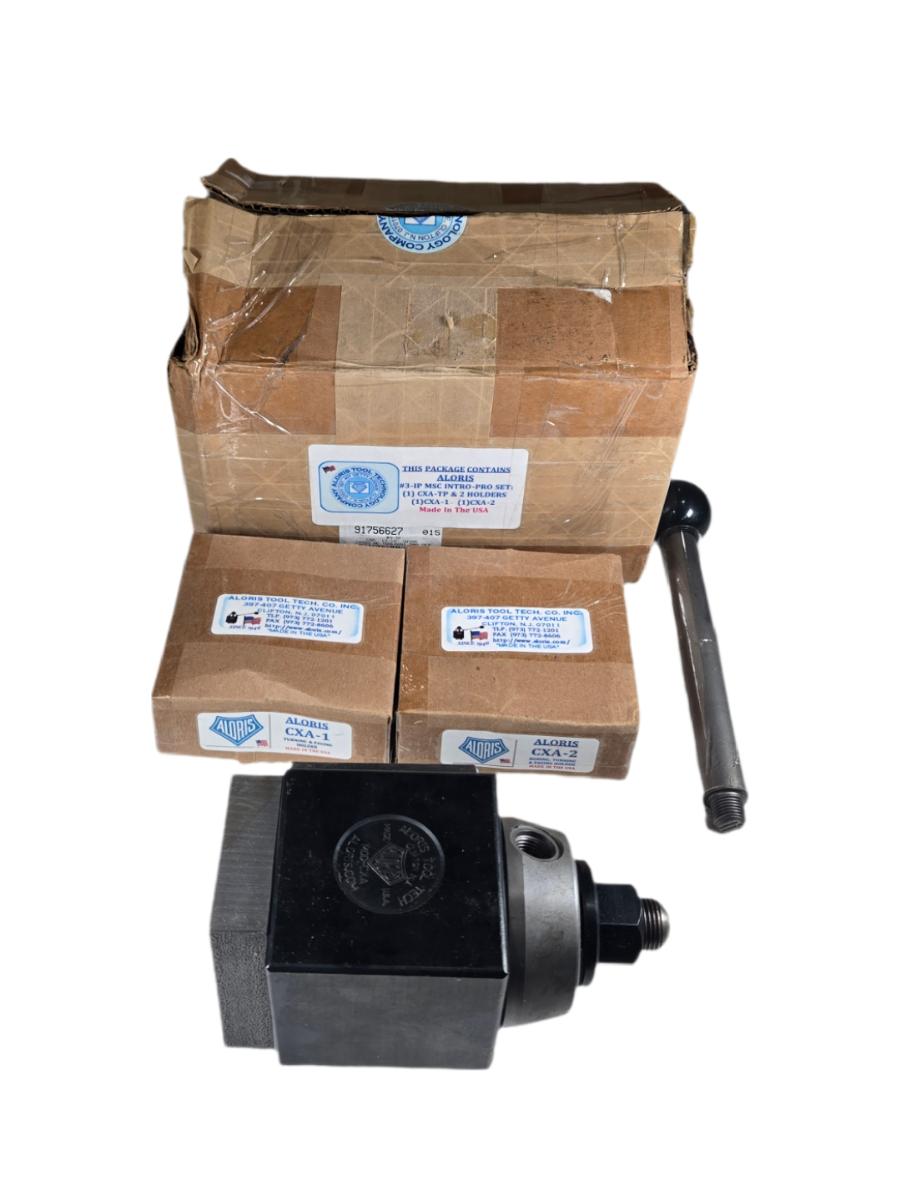

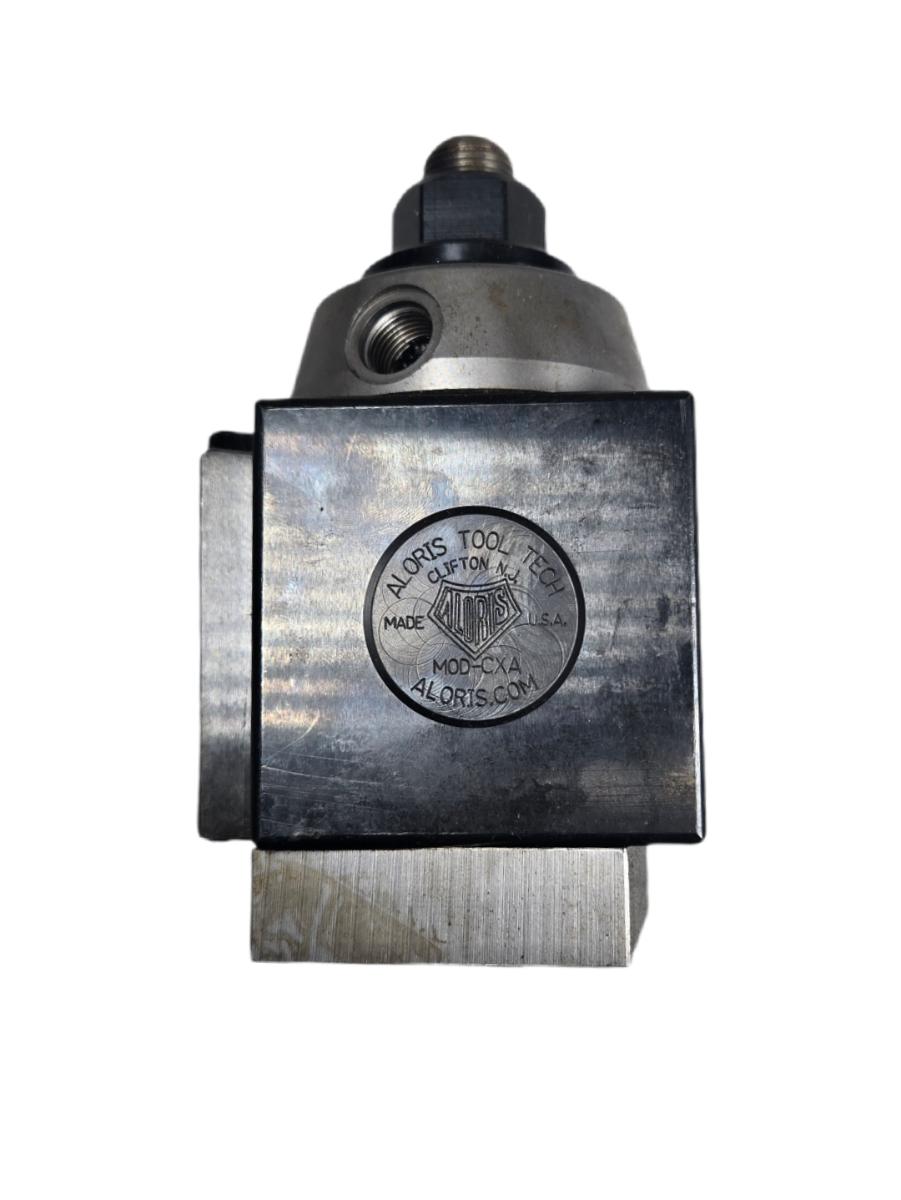

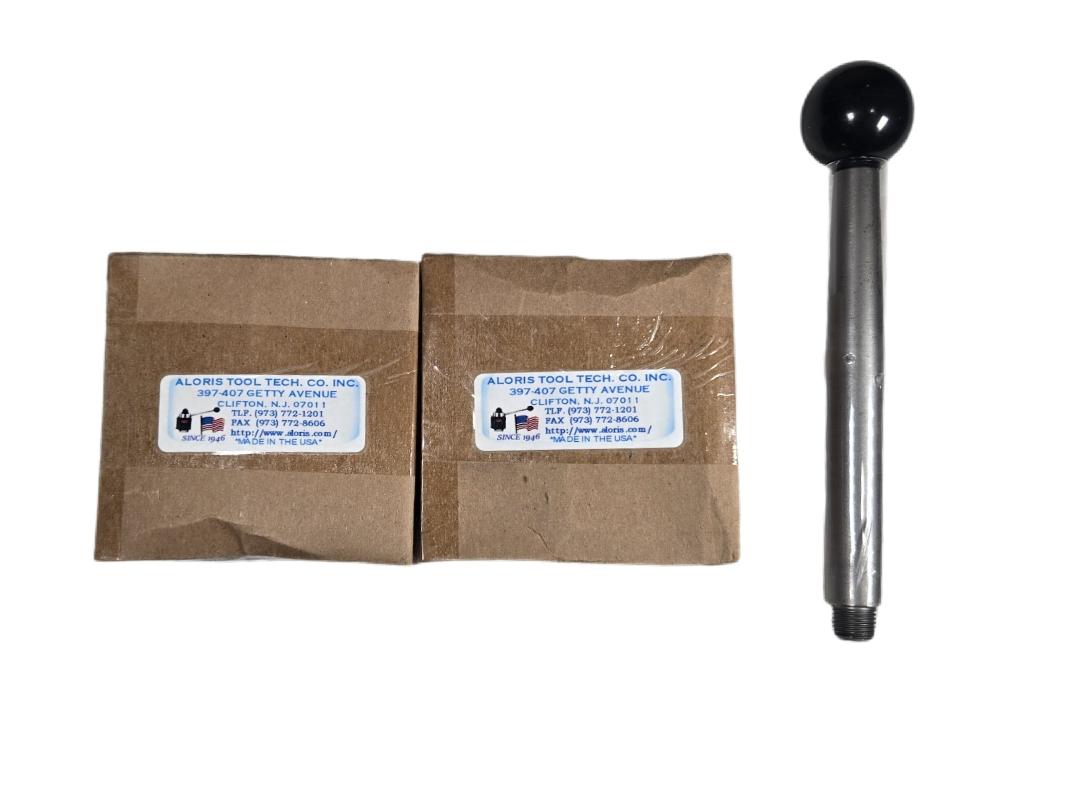

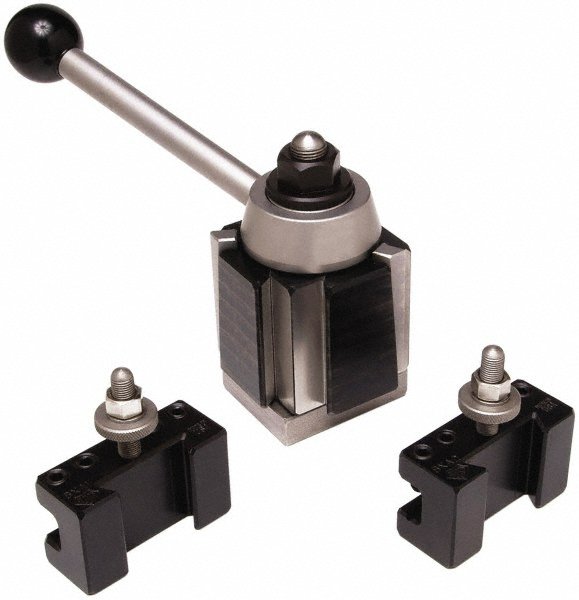

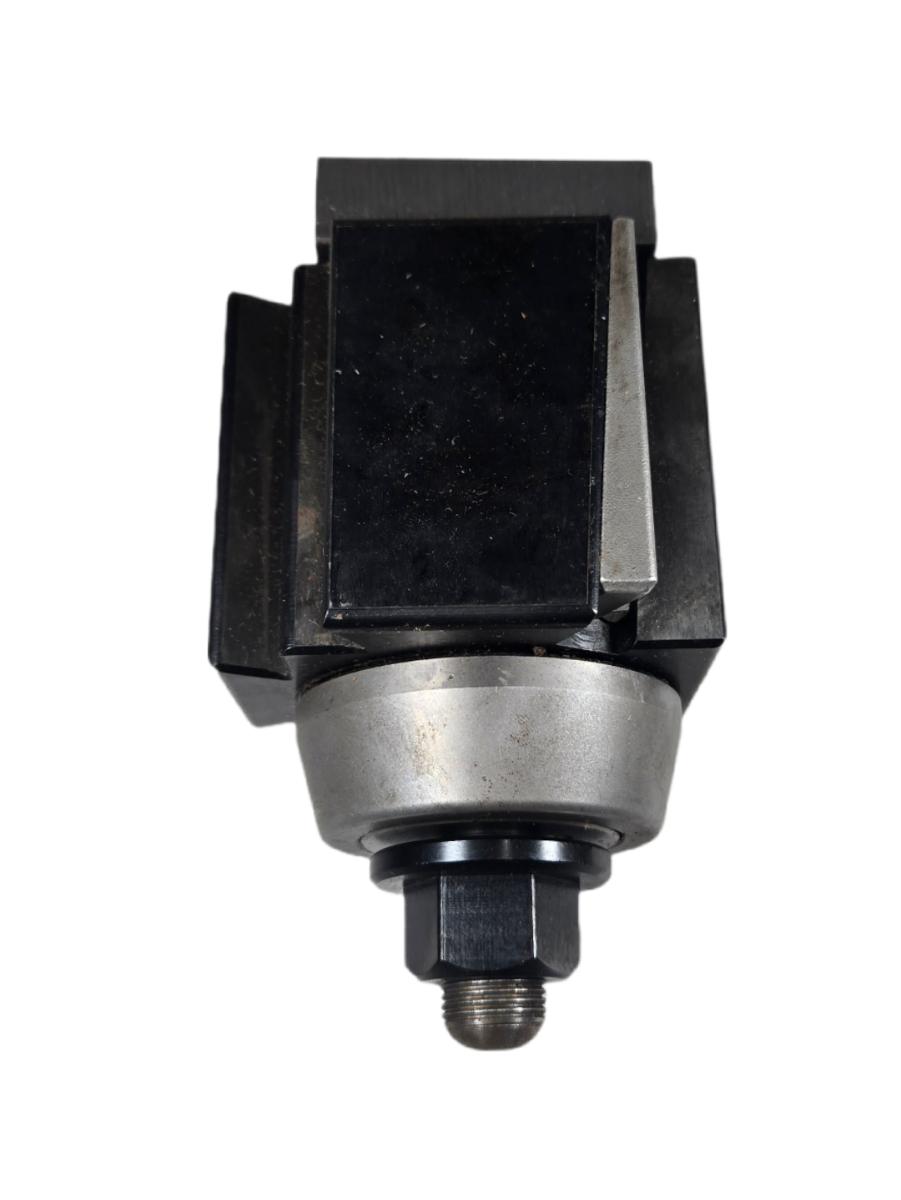

The Aloris #3-IP CXA series is a precision quick-change tool post system designed for 13 to 18 inch swing lathes, enabling rapid turret-style interchange of tool holders without removal from the lathe. This set includes the master #3-IP post body with dovetail interface and two CXA-series tool holders, allowing a user to stage multiple cutting tools for reduced setup time and increased productivity on production runs. The post body features a cast iron base with hardened steel pivot pin and adjustable height capability via compound rest mounting; the integral dovetail lock mechanism provides rigid tool holder seating under heavy interrupted cuts. Each CXA holder accepts standard ISO turning inserts and features precision-ground seats for repeatable tool geometry. New, factory sealed in original packaging with documentation from Aloris Tool Tech Co., Clifton, New Jersey.

Product Specifications
