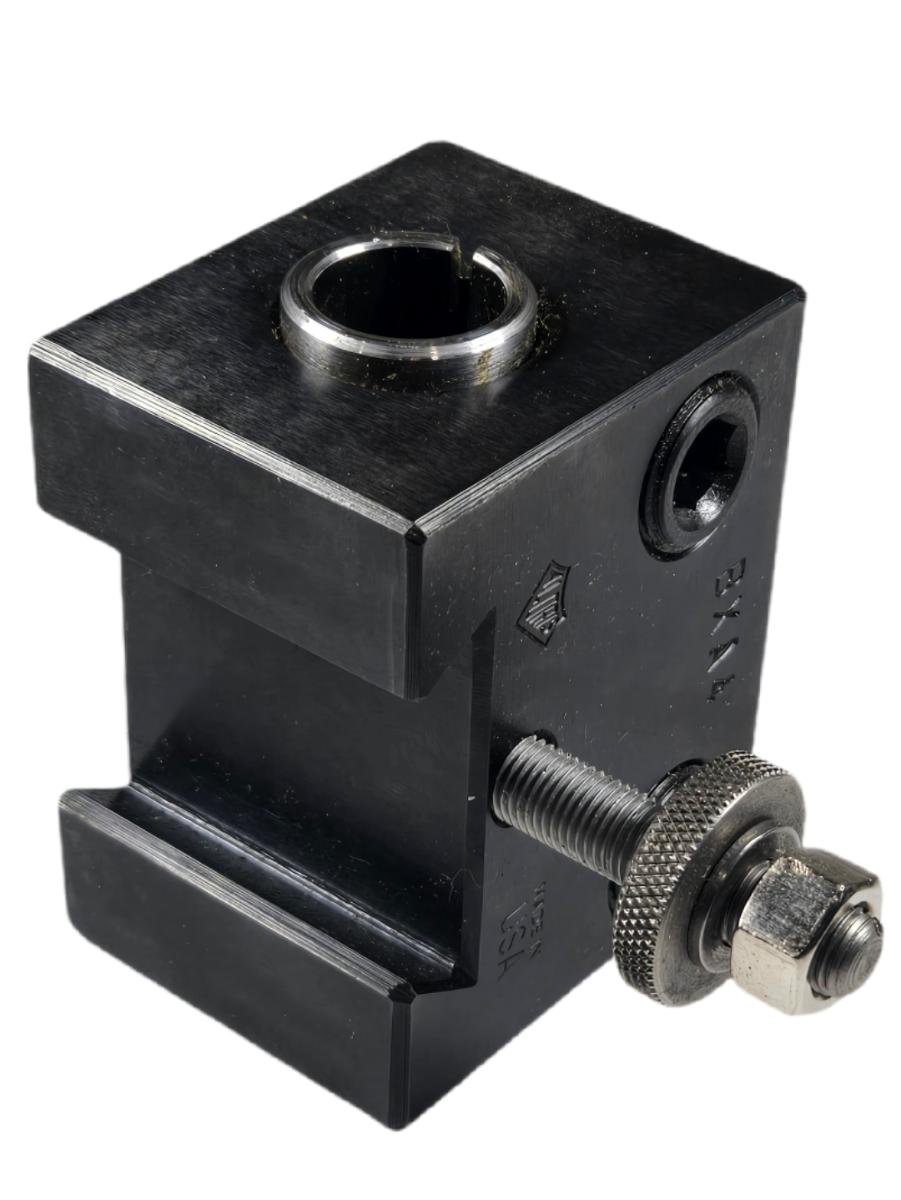

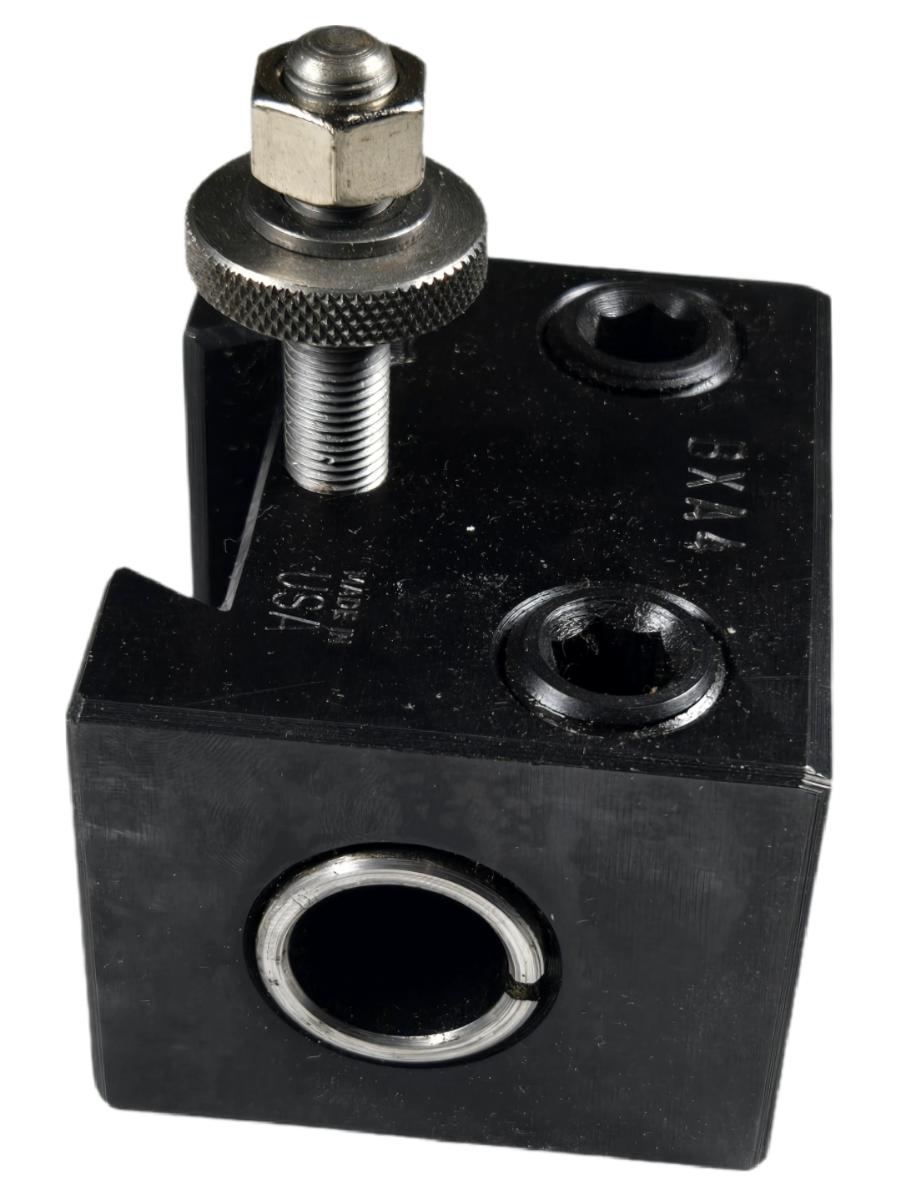

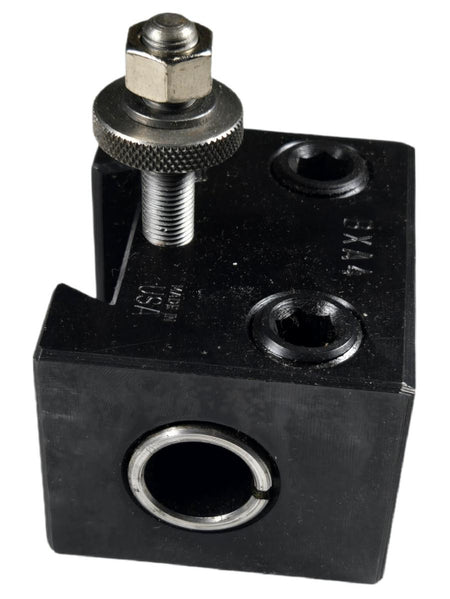

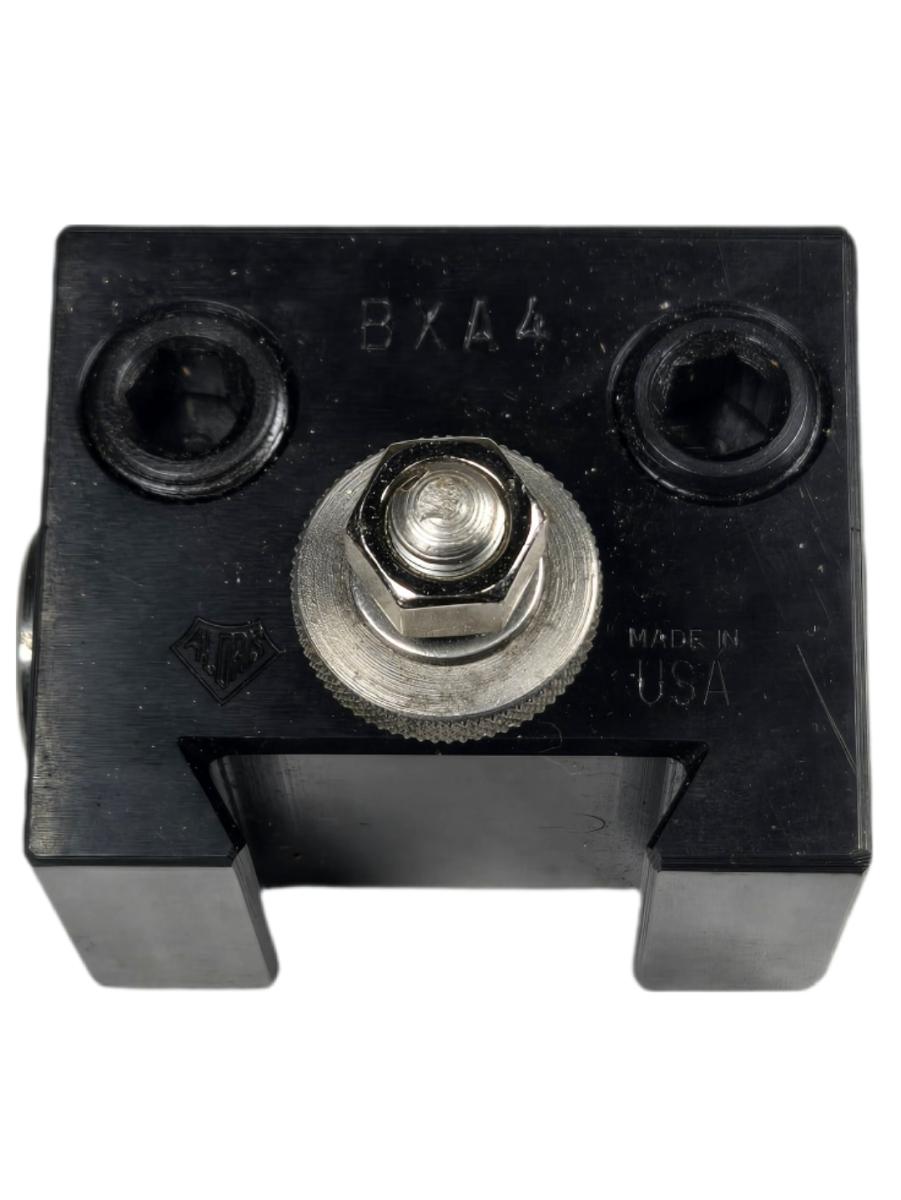

Aloris BXA-4D 1in Split Boring Bar Holder Quick Change Toolpost
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Aloris BXA-4D is a new, USA-made quick-change boring bar holder designed for the BXA (Series 200) quick-change tool post system, compatible with lathes in the 12–15 in. swing range. The holder features a 1 in. split bore with a knurled clamping screw and hex locknut that applies uniform 360° clamping pressure on round-shank boring bars, preventing rotation under cut. Two socket-head cap screws on the top face secure the holder body to the BXA dovetail post, and the slotted split-clamp design allows tool height adjustment within the system's standard range. Manufactured from hardened steel with a black oxide finish, the BXA-4D accepts 1 in. round-shank boring bars and is interchangeable with all Aloris BXA-series quick-change tool posts and compatible holders.
Product Specifications
| Brand | Aloris |
| Model Number | BXA-4D |
| Tool Post Series | BXA (Series 200) |
| Bore Diameter | 1 in |
| Bore Type | Split (slotted) |
| Clamping Method | Knurled screw w/ hex locknut |
| Lathe Swing Compatibility | 12–15 in swing |
| Material | Hardened steel |
| Finish | Black oxide |
| Country of Origin | USA |
| Condition | New |
| Mounting | BXA dovetail quick-change tool post |
| Accepted Shank Type | Round |
