Aloris CA-1 CA Series 14-20in Swing 1in Tool Bit Turning & Facing Holder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

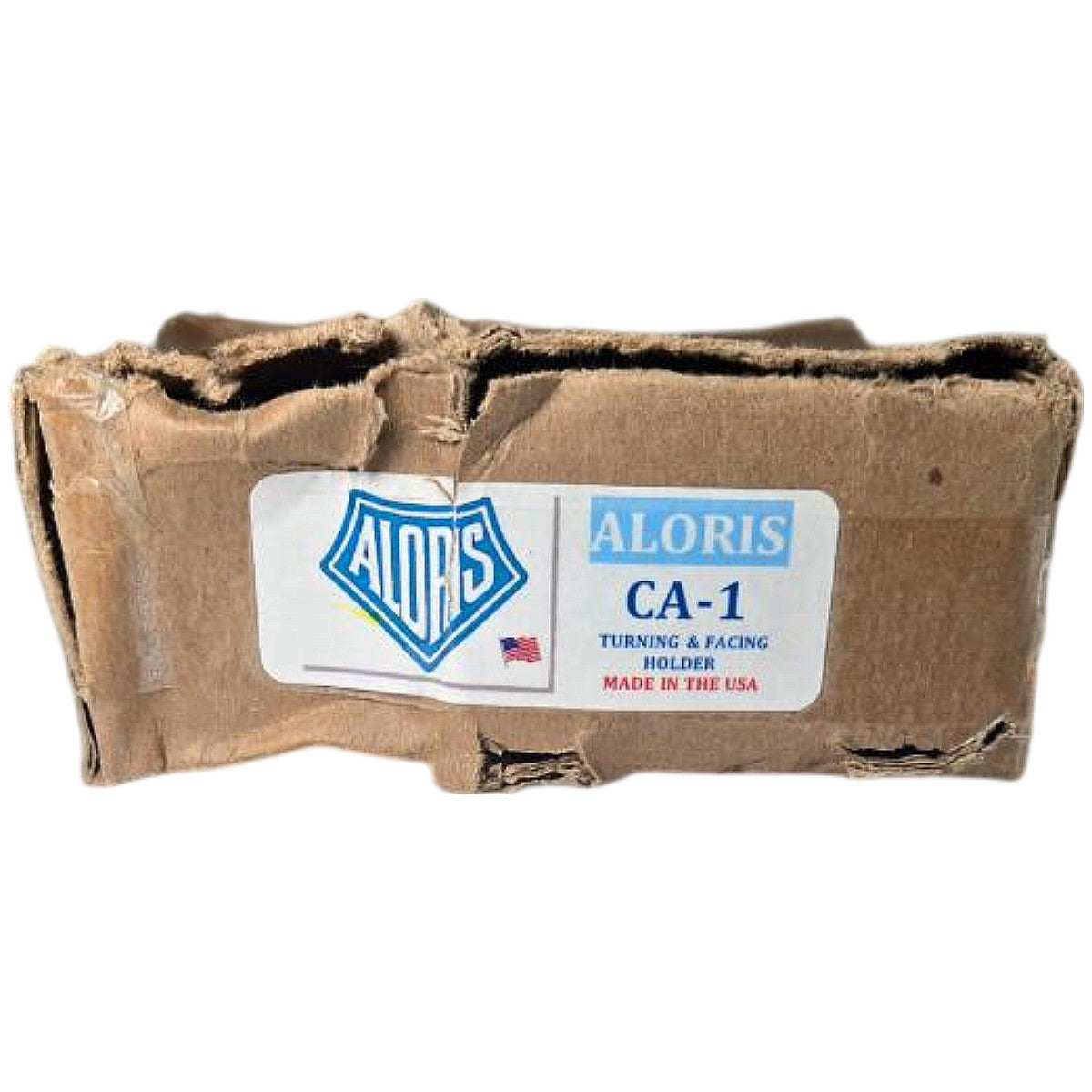

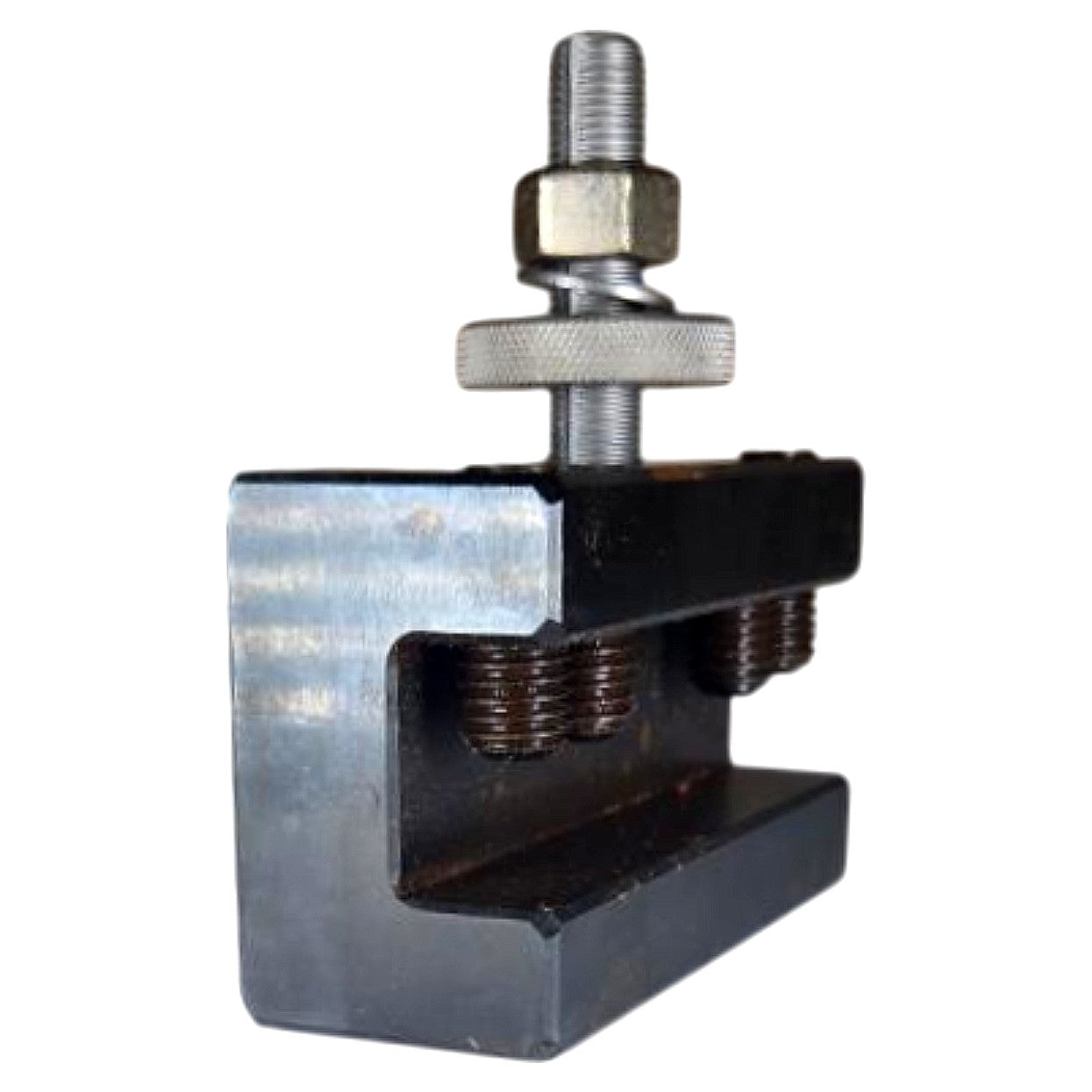

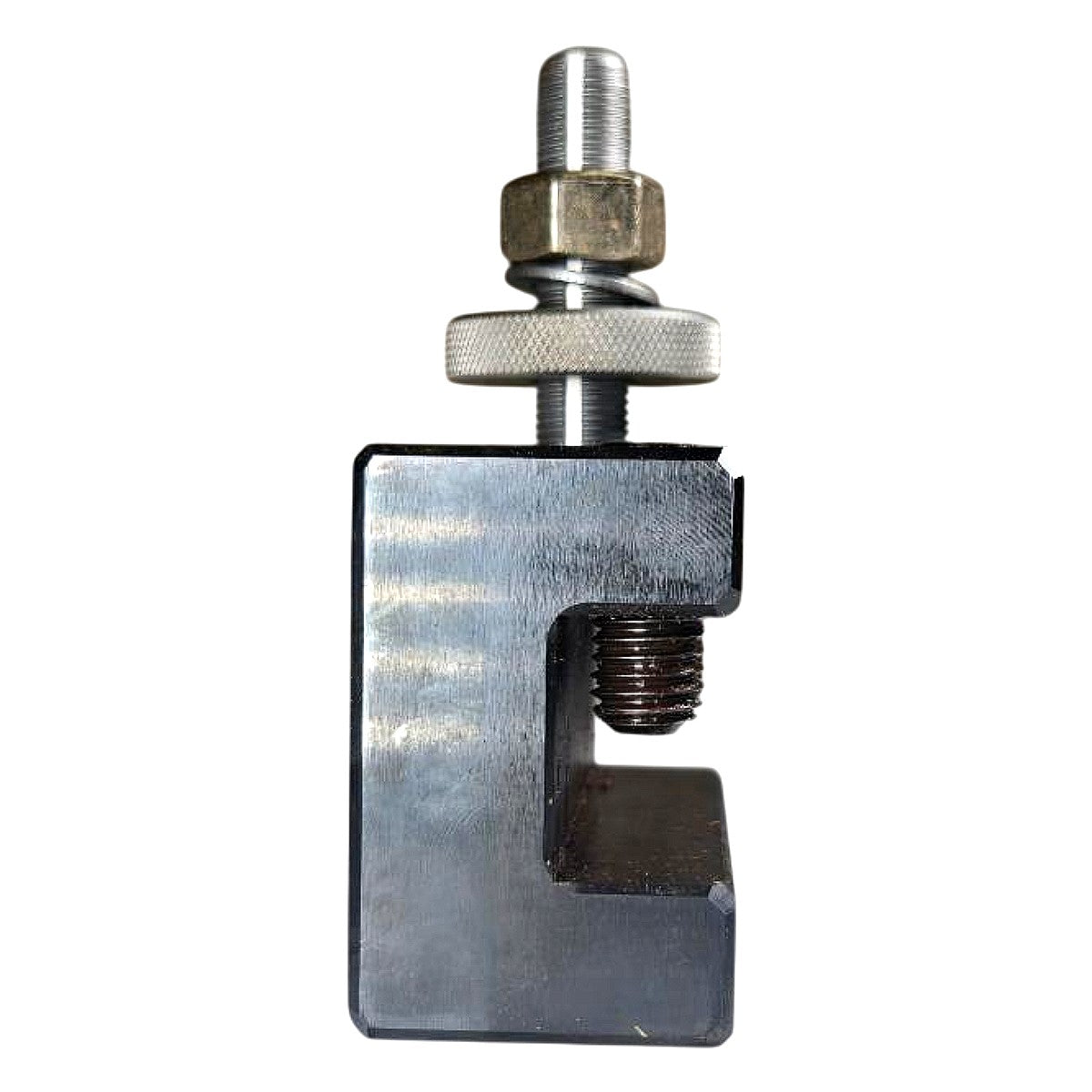

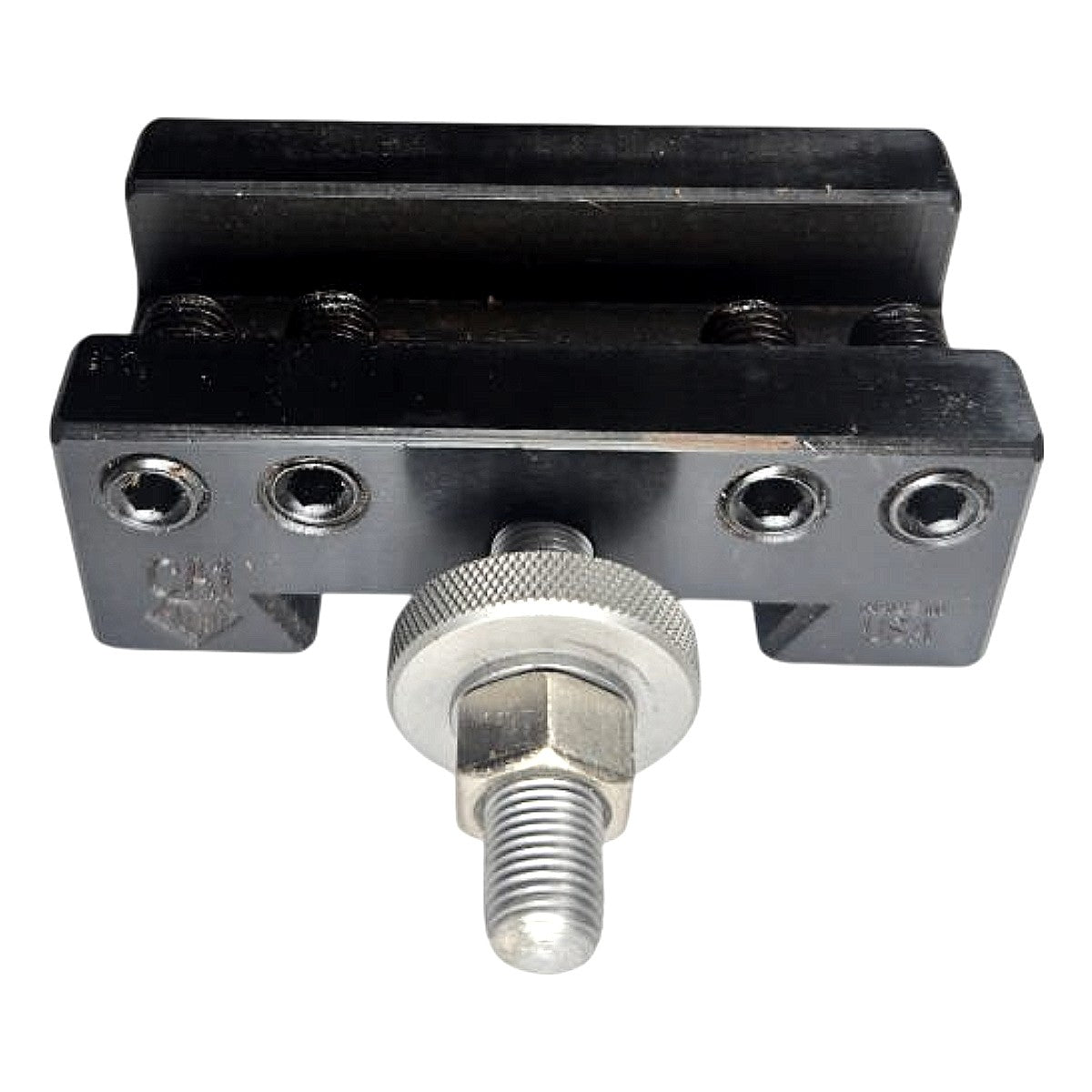

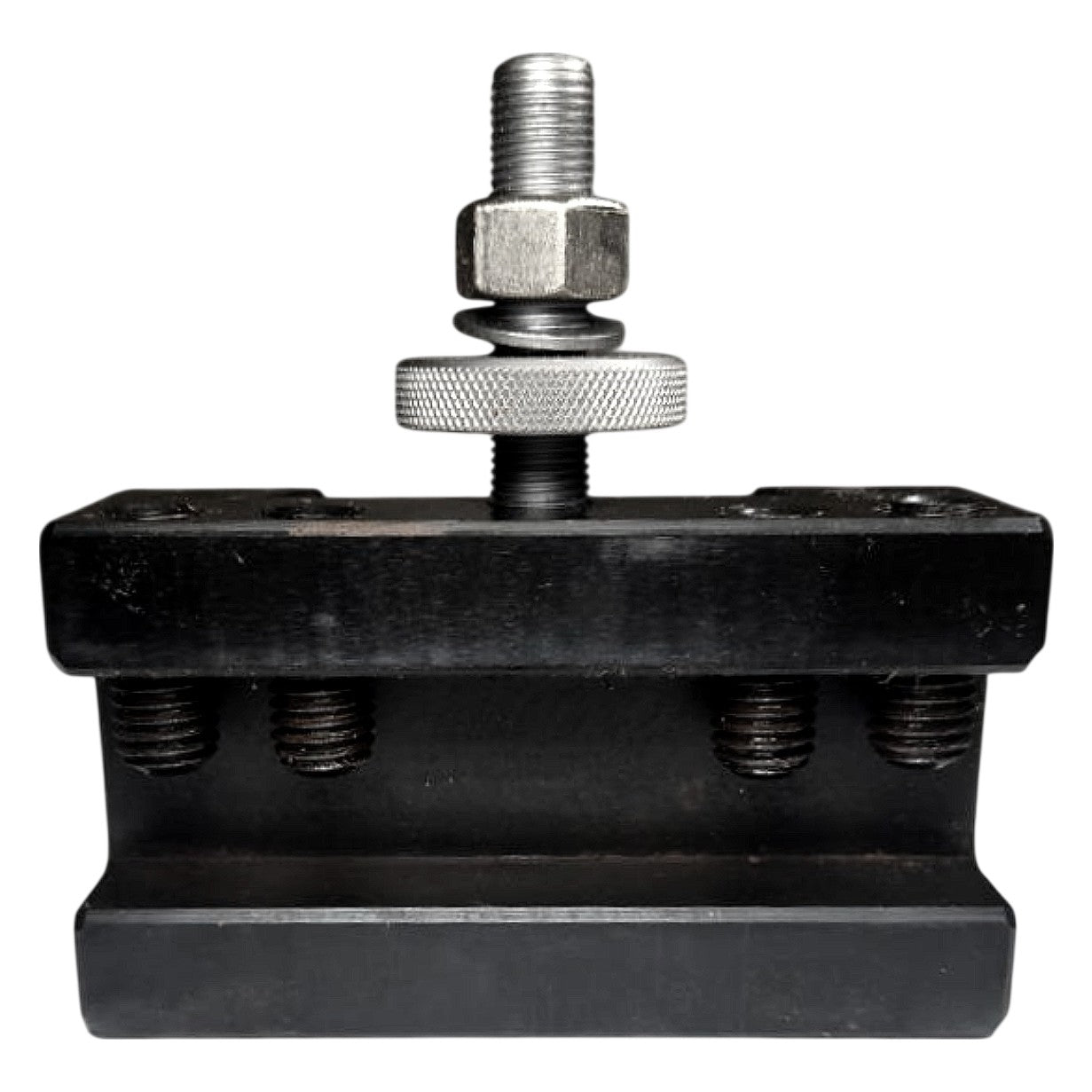

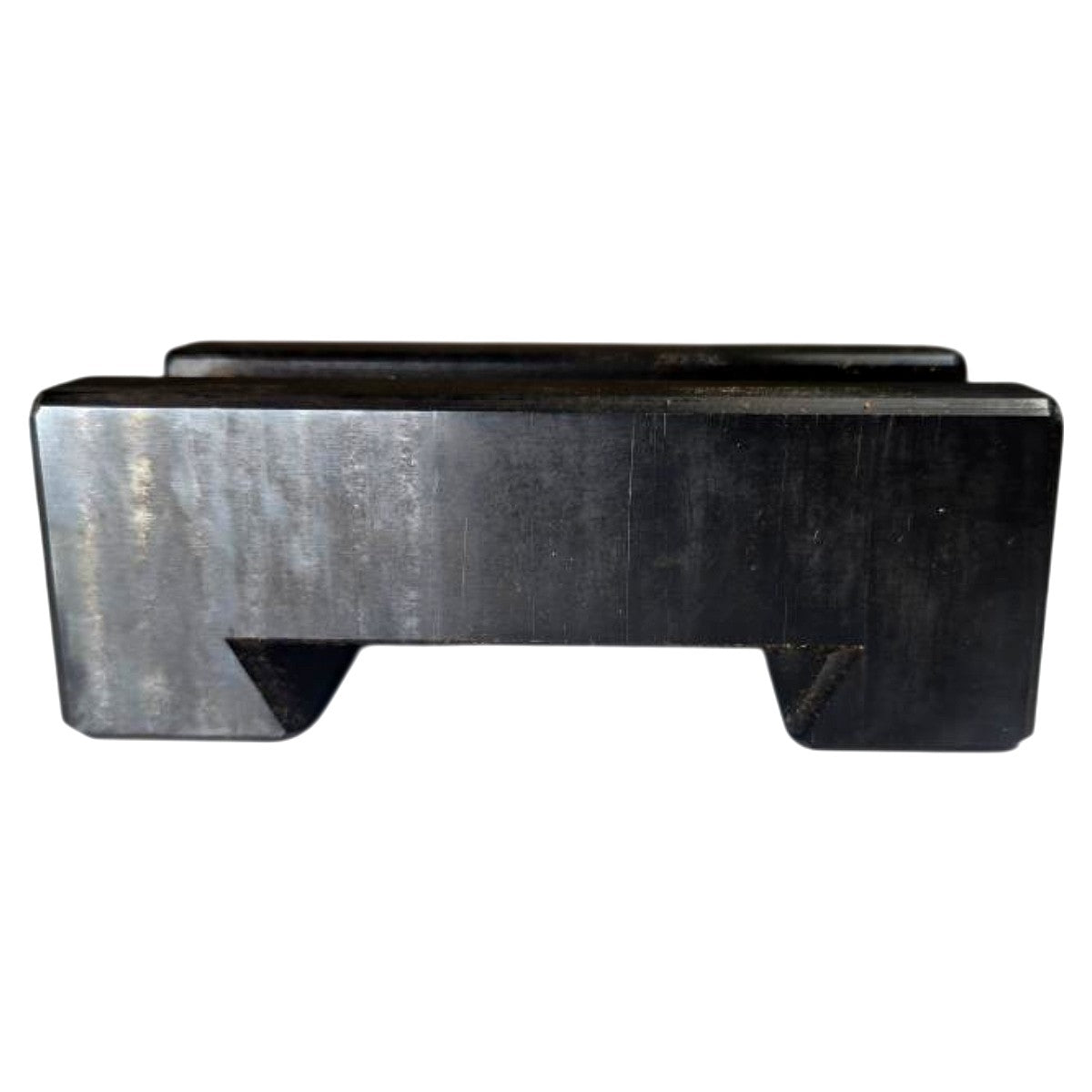

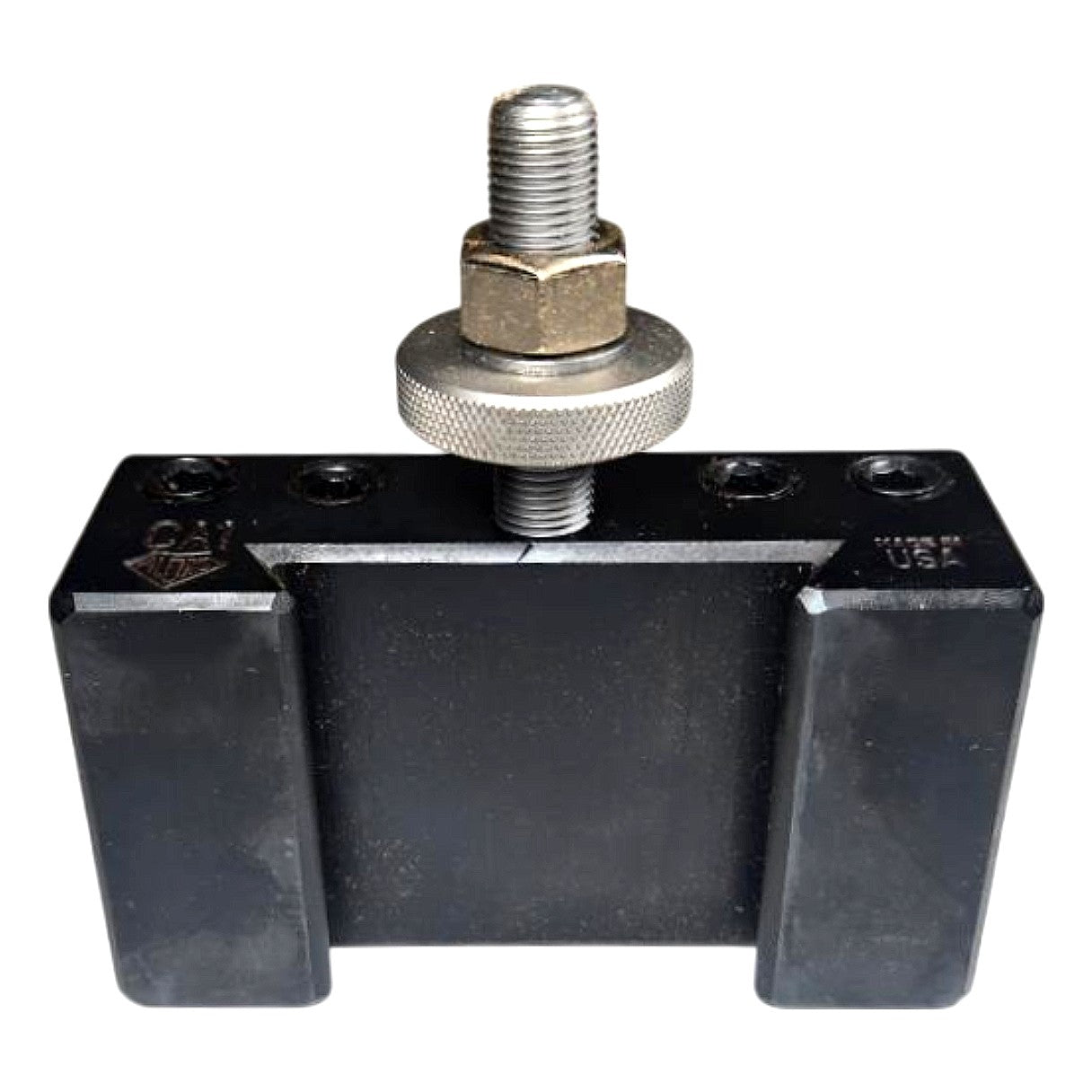

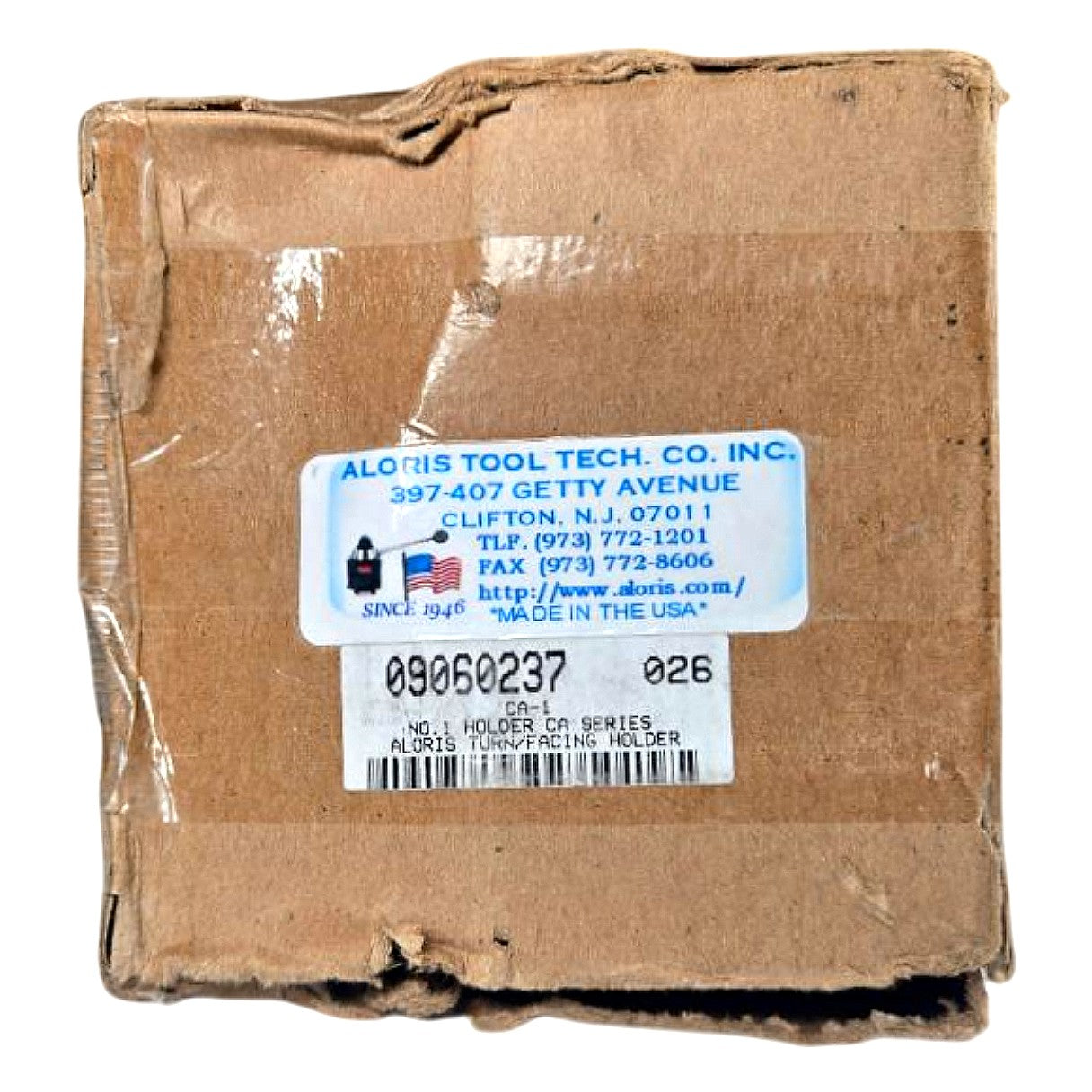

The Aloris CA-1 is a No. 1 Turning & Facing Holder in Aloris's CA Series quick-change toolpost system, manufactured in the USA at Aloris Tool Technology Co. in Clifton, NJ (since 1946). It is machined from hardened steel with a black oxide finish and is designed to accept tool bits up to 1 in. square or round shank, fitting lathes with 14–20 in. swing that use a CA Series quick-change toolpost. The holder features a knurled-thumb-screw height-adjustment mechanism with a locking nut, four tool-clamping set screws visible along the top, and precision-ground dovetail ways on the back face that engage directly with the CA Series toolpost for repeatable tool positioning. Overall dimensions are 2-1/2 in. height × 4-1/2 in. length; the holder is sold new in original Aloris packaging (part number CA-1, box label 09060237-026).
Product Specifications
| Brand | Aloris Tool Technology Co. |
| Model / MPN | CA-1 |
| Series | CA Series Quick-Change |
| Holder Type | No. 1 Turning & Facing Holder |
| Compatible Lathe Swing | 14 to 20 in |
| Max Tool Bit Size | 1 in (square or round shank) |
| Overall Height (OAH) | 2-1/2 in |
| Overall Length (OAL) | 4-1/2 in |
| Material / Finish | Hardened steel, black oxide |
| Clamping Screws | 4 set screws |
| Country of Origin | USA |
| Condition | New |
