Aloris CA-4D Boring Bar Holder 1in Bore Quick-Change Tool Post Holder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

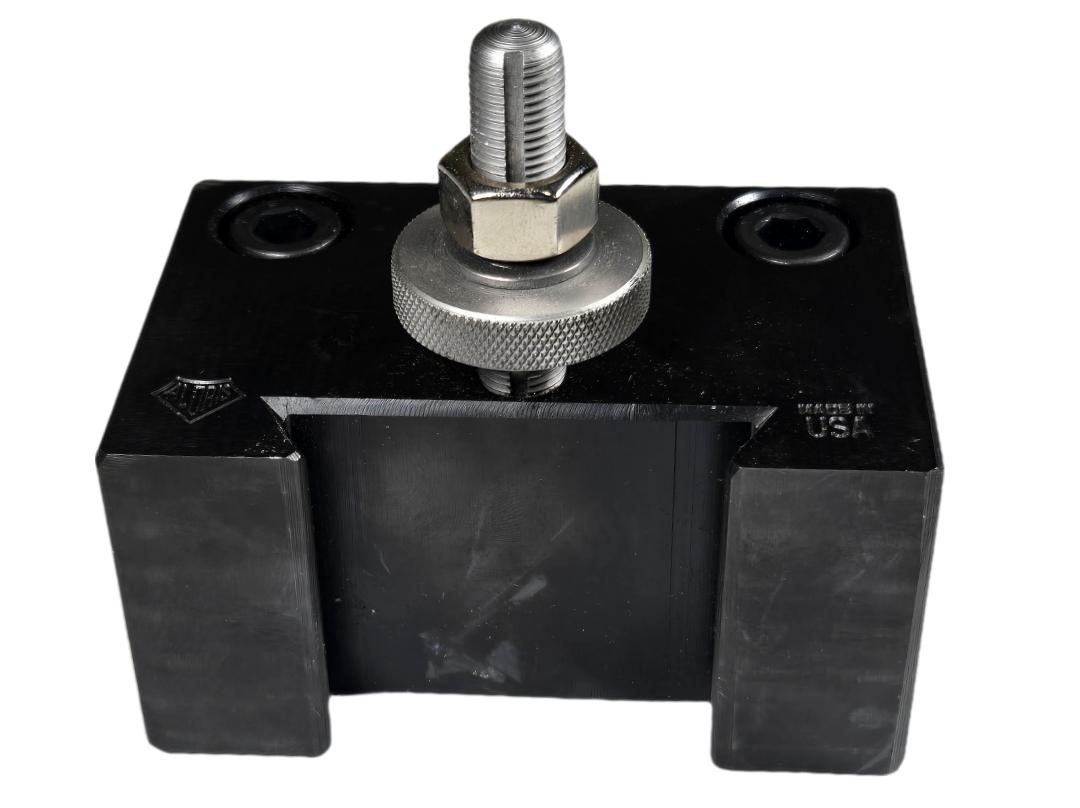

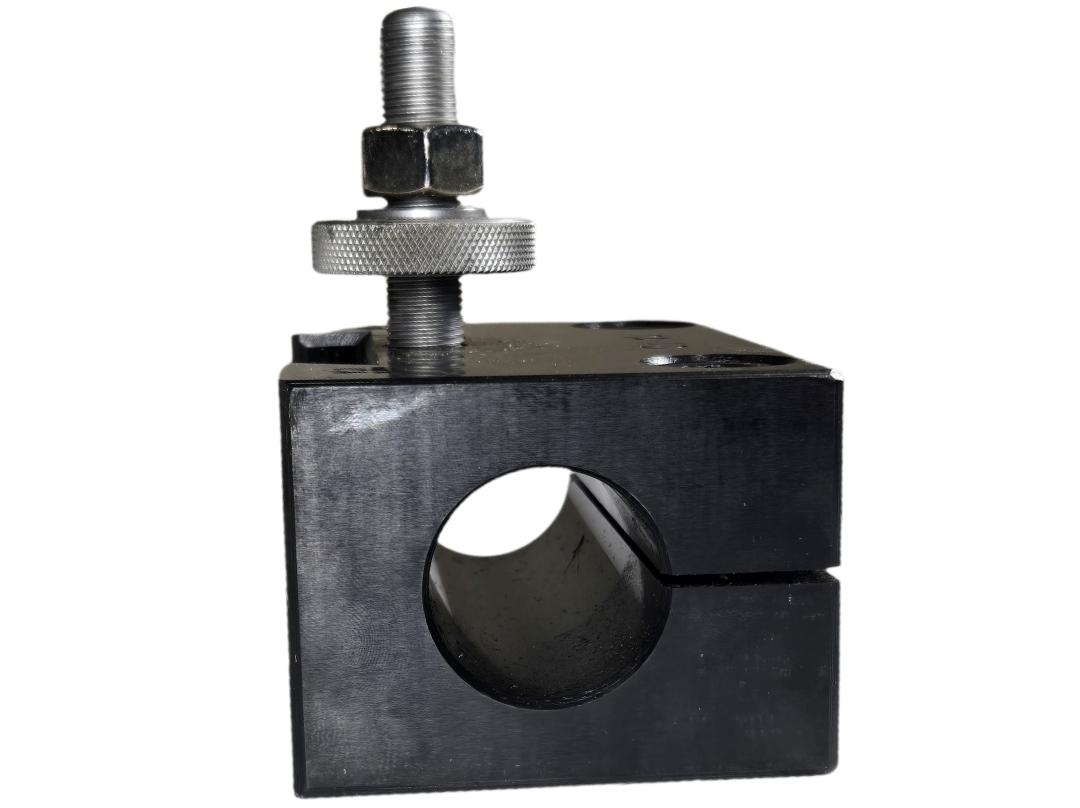

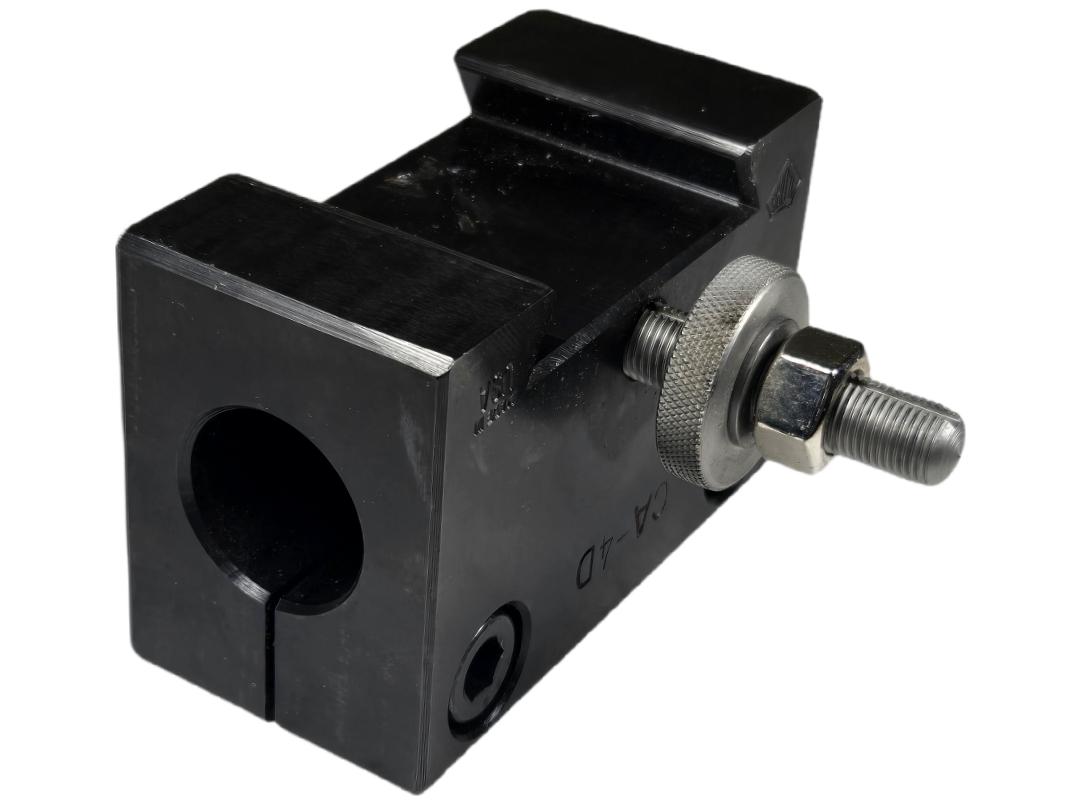

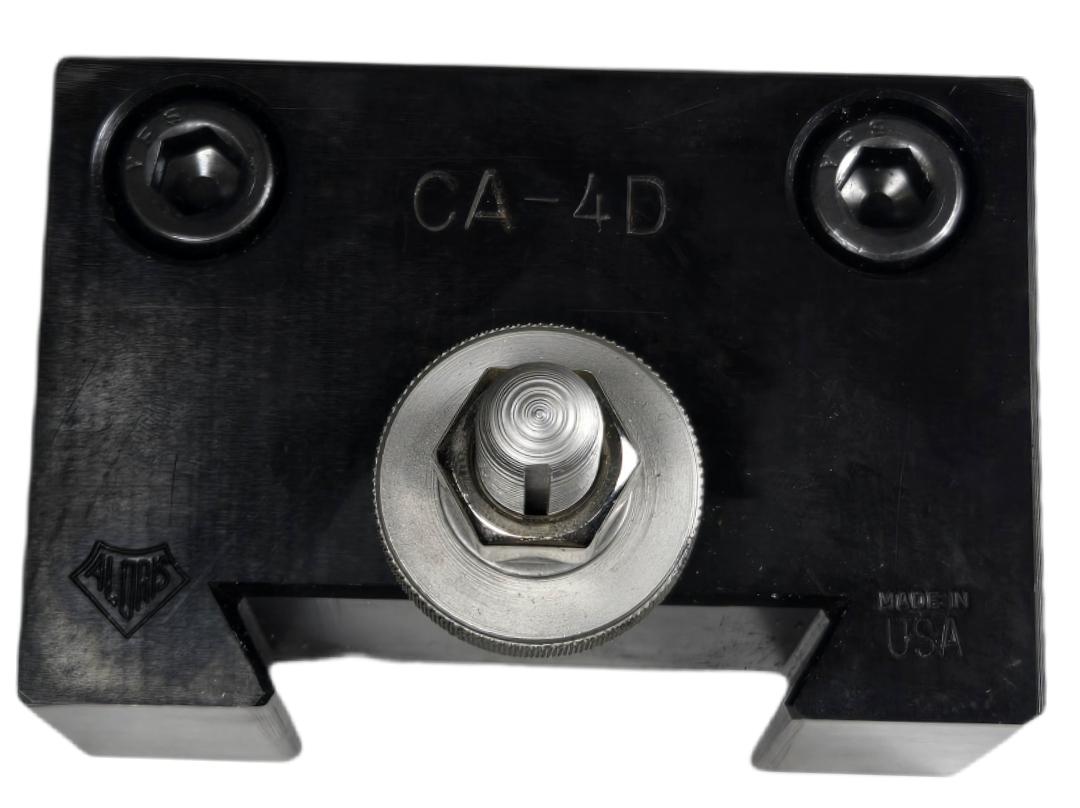

The Aloris CA-4D is a new boring bar and round-shank tool holder designed for the Aloris CA-series (size CA) quick-change tool post system, compatible with lathes having 14 to 20-inch swing. The body is machined from hardened steel with a black oxide finish, featuring a split-clamp bore that accepts round-shank boring bars and is secured by a knurled thumb-screw and hex locknut assembly visible in the photos, allowing tool height micro-adjustment without removing the holder from the post. The dovetail top slide engages directly with the CA-size quick-change post, and two socket-head cap screws (visible on the top face) lock the holder in position for rigid, repeatable tool positioning during internal turning, boring, and threading operations. Manufactured in the USA as marked on the body, the CA-4D is the direct Aloris OEM replacement for this holder style and is not a third-party copy.
Product Specifications
| Brand | Aloris |
| Model Number | CA-4D |
| Tool Post Series | CA (Aloris Quick-Change) |
| Holder Type | Boring Bar / Round Shank Holder |
| Compatible Lathe Swing | 14 to 20 in |
| Bore Diameter | 1 in |
| Clamping Method | Split clamp, knurled thumb-screw w/ hex locknut |
| Body Material | Hardened steel |
| Finish / Treatment | Black oxide |
| Country of Origin | USA |
| Condition | New |
| Locking Fasteners | 2x socket head cap screws (top face) |
| Application | Internal boring, turning, threading |
