Aloris DA-6 Series DA #6 1" Max Tool Bit Multiple Tool Holder

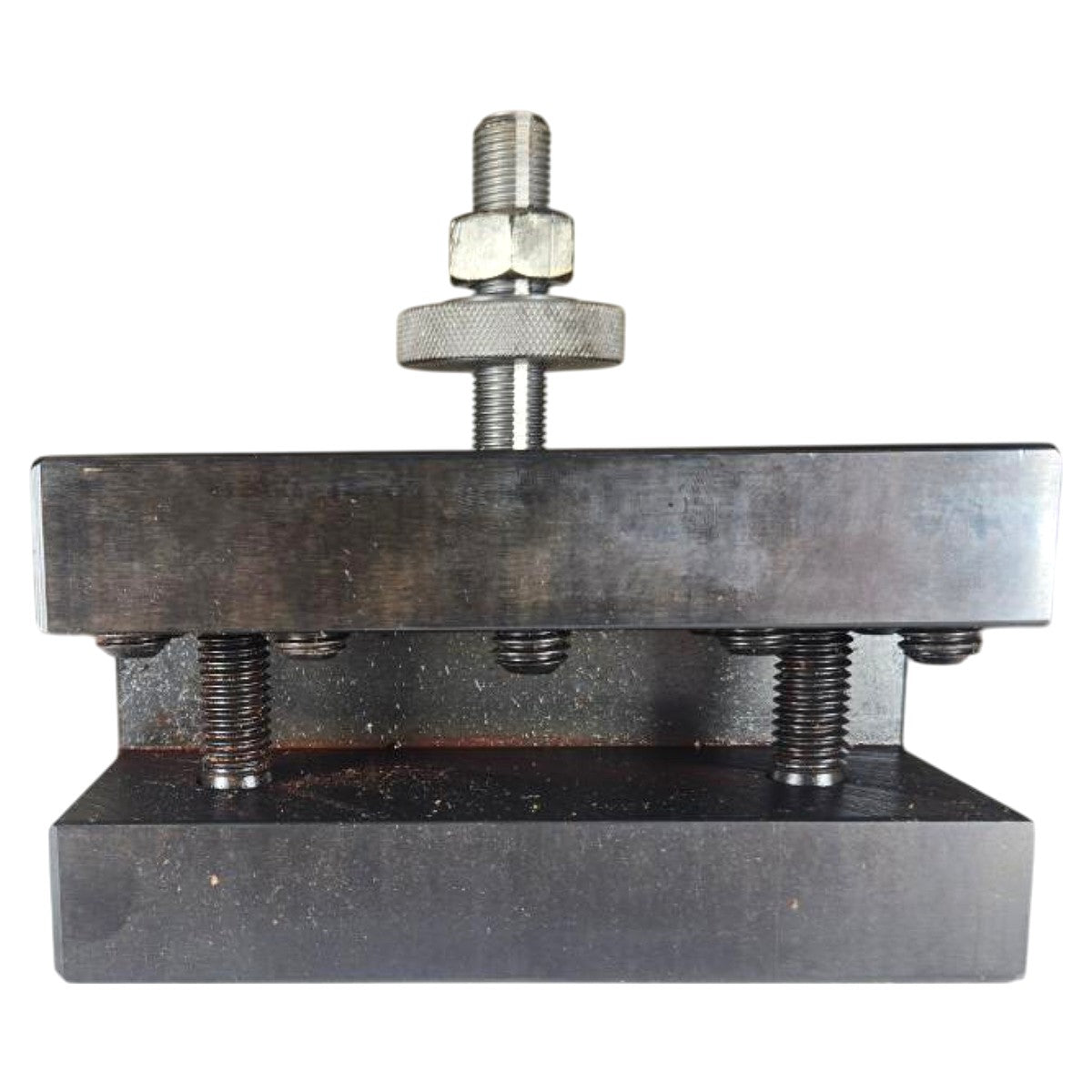

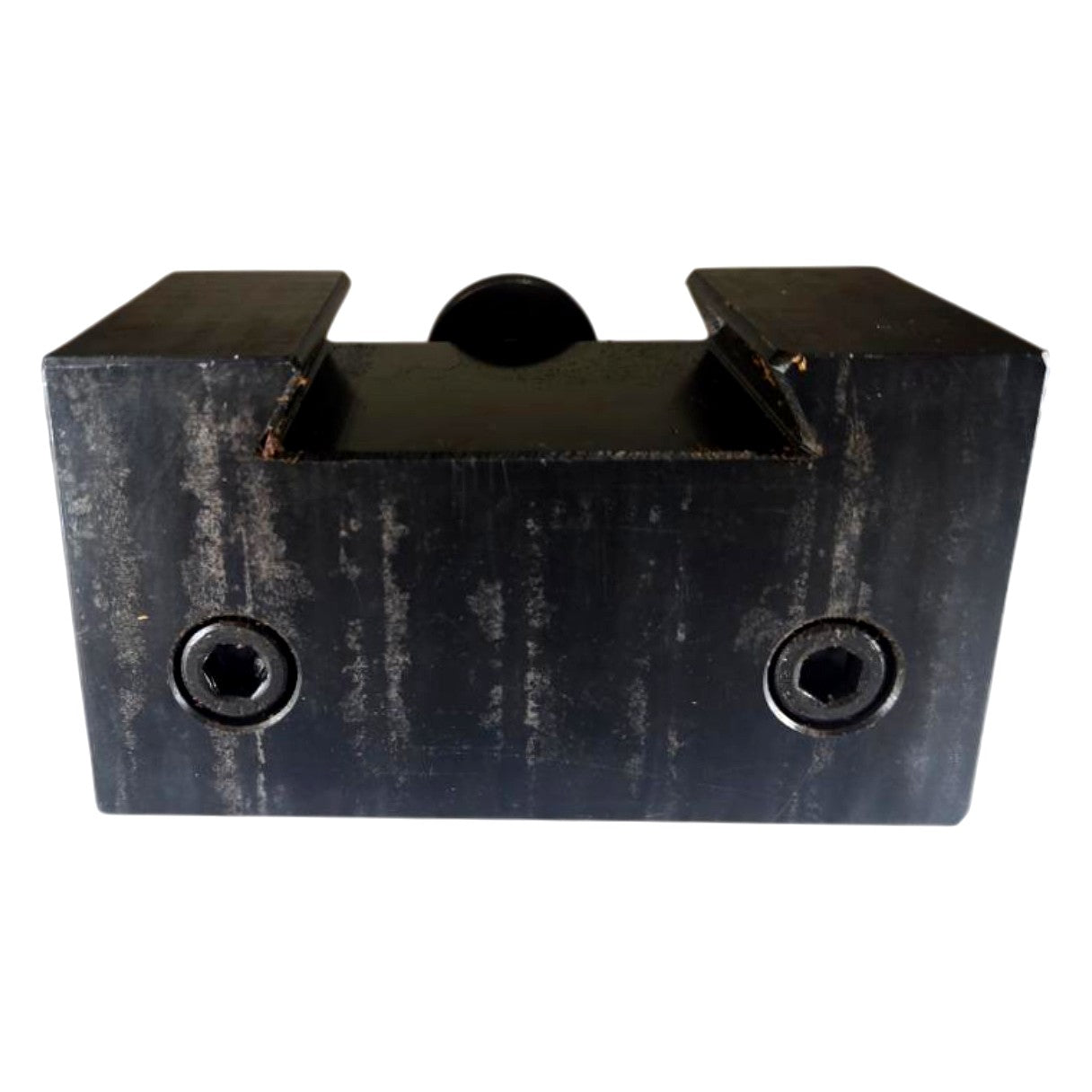

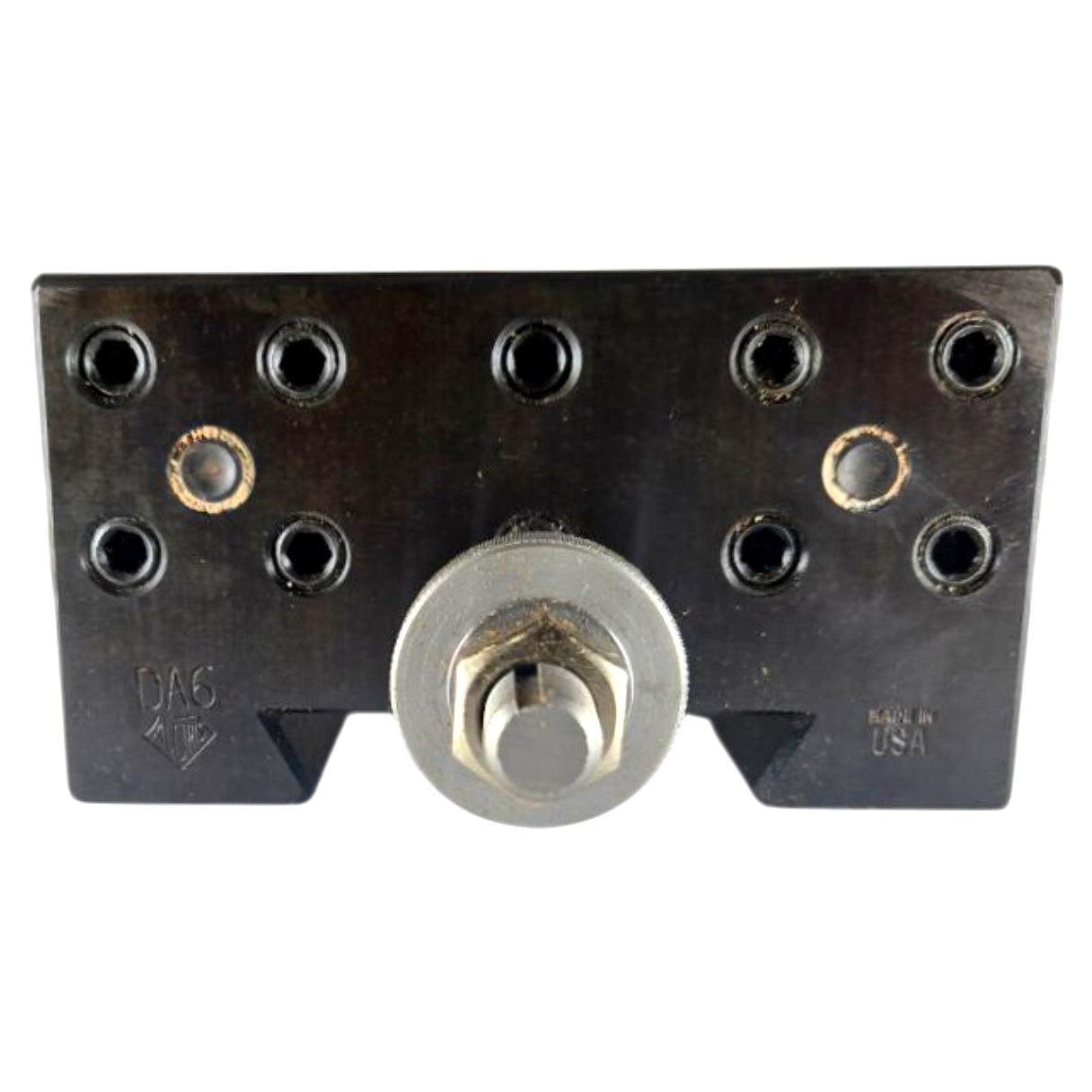

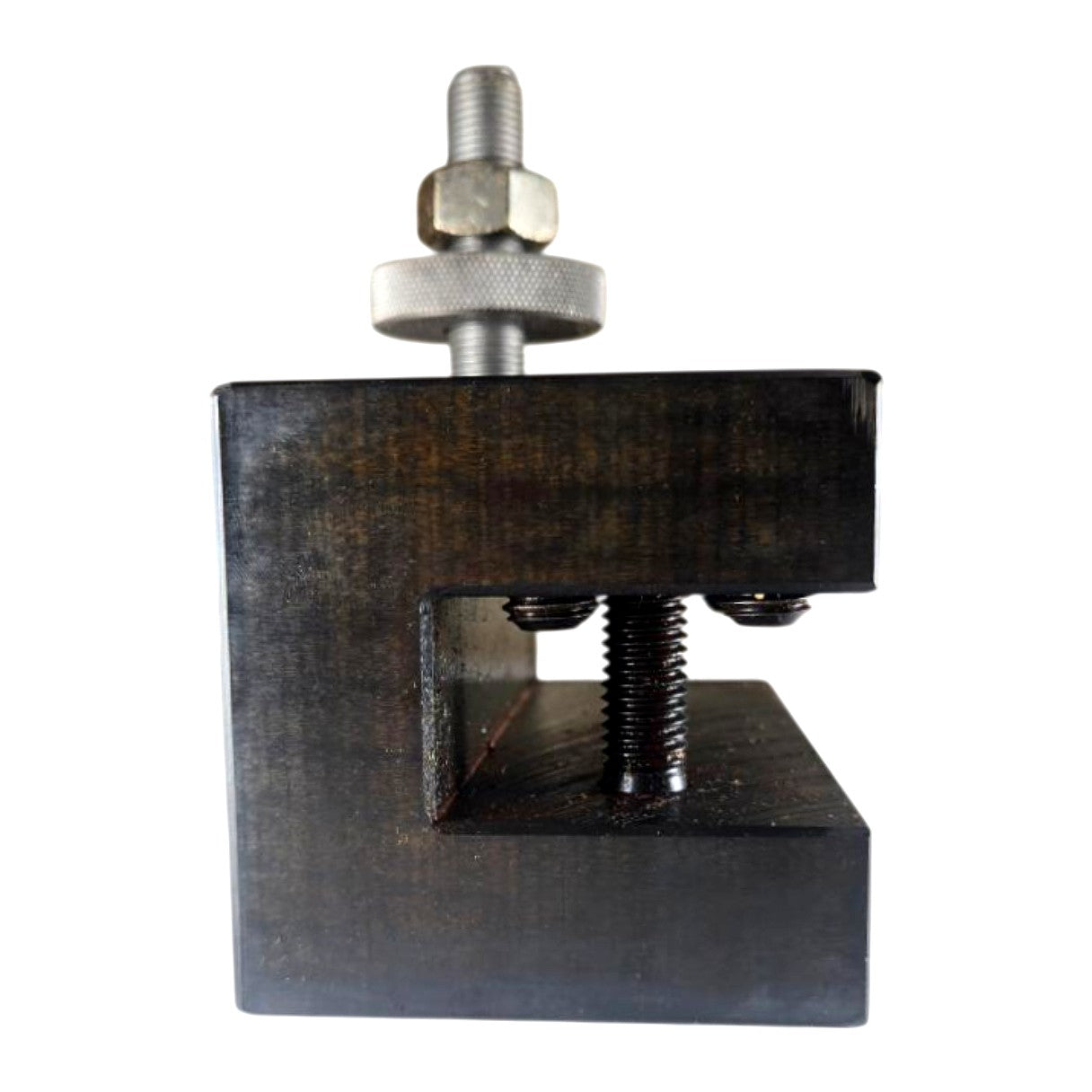

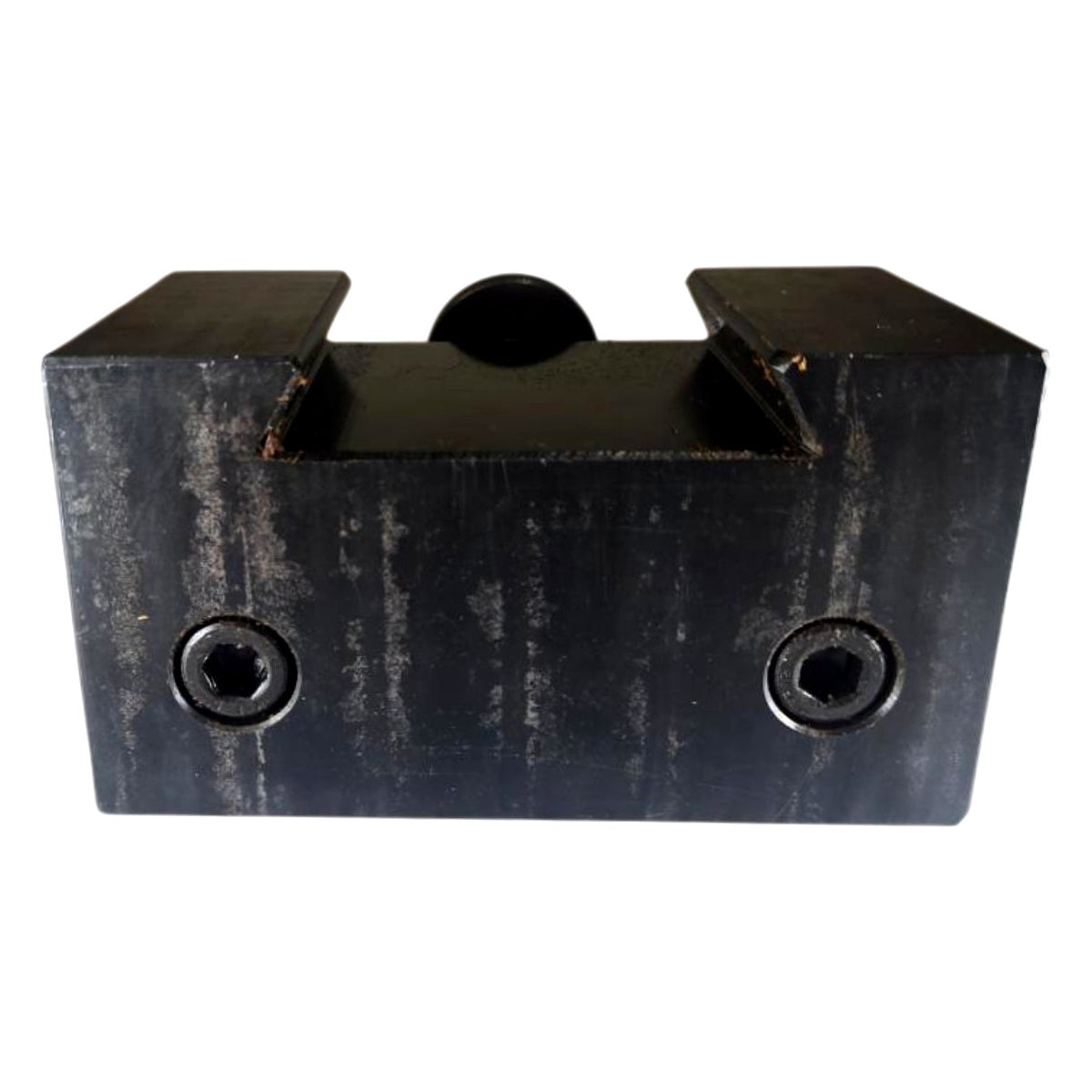

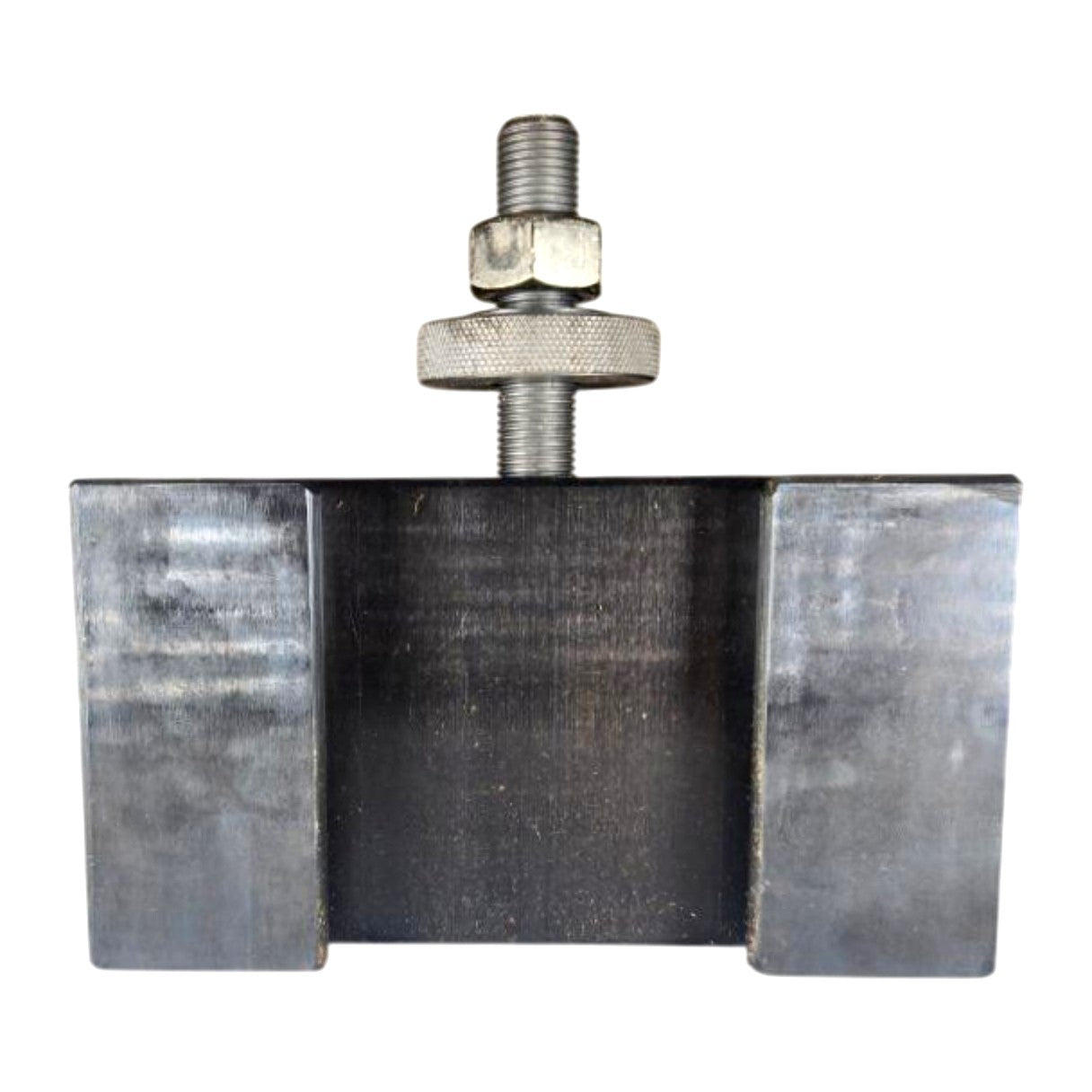

The Aloris DA-6 is a new, American-made multiple tool holder designed for the Aloris DA Series quick-change tool post system, compatible with lathes having a swing range of 17 to 48 inches. The holder accepts up to four tool bits with a maximum shank size of 1 inch, secured by individual socket-head cap screws visible in the photos; the two-piece steel body is oxide-blackened and features precision-ground dovetail mating surfaces that register directly to the DA Series tool post without indication. The bottom of the holder displays the "DA6" stamp and "Made in USA" marking, confirming domestic manufacture to Aloris tolerances; the stud-and-knurled-nut locking assembly matches the standard Aloris DA Series interface. This holder allows multiple tools to be pre-set and run in sequence without resetting center height, making it particularly useful for repetitive production turning, threading, and parting operations on medium-to-large engine lathes.

Product Specifications
