AMEC AccuThread 856 TP075K-UN16I AM210 16 TPI UN Internal Thread Mill Insert 2pc
Regular price
$29.45
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

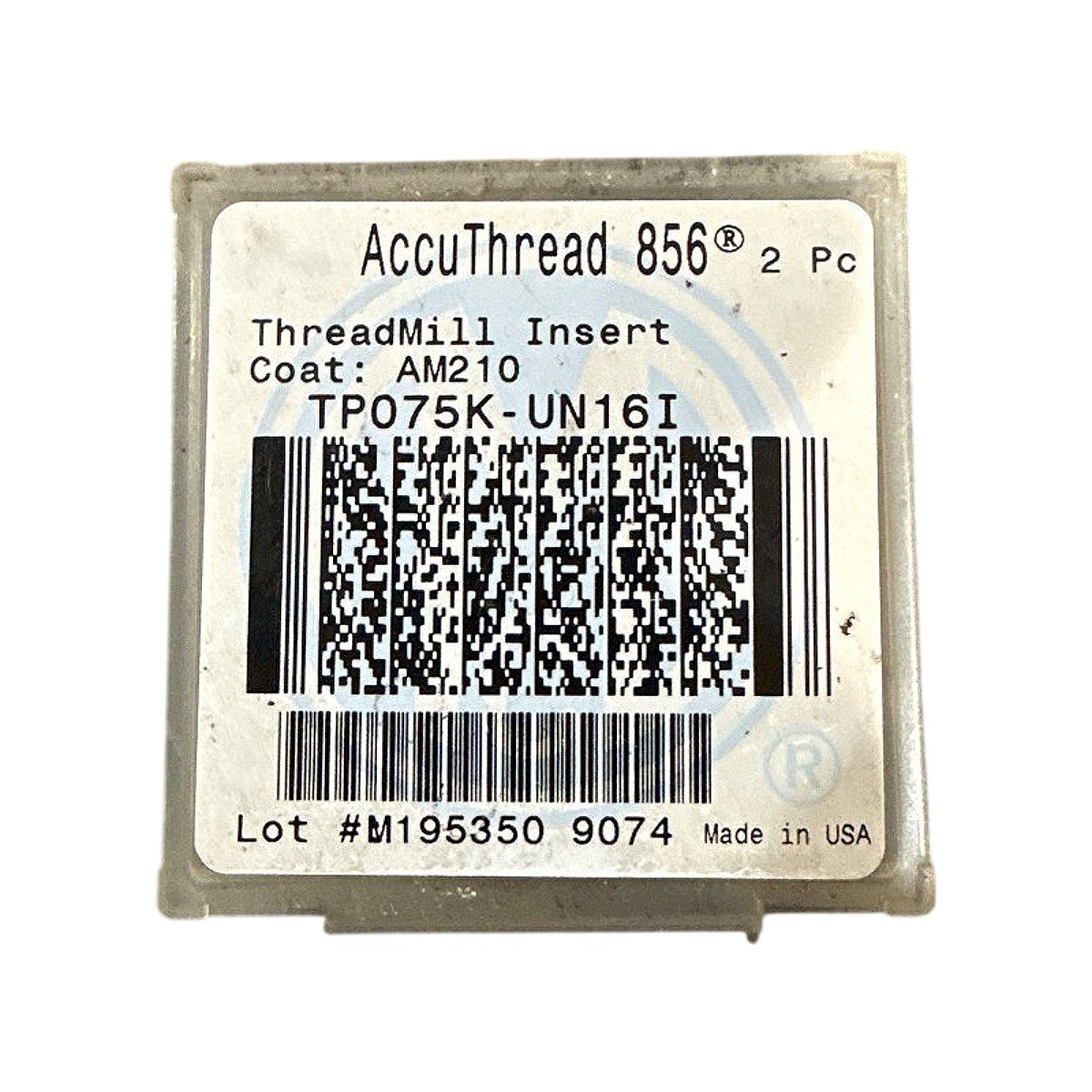

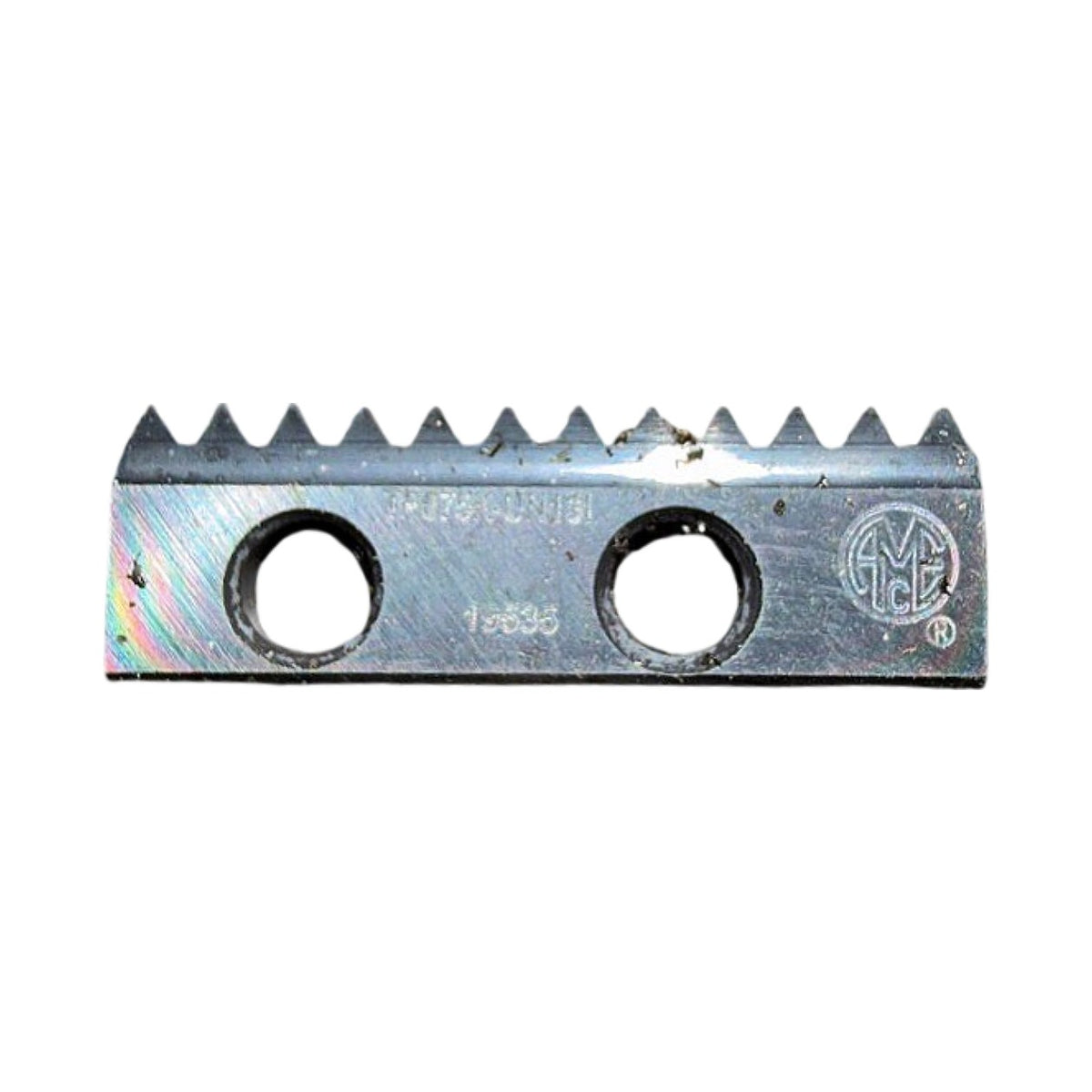

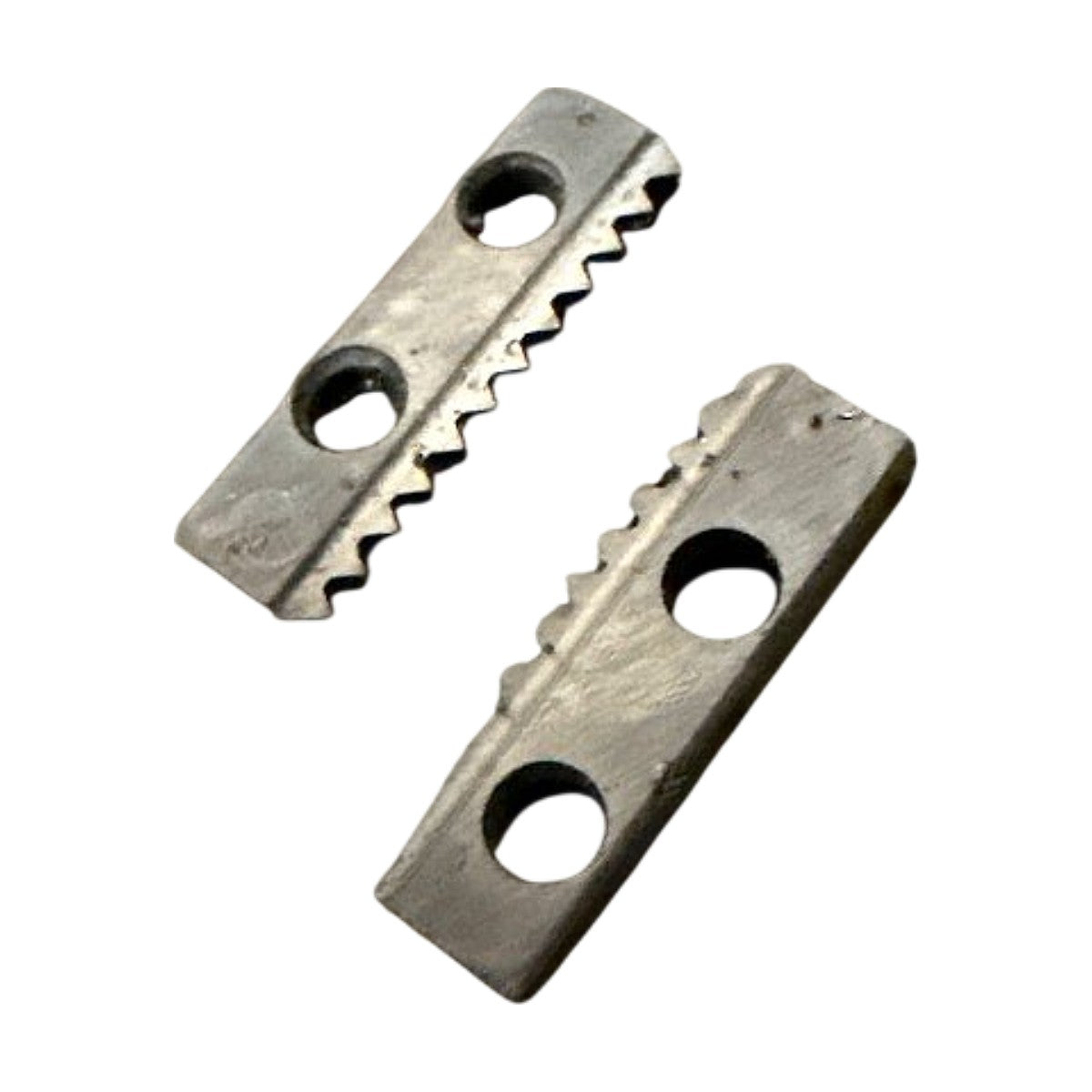

This AMEC AccuThread 856 TP075K-UN16I is a carbide thread milling insert for the AccuThread 856 threadmill system, supplied as a 2-piece pack and made in the USA. It is coated with AM210 and is coded UN16I for an internal Unified (UN) thread form at 16 threads per inch. Each insert has 12 ground thread-form teeth and two mounting holes for securing it in an AccuThread threadmill body. It is new and is packaged in the original AMEC labeled case.
Product Specifications
| Brand | AMEC |
| MPN | TP075K-UN16I |
| Series | AccuThread 856 |
| Coating | AM210 |
| Thread Form | UN (Unified) |
| Threads Per Inch | 16 TPI |
| Thread Type | Internal |
| Operation | Thread Milling |
| Insert Size Code | TP075K |
| Number of Teeth | 12 |
| Mounting Holes | 2 |
| Quantity per Pack | 2 pc |
| Substrate | Carbide |
| Country of Origin | USA |
