Apollo 4ALF-204-A2F 3/4 in Lead-Free Bronze RPZ Backflow Preventer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

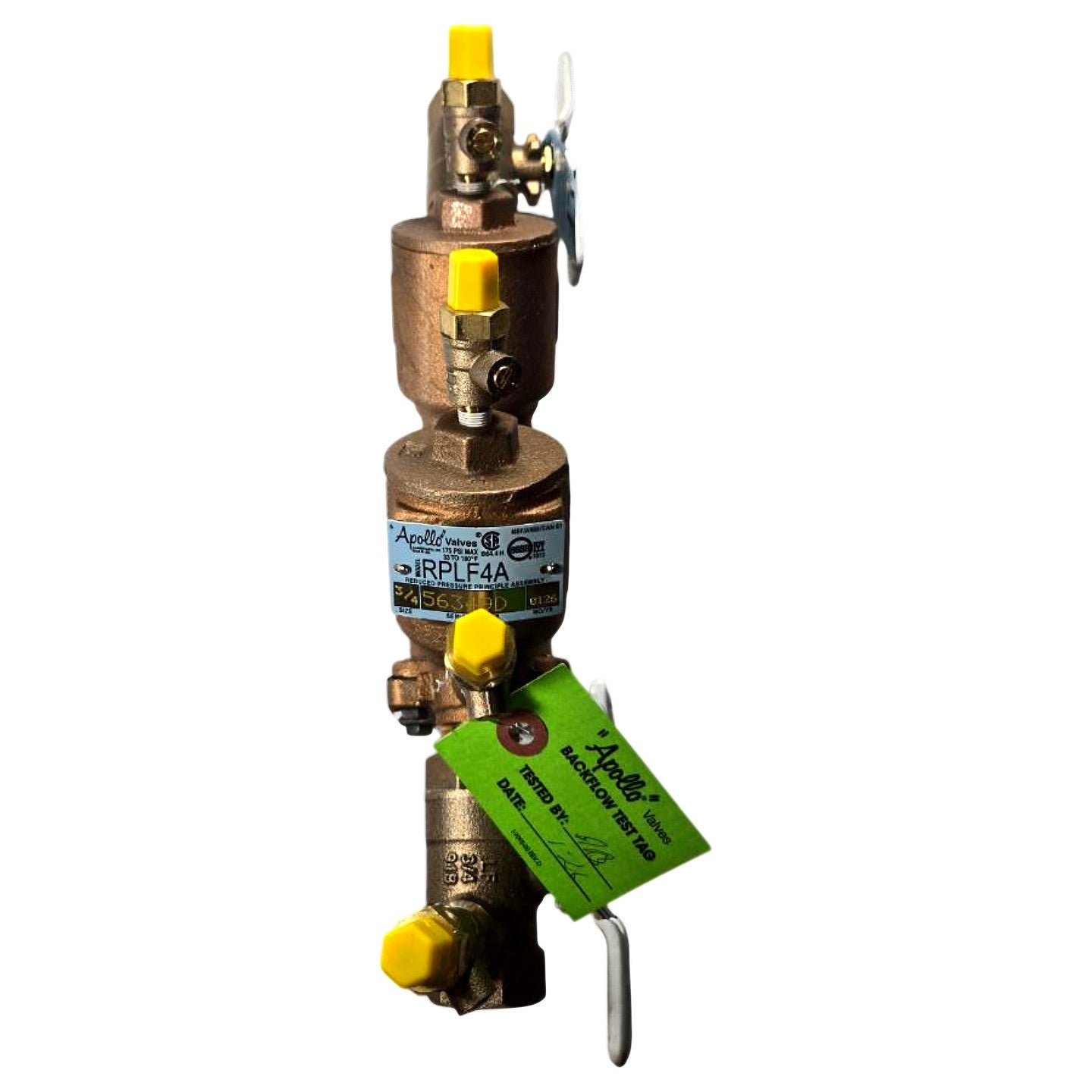

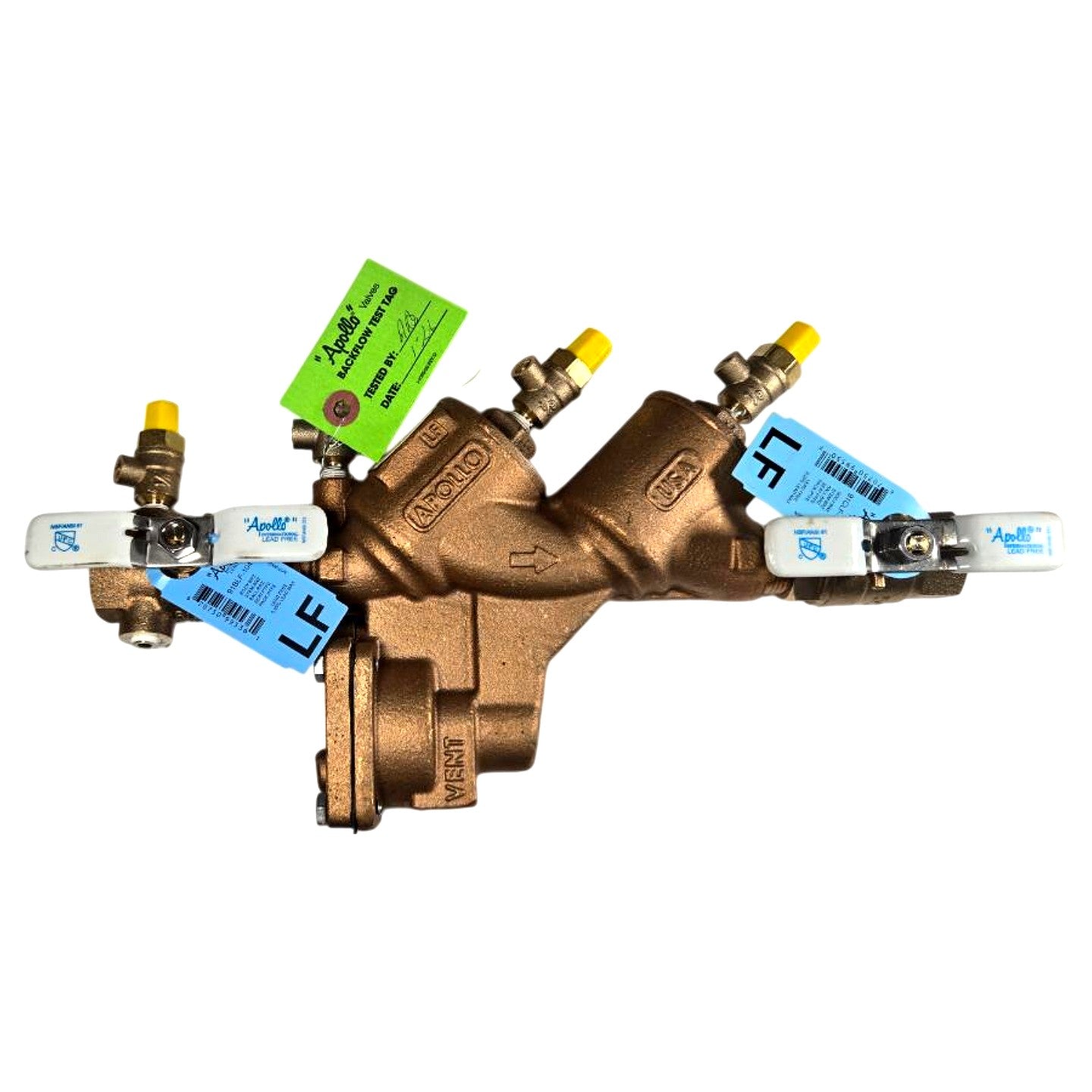

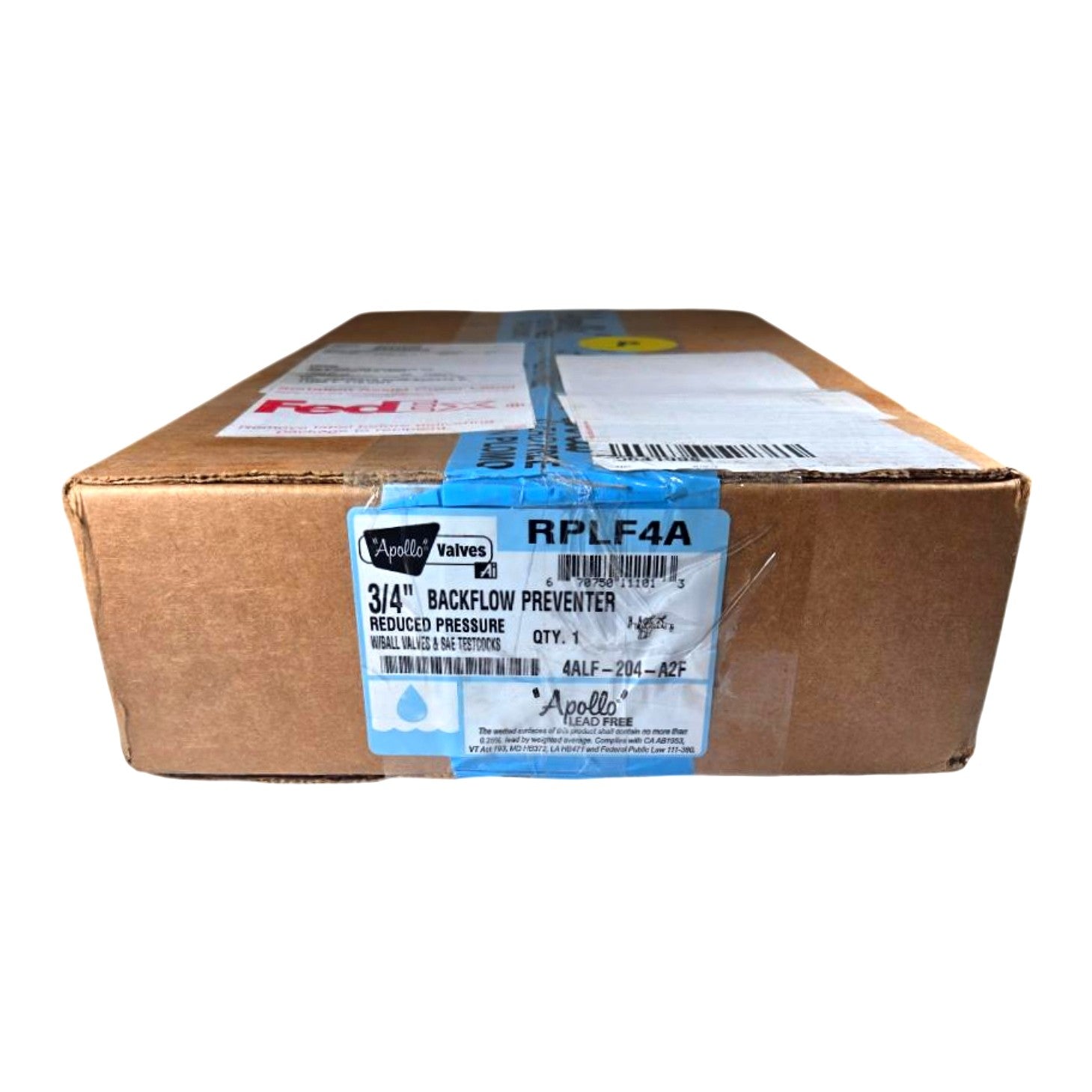

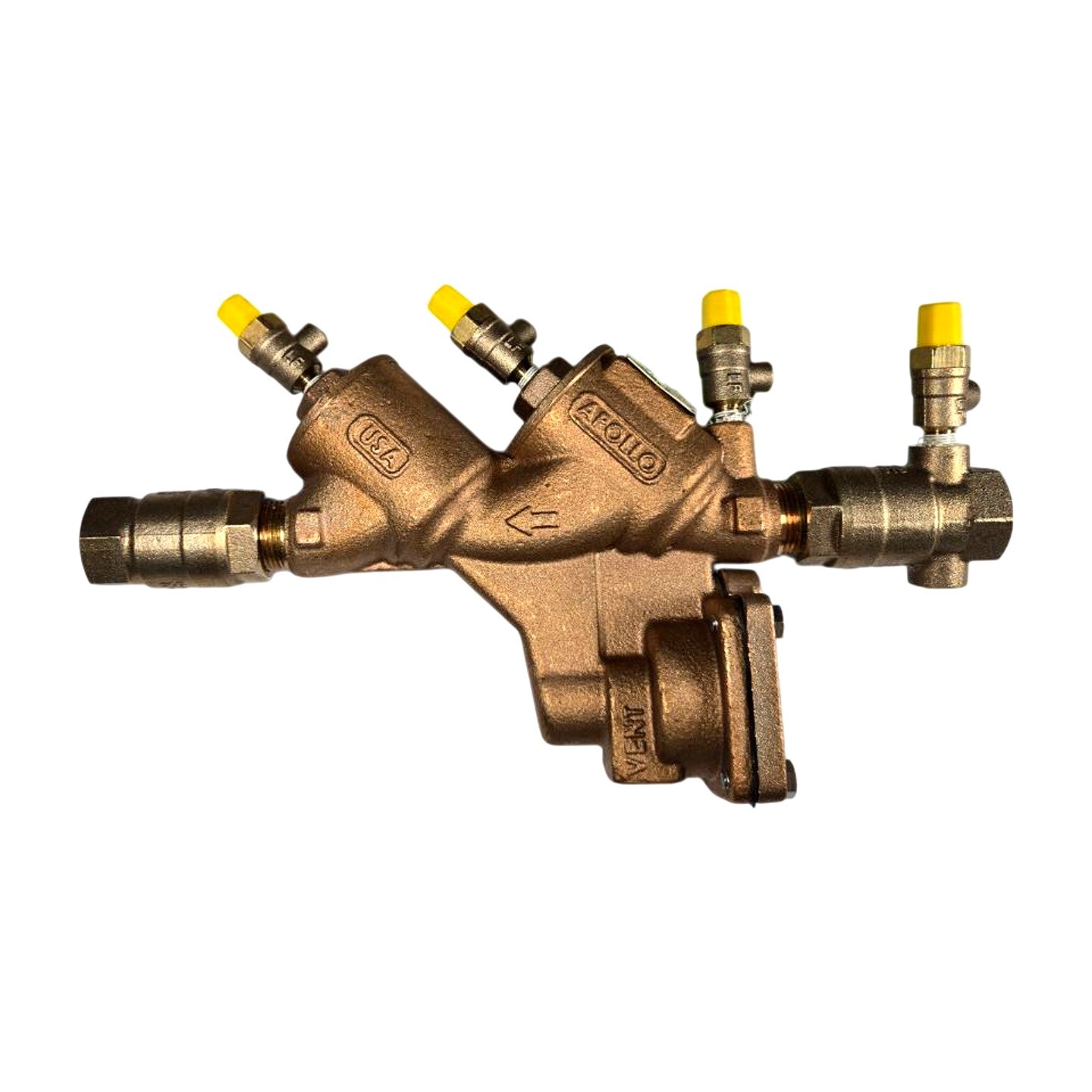

The Apollo Valves 4ALF-204-A2F (model RPLF4A) is a new, lead-free bronze reduced pressure zone (RPZ) backflow preventer assembly in 3/4 in pipe size, designed to protect potable water supplies from backflow contamination in high-hazard applications. As confirmed by the box label and body markings, this assembly includes two integral lead-free ball valve shutoffs and SAE test cocks, and is built to the standard 4A series configuration with female NPT threaded end connections. The body and wetted surfaces are lead-free bronze (≤0.25% lead by weighted average), complying with NSF/ANSI 61, CA AB1953, VT Act 193, MD HB1372, LA HB471, and Federal Public Law 111-380. Rated at 175 PSI maximum working pressure and tested across a temperature range of 33°F to 180°F, this assembly carries USC FCCCHR and NSF listings, making it suitable for commercial and industrial potable water, irrigation, and fire protection cross-connection control installations. Factory backflow-tested prior to shipment, as indicated by the Apollo Backflow Test Tag included with the unit.
Product Specifications
| Brand | Apollo Valves |
| Model Number | RPLF4A |
| Part Number | 4ALF-204-A2F |
| Valve Type | Reduced Pressure Zone (RPZ) Backflow Preventer |
| Pipe Size | 3/4 in |
| End Connection Type | Female NPT (FNPT) |
| Body Material | Lead-Free Bronze |
| Lead-Free Compliant | Yes, ≤0.25% lead by weighted avg |
| Max Working Pressure | 175 PSI |
| Temperature Range | 33°F to 180°F (0.6°C to 82.2°C) |
| Shutoff Valves Included | 2 integral lead-free ball valves |
| Test Cocks | SAE test cocks included |
| Configuration | Standard (4A series) |
| Certifications | NSF/ANSI 61, USC FCCCHR, CA AB1953 |
| Compliance Standards | VT Act 193, MD HB1372, LA HB471, PL 111-380 |
| Country of Origin | USA |
| Condition | New |
