Apollo 71-AR6-64 1-1/4 in NPT 600 WOG Bronze Ball Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

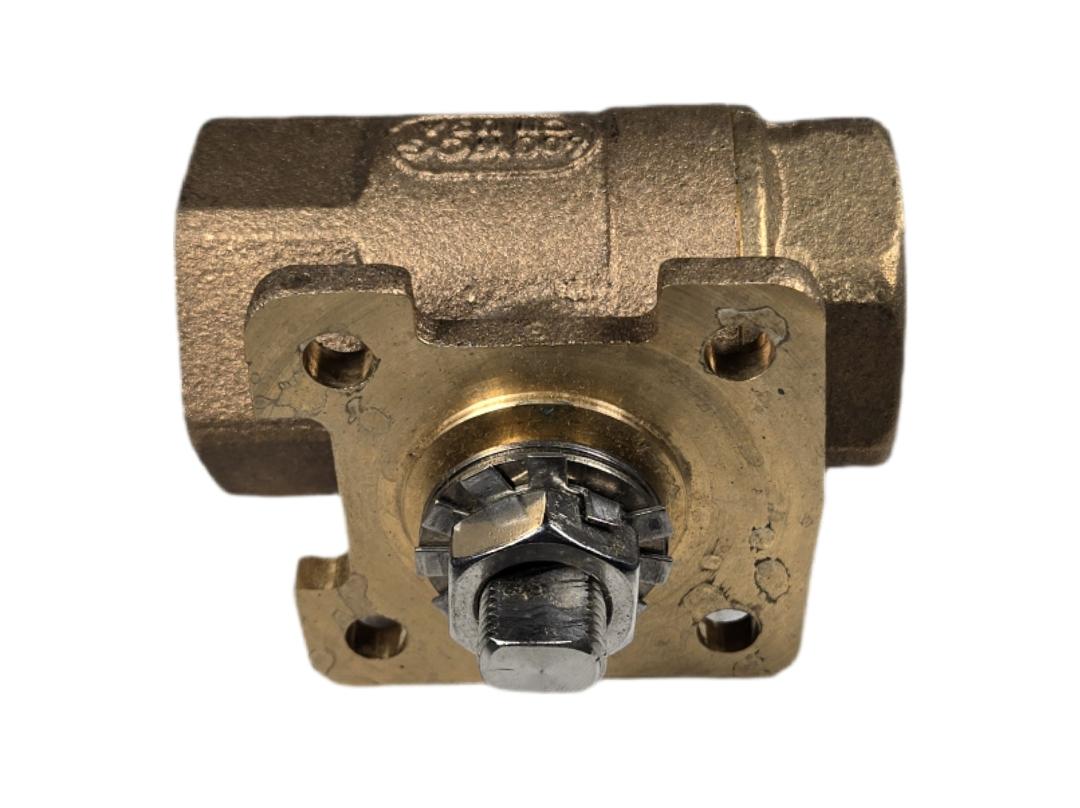

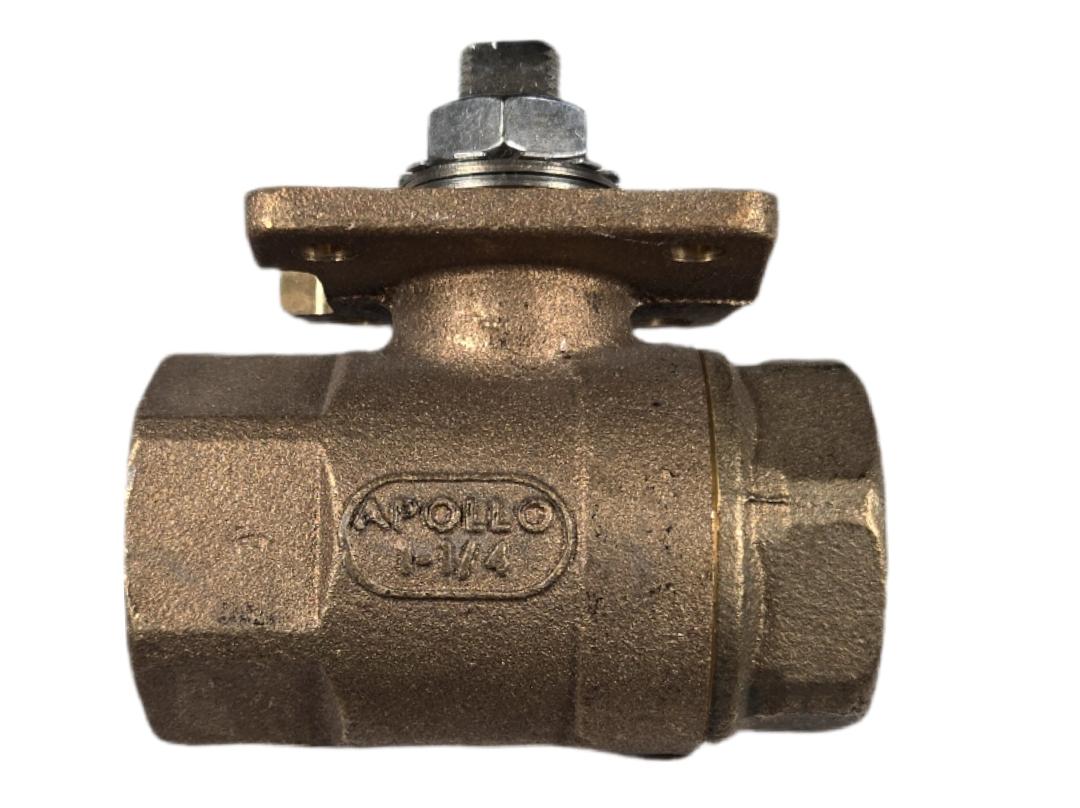

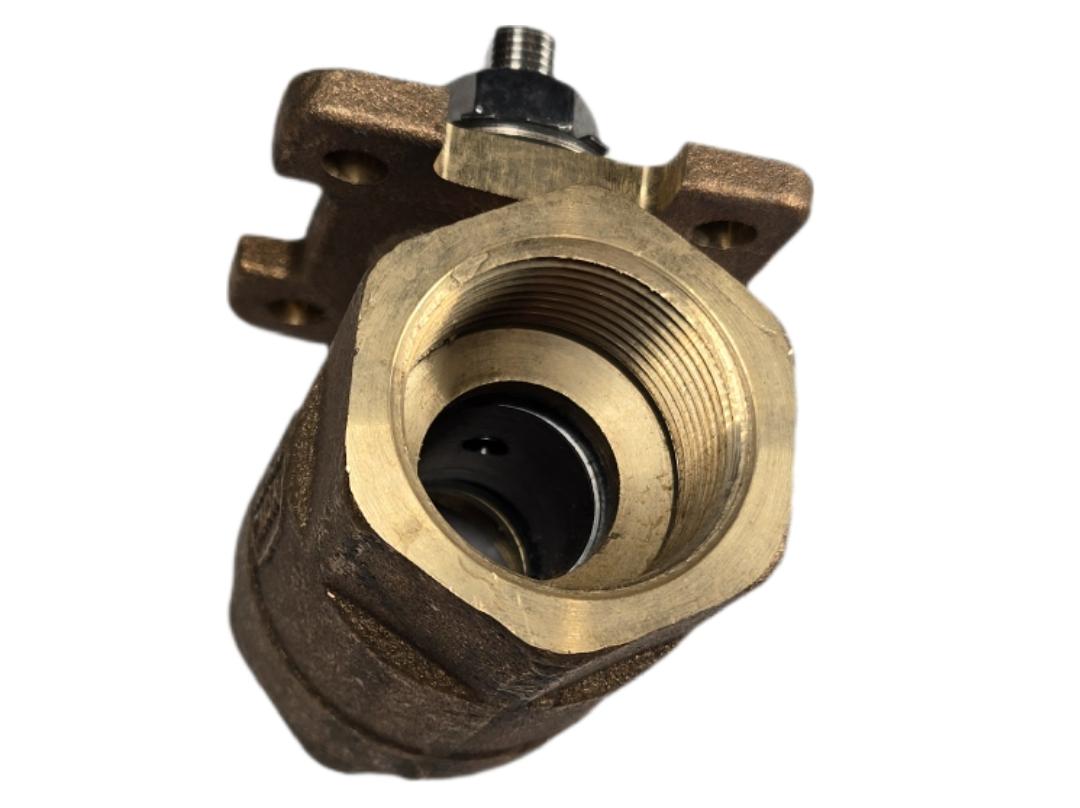

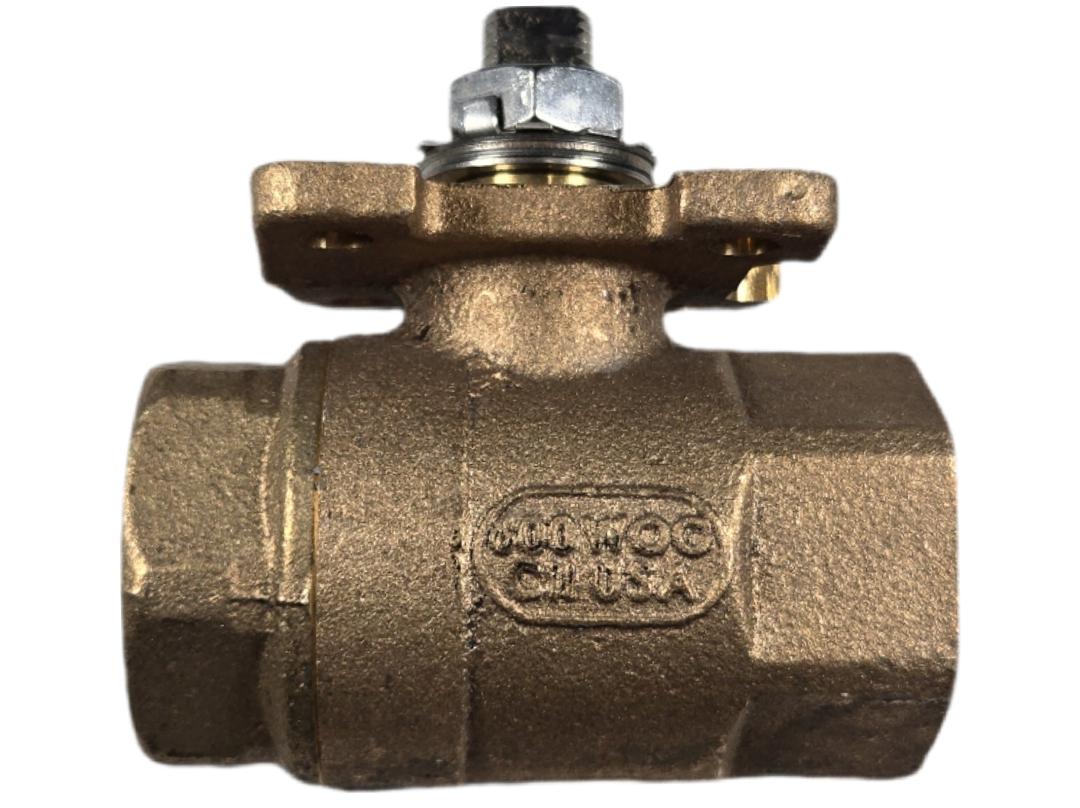

This is a new Apollo Valves 71-AR6-64 two-piece bronze ball valve with 1-1/4 in NPT threaded end connections and a standard (reduced) port configuration. The body and end caps are cast bronze, with a stainless steel stem and PTFE seats, and the valve is rated 600 WOG (Water, Oil, Gas) — confirmed by the '600 WOC' casting visible on the body — making it suitable for water, oil, gas, and compatible fluid service. The top of the valve features a four-hole ISO 5211 actuator mounting pad (clearly visible in the photos), allowing direct mounting of pneumatic or electric quarter-turn actuators without a bracket; the stem retains a stainless hex nut and stem-lock detail as shown. Apollo's 70-100 series valves are produced in the USA (confirmed by 'CI USA' casting on body) and are widely specified in HVAC, plumbing, industrial process, and commercial building systems where actuated ball valve service is required.
Product Specifications
| Brand | Apollo Valves |
| MPN | 71-AR6-64 |
| Valve Type | Ball Valve |
| Body Material | Bronze |
| Connection Type | NPT Threaded (Female) |
| Port Size | 1-1/4 in |
| Port Configuration | Standard Port (Reduced Bore) |
| Pressure Rating | 600 WOG |
| Number of Pieces | 2-Piece |
| Stem Material | Stainless Steel |
| Seat Material | PTFE |
| Actuator Mounting Pad | ISO 5211 4-Hole Pad |
| Country of Origin | USA |
| Operation | Actuator-Ready (handle not included) |
| End Connection Standard | NPT per ANSI/ASME B1.20.1 |
| Condition | New |
