Apollo PVB4A 4A-504-A2F 3/4" FNPT Pressure Vacuum Breaker
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

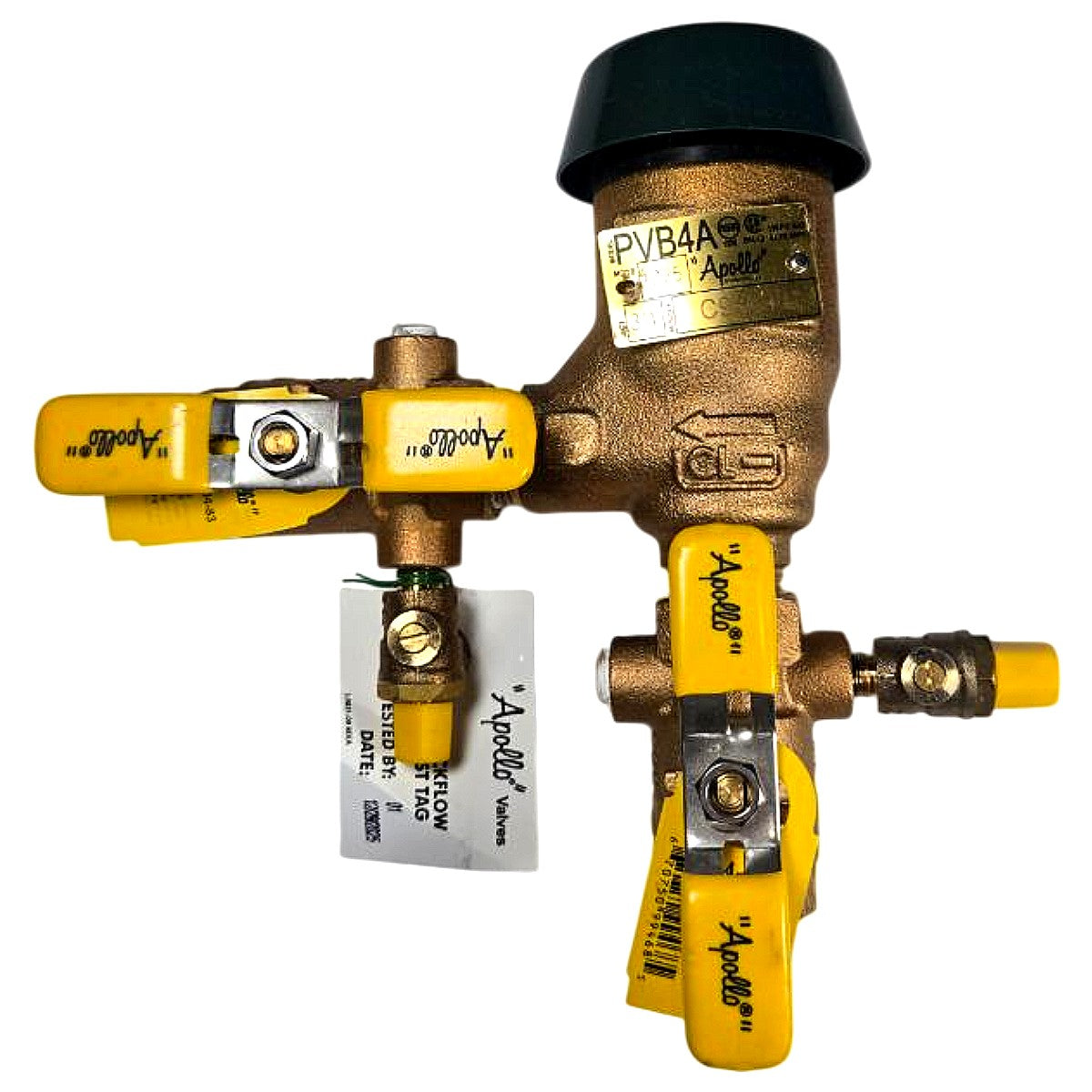

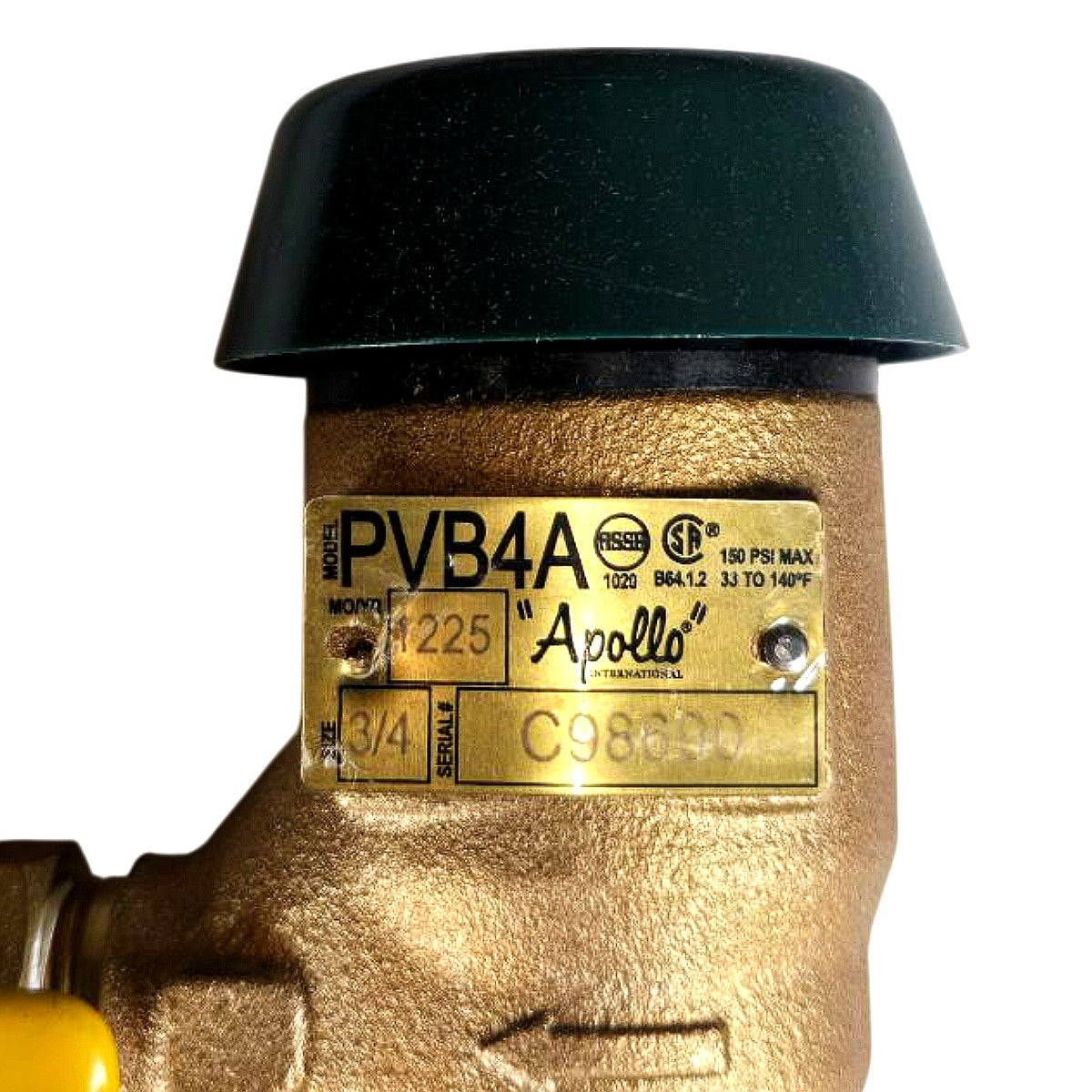

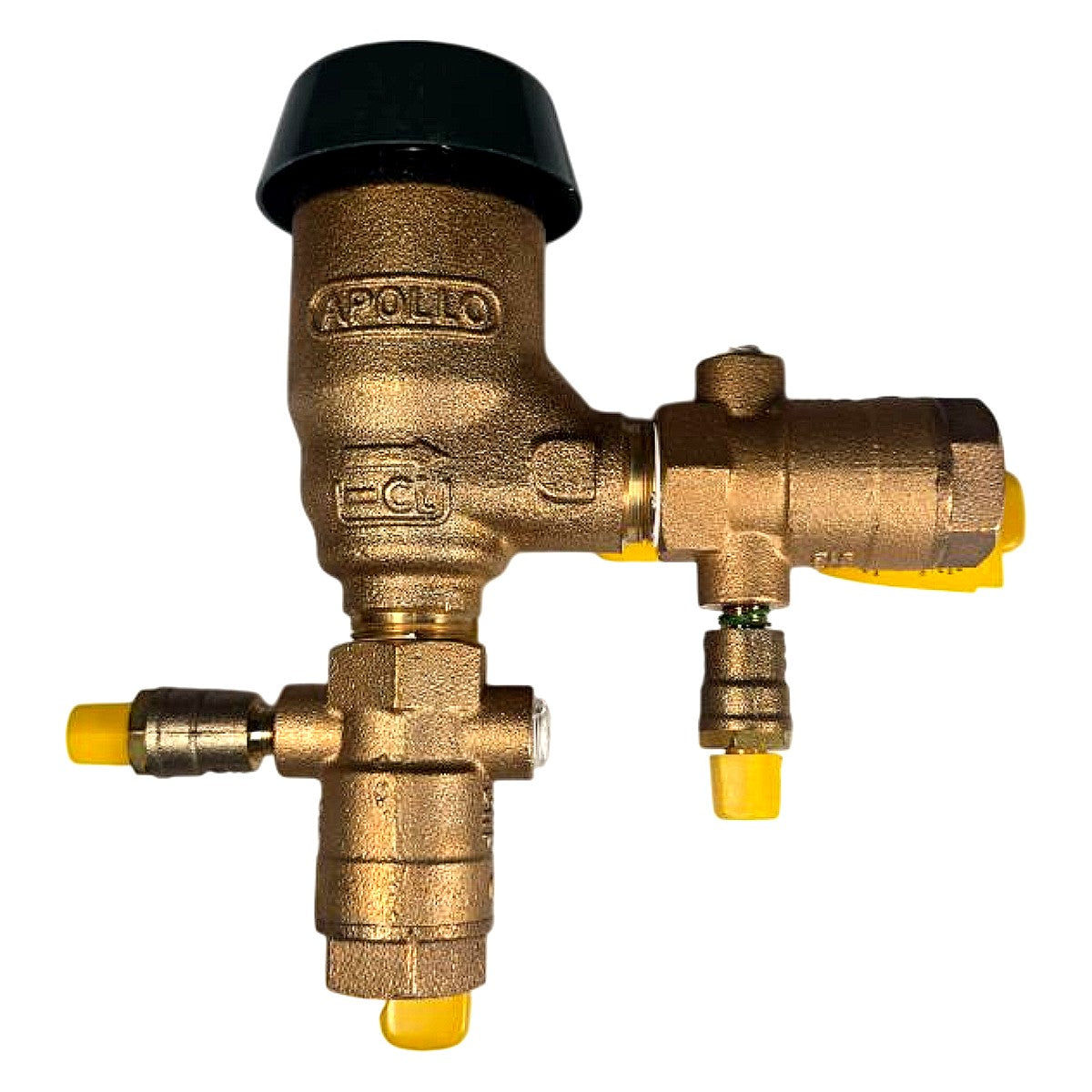

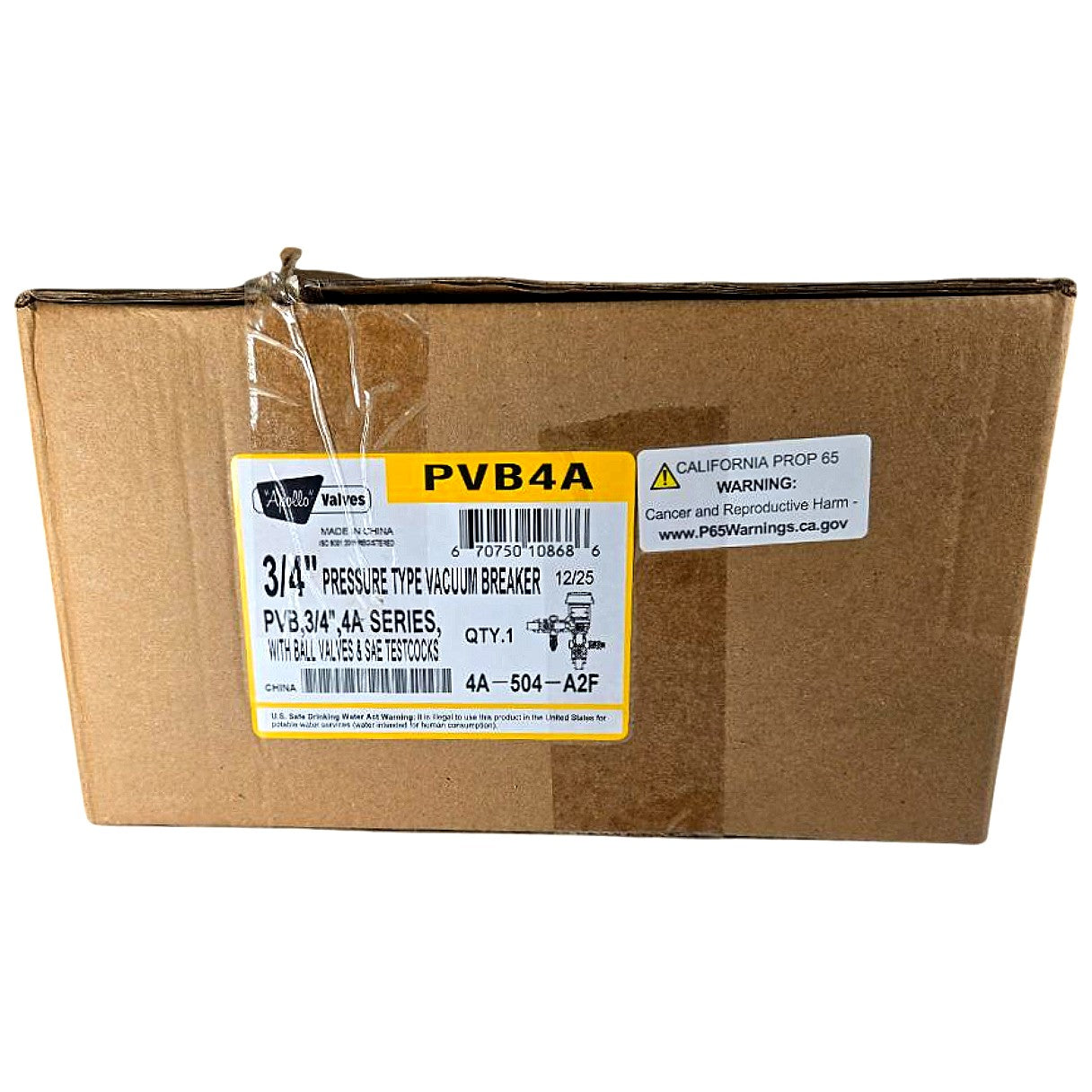

The Apollo Valves PVB4A (catalog# 4A-504-A2F) is a new, 3/4 in. pressure-type vacuum breaker (PVB) from the 4A Series, constructed of lead-free bronze and designed to prevent backflow/back-siphonage in non-potable irrigation and hose connection applications. Per the nameplate and box label, it is rated to 150 PSI maximum operating pressure with a temperature range of 33°F–140°F, and meets ASSE 1020 and CSA B64.1.2 standards. The assembly ships complete with two integrated Apollo quarter-turn ball valves (upstream shutoff and downstream shutoff) featuring yellow lever handles and two SAE test cocks for field testing per code, all in a bronze body with a black UV-resistant bonnet cap. This unit carries UPC/cUPC listing markings and is manufactured under ISO 9001-registered quality management; it is explicitly labeled NOT for use on potable (drinking) water services per the U.S. Safe Drinking Water Act. Typical installations include residential and commercial irrigation systems, hose bibb protection, and spray equipment supply lines where local codes require a pressure-type vacuum breaker.
Product Specifications
| Brand | Apollo Valves (Apollo International) |
| Model / MPN | PVB4A |
| Catalog Part Number | 4A-504-A2F |
| Device Type | Pressure-Type Vacuum Breaker (PVB) |
| Series | 4A Series |
| Pipe Size | 3/4 in |
| End Connections | FNPT x FNPT |
| Body Material | Lead-Free Bronze |
| Max Operating Pressure | 150 PSI |
| Temperature Range | 33°F – 140°F |
| Standards / Certifications | ASSE 1020, CSA B64.1.2, UPC/cUPC |
| Included Shutoff Valves | 2x Apollo quarter-turn ball valves w/ yellow levers |
| Included Test Cocks | 2x SAE test cocks |
| Media | Non-potable water (irrigation/hose connection) |
| Condition | New |
| Country of Origin | China |
