Aquatec 78-TEN-1045633 AquaJet 7800 36VDC 1.2GPM 90PSI Diaphragm Booster Pump

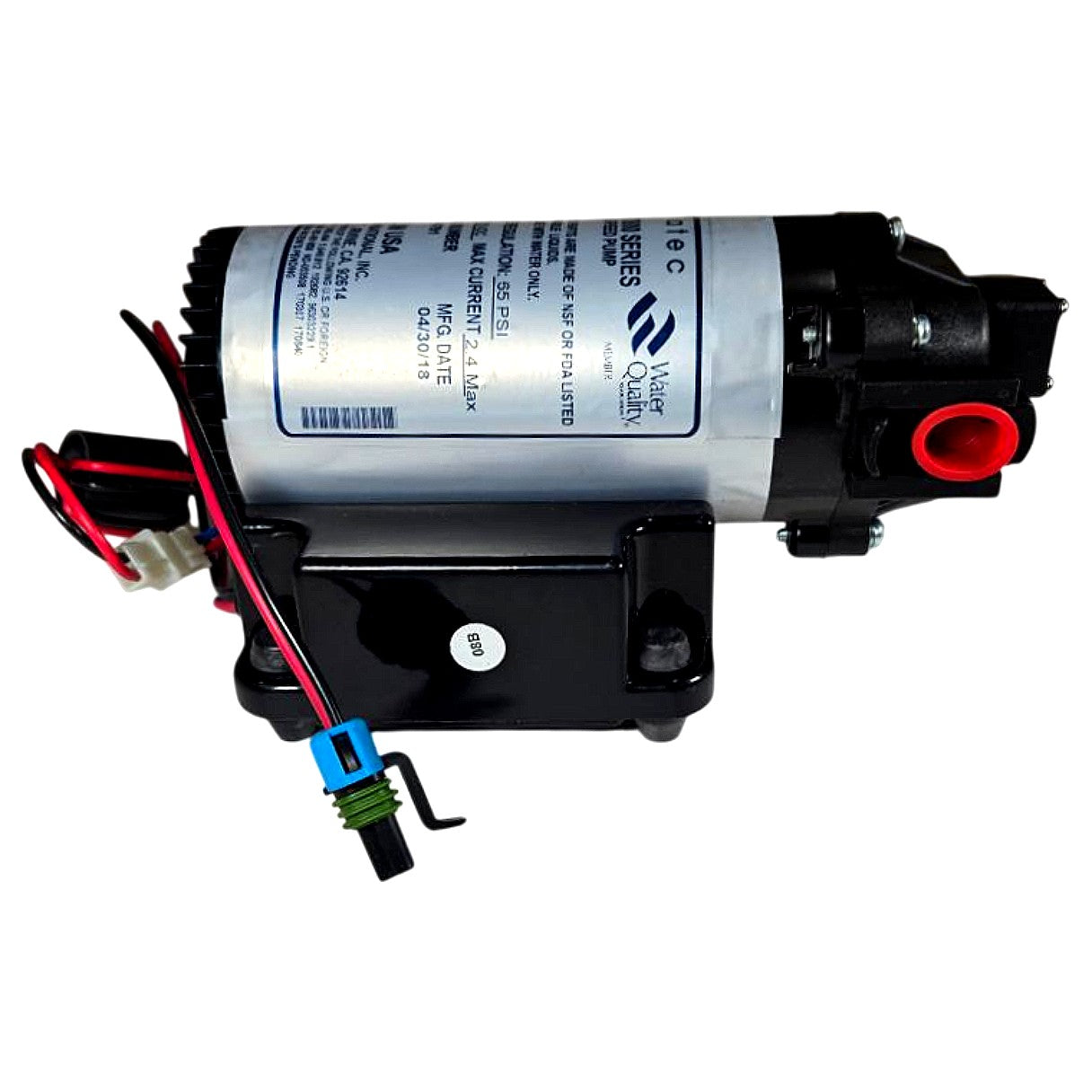

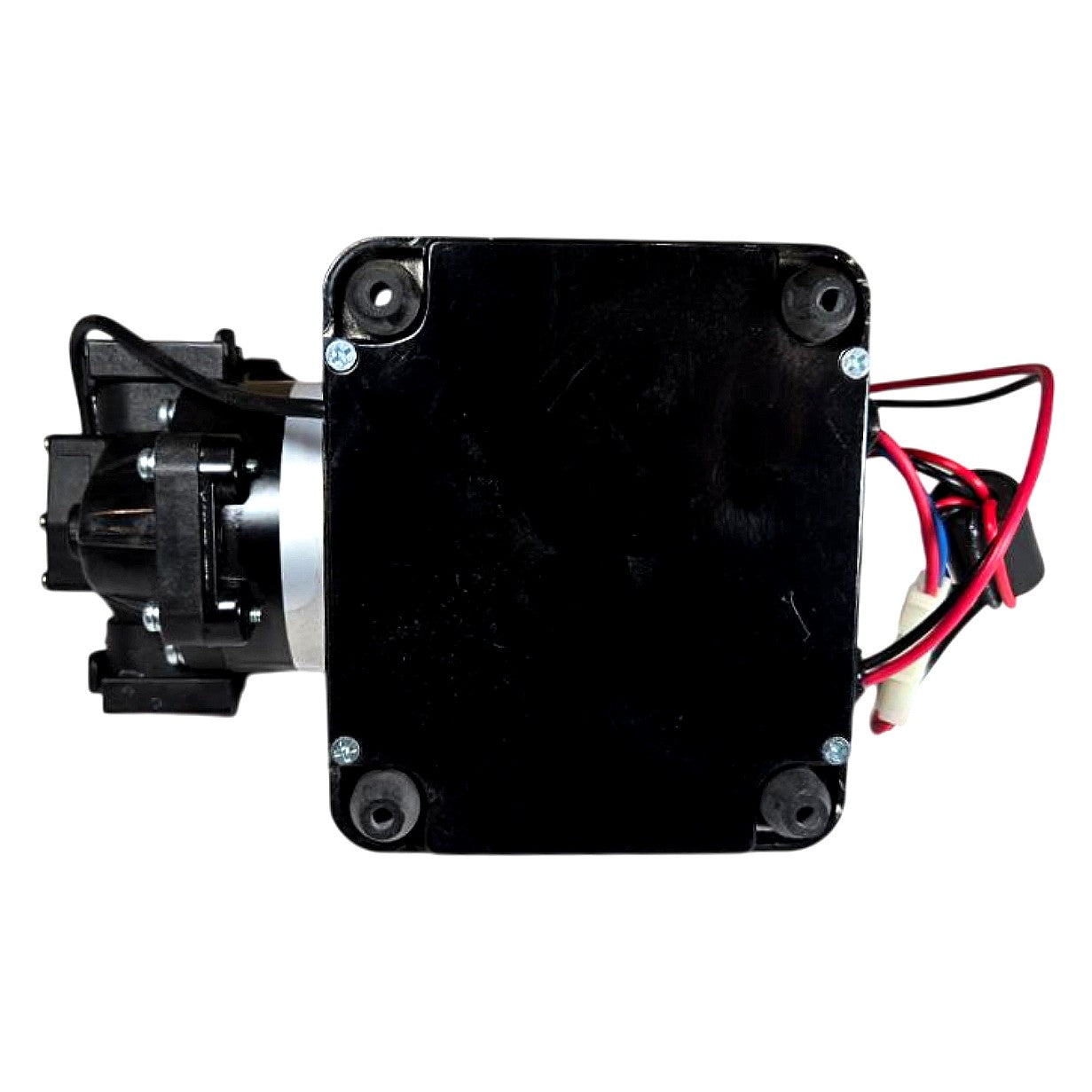

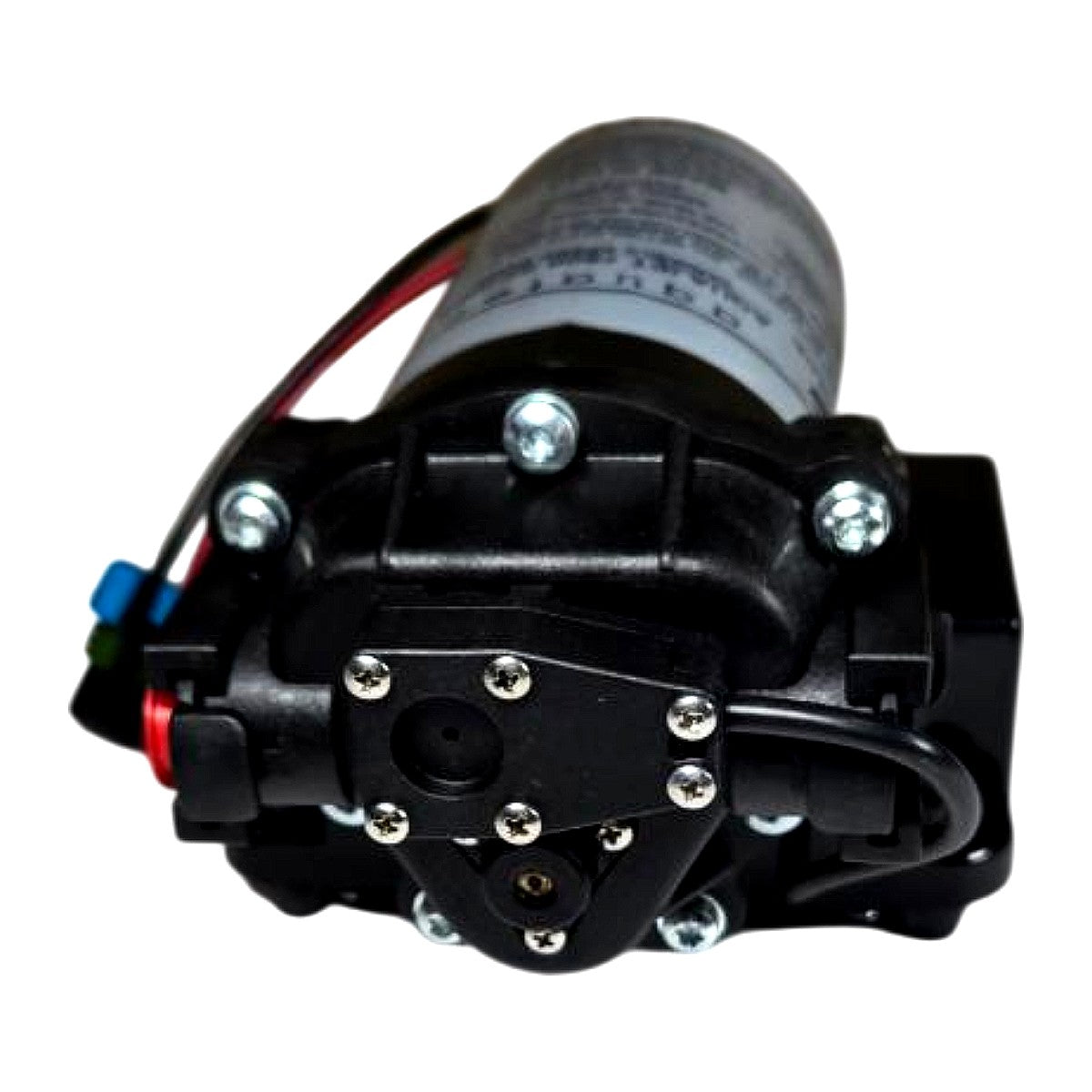

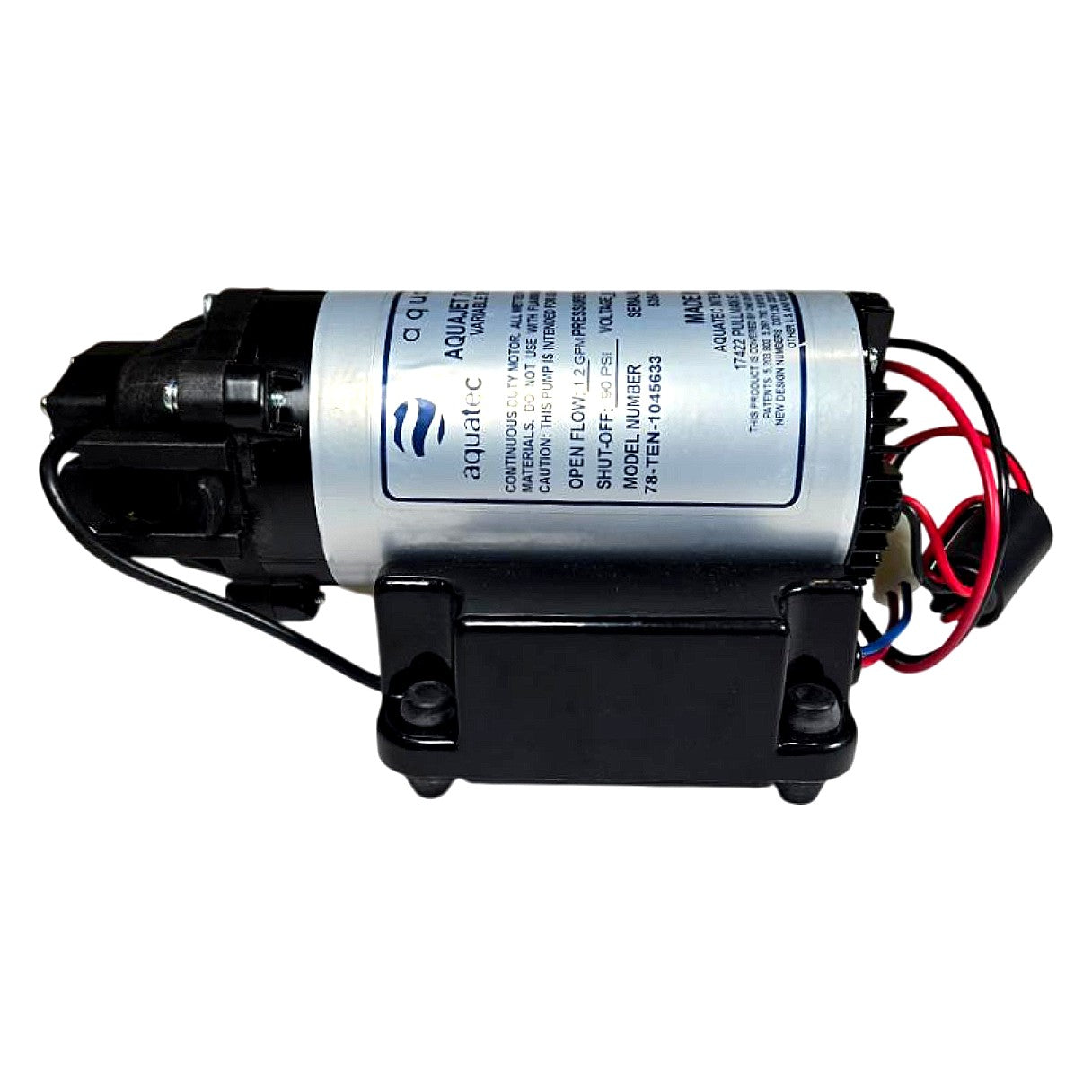

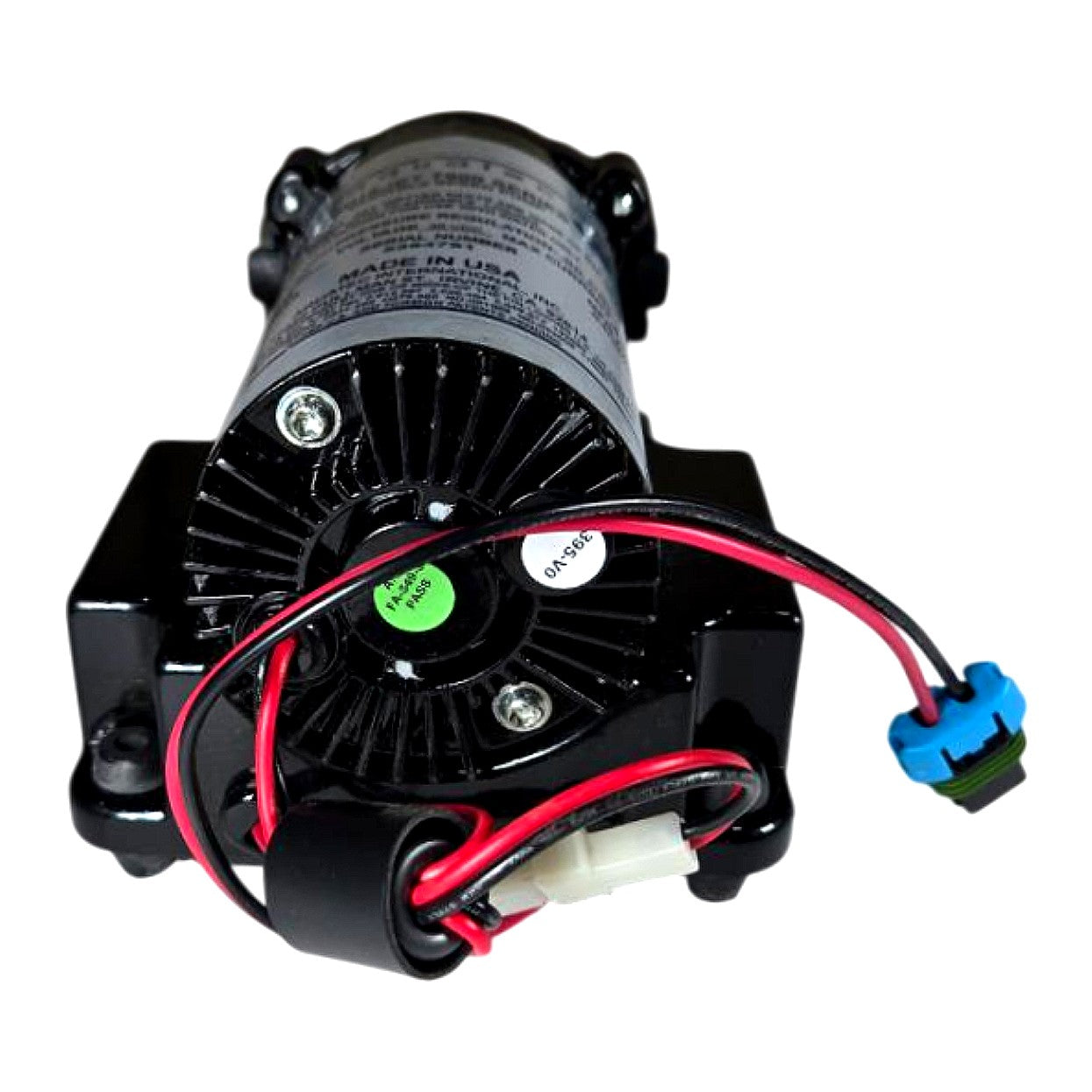

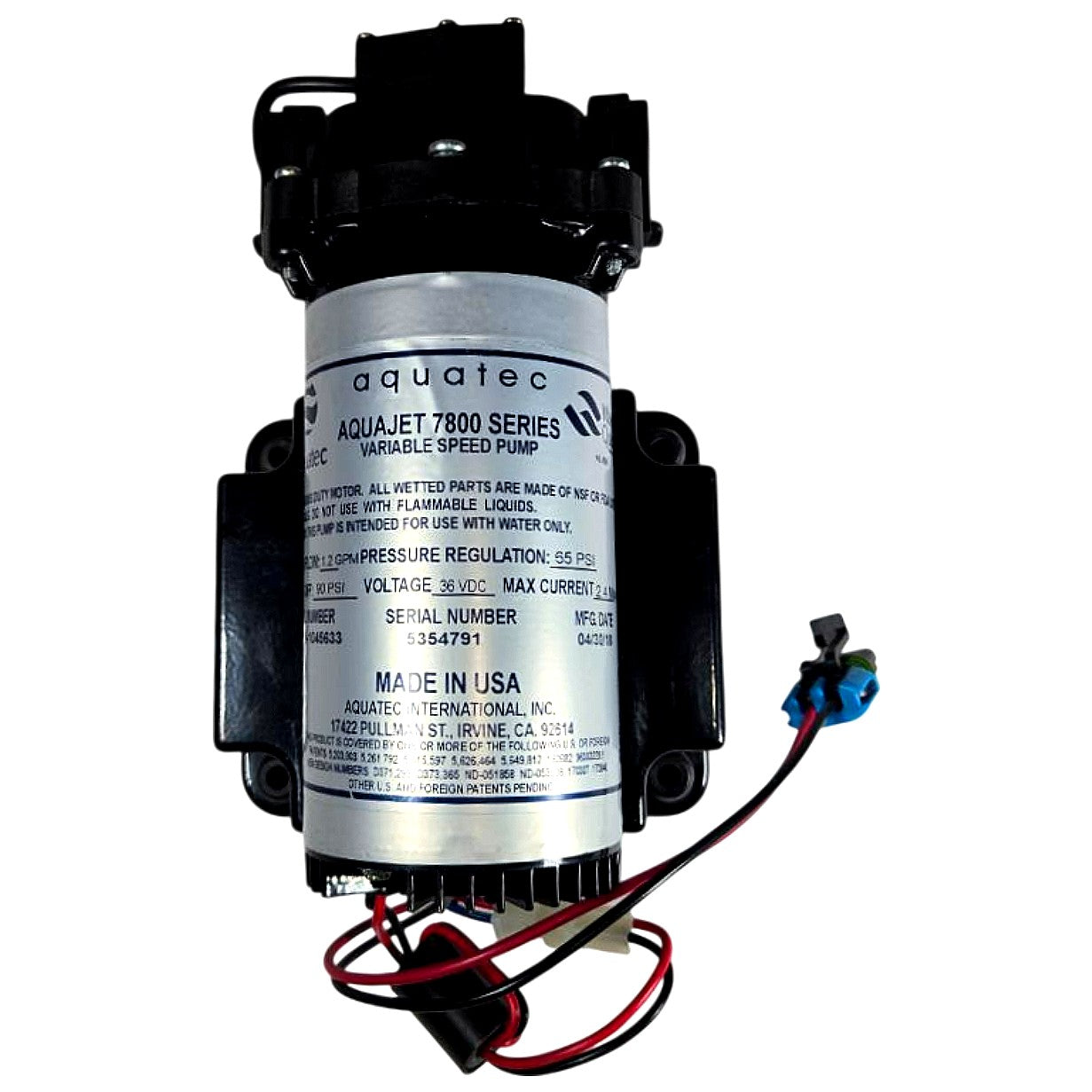

The Aquatec 78-TEN-1045633 is a new, continuous-duty variable-speed diaphragm booster pump from the AquaJet 7800 Series, manufactured by Aquatec International, Inc. (Irvine, CA, USA). Per the label visible in the photos, the pump operates at 36 VDC with a maximum current draw of 2.4 A, delivers an open flow rate of 1.2 GPM, a shut-off pressure of 90 PSI, and a pressure regulation set point of 65 PSI. All wetted parts are NSF- or FDA-listed materials, making the pump suitable for potable water, reverse-osmosis boosting, and water-treatment applications; the label explicitly states it is intended for use with water only and must not be used with flammable liquids. The unit features an integrated variable-speed motor with a finned aluminum motor housing for thermal management, a vibration-isolating mounting base, a blue Deutsch-style 2-pin signal connector, and a white 2-pin power connector pigtail with red and black leads, as clearly visible in the photos.

Product Specifications
