Armstrong FZ45074 Prelude XL 15in White Cross Tee Suspended Ceiling Grid
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

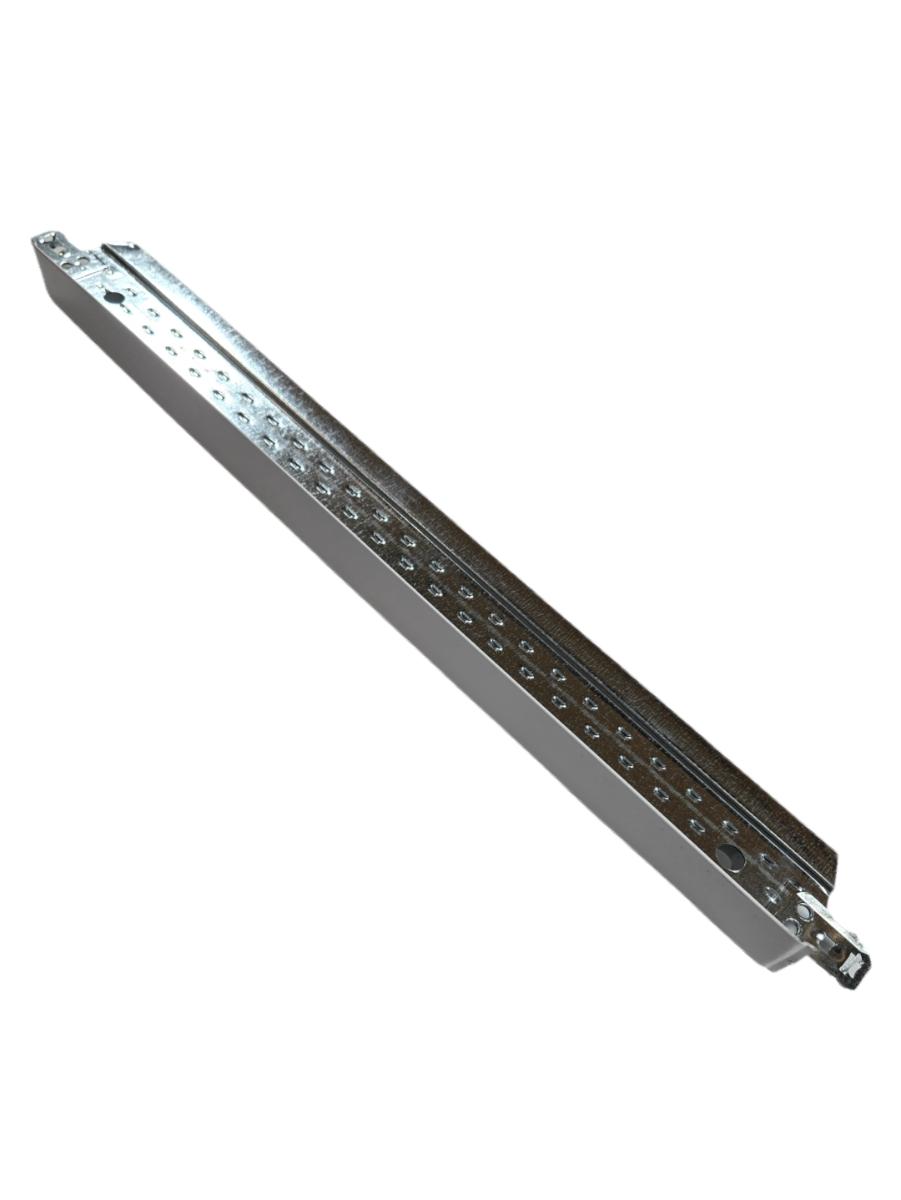

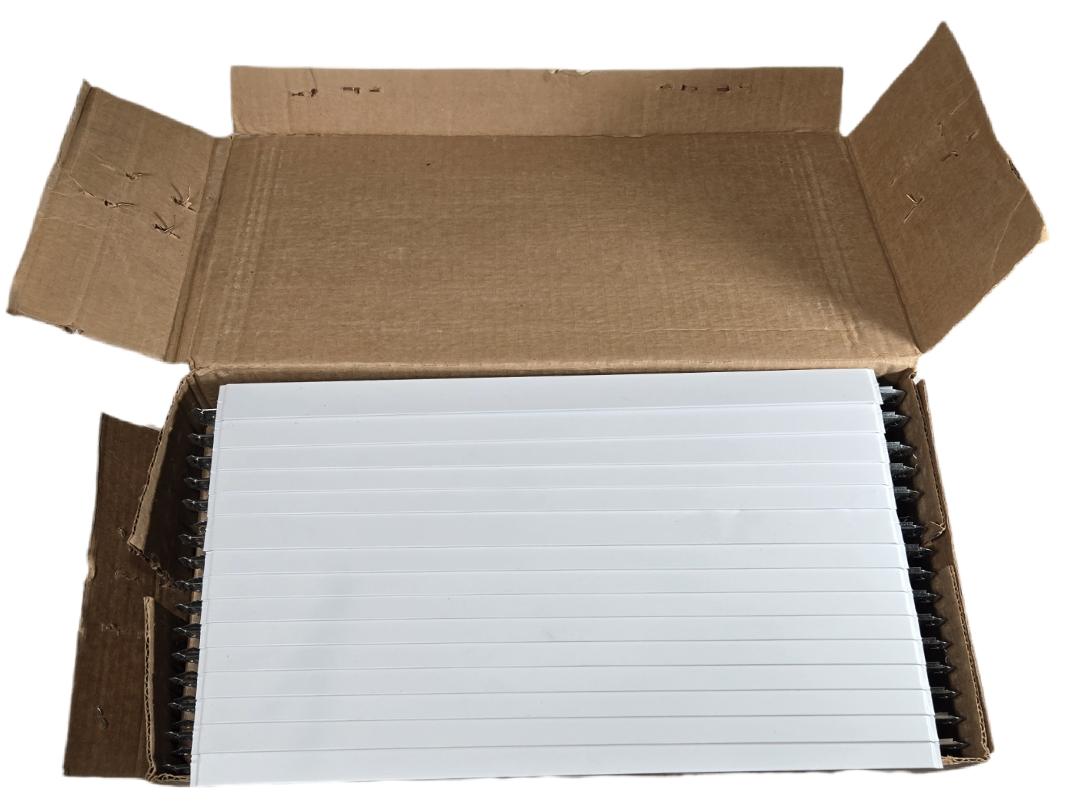

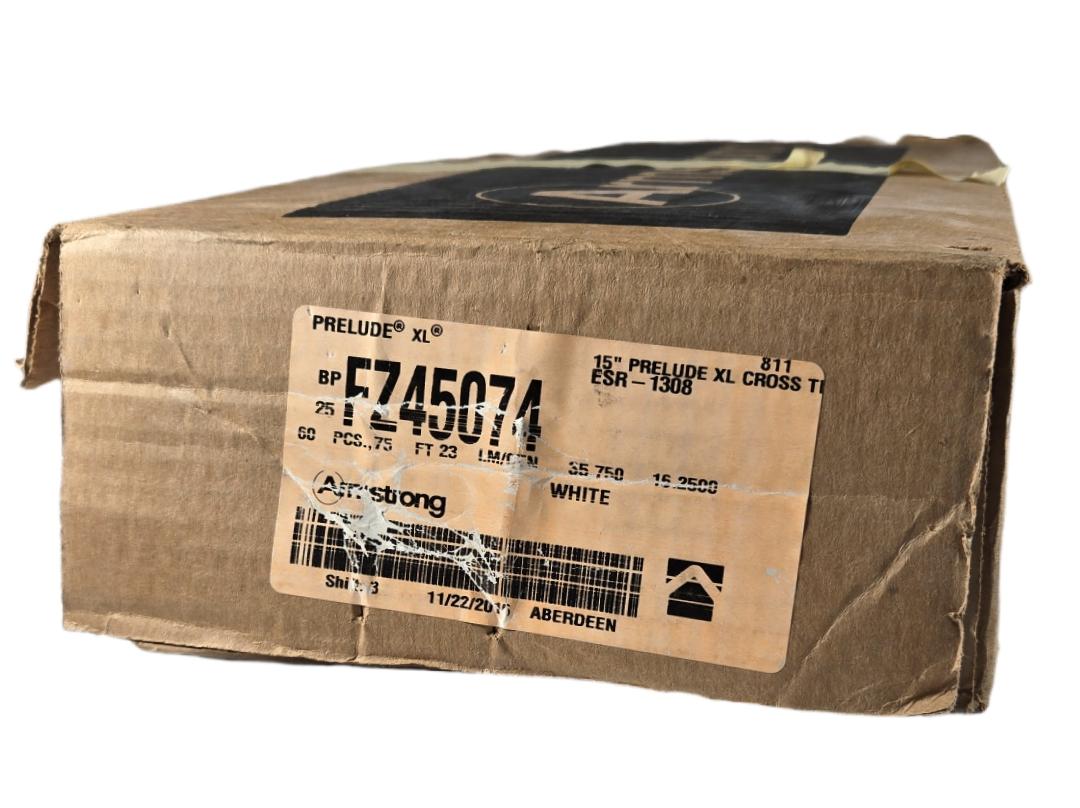

This is a new-in-box lot of Armstrong Prelude XL 15-inch cross tees (part number FZ45074, ESR-1308), manufactured at Armstrong's Aberdeen facility and boxed 11/22/2010. The box label confirms 60 pieces per carton at 0.75 linear feet each, totaling 23 linear feet of grid coverage, in White finish. Prelude XL is Armstrong's commercial-grade exposed suspension grid system engineered for 15/16-in face width, accepting standard 2x2 or 2x4 ceiling tile panels; the cross tees snap into Prelude XL main runners to form the secondary grid. The stamped steel members feature embossed stiffening ribs along the web for rigidity, a factory-applied white painted finish, and interlocking end connectors visible at one end of each tee for positive main-runner engagement.
Product Specifications
| Brand | Armstrong |
| Part Number | FZ45074 |
| Product Line | Prelude XL |
| Component Type | Cross Tee |
| Nominal Length | 15 in |
| Face Width | 15/16 in |
| Finish / Color | White |
| Material | Stamped steel |
| Qty per Carton | 60 pcs |
| Linear Ft per Carton | 23 LM/CFN |
| ESR Number | ESR-1308 |
| Compatible Main Runner | Armstrong Prelude XL main tee |
| Grid Module Compatibility | 2x2 ft, 2x4 ft ceiling panels |
| Condition | New |
