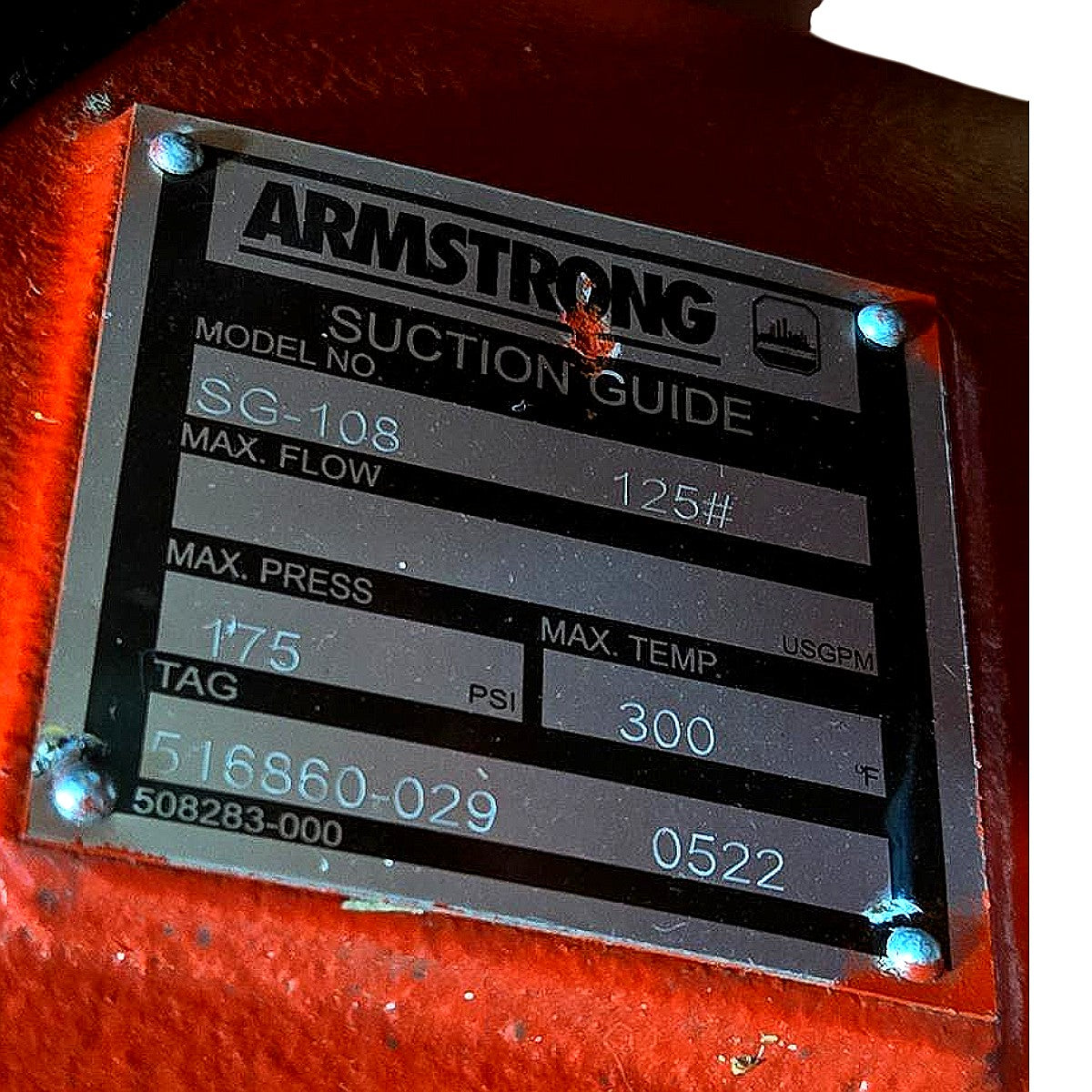

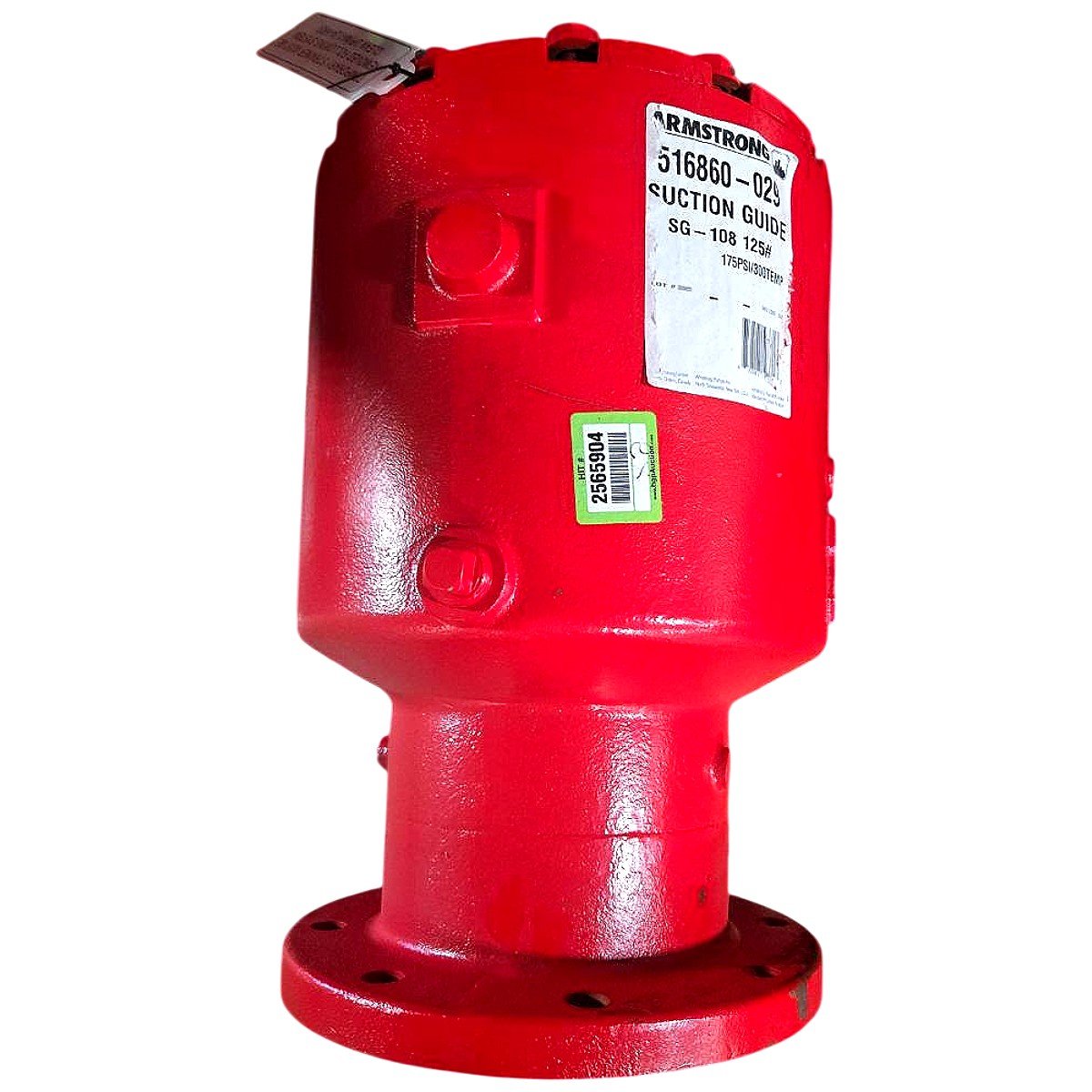

The Armstrong SG-108 (P/N 516860-029) is a new, cast iron pump suction guide designed to condition turbulent flow entering a centrifugal pump suction flange, significantly reducing cavitation, vibration, and bearing wear. Model SG-108 is sized for 8-inch, ANSI Class 125 (ASME B16.1) flanged connections with a maximum allowable working pressure of 175 PSI and a maximum operating temperature of 300°F, making it suitable for HVAC heating and cooling systems, chilled water loops, condenser water circuits, and other hydronic piping applications. The unit incorporates internal flow-conditioning vanes that straighten flow and eliminate pre-swirl before it reaches the pump impeller, and includes vent and drain ports (plugged) as visible in the photos; the tag number 516860-029 and order reference 508283-000 are confirmed directly from the nameplate and product label, with a manufacture date code of 0522 (May 2022).
Product Specifications
| Brand | Armstrong |
| Model | SG-108 |
| Tag / Part No. | 516860-029 |
| Order / Catalog No. | 508283-000 |
| Date Code (Mfg.) | 0522 (May 2022) |
| Pipe Size | 8 in |
| Flange Class | ANSI Class 125 (ASME B16.1) |
| Connection Type | Flanged |
| Max. Pressure | 175 PSI |
| Max. Temperature | 300°F |
| Body Material | Cast Iron |
| Finish / Color | Red enamel paint |
| Condition | New |
| Ports | Vent and drain ports (plugged) |
