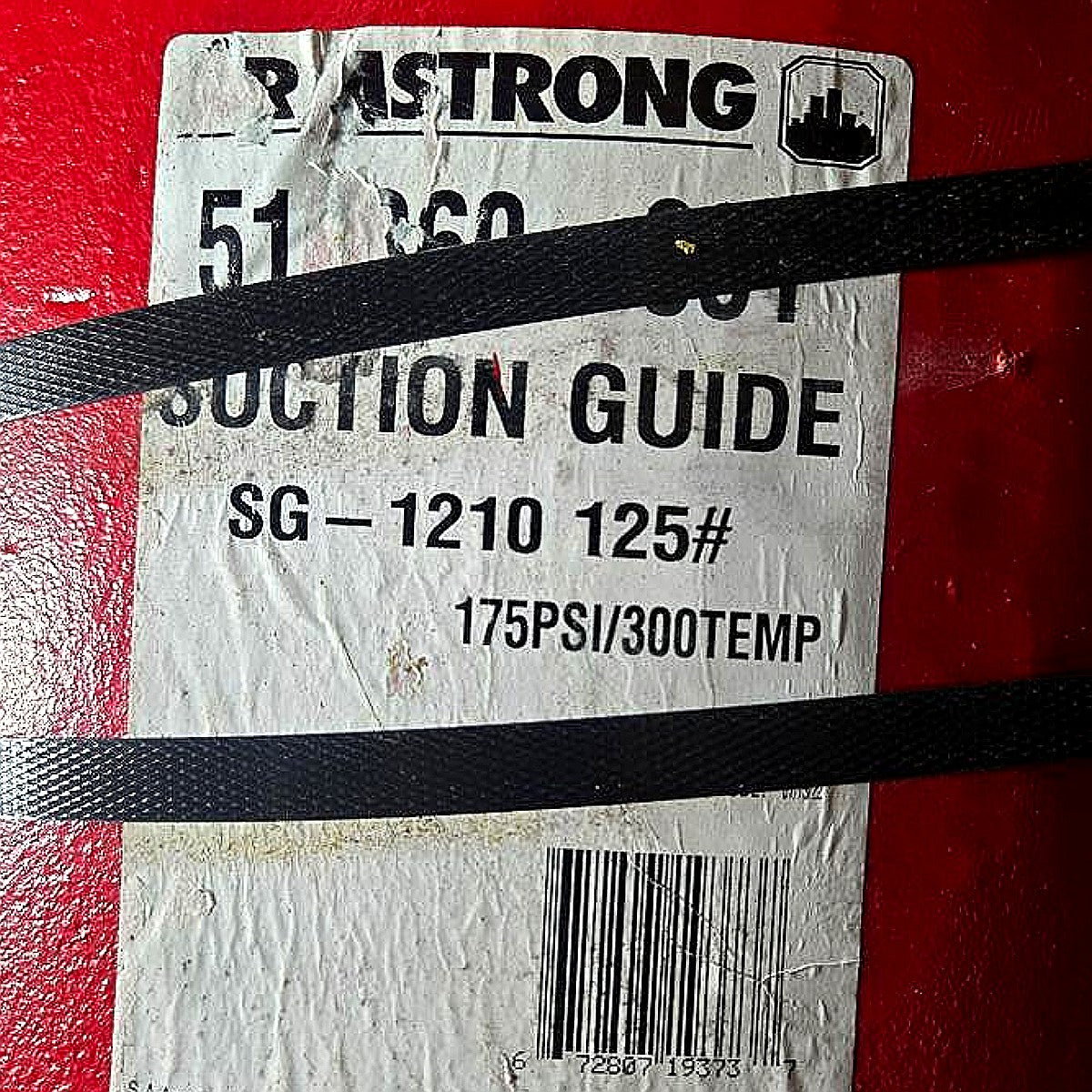

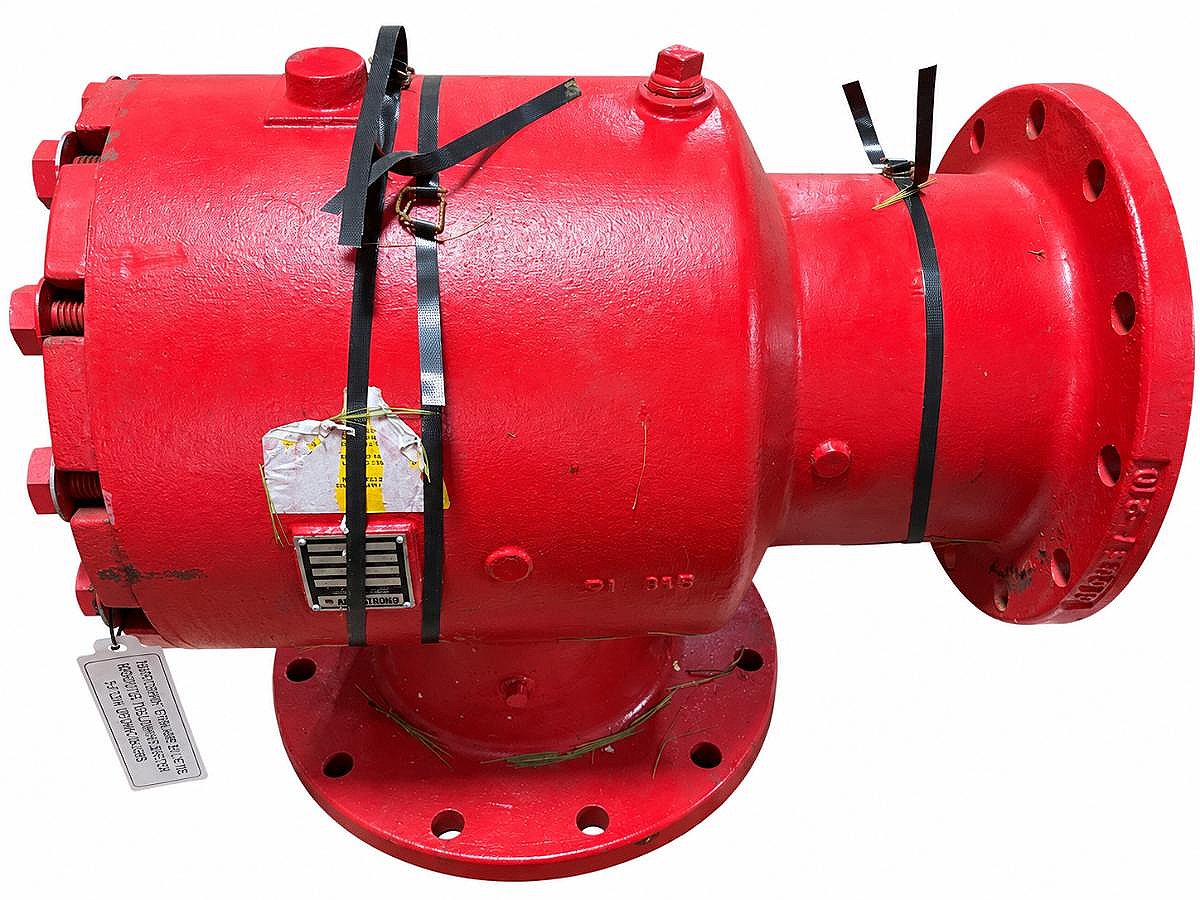

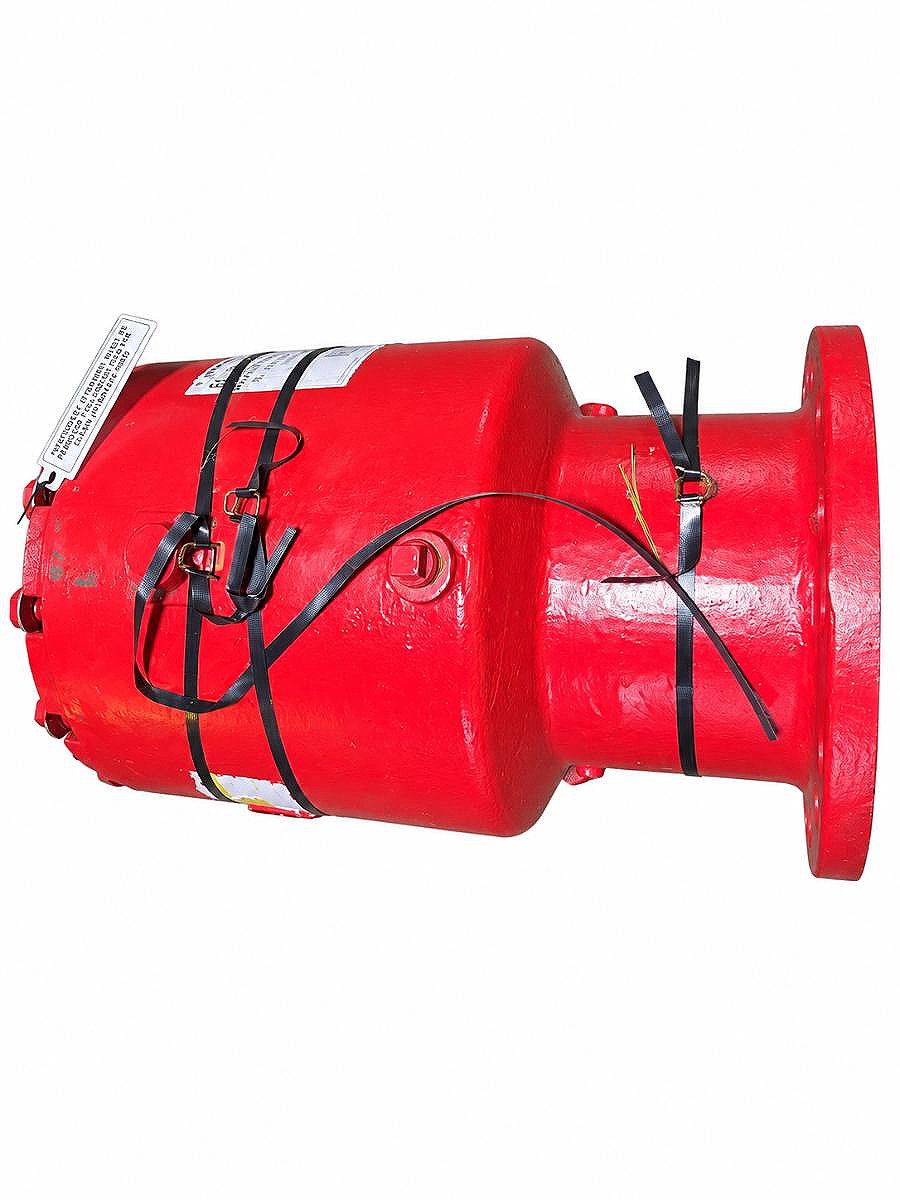

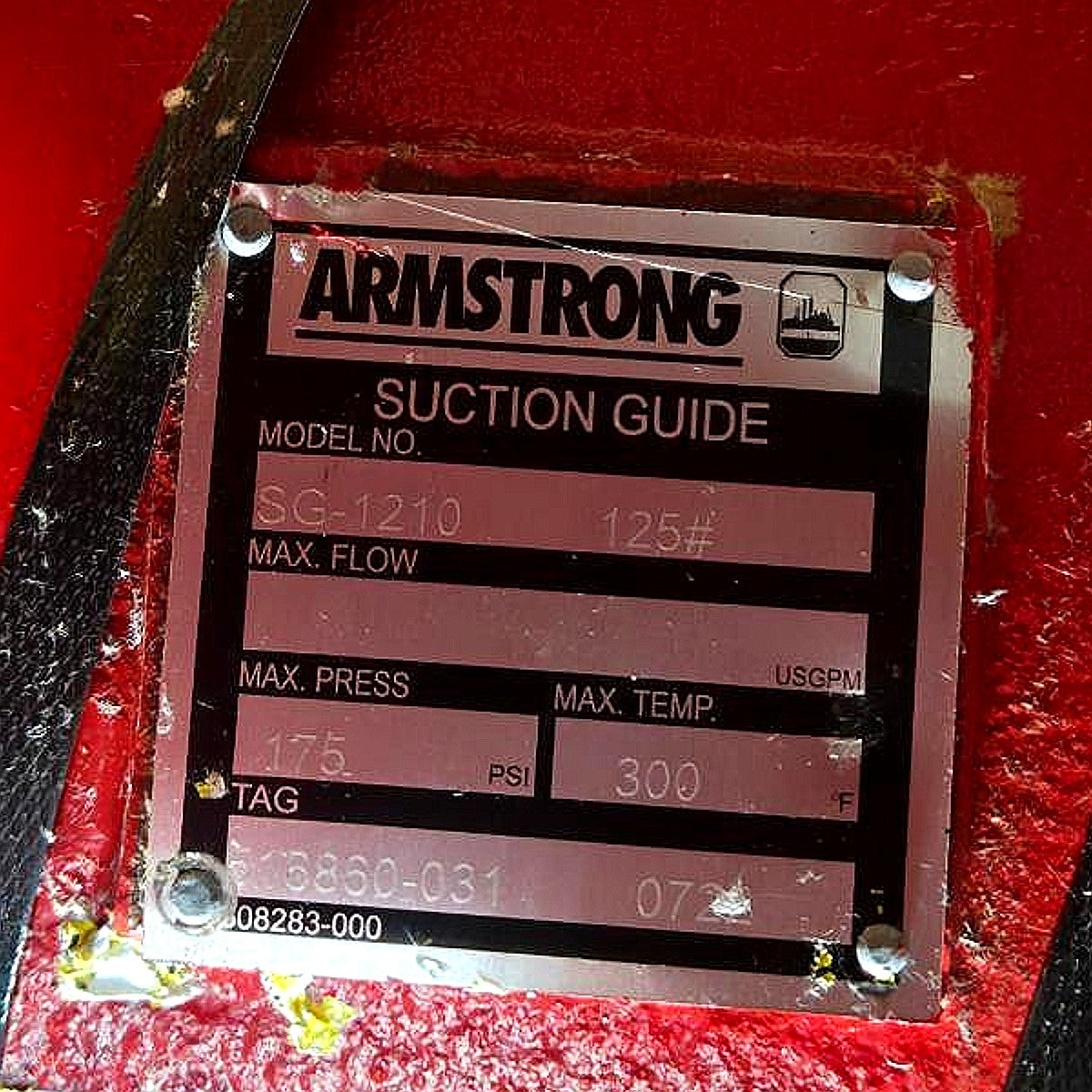

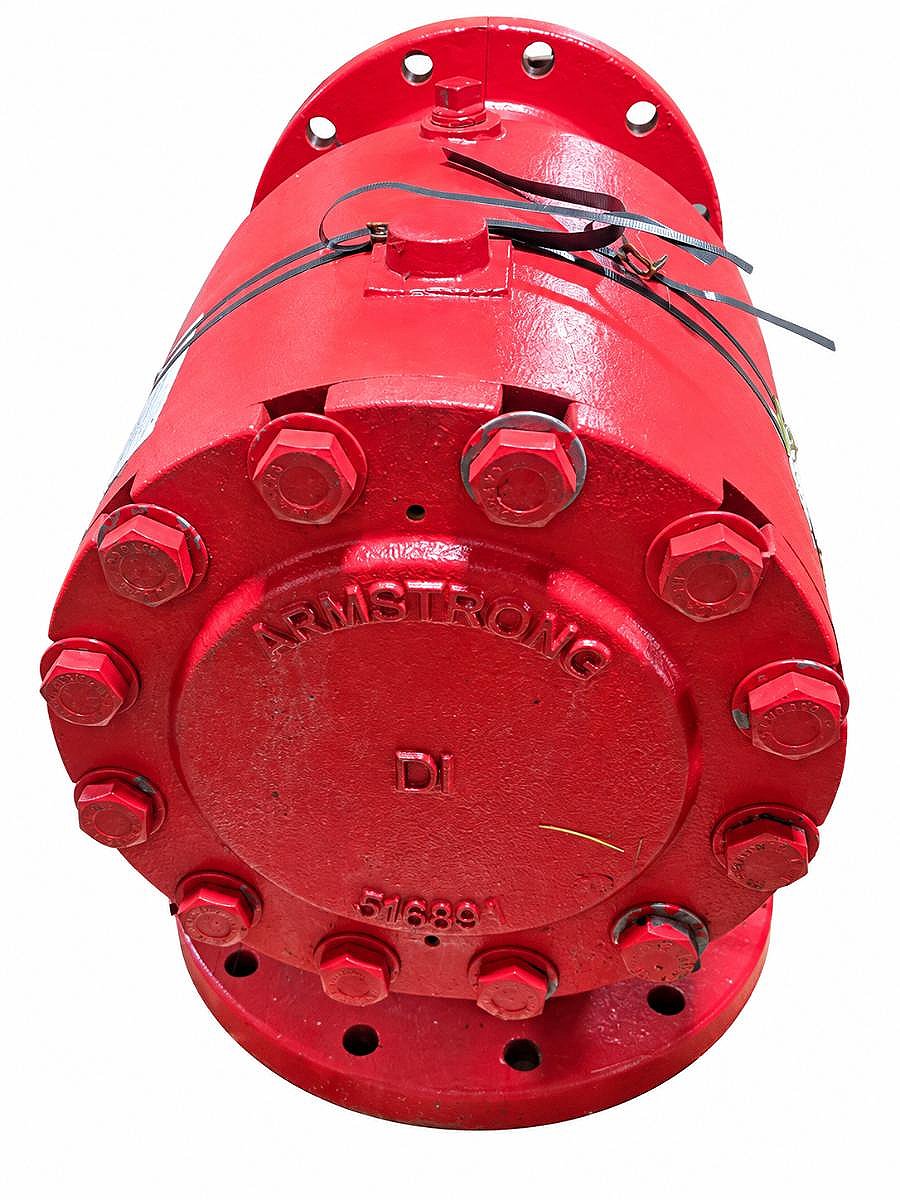

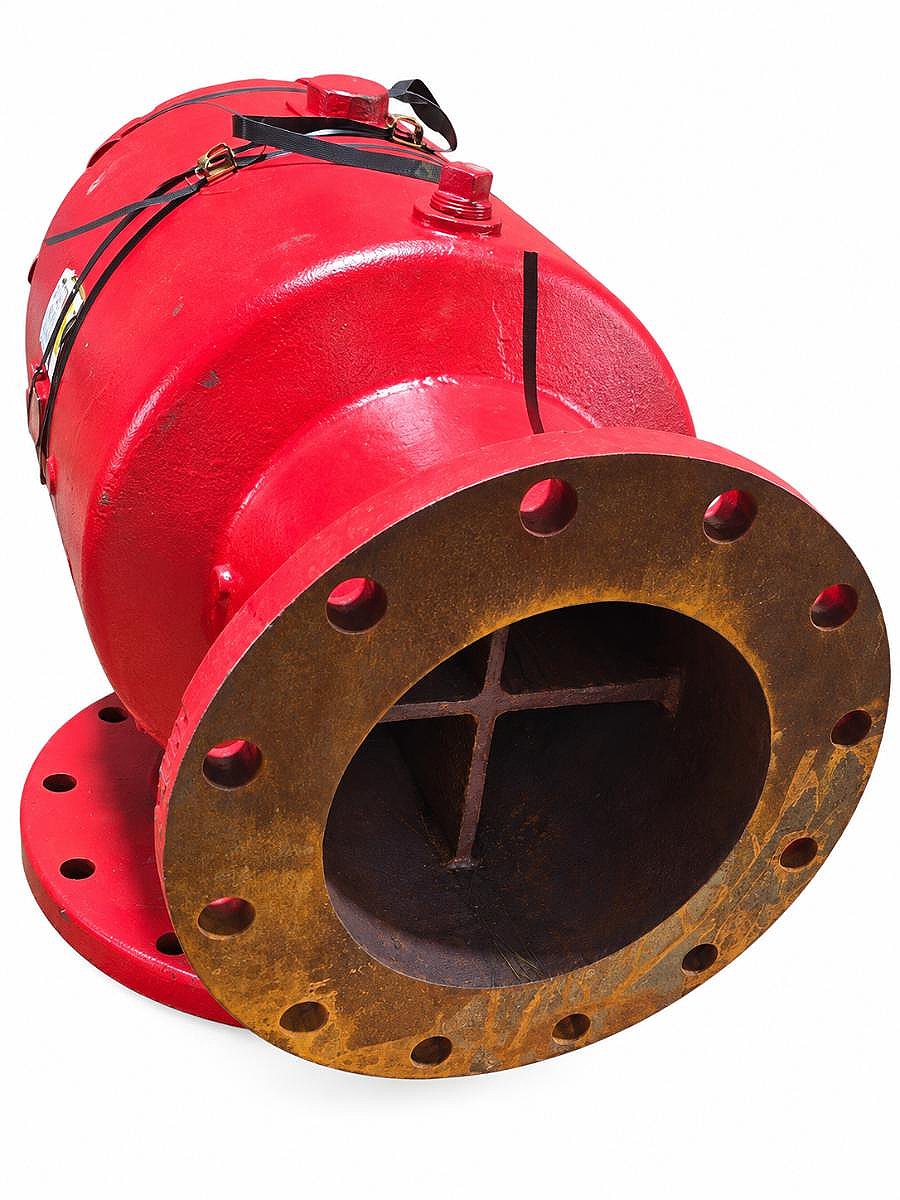

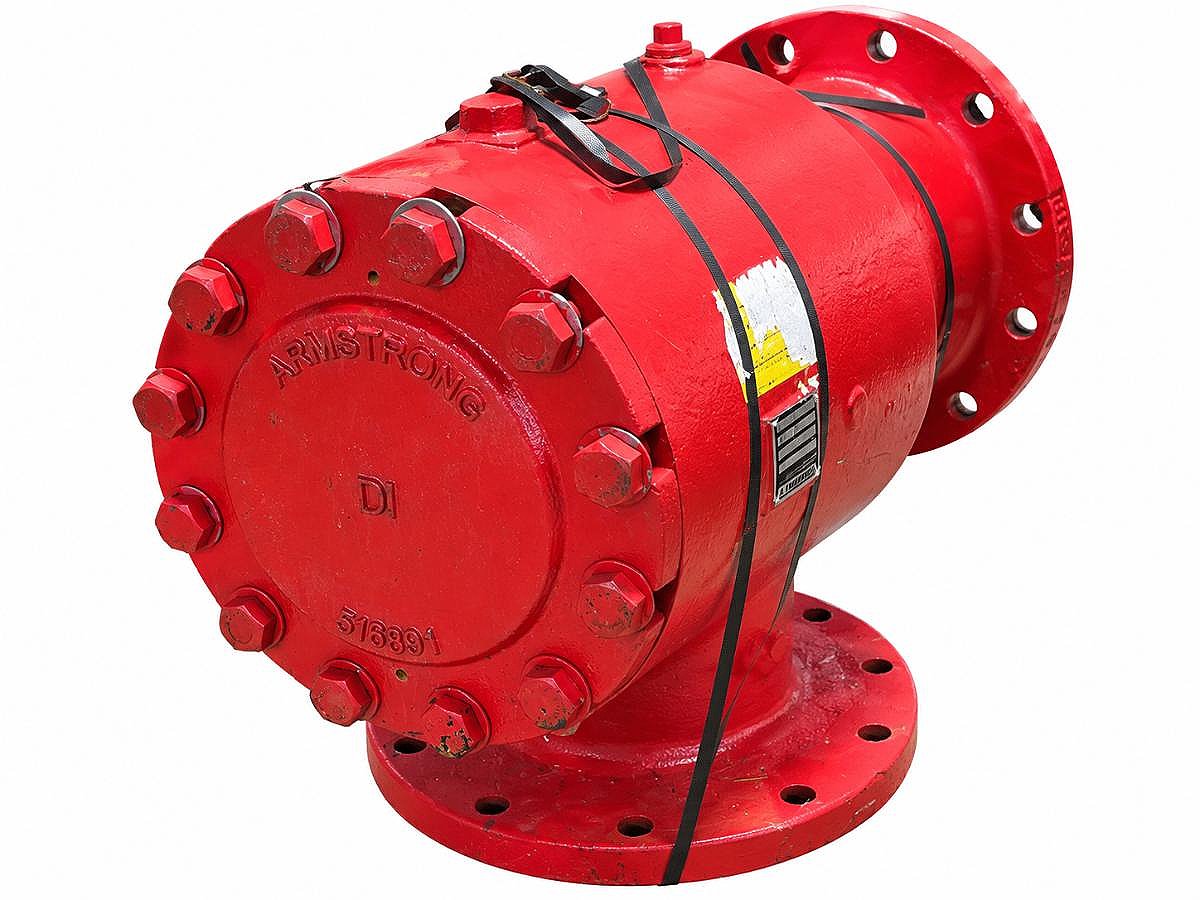

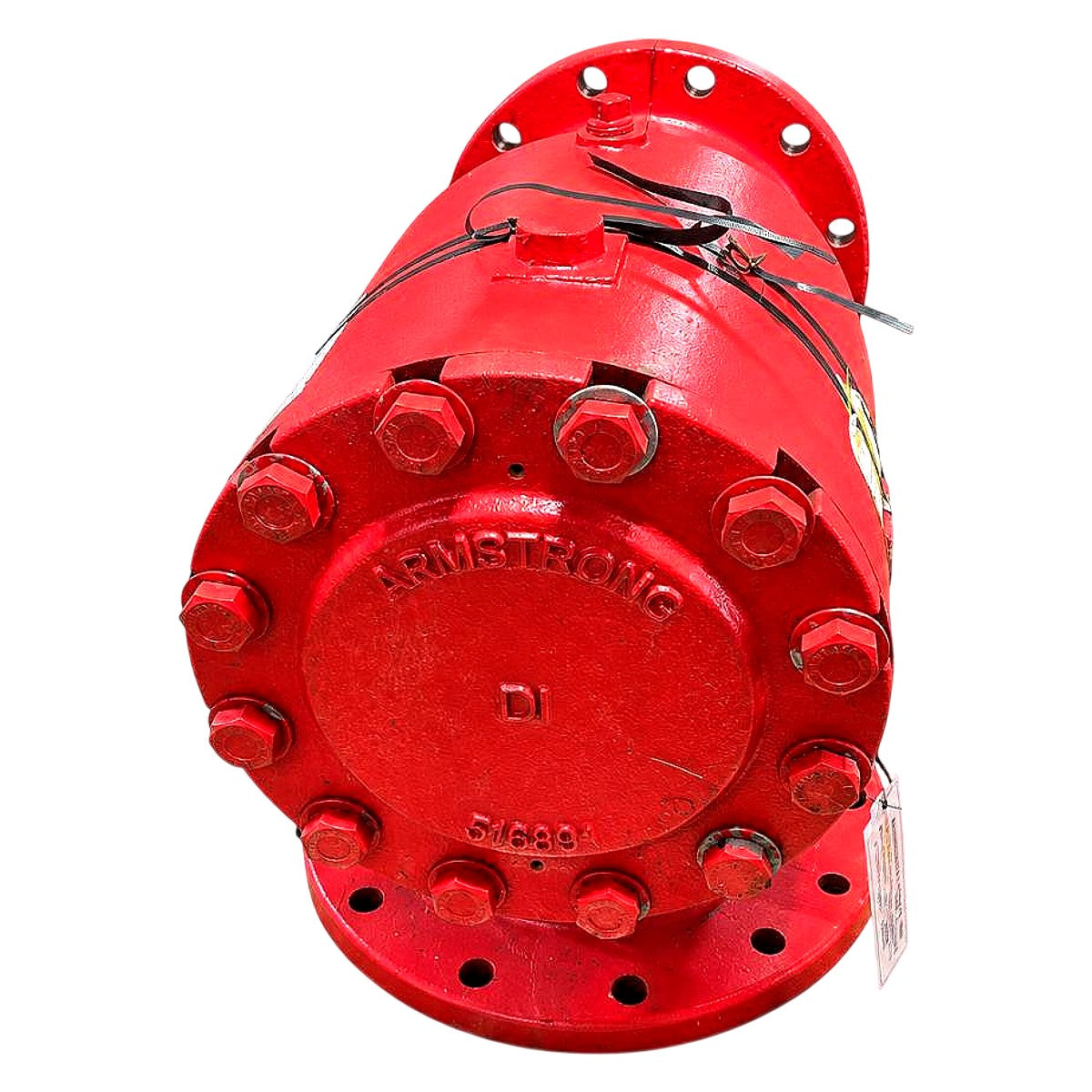

The Armstrong SG-1210 is a new, heavy-duty cast iron (DI — ductile iron body) flanged suction guide/suction diffuser designed for installation on the suction inlet of centrifugal pumps to provide uniform, turbulence-free flow into the pump eye. Model number SG-1210 decodes as: SG = Suction Guide, 12 = 12-inch nominal pipe size, 10 = 10-inch pump suction connection (reducer configuration); the 125# designation denotes ANSI Class 125 flanged end connections on both the pipe-side and pump-side flanges. Per the nameplate confirmed in photos, this unit is rated 175 PSI maximum working pressure and 300°F maximum fluid temperature, making it suitable for hot water heating, chilled water, and HVAC hydronic systems. The internal cross-brace strainer basket (visible in the open-flange photo) protects the pump from pipeline debris, while the top-mounted vent/gauge port and bottom drain connection provide full serviceability in-line; the unit mounts on an integral floor foot/support pad cast into the body.
Product Specifications
| Brand | Armstrong |
| Model Number | SG-1210 125# |
| Product Type | Suction Guide / Suction Diffuser |
| Pipe Side Connection Size | 12 in nominal |
| Pump Side Connection Size | 10 in nominal |
| Flange Class | ANSI 125# |
| Connection Type | Flanged (both ends) |
| Max Working Pressure | 175 PSI |
| Max Temperature | 300°F |
| Body Material | Ductile Iron (DI) |
| Finish / Coating | Red enamel paint |
| Internal Strainer | Yes — cross-brace type |
| Vent Port | Yes — top mounted |
| Drain Port | Yes — bottom mounted |
| Mounting Support | Integral floor foot / support pad |
| Condition | New |
| Tag / Serial | 516891 / 516860-031 |
