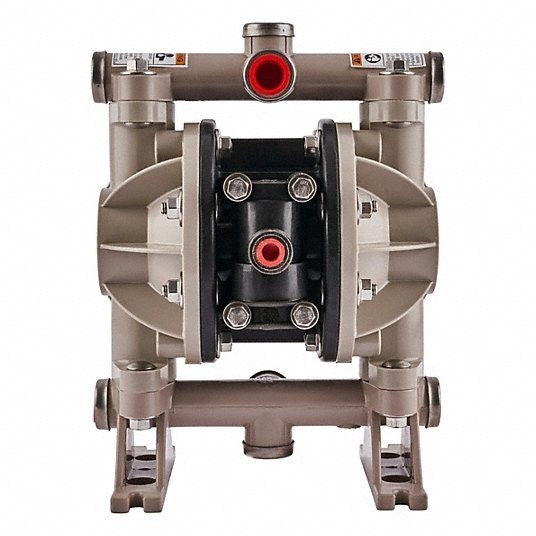

ARO 66605J-388 1/2" NPTF 13.1 GPM Air Polypropylene Bolt Double Diaphragm Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Overall Height | 11.3 in |
| Maximum Media Temperature | 150 °F |
| Flow Rate @ 50 psi | 10.2 GPM |
| Maximum Feet of Head | 289 ft |
| Power Source | Pneumatic |
| Flow Rate @ 80 psi | 12.6 GPM |
| Maximum Flow Rate | 13.1 GPM |
| MPN | 66605J-388 |
| Max Viscosity | 15,000 cps |
| NPSHr | 27.5 ft of head |
| Diaphragm Pump Type | Double Diaphragm Pump |
| Valve Material | Polyurethane |
| Media Discharge Location | Center; Side; Top |
| Unit Type | Unit |
| Air Consumption | 20 SCFM |
| Air Inlet | 1/4 in NPT |
| Inlet Diameter | 1/2 in |
| Overall Width | 6.5 in |
| Check Seat Material | Polypropylene |
| Unit Quantity | 1 |
| Series Family | Compact |
| Nameplate Voltage | N |
| Center Section Materia | Plastic |
| Max Solid Dia | 0.09 in |
| Rated Air Pressure | 100 PSI |
| Media Intake Location | Bottom; Center; Side |
| Flow Rate @ 100 psi | 13.1 GPM |
| Outlet Diameter | 1/2 in |
| Flow Rate @ 40 psi | 9.2 GPM |
| Diaphragm Material | Polyurethane |
| Manifold Connection | Multiport |
| Chemical Compatibility | Antifreeze; Diesel Exhaust Fluid; Oil-Based Paint; Oils; Water |
| Priming | Self-Priming |
| Overall Length | 8.4 in |
| Flow Rate @ 90 psi | 12.9 GPM |
| Pump Assembly Type | Bolt |
| Flow Rate @ 60 psi | 11.1 GPM |
| Brand | ARO |
| Body Material | Polypropylene |
| Minimum Media Temperature | -10 °F |
| Valve Type | Ball |
| Flow Rate @ 70 psi | 12.1 GPM |
| Maximum Pressure | 100 PSI |
| Country of Origin | China |
