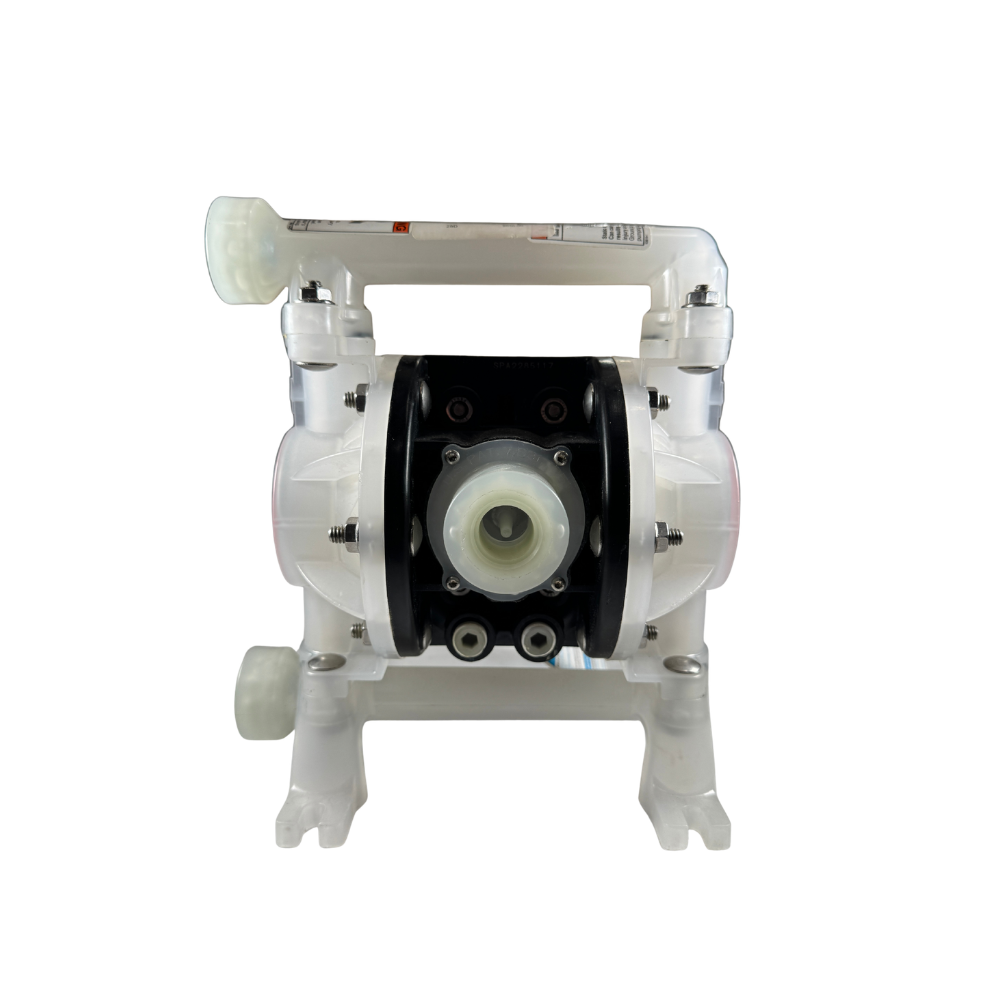

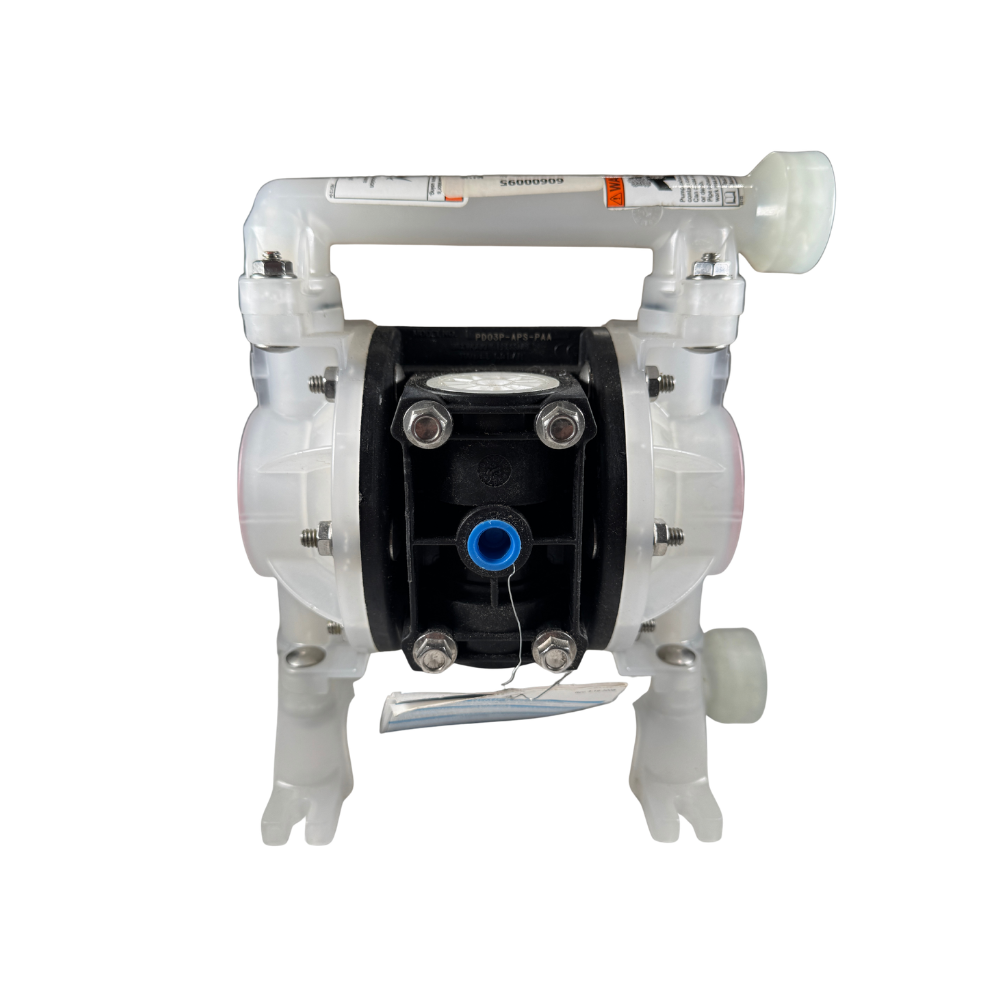

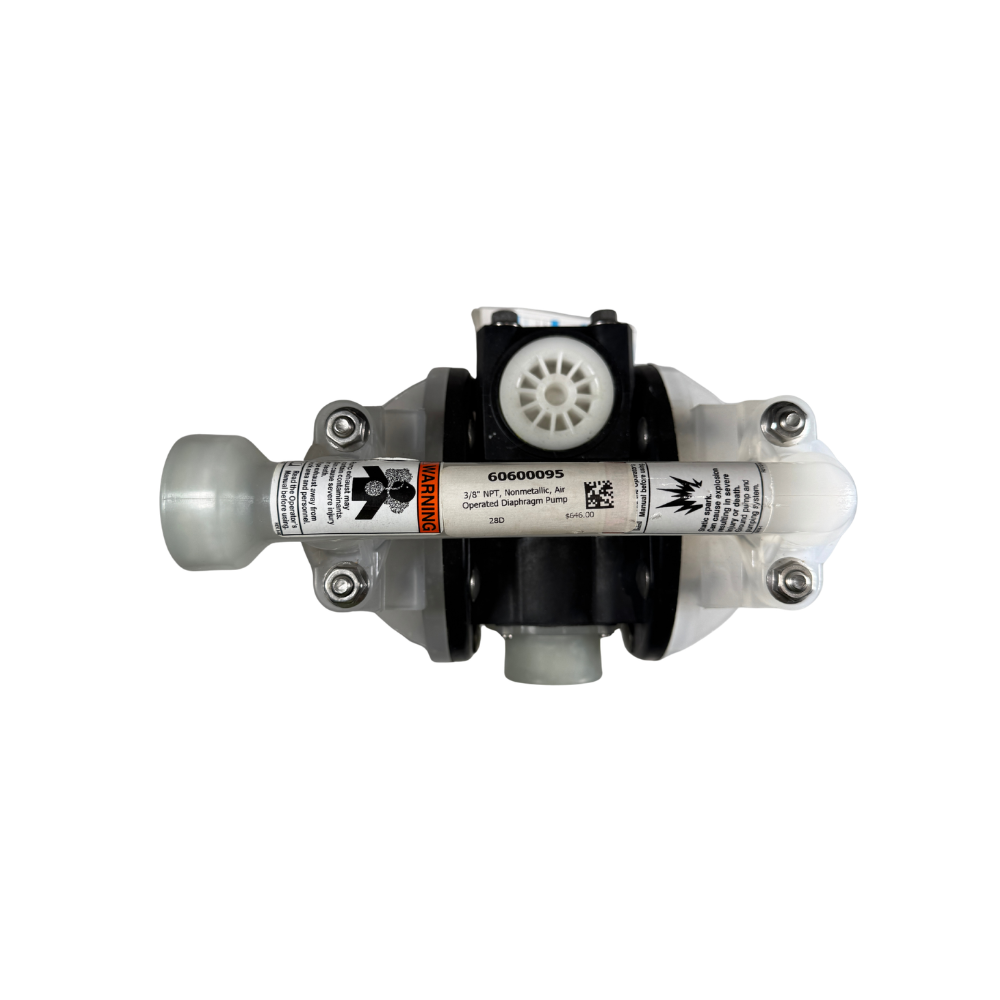

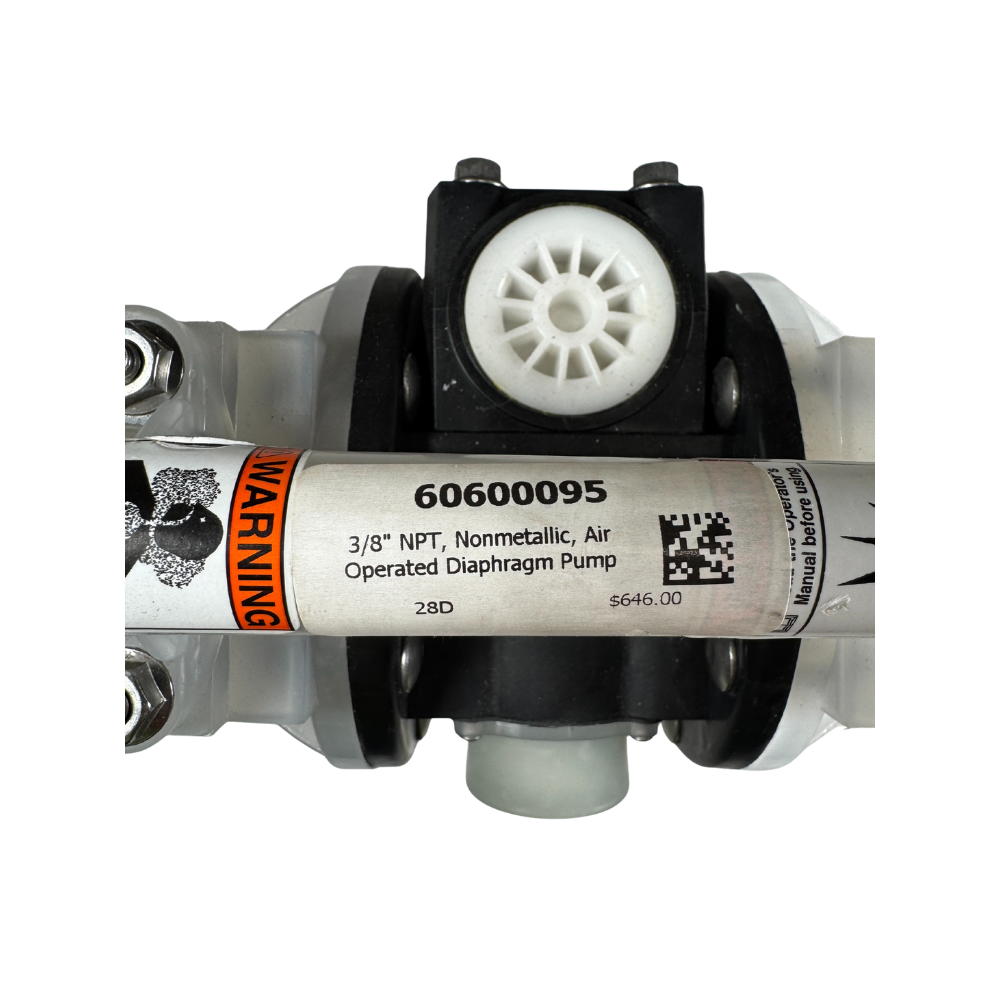

ARO Ingersoll Rand PD03P-APS-PAA 3/8" NPT 11 GPM Air Double Diaphragm Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Fluid Discharge Connection | 3/8 in NPTF |
| Flow Rate @ 50 psi | 9 gpm |
| Power Source | Pneumatic |
| Housing Material | Polypropylene |
| Max. Solid Dia | 0.06 in |
| Flow Rate @ 80 psi | 10.5 gpm |
| Maximum Flow Rate | 11 GPM |
| MPN | PD03P-APS-PAA |
| NPSHr | 35 ft of head |
| Diaphragm Pump Type | Double Diaphragm Pump |
| Min. Media Temperature | -40 °F |
| Valve Material | Santoprene |
| Media Discharge Location | Side |
| Unit Type | Unit |
| Air Consumption | 18 scfm |
| Air Inlet | 1/4 in NPT |
| Overall Width | 5.7 in |
| Inlet Diameter | 1/4 in |
| Check Seat Material | Polypropylene |
| Unit Quantity | 1 |
| Series Family | Compact |
| Nameplate Voltage | N |
| For Use With Potable Systems | Yes |
| Rated Air Pressure | 100 PSI |
| Max. Media Temperature | 225 °F |
| Max. Feet of Head | 230 ft |
| Flow Rate @ 40 psi | 8 gpm |
| Diaphragm Material | Santoprene |
| Manifold Connection | Single Port |
| Priming | Self-Priming |
| Overall Length | 7.9 in |
| Pump Assembly Type | Bolt |
| Mounting Hardware Material | Stainless Steel |
| Flow Rate @ 60 psi | 9.5 gpm |
| Brand | ARO Ingersoll Rand |
| Series | PD03P |
| Body Material | Polypropylene |
| Fluid Intake Connection | 3/8 in NPT |
| Max. Flow Rate | 11 gpm |
| Flow Rate @ 70 psi | 10 gpm |
| Maximum Pressure | 100 psi |
| Country of Origin | United States |
| Max. Discharge Pressure | 100 PSI |
| Max. Viscosity | 500 cps |
