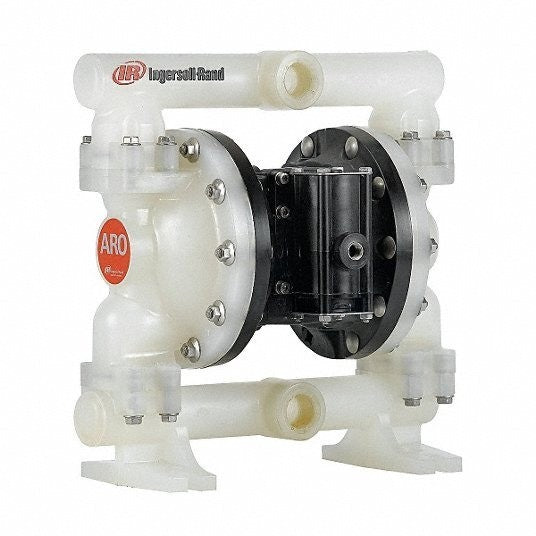

ARO PD10P-APS-PAA 1" NPTF 51.5 GPM Polypropylene Bolt Double Diaphragm Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Overall Height | 14.8 in |
| Fluid Discharge Connection | 1 in NPTF |
| Flow Rate @ 50 psi | 31.5 rpm |
| Power Source | Pneumatic |
| Flow Rate @ 80 psi | 45.75 gpm |
| Maximum Flow Rate | 51.5 GPM |
| MPN | PD10P-APS-PAA |
| Center Section Material | Plastic |
| Max Viscosity | 40,000 cps |
| NPSHr | 38 ft of head |
| Diaphragm Pump Type | Double Diaphragm Pump |
| Valve Material | Santoprene |
| Flow Rate @ 120 psi | 51.5 gpm |
| Media Discharge Location | Center; Side |
| Unit Type | Unit |
| Air Consumption | 50 scam |
| Inlet Diameter | 1/4 in |
| Overall Width | 11 in |
| Check Seat Material | Polypropylene |
| Unit Quantity | 1 |
| Min Media Temperature | -40 °F |
| Nameplate Voltage | N |
| Max Solid Dia | 0.13 in |
| Rated Air Pressure | 120 psi |
| For Use With Potable Systems | Yes |
| Media Intake Location | Center |
| Flow Rate @ 100 psi | 50.5 gpm |
| Max. Feet of Head | 289 ft |
| Flow Rate @ 40 psi | 22 gpm |
| Diaphragm Material | Santoprene |
| Manifold Connection | Single Port |
| Priming | Self-Priming |
| Overall Length | 14.2 in |
| Pump Assembly Type | Bolt |
| Max Media Temperature | 225 °F |
| Mounting Hardware Material | Stainless Steel |
| Flow Rate @ 60 psi | 37.2 gpm |
| Brand | ARO |
| Series | PX10P |
| Body Material | Polypropylene |
| Fluid Intake Connection | 1 in NPTF |
| Valve Type | Ball |
| Flow Rate @ 70 psi | 41 gpm |
| Maximum Pressure | 120 PSI |
| Country of Origin | United States |
