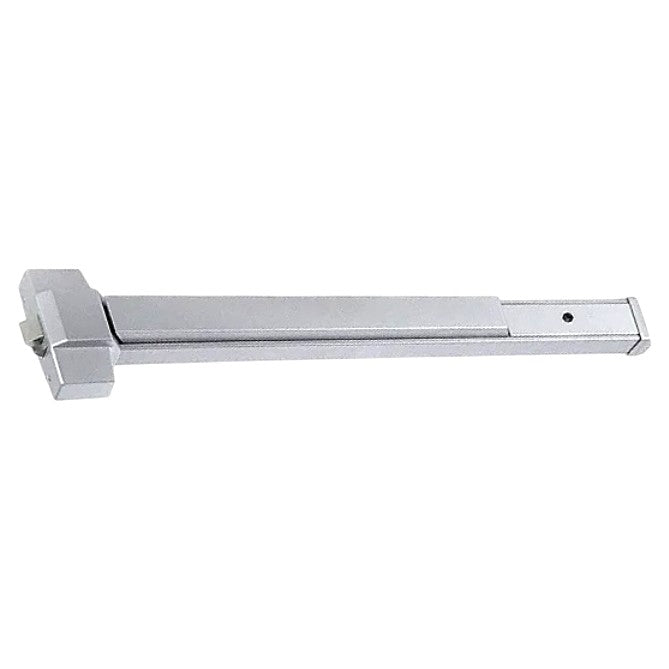

Arrow ED910-36 630 36in Satin Stainless Steel Rim Exit Device
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

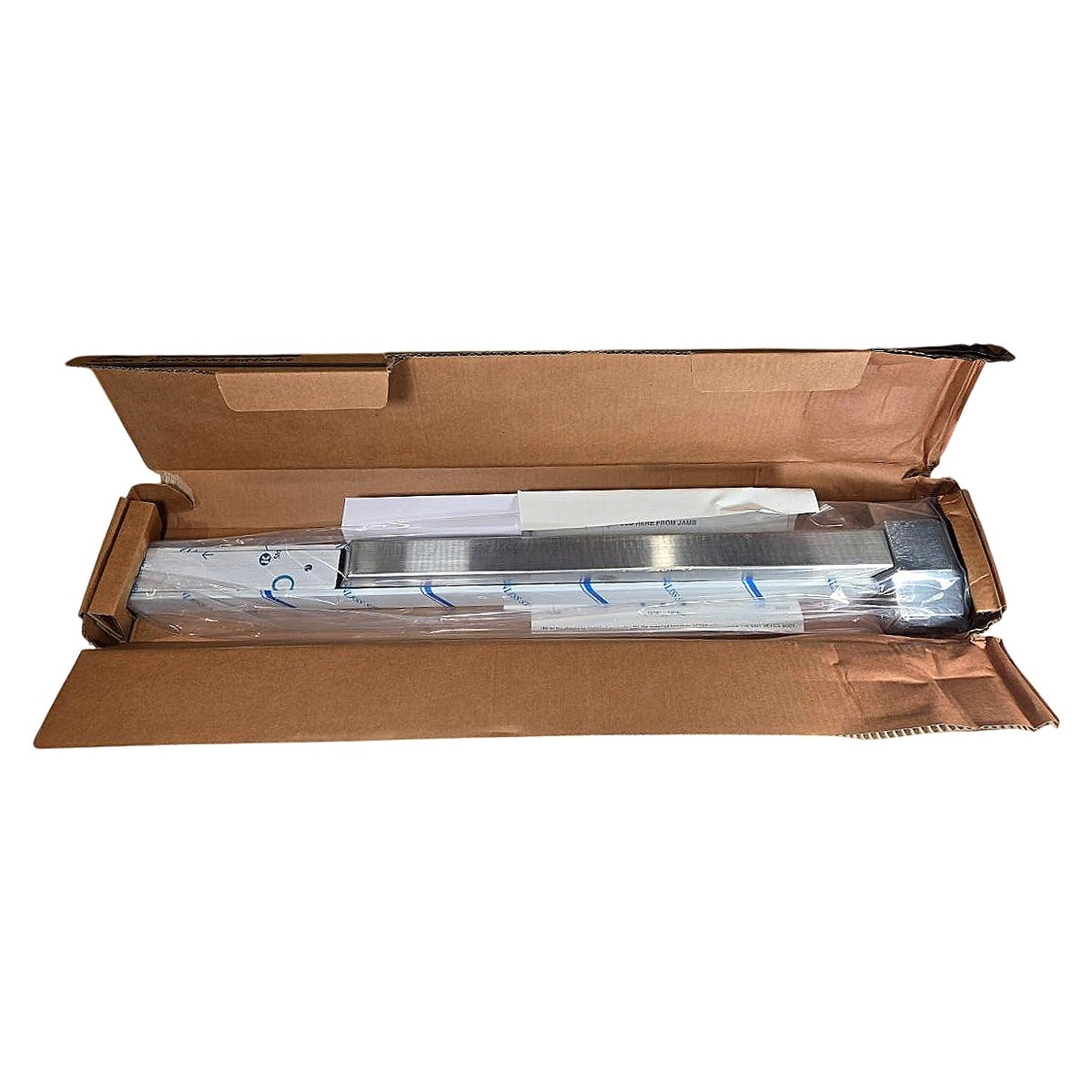

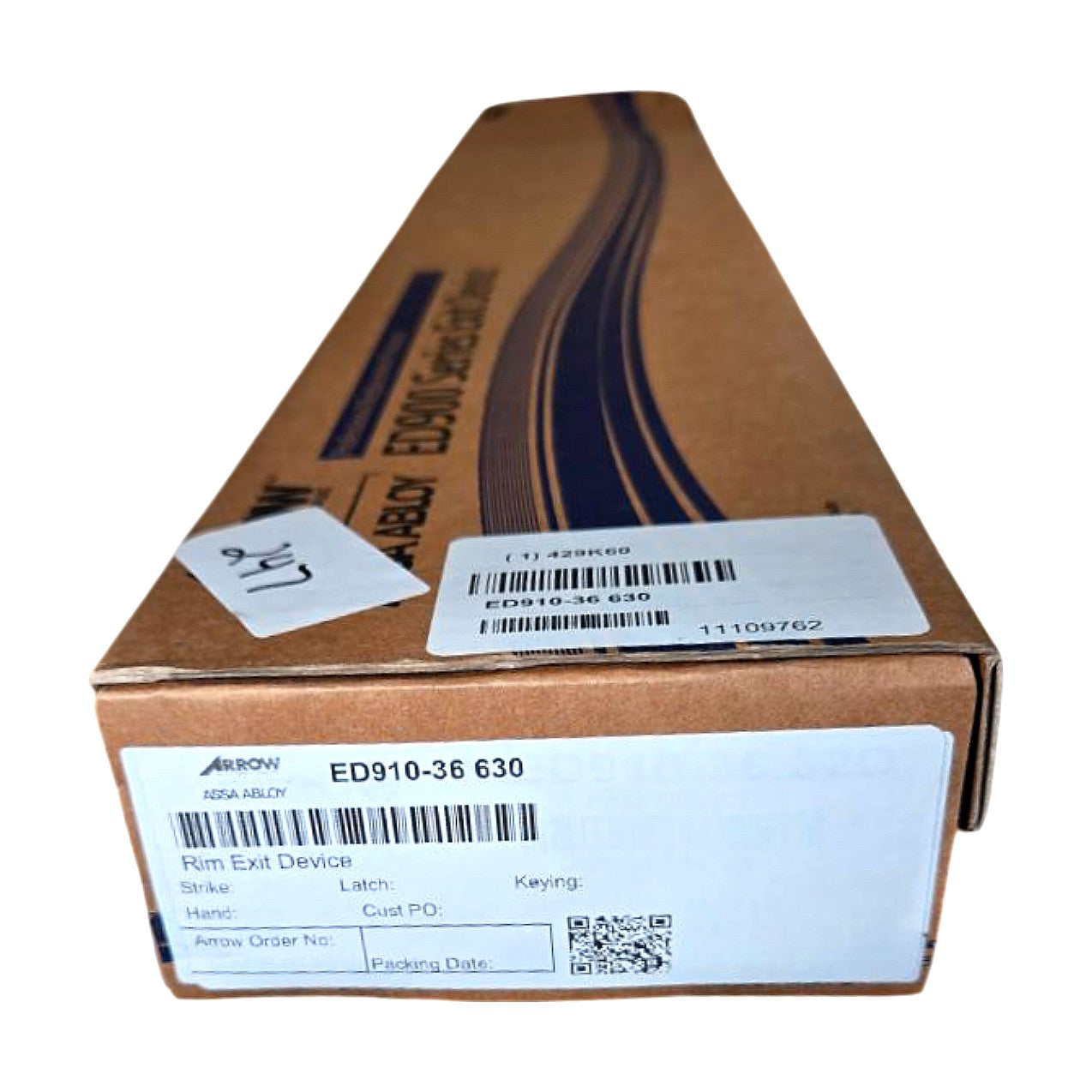

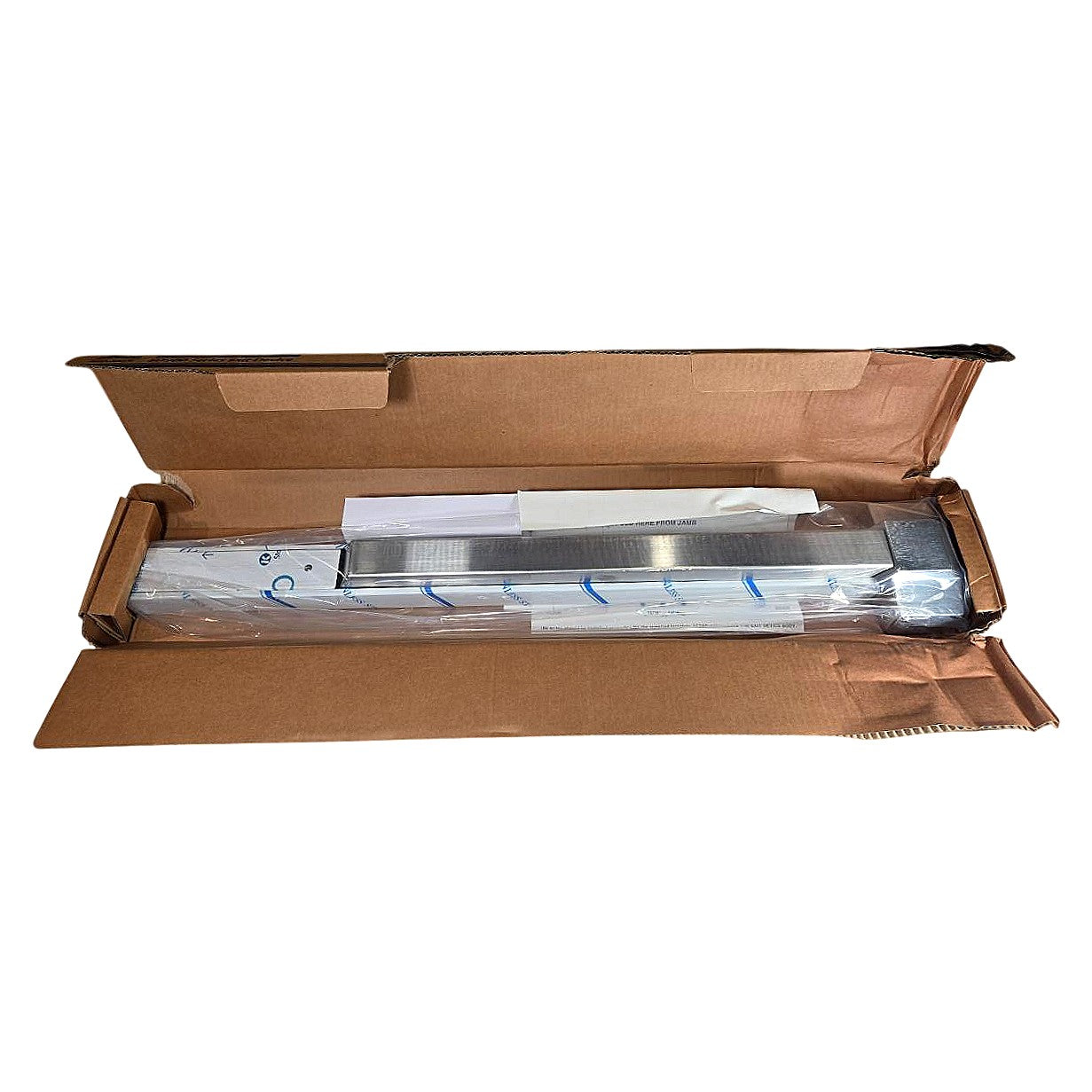

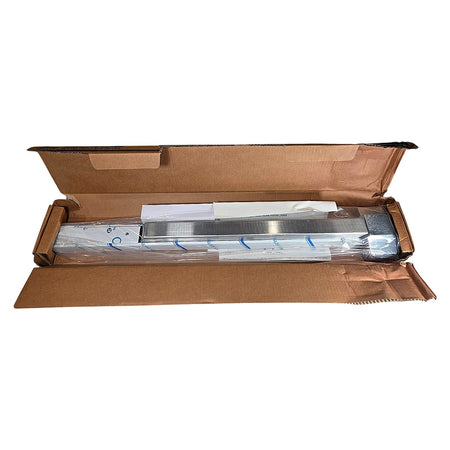

The Arrow ED910-36 630 is a new rim-mount panic exit device from Arrow (ASSA ABLOY), designed for single doors up to 36 inches wide in commercial and institutional applications requiring UL/ANSI-compliant egress hardware. The ED900 Series uses a crossbar-style touch pad that actuates a rim latch bolt upon horizontal push force, providing single-motion egress per NFPA 101 Life Safety Code and IBC requirements. Finish code 630 designates Satin Stainless Steel (equivalent to US32D / 32D), offering excellent corrosion resistance for high-traffic or humid environments. The device mounts to the face of the door without through-bolt mortising, simplifying installation on hollow metal or wood doors; a compatible strike is field-selected based on frame type. Sold new in original Arrow/ASSA ABLOY packaging with installation hardware and instructions included.
Product Specifications
| Brand | Arrow (ASSA ABLOY) |
| MPN | ED910-36 630 |
| Series | ED900 |
| Device Type | Rim Exit Device |
| Max Door Width | 36 in |
| Finish | 630 Satin Stainless Steel (US32D) |
| Material | Stainless Steel |
| Latch Type | Rim Latch Bolt |
| Mounting Type | Rim Mount (surface-mounted) |
| Door Type Compatibility | Hollow Metal, Wood |
| Egress Compliance | ANSI/BHMA, NFPA 101, IBC |
| Condition | New |
